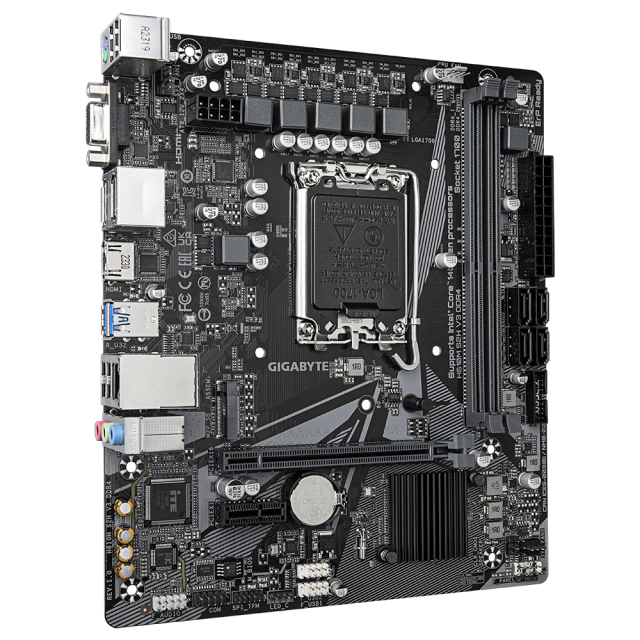

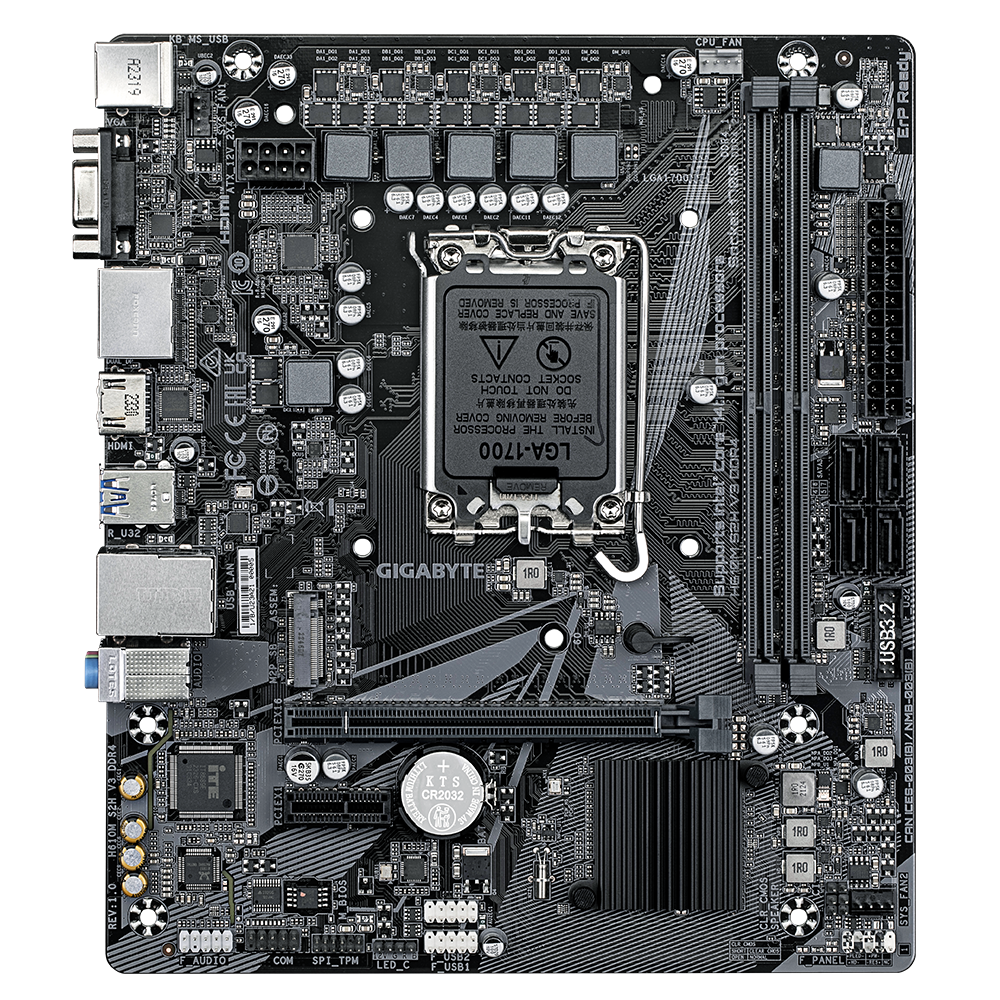

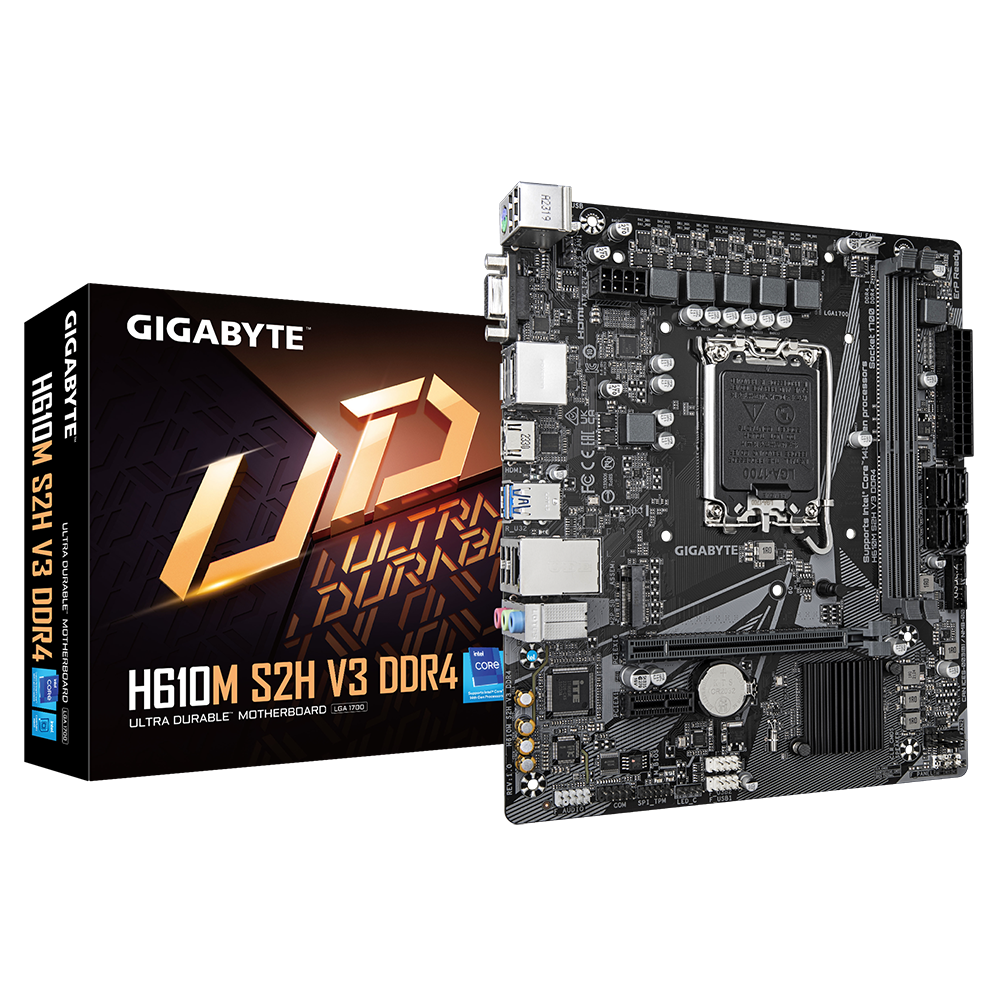

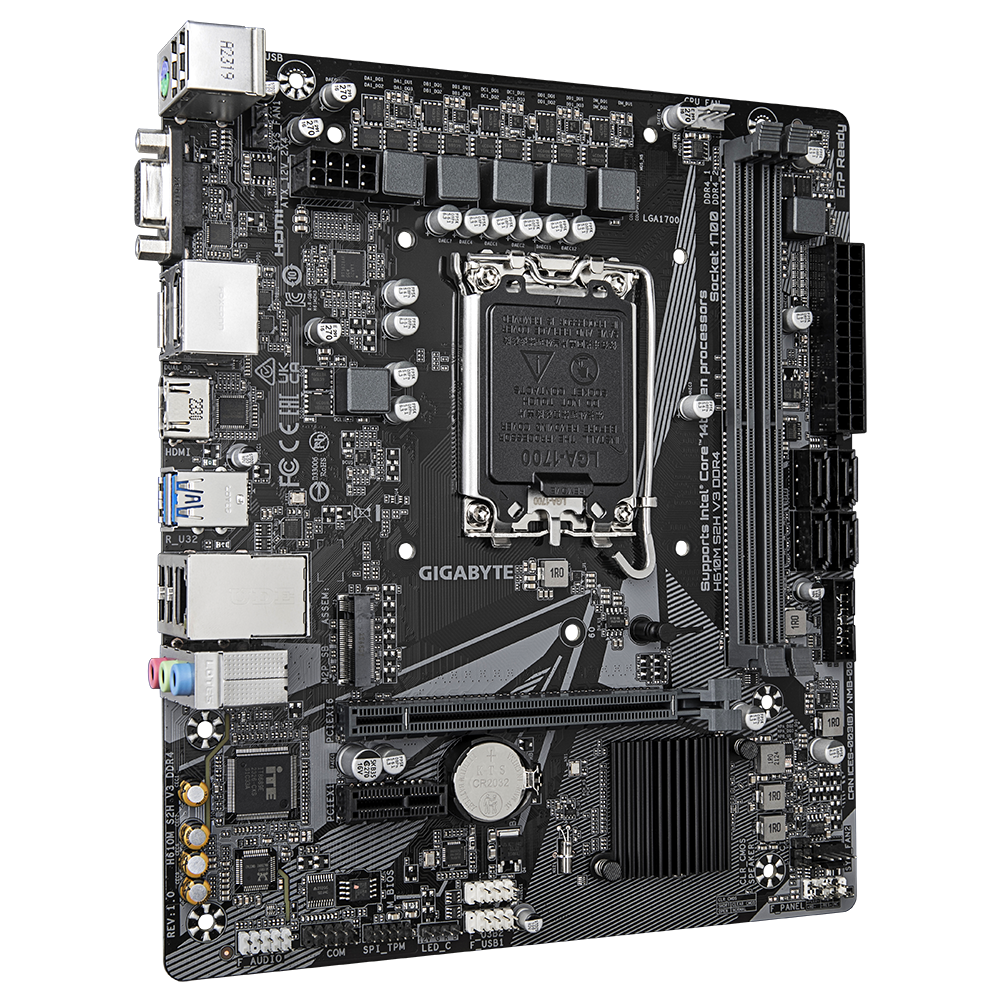

Дънна платка GIGABYTE H610M-S2H V3 DDR4, LGA1700, 1x M.2, 4 x SATA 6Gb/s, VGA, HDMI, 2x DP, Micro ATX
Дънна платка GIGABYTE H610M-S2H V3 DDR4, LGA1700, 1x M.2, 4 x SATA 6Gb/s, VGA, HDMI, 2x DP, Micro ATX
Дънна платка GIGABYTE H610M-S2H V3 DDR4, LGA1700, 1x M.2, 4 x SATA 6Gb/s, VGA, HDMI, 2x DP, Micro ATX
Дънна платка GIGABYTE H610M-S2H V3 DDR4, LGA1700, 1x M.2, 4 x SATA 6Gb/s, VGA, HDMI, 2x DP, Micro ATX
Дънна платка GIGABYTE H610M-S2H V3 DDR4, LGA1700, 1x M.2, 4 x SATA 6Gb/s, VGA, HDMI, 2x DP, Micro ATX

Дънна платка GIGABYTE H610M-S2H V3 DDR4, LGA1700, 1x M.2, 4 x SATA 6Gb/s, VGA, HDMI, 2x DP, Micro ATX

SKU: H610M-S2H V3
ID: #38959
Цена: 166,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
CPU Socket: Intel LGA1700
Чипсет: Intel H610
Максимален капацитет RAM памет: 64 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 2
Поддържана памет: DDR4
M.2 слот: 1 x M.2 slots / 4 x SATA 6Gb/s
Graphics технология: Няма
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Не
HDMI: 1
DisplayPort: 2
VGA: 1
Форм фактор: Micro ATX

Бърза Поръчка

Описание

  • CPU
    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    Intel® H610 Express Chipset
  • Memory
    Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.


    - 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3


    (Graphics specifications may vary depending on CPU support.)
    Support for up to triple-display at the same time
  • Audio
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN
    Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps
  • Expansion Slots
    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
    - 4 x SATA 6Gb/s connectors
  • USB
    Chipset:
    - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    - 4 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x RGB LED strip header
    1 x front panel header
    1 x front panel audio header
    1 x speaker header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x Clear CMOS jumper
    1 x chassis intrusion header

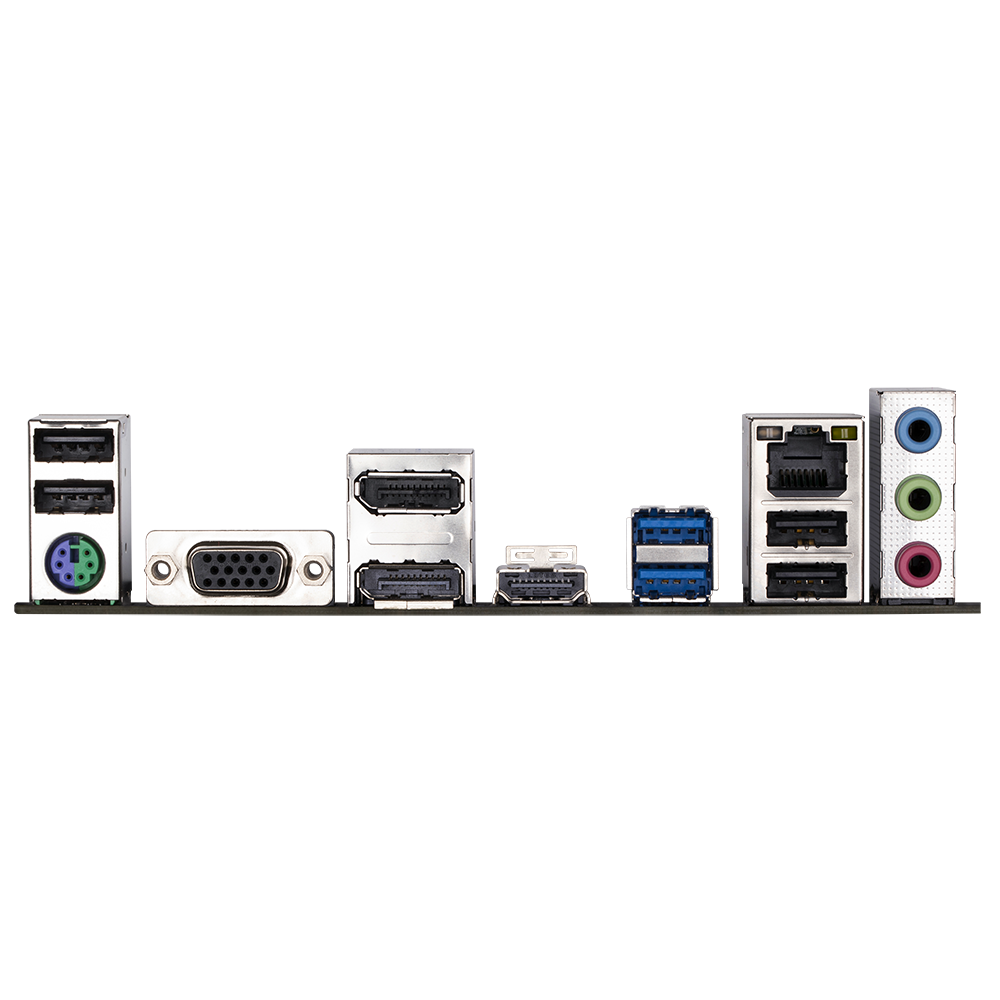

  • Back Panel Connectors
    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    2 x DisplayPorts
    1 x HDMI port
    2 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
  • I/O Controller
    iTE® I/O Controller Chip
  • H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS
    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    Support for APP Center

    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    - @BIOS
    - EasyTune
    - Smart Backup
    - System Information Viewer
    Support for Q-Flash
  • Bundled Software
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor
    Micro ATX Form Factor; 22.3cm x 19.3cm
