Дънна платка ASUS PRIME H810M-A WIFI, LGA1851, 2x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, Bluetooth v5.3, HDMI, DP, micro ATX
Дънна платка ASUS PRIME H810M-A WIFI, LGA1851, 2x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, Bluetooth v5.3, HDMI, DP, micro ATX
Дънна платка ASUS PRIME H810M-A WIFI, LGA1851, 2x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, Bluetooth v5.3, HDMI, DP, micro ATX
Дънна платка ASUS PRIME H810M-A WIFI, LGA1851, 2x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, Bluetooth v5.3, HDMI, DP, micro ATX
Дънна платка ASUS PRIME H810M-A WIFI, LGA1851, 2x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, Bluetooth v5.3, HDMI, DP, micro ATX
Дънна платка ASUS PRIME H810M-A WIFI, LGA1851, 2x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, Bluetooth v5.3, HDMI, DP, micro ATX
Дънна платка ASUS PRIME H810M-A WIFI, LGA1851, 2x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, Bluetooth v5.3, HDMI, DP, micro ATX

Дънна платка ASUS PRIME H810M-A WIFI, LGA1851, 2x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, Bluetooth v5.3, HDMI, DP, micro ATX

SKU: PRIME H810M-A WIFI / 90MB1KJ0-M0EAY0
ID: #43856
Наличен
Цена: 278,00 лв.
142,14 €
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel Core Ultra Processors (Series 2)
CPU Socket: Intel LGA1851
Чипсет: Intel H810
Максимален капацитет RAM памет: 128 GB
Памет, слотове: 2
Поддържана памет: DDR5
Честота памет: 6400 (OC) MT/s
M.2 слот: 2 x M.2 slots / 4 x SATA 6Gb/s ports
Graphics технология: Няма
Вграден Bluetooth: Bluetooth V5.3
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Да
Безжична мрежа: 802.11ax (Wi-Fi 6)
HDMI: 1
DisplayPort: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

CPU
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H810 Chipset
Memory
2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel® H810 Chipset
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H810 Chipset
M.2_1 slot (Key M), type 2280  (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel® 1Gb Ethernet port*
ASUS LANGuard
*With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
Wireless & Bluetooth
Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (supports USB Type-C®)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

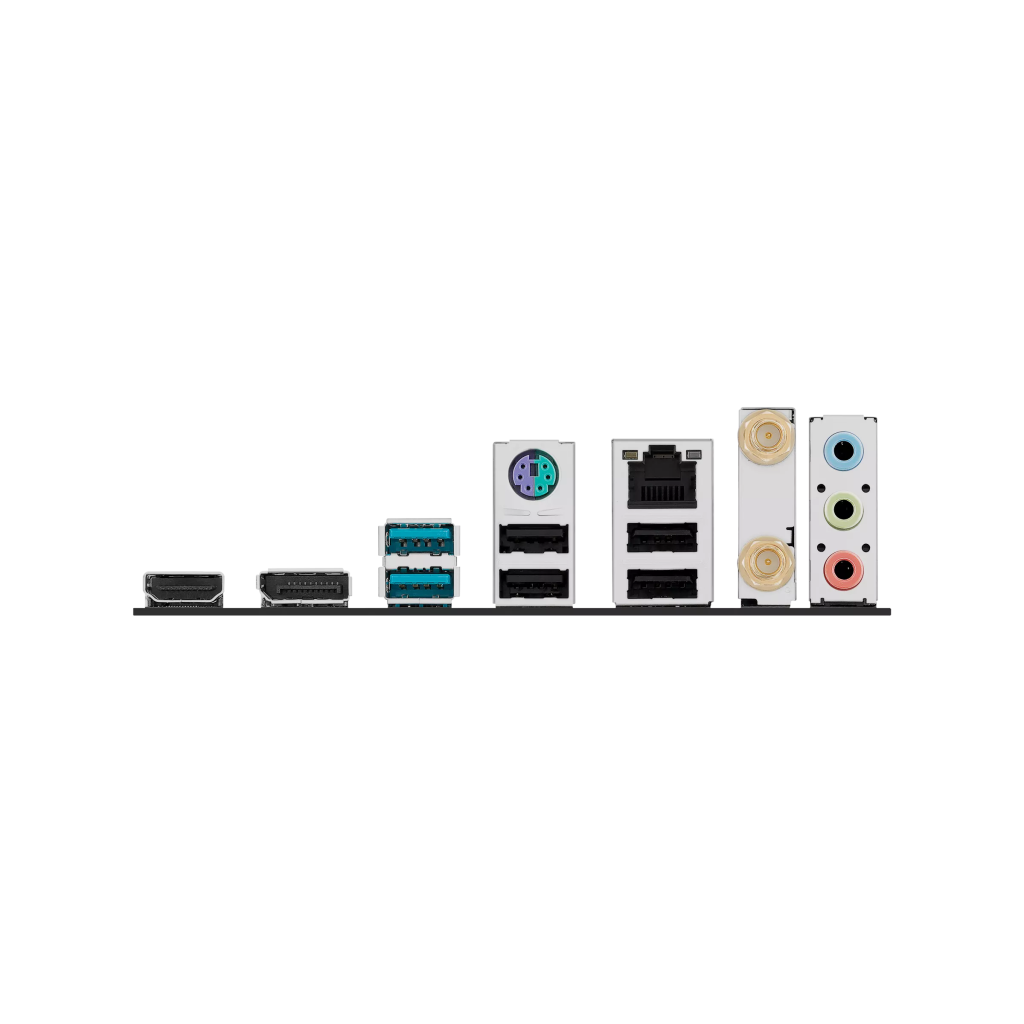

Back Panel I/O Ports
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
Form Factor
micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)



https://www.asus.com/motherboards-components/motherboards/prime/prime-h810m-a-wifi/
