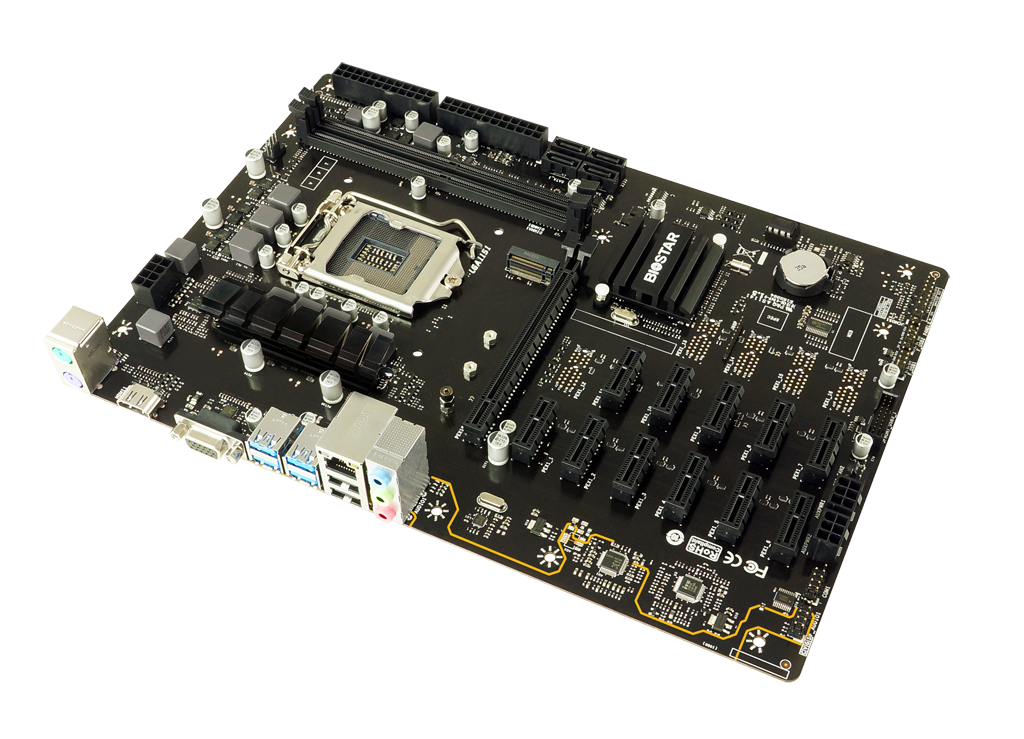

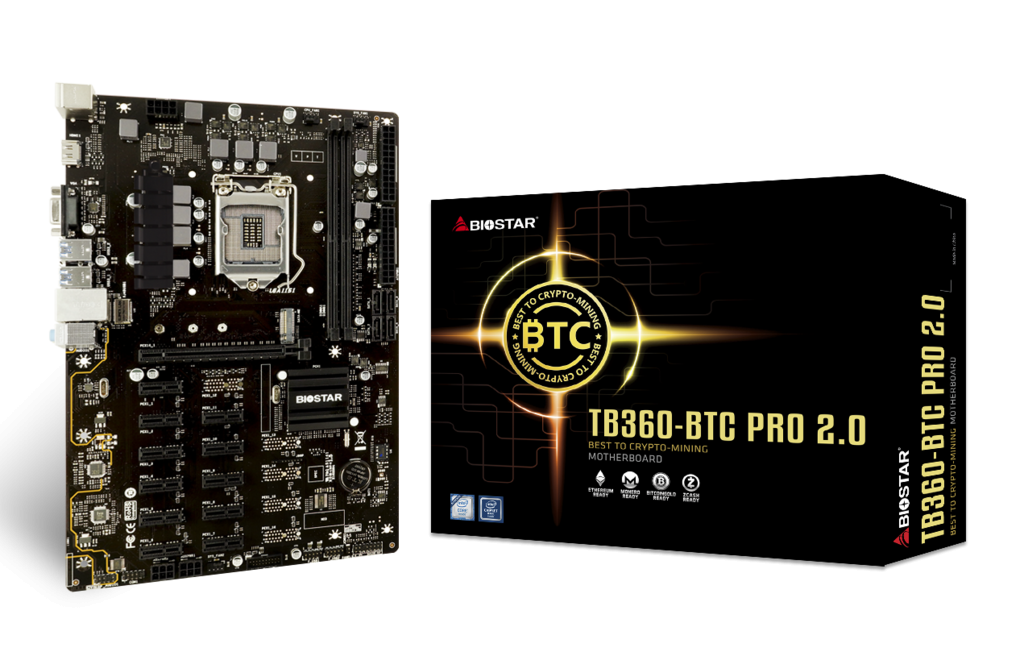

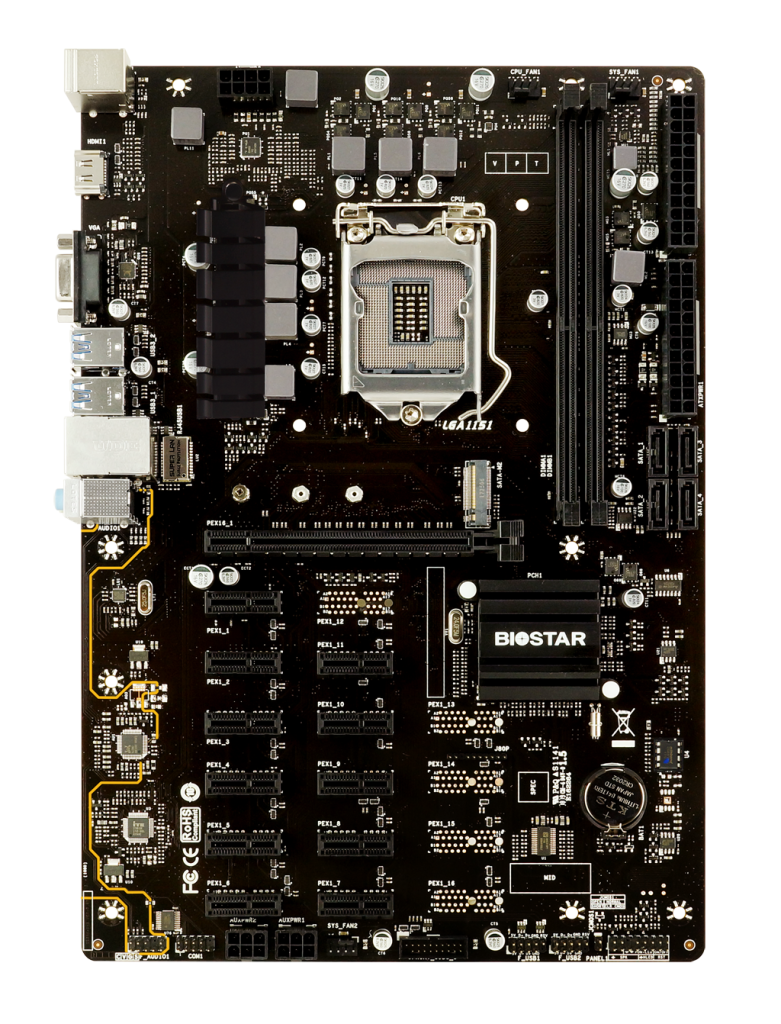

Дънна платка BIOSTAR TB360-BTC PRO 2.0, LGA1151, 2x DDR4, 1x M.2, 4x SATA III (6Gb/s), 11x PCIe 3.0 x1 Slot, 1x PCIe 3.0 x16 Slot, VGA, HDMI, ATX
нов продукт
Дънна платка BIOSTAR TB360-BTC PRO 2.0, LGA1151, 2x DDR4, 1x M.2, 4x SATA III (6Gb/s), 11x PCIe 3.0 x1 Slot, 1x PCIe 3.0 x16 Slot, VGA, HDMI, ATX
Дънна платка BIOSTAR TB360-BTC PRO 2.0, LGA1151, 2x DDR4, 1x M.2, 4x SATA III (6Gb/s), 11x PCIe 3.0 x1 Slot, 1x PCIe 3.0 x16 Slot, VGA, HDMI, ATX
Дънна платка BIOSTAR TB360-BTC PRO 2.0, LGA1151, 2x DDR4, 1x M.2, 4x SATA III (6Gb/s), 11x PCIe 3.0 x1 Slot, 1x PCIe 3.0 x16 Slot, VGA, HDMI, ATX
Дънна платка BIOSTAR TB360-BTC PRO 2.0, LGA1151, 2x DDR4, 1x M.2, 4x SATA III (6Gb/s), 11x PCIe 3.0 x1 Slot, 1x PCIe 3.0 x16 Slot, VGA, HDMI, ATX

Дънна платка BIOSTAR TB360-BTC PRO 2.0, LGA1151, 2x DDR4, 1x M.2, 4x SATA III (6Gb/s), 11x PCIe 3.0 x1 Slot, 1x PCIe 3.0 x16 Slot, VGA, HDMI, ATX

SKU: TB360-BTC PRO 2.0
ID: #42044
Цена: 132,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel Socket 1151 for 9th Generation Core
CPU Socket: Intel LGA1151
Чипсет: B360
Максимален капацитет RAM памет: 32 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 2
Поддържана памет: DDR4
Честота памет: 1866/ 2133/ 2400/ 2666 MHz
M.2 слот: 1 x M.2 slots / 4 x SATA 6Gb/s
Graphics технология: Няма
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Не
HDMI: 1
VGA: 1
Форм фактор: ATX
Гаранция (месеца): 24

Бърза Поръчка

Описание

Chipset Intel B360
CPU SUPPORT 9th Gen Intel Core i9 LGA 1151 Processor
Socket 1151 for 9th & 8th Intel Core i7 / i5 / i3 / Pentium / Celeron processor
* 8th Generation Intel Core™ Processor Family only support 300-Series.
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666
2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE 4 x SATA III Connectors (6Gb/s)
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports SATA III (6Gb/s) SSD
* Specifications vary by CPU types
LAN Realtek LAN Chip
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC887
7.1 Channels, High Definition Audio
USB 6 x USB 3.1(Gen1) ports (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT 11 x PCIe 3.0 x1 Slot
1 x PCIe 3.0 x16 Slot
* Maximum VGA cards mining support are depending on VGA Driver or mining software.
* Specifications vary by CPU types

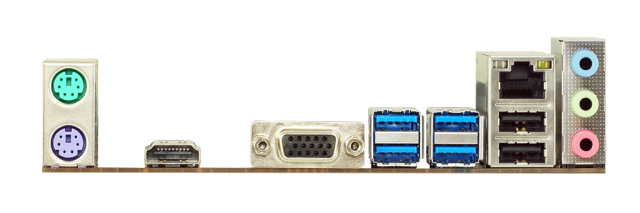

REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x VGA Port
1 x HDMI Port
1 x LAN port
2 x USB 2.0 Ports
4 x USB 3.1(Gen1) Ports
3 x Audio Jack
INTERNAL I/O 4 x SATA III Connectors (6Gb/s)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.1(Gen1) Header (each header supports 2 USB 3.1(Gen1) ports)
1 x 8-Pin Power Connector
2 x 24-Pin Power Connectors
2 x 6-Pin PCIe Power Connectors
1 x CPU Fan Connector
2 x System Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
1 x COM Serial Header
1 x Clear CMOS Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION ATX Form Factor Dimension: 29.5cm x 21.0cm ( W x L )

https://www.biostar.com.tw/app/en/mb/introduction.php?S_ID=1031
