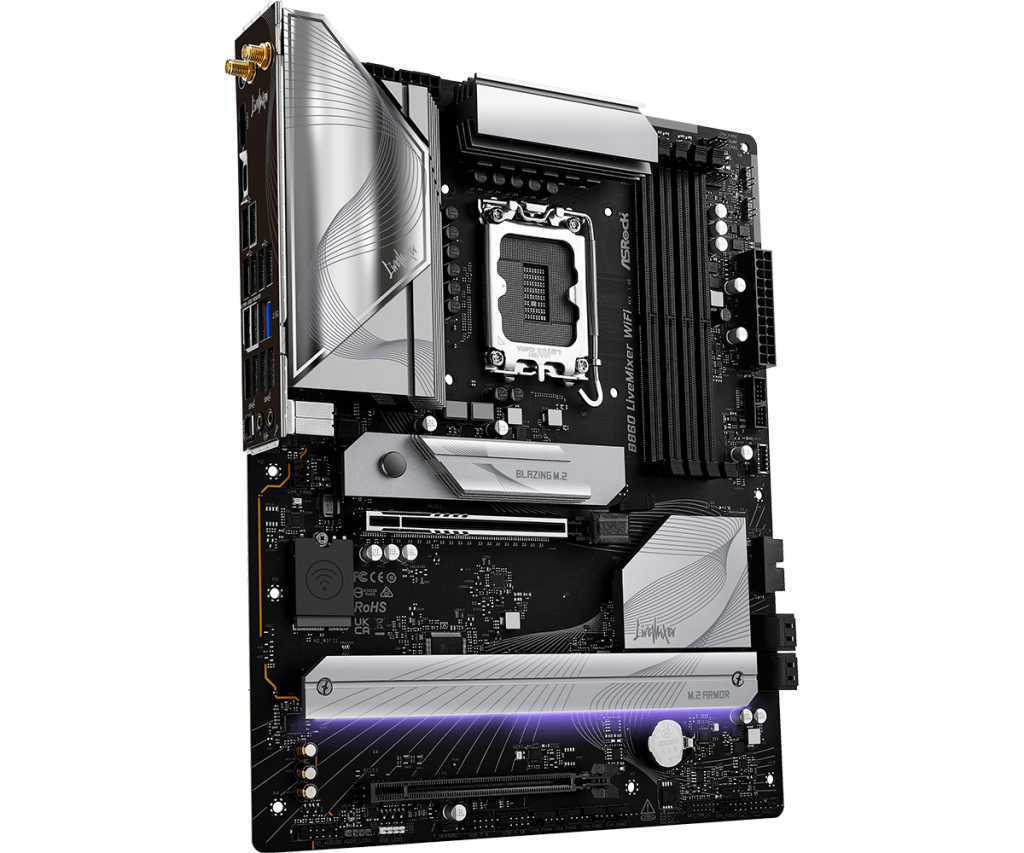

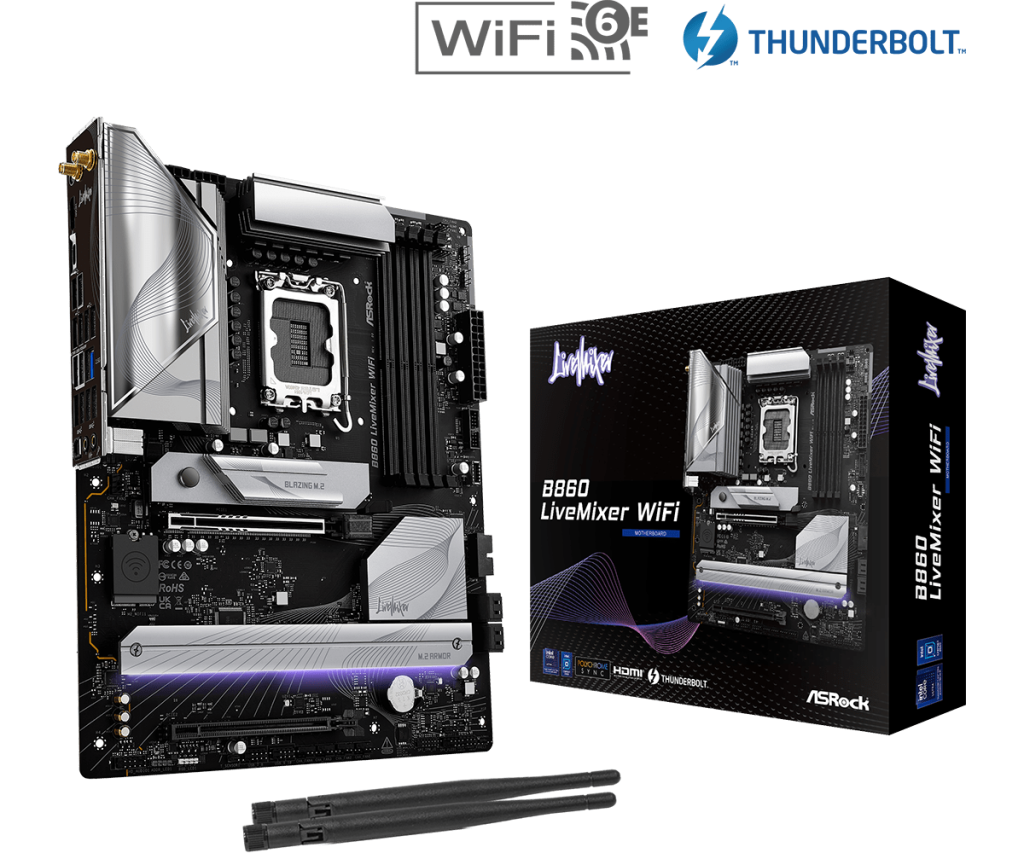

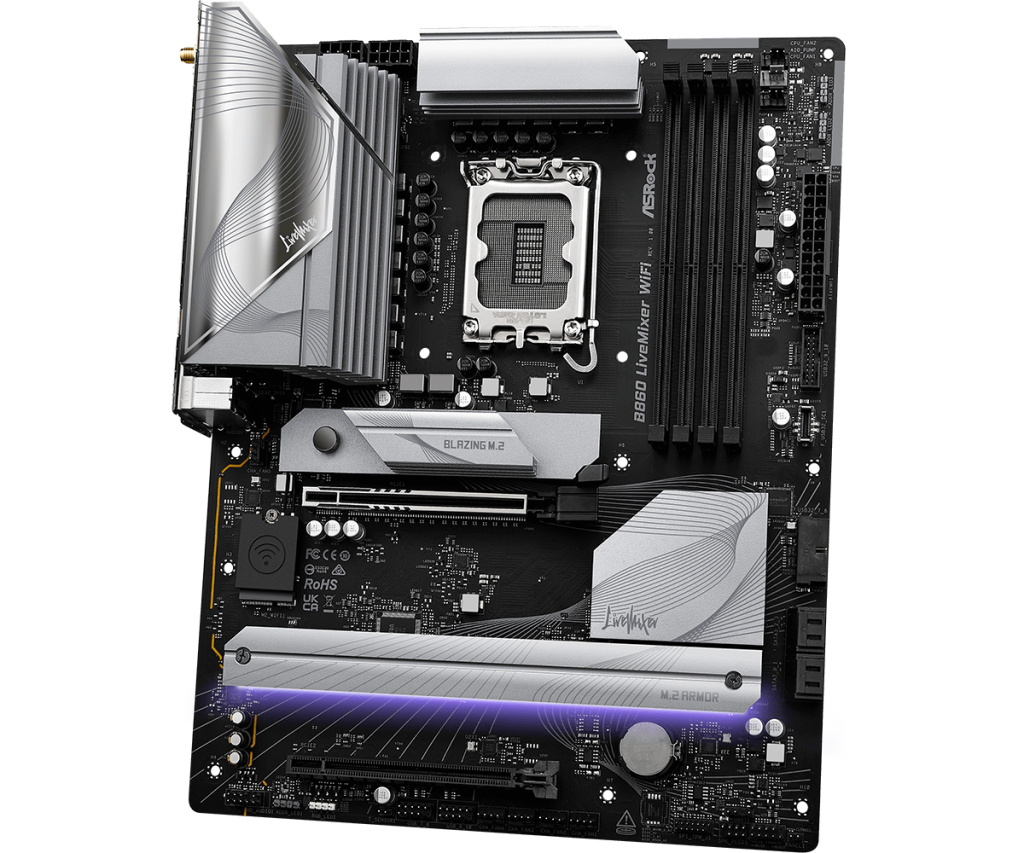

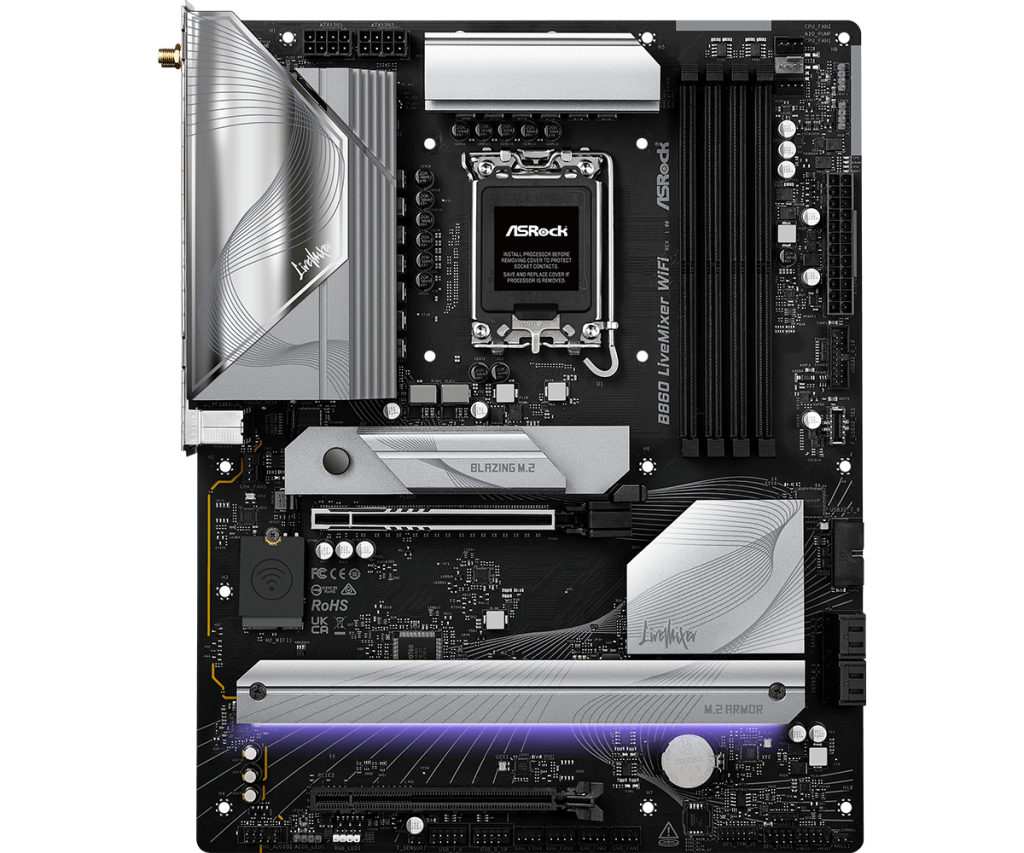

Дънна платка ASRock B860 LiveMixer WIFI 6E, LGA1851, 4x DDR5, 3x M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BLUETOOTH 5.3, HDMI. ATX
нов продукт
Дънна платка ASRock B860 LiveMixer WIFI 6E, LGA1851, 4x DDR5, 3x M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BLUETOOTH 5.3, HDMI. ATX
Дънна платка ASRock B860 LiveMixer WIFI 6E, LGA1851, 4x DDR5, 3x M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BLUETOOTH 5.3, HDMI. ATX
Дънна платка ASRock B860 LiveMixer WIFI 6E, LGA1851, 4x DDR5, 3x M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BLUETOOTH 5.3, HDMI. ATX
Дънна платка ASRock B860 LiveMixer WIFI 6E, LGA1851, 4x DDR5, 3x M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BLUETOOTH 5.3, HDMI. ATX
Дънна платка ASRock B860 LiveMixer WIFI 6E, LGA1851, 4x DDR5, 3x M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BLUETOOTH 5.3, HDMI. ATX
Дънна платка ASRock B860 LiveMixer WIFI 6E, LGA1851, 4x DDR5, 3x M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BLUETOOTH 5.3, HDMI. ATX
Дънна платка ASRock B860 LiveMixer WIFI 6E, LGA1851, 4x DDR5, 3x M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BLUETOOTH 5.3, HDMI. ATX

Дънна платка ASRock B860 LiveMixer WIFI 6E, LGA1851, 4x DDR5, 3x M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BLUETOOTH 5.3, HDMI. ATX

SKU: B860 LiveMixer WIFI 6E
ID: #40804
Цена: 444,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel Core Ultra Processors (Series 2)
CPU Socket: Intel LGA1851
Чипсет: Intel B860
Максимален капацитет RAM памет: 256 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 4
Поддържана памет: DDR5
Честота памет: 8666+MT/s (OC)
M.2 слот: 3 x M.2 slots and 4 x SATA 6Gb/s ports
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10
Graphics технология: Няма
Вграден Bluetooth: Bluetooth V5.3
Мрежа: 2.5G Ethernet
Wi-Fi Mодул: Да
Безжична мрежа: 802.11ax (Wi-Fi 6E)
HDMI: 1
Форм фактор: Extended ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

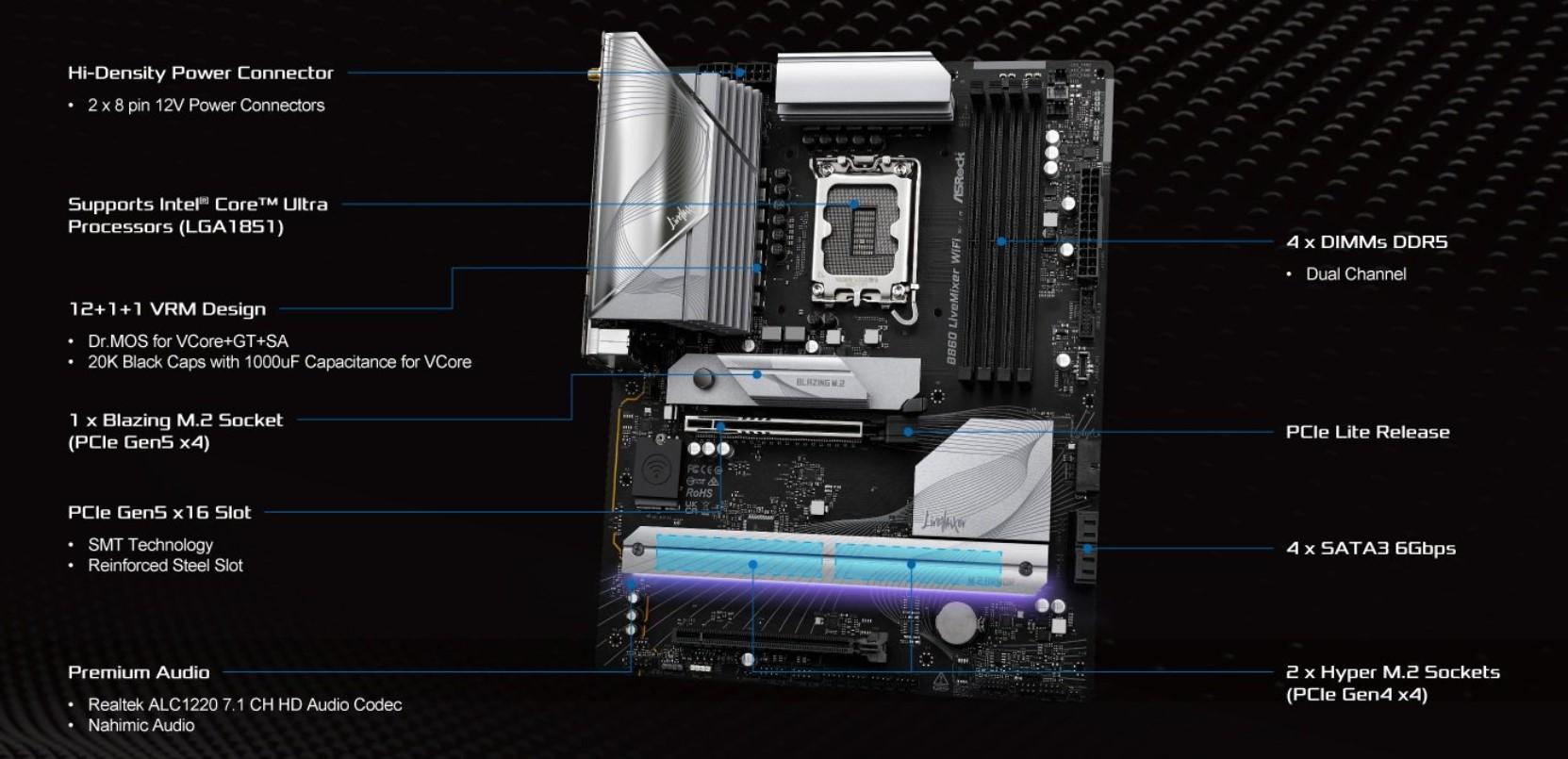

  • CPU
    - Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
    - Supports Intel® Thermal Velocity Boost (TVB)
    - Supports Intel® Adaptive Boost Technology (ABT)
    - Integrated NPU for dedicated AI acceleration
  • Chipset
    - Intel® B860
  • Memory
    - Dual Channel DDR5 Memory Technology
    - 4 x DDR5 DIMM Slots
    - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
    - Supports Clocked Unbuffered DIMM (CUDIMM)
    - Max. capacity of system memory: 256GB
    - Supports Intel® Extreme Memory Profile (XMP) 3.0x

    * 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
  • BIOS
    - 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    - Intel® Xe LPG Graphics Architecture
    - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    - 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz**

    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    ** Supports two 4K displays or one 8K display* Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports.
    If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
  • Audio
    - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    - Impedance Sensing on Rear Out port
    - Individual PCB Layers for R/L Audio Channel
    - Nahimic Audio
  • LAN
    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Dragon RTL8125BG
    - Supports Dragon 2.5G LAN Software
    - Smart Auto Adjust Bandwidth Control
    - Visual User Friendly UI
    - Visual Network Usage Statistics
    - Optimized Default Setting for Game, Browser, and Streaming Modes
    - User Customized Priority Control
  • Wireless LAN
    - 802.11axe Wi-Fi 6E Module
    - Supports IEEE 802.11a/b/g/n/ac/ax/axe
    - Supports Dual-Band 2x2 with extended 6GHz band* support
    - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    - Supports Bluetooth 5.3
    - Supports MU-MIMO

    *The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
    A 6GHz compatible router is required for 6E functionality.
  • Slots
    CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

    * Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors

    * Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    CPU:
    - 1 x Thunderbolt™ 4 Type-C (Rear) Chipset:
    - 1 x USB 3.2 Gen1 Type-C (Front)
    - 10 x USB 3.2 Gen1 Type-A (6 Rear, 4 Front)
    - 10 x USB 2.0 (6 Rear, 4 Front)

    * All USB ports support ESD Protection
  • Connector
    - 1 x Thermistor Cable Header
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
    - 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
    - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    - 1 x 24 pin ATX Power Connector
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen1 Header

    * Supports in total up to 12V/3A, 36W LED Strip
    ** Support in total up to 5V/3A, 15W LED Strip
    *** CPU_FAN1 supports the fan power up to 1A (12W).
    CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).
    CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

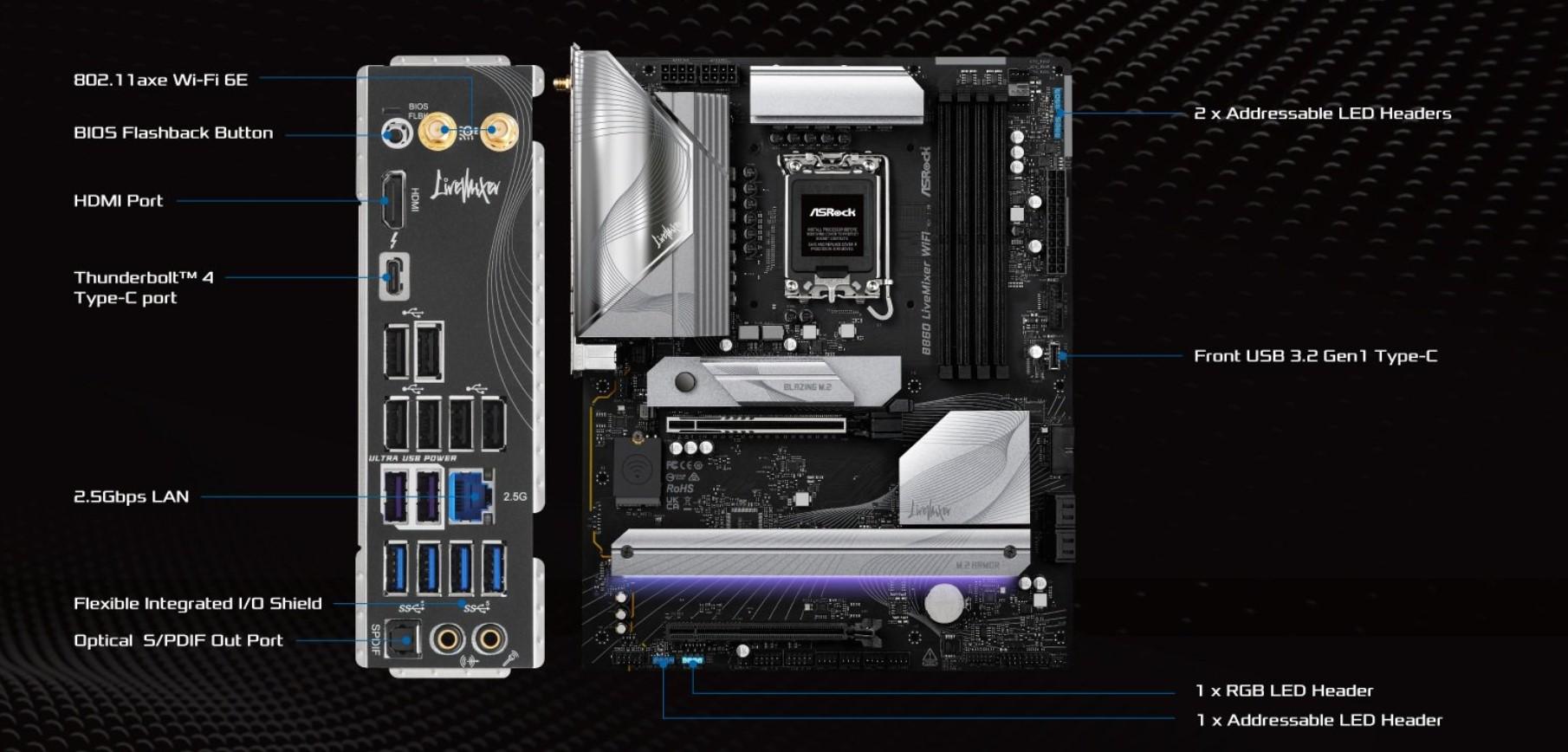

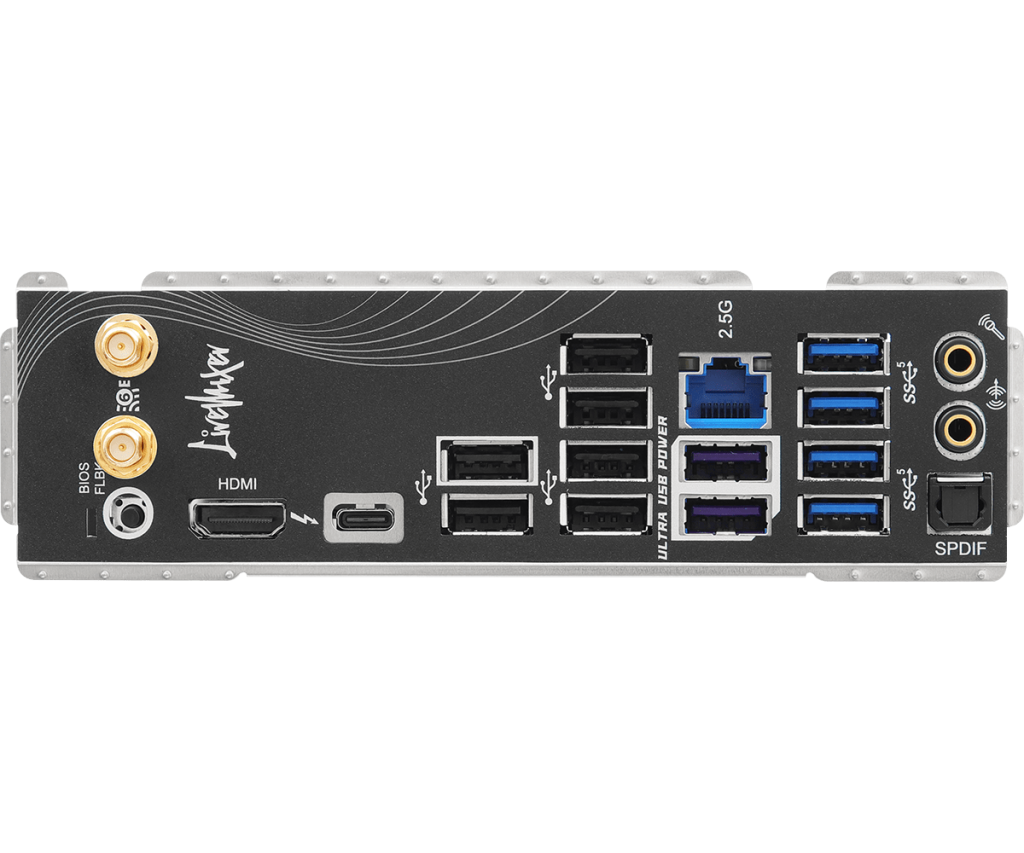

  • Rear Panel I/O
    - 2 x Antenna Ports
    - 1 x HDMI Port
    - 1 x Optical SPDIF Out Port
    - 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
    - 6 x USB 3.2 Gen1 Ports**
    - 6 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - 1 x Line Out Jack (Gold Audio Jack)
    - 1 x Microphone Input Jack (Gold Audio Jack)

    * Supports USB PD 3.0 up to 5V@3A (15W) charging
    ** USB32_12 support Ultra USB Power.
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 2 x SATA Data Cables
    - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
    - 1 x Thermistor Cable
  • Form Factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
