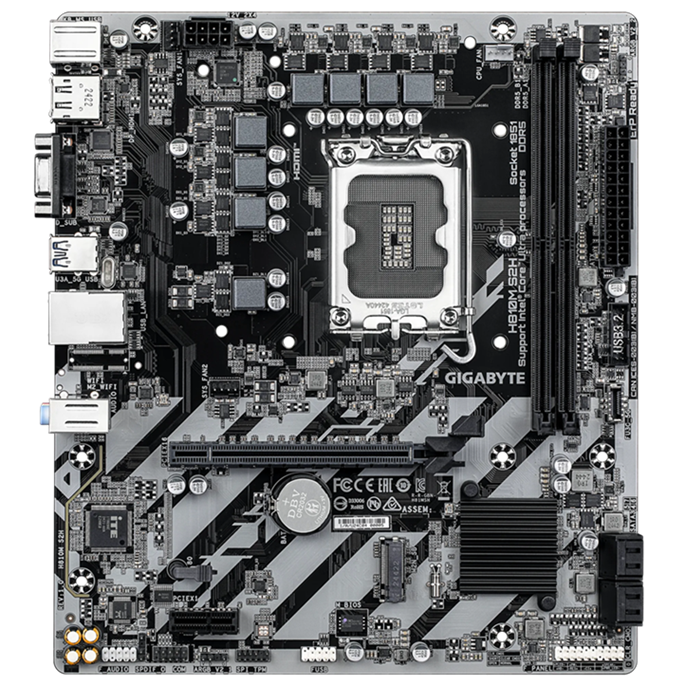

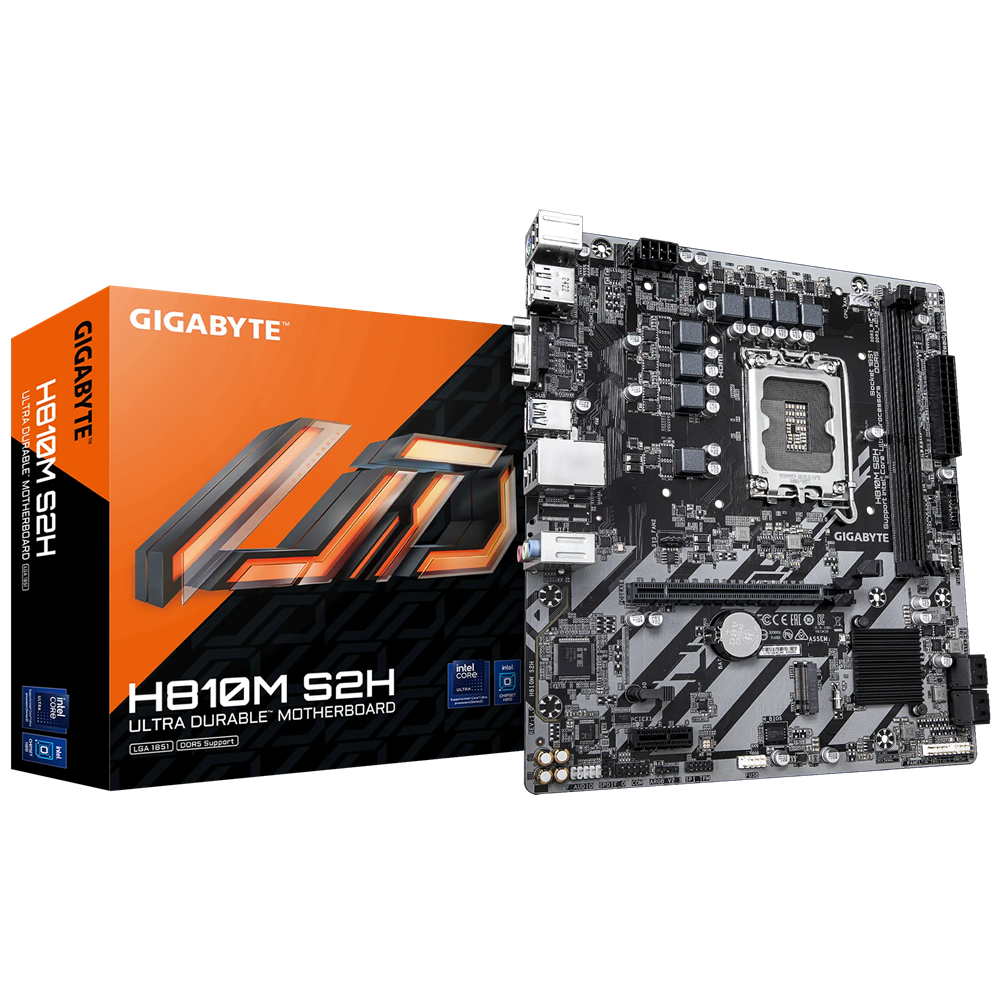

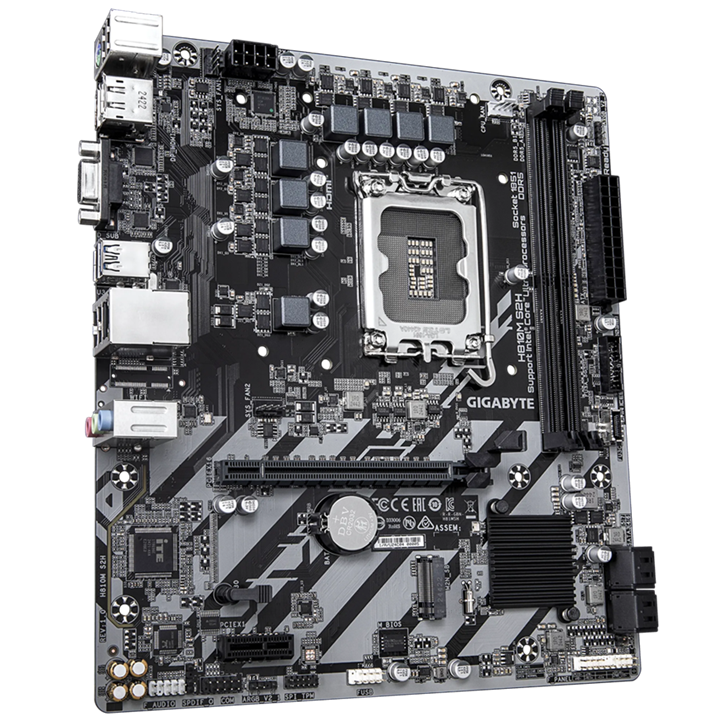

Дънна платка GIGABYTE H810M S2H, LGA1851, 1x M.2, 4 x SATA 6Gb/s, VGA, HDMI, DP, MicroATX
нов продукт

Дънна платка GIGABYTE H810M S2H, LGA1851, 1x M.2, 4 x SATA 6Gb/s, VGA, HDMI, DP, MicroATX

SKU: H810M S2H
ID: #41878
Цена: 221,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU
CPU Socket: Intel LGA1851
Чипсет: Intel H810
Максимален капацитет RAM памет: 128 GB
Памет, слотове: 2
Поддържана памет: DDR5
Честота памет: 6400+(OC)
M.2 слот: 1 x M.2 slots / 4 x SATA 6Gb/s
Поддръжка на RAID: SATA RAID 0, 1, 5, 10
Graphics технология: Няма
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Не
HDMI: 1
DisplayPort: 1
VGA: 1
Форм фактор: Micro ATX

Бърза Поръчка

Описание

  • Процесор
    LGA1851 socket: Support for Intel® Core™ Ultra Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
    L3 cache varies with CPU
  • Чипсет
    Intel® H810 Express Chipset
  • Поддържана памет
    Support for DDR5 6400/5600 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Вградена видеокарта
    Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.


    - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz

    * Support for DisplayPort 2.1 version.


    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    (Graphics specifications may vary depending on CPU support.)
    Support for up to triple-display at the same time
  • Аудио
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


    Support for S/PDIF Out
  • LAN
    Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
  • Слотове за периферни компоненти
    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.


    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
  • Интерфейс за данни
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
    Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    - 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
    - 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports on the back panel
  • Вътрешни входно-изходни портове
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    2 x addressable RGB Gen2 LED strip headers
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x Clear CMOS jumper

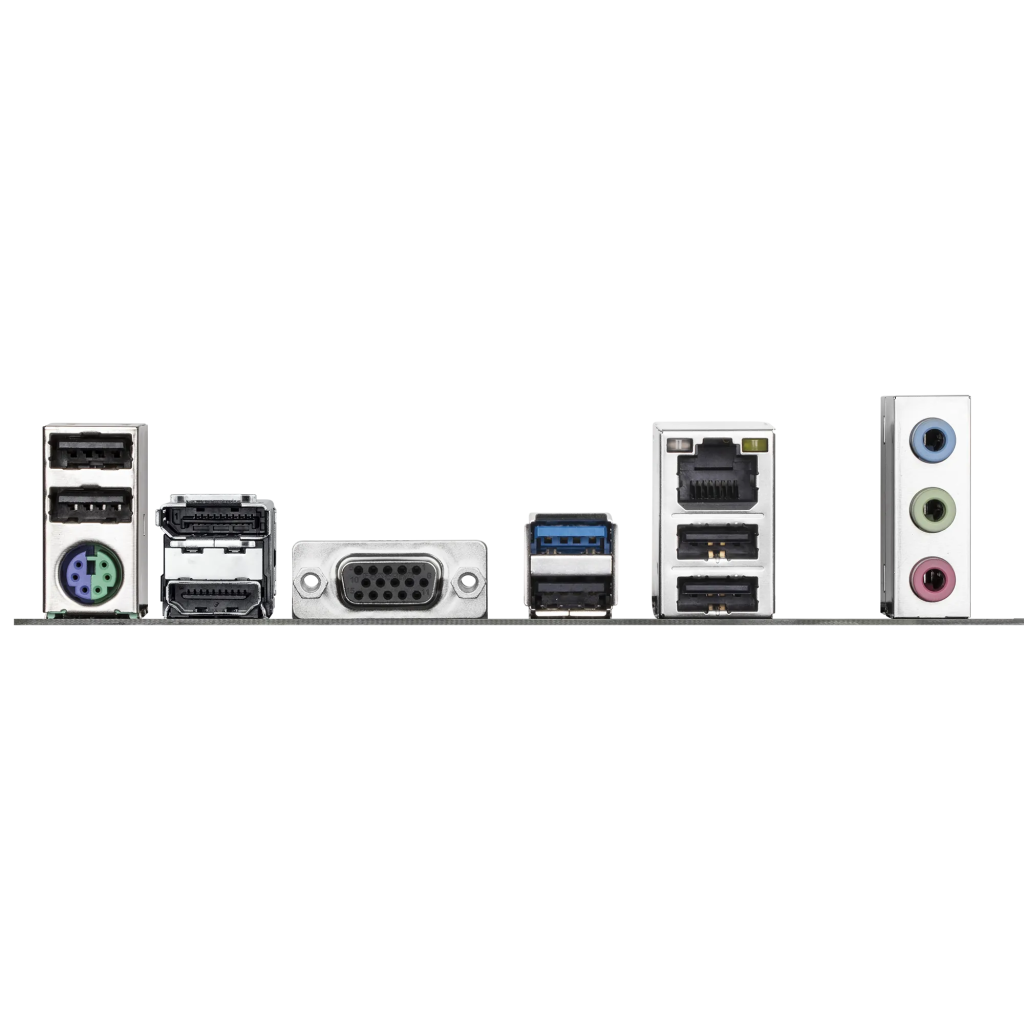

  • Входове / изходи на задния панел
    1 x PS/2 keyboard/mouse port
    1 x HDMI port (Note)
    1 x DisplayPort (Note)
    1 x D-Sub port
    1 x USB 3.2 Gen 1 port
    5 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks

    (Note) Actual support may vary by CPU.
  • I/O контролер
    iTE® I/O Controller Chip
  • Хардуерен мониторинг
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Уникални характеристики
    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
    Support for Smart Backup
  • Пакетиран софтуер
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Операционна система
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit

    * The Intel® NPU driver is only supported on Windows 11.

  • Форм фактор
    Micro ATX Form Factor; 24.4cm x 21.5cm

https://www.gigabyte.com/bg/Motherboard/H810M-S2H#kf
