Дънна платка ASUS PRIME B650M-A WIFI II, LGA1700, 2x DDR5, 2 x M.2, WiFi 5, Bluetooth 5.0, VGA, HDMI, DP, mATX
Дънна платка ASUS PRIME B650M-A WIFI II, LGA1700, 2x DDR5, 2 x M.2, WiFi 5, Bluetooth 5.0, VGA, HDMI, DP, mATX
Дънна платка ASUS PRIME B650M-A WIFI II, LGA1700, 2x DDR5, 2 x M.2, WiFi 5, Bluetooth 5.0, VGA, HDMI, DP, mATX
Дънна платка ASUS PRIME B650M-A WIFI II, LGA1700, 2x DDR5, 2 x M.2, WiFi 5, Bluetooth 5.0, VGA, HDMI, DP, mATX
Дънна платка ASUS PRIME B650M-A WIFI II, LGA1700, 2x DDR5, 2 x M.2, WiFi 5, Bluetooth 5.0, VGA, HDMI, DP, mATX
Дънна платка ASUS PRIME B650M-A WIFI II, LGA1700, 2x DDR5, 2 x M.2, WiFi 5, Bluetooth 5.0, VGA, HDMI, DP, mATX
Дънна платка ASUS PRIME B650M-A WIFI II, LGA1700, 2x DDR5, 2 x M.2, WiFi 5, Bluetooth 5.0, VGA, HDMI, DP, mATX

Дънна платка ASUS PRIME B650M-A WIFI II, LGA1700, 2x DDR5, 2 x M.2, WiFi 5, Bluetooth 5.0, VGA, HDMI, DP, mATX

SKU: PRIME H610M-A WIFI / 90MB1G00-M0EAY0
ID: #35954
Цена: 302,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost
CPU Socket: Intel LGA1700
Чипсет: AMD B650
Максимален капацитет RAM памет: 96 GB
Поддържана памет: DDR5
M.2 слот: 2 x M.2 slots / 4 x SATA 6Gb/s ports
Graphics технология: Няма
Вграден Bluetooth: Bluetooth 5.0
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Да
Безжична мрежа: Wi-Fi 5(802.11ac)
HDMI: 1
DisplayPort: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

  • CPU
    Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Intel® H610 Chipset
  • Memory
    2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
    *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  • Graphics
    1 x DisplayPort**
    1 x VGA port
    1 x HDMITM port***
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
  • Expansion Slots
    Intel® 13th & 12th Gen Processors
    1 x PCIe 4.0 x16 slot
    Intel® H610 Chipset
    1 x PCIe 3.0 x1 slot
    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  • Storage
    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
    Intel® H610 Chipset
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
    4 x SATA 6Gb/s ports
  • Ethernet
    1 x Intel® 1Gb Ethernet
    ASUS LANGuard
  • Wireless & Bluetooth
    Wi-Fi 5
    Wi-Fi 5 (802.11 a/b/g/n/ac)
    Supports 2.4/5GHz frequency band
    Bluetooth® v5.0*
    *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  • USB
    Rear USB (Total 5 ports)
    1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 6 ports)
    1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
    1 x USB 2.0 header supports 1 USB 2.0 port
    1 x USB 2.0 header supports additional 2 USB 2.0 ports
  • Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

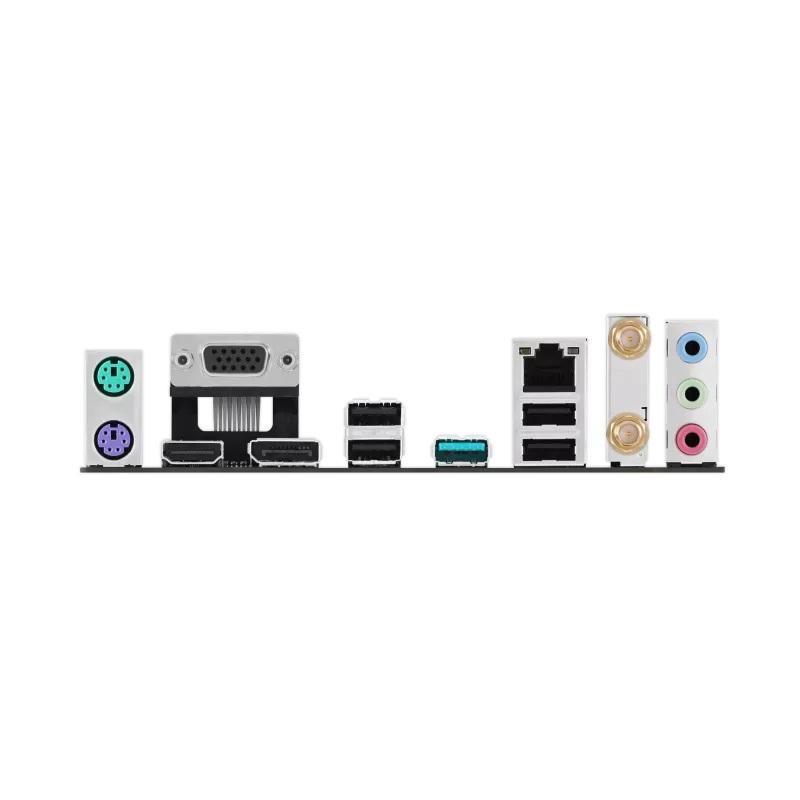

  • Back Panel I/O Ports
    1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x VGA port
    1 x HDMITM port
    1 x Wi-Fi Module
    1 x Intel® 1Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard (purple) port
    1 x PS/2 Mouse (green) port
  • Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
    1 x USB 2.0 header supports 1 USB 2.0 port
    1 x USB 2.0 header supports additional 2 USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    2 x AURA RGB headers
    1 x Clear CMOS header
    1 x Front Panel Audio header (AAFP)
    1 x COM Port header
    1 x S/PDIF Out header
    1 x Speaker header
    1 x SPI TPM header (14-1pin)
    1 x 10-1 pin System Panel header
  • Special Features
    ASUS 5X PROTECTION III
    - DIGI+ VRM
    - LANGuard
    - Overvoltage Protection
    - SafeSlot Core
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution
    - VRM heatsink design
    AURA Sync
    - AURA RGB headers
    - Addressable Gen 2 headers
  • Software Features
    ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 2+
    - Two-Way AI Noise Cancellation
    AI Suite 3
    - Performance And Power Saving Utility
     TurboV EVO
     EPU
    - DIGI+ VRM
    - PC Cleaner
    ASUS CPU-Z
    Norton 360 for  Deluxe (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PME, PXE
  • Accessories
    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x I/O Shield
    1 x Screw package for M.2 SSD
    Documentation
    1 x User guide
  • Operating System
    Windows® 11 64-bit, Windows® 10 64-bit
  • Form Factor
    mATX Form Factor
    9.6 inch x 8.5 inch ( 24.4 cm x 21.6 cm )
