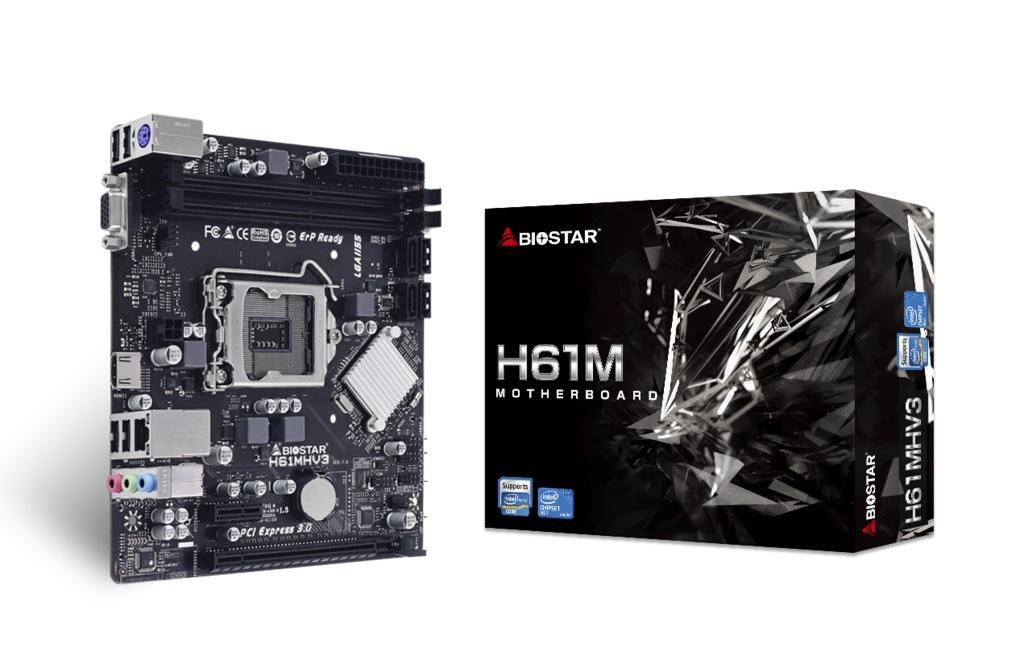

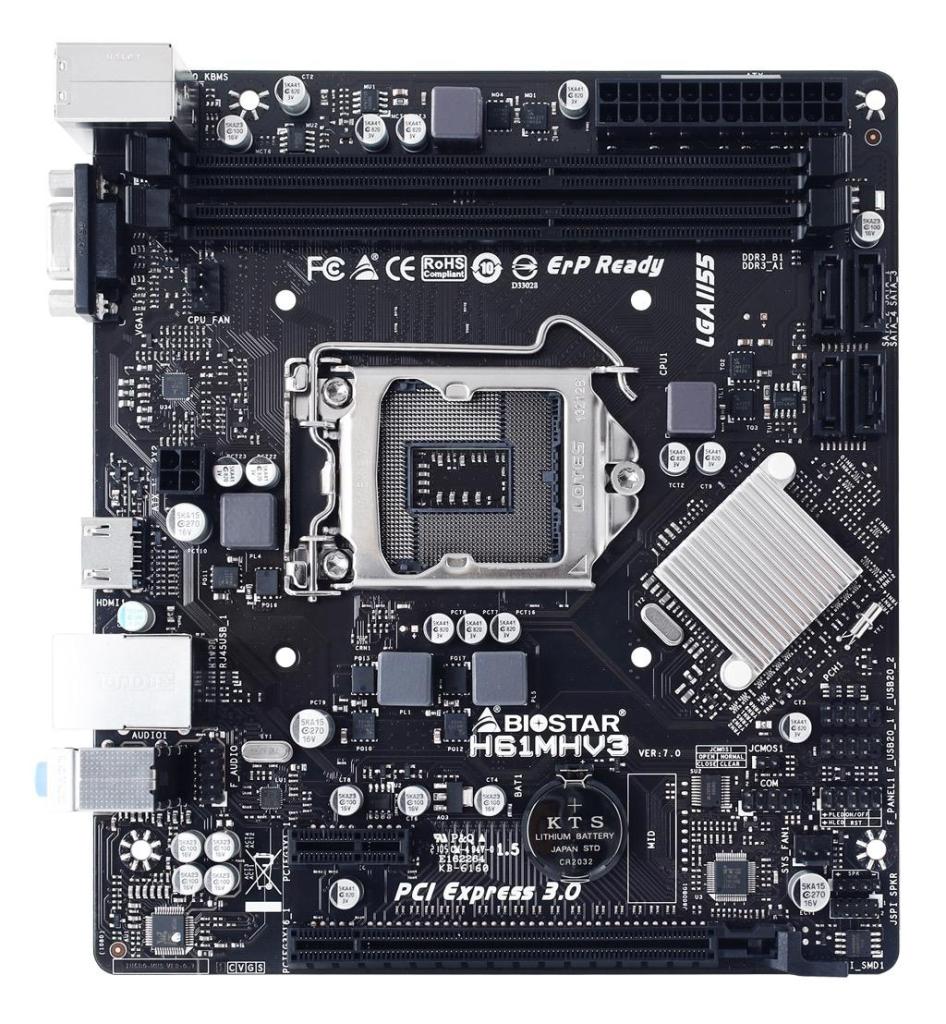

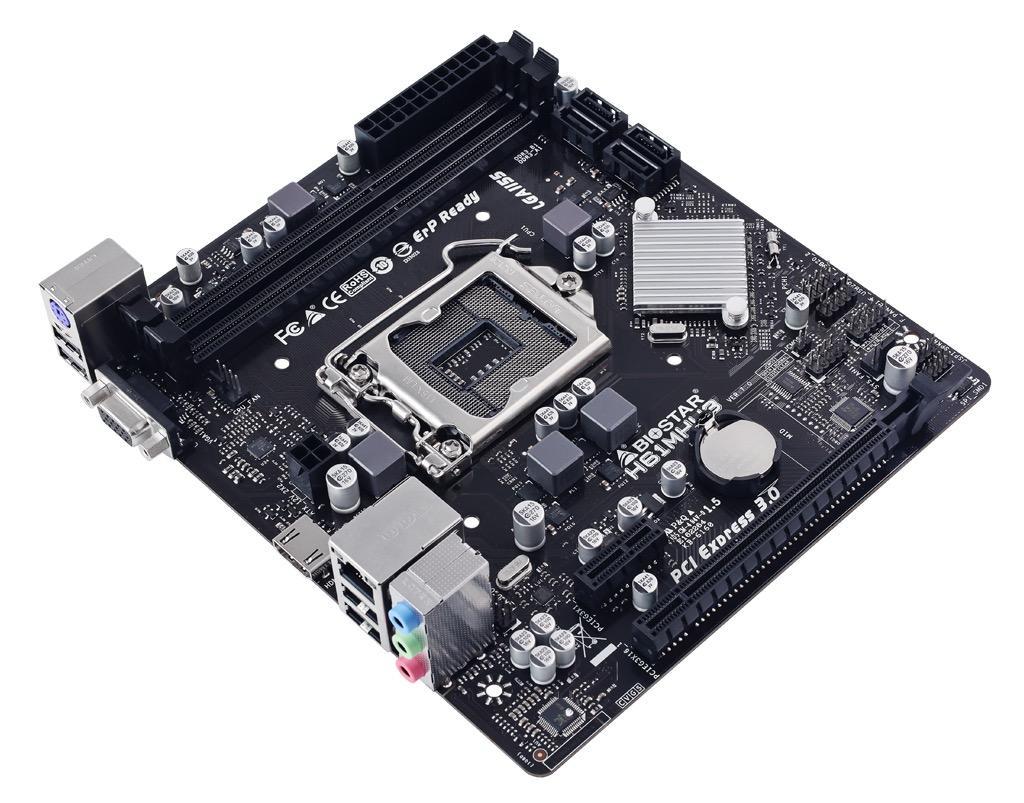

Дънна платка BIOSTAR H61MHV3, Intel H61, LGA1155, DDR3, Ver 7.0
Дънна платка BIOSTAR H61MHV3, Intel H61, LGA1155, DDR3, Ver 7.0
Дънна платка BIOSTAR H61MHV3, Intel H61, LGA1155, DDR3, Ver 7.0
Дънна платка BIOSTAR H61MHV3, Intel H61, LGA1155, DDR3, Ver 7.0
Дънна платка BIOSTAR H61MHV3, Intel H61, LGA1155, DDR3, Ver 7.0

Дънна платка BIOSTAR H61MHV3, Intel H61, LGA1155, DDR3, Ver 7.0

SKU: BIO-MB-H61MHV3
ID: #19593
Цена: 147,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel i7/i5/i3/Pentium/Celeron
CPU Socket: Intel LGA1155
Чипсет: Intel H61
Максимален капацитет RAM памет: 16GB DDR4 3200MHz
Поддръжка на Dualchannel: Да
Поддържана памет: DDR3
Честота памет: 1600/1333/1066MHz
Поддръжка на RAID: Не
Графична карта: By CPU model
Graphics технология: Няма
Вграден Bluetooth: Не
Wi-Fi Mодул: Не
Форм фактор: Micro ATX
Гаранция (месеца): 24

Бърза Поръчка

Описание

Chipset Intel H61
CPU SUPPORT Support Intel Core™ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1155 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR3 1066/ 1333/ 1600
2 x DDR3 DIMM Memory Slot, Max. Supports up to 16 GB Memory
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 module
* DDR3 1600 memory module (depending on CPU)
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
STORAGE 4 x SATA II (3Gb/s)
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897
7.1 Channels, High Definition Audio
USB 8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT 1 x PCIe 2.0 x1
1 x PCIe 3.0 x16 Slot (x16 mode, depending on CPU)

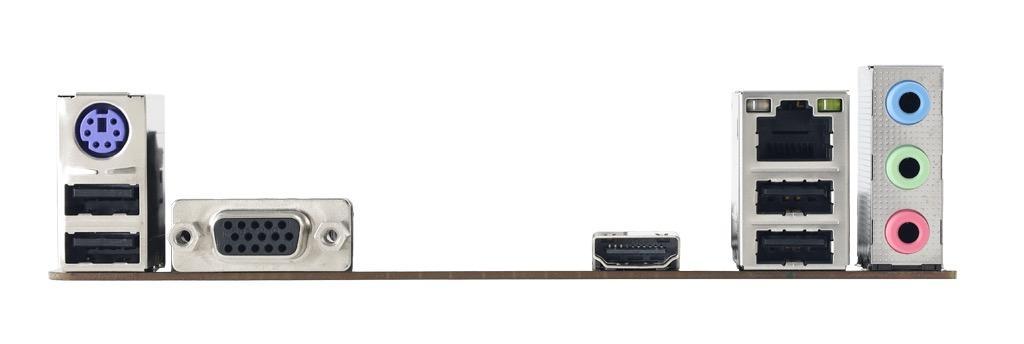

REAR I/O 1 x PS/2 Keyboard / Mouse
1 x VGA Port
1 x HDMI Port
4 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack
INTERNAL I/O 4 x SATA II (3Gb/s)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 17cm x 19.1cm ( W x L )
