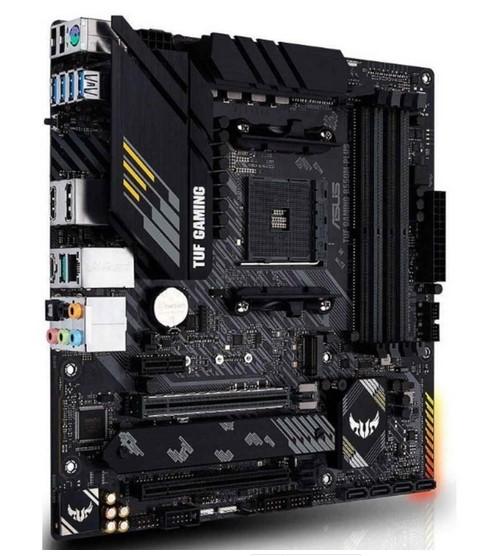

Дънна платка Asus TUF GAMING B550M-PLUS, AM4, B550, DDR4, 4x SATA 6Gb/s, 2x M.2, (CFX), HDMI, DPmATX

SKU: TUF GAMING B550M-PLUS / 90MB14A0-M0EAY0

ID: #36513

Характеристики

Поддържани процесори: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

CPU Socket: AMD AM4

Чипсет: AMD B550

Максимален капацитет RAM памет: 128 GB

Поддръжка на Dualchannel: Да

Памет, слотове: 4

Поддържана памет: DDR4

M.2 слот: 2 x M.2 slots / 4 x SATA 6Gb/s ports

Graphics технология: CrossFireX

Мрежа: 1 x 10/100/1000 Mbps (RJ-45)

HDMI: 1

DisplayPort: 1

Форм фактор: Micro ATX

Гаранция (месеца): 36

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

ASUS TUF GAMING B550M-PLUS mATX MB PCIe 4.0 dual M.2 10 DrMOS power stages 2.5Gb Ethernet HDMI DisplayPort SATA 6Gbps


Manufacturer	ASUS
Manufacturer Part No	90MB14A0-M0EAY0

Marketing Description
TUF GAMING B550M-PLUS offers game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
Product Features
Rock-solid performance With upgraded power delivery and comprehensive cooling options to fuel modern CPUs, plus support for faster memory and storage, TUF GAMING B550M-PLUS is the perfect foundation for your next battle rig. Effective cooling Copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds. TUF chokes Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability. Easy PC DIY TUF motherboards are designed to be easy to set up and configure just the way you want - even for first-time builders. They give you everything you need to build your dream gaming rig without adding complexity. Immersive gaming TUF GAMING B550M-PLUS provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. HD audio Premium audio capacitors provide warm, natural, and immersive sound. Audio shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Outshine the competition A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. Thermal pad High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink. M.2 heatsink The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
General
Product Type	Motherboard - micro ATX
Chipset Type	AMD B550
Processor Socket	Socket AM4
Max Processors Qty	1
Compatible Processors	Ryzen (supports 3rd Generation Ryzen)
Supported RAM
Max Size	128 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3200 MHz
Supported RAM Integrity Check	ECC
Registered or Buffered	Unbuffered
Audio
Type	HD Audio (8-channel)
Audio Codec	Realtek ALCS1200A
Compliant Standards	High Definition Audio, DTS Custom
LAN
Network Controller	Realtek RTL8125B
Network Interfaces	2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 1 x PCIe 3.0 x16 (x4 mode)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces	1 x DisplayPort 1 x TOSLINK 1 x LAN (2.5Gigabit Ethernet) 4 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x PS/2 keyboard / mouse 1 x HDMI 1 x USB-C Gen2 2 x USB 2.0 1 x audio line-out (rear) - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack
Internal Interfaces	4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x serial - header 1 x speaker - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up	Wake on LAN (WOL)
Hardware Features	Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Fan Xpert 2+, TUF ESD Guards, ProCool Power Connector, TUF LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot, M.2 heatsink, ASUS TUF Protection, ASUS Aura Sync, Armoury Crate, 8+2 DrMOS power stages
Miscellaneous
Included Accessories	1 x M.2 screw, I/O back cover, TUF stickers
Cables Included	2 x Serial ATA cable
Software Included	Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial)
Width	24.4 cm
Depth	24.4 cm
