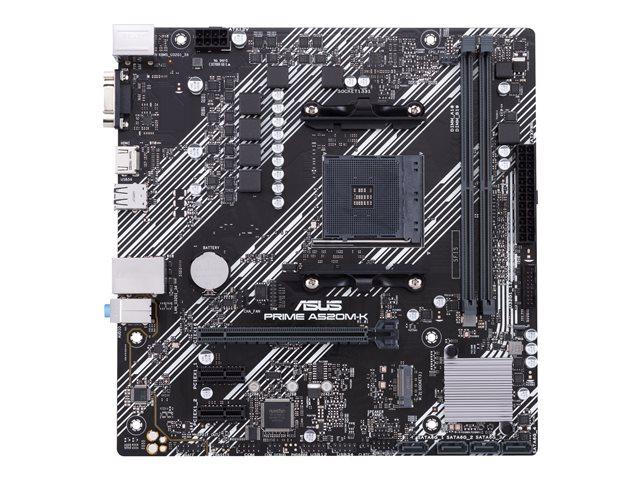

Дънна платка Asus PRIME A520M-K, A520, AM4, PCI-E 3.0, 4x SATA 6Gb/s, 1x M.2, 4x USB 3.2 Gen 1, VGA, HDMI, mATX

SKU: PRIME A520M-K

ID: #38319

Цена: 127,00 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

CPU Socket: AMD AM4

Чипсет: AMD A520

Максимален капацитет RAM памет: 64 GB

Памет, слотове: 2

Поддържана памет: DDR4

M.2 слот: 1 M.2 SSD slot (NVMe PCIe Gen3)

Поддръжка на RAID: SATA RAID 0, 1, 10

Graphics технология: Няма

Мрежа: 1 x 10/100/1000 Mbps (RJ-45)

Wi-Fi Mодул: Не

HDMI: 1

VGA: 1

Форм фактор: Micro ATX

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

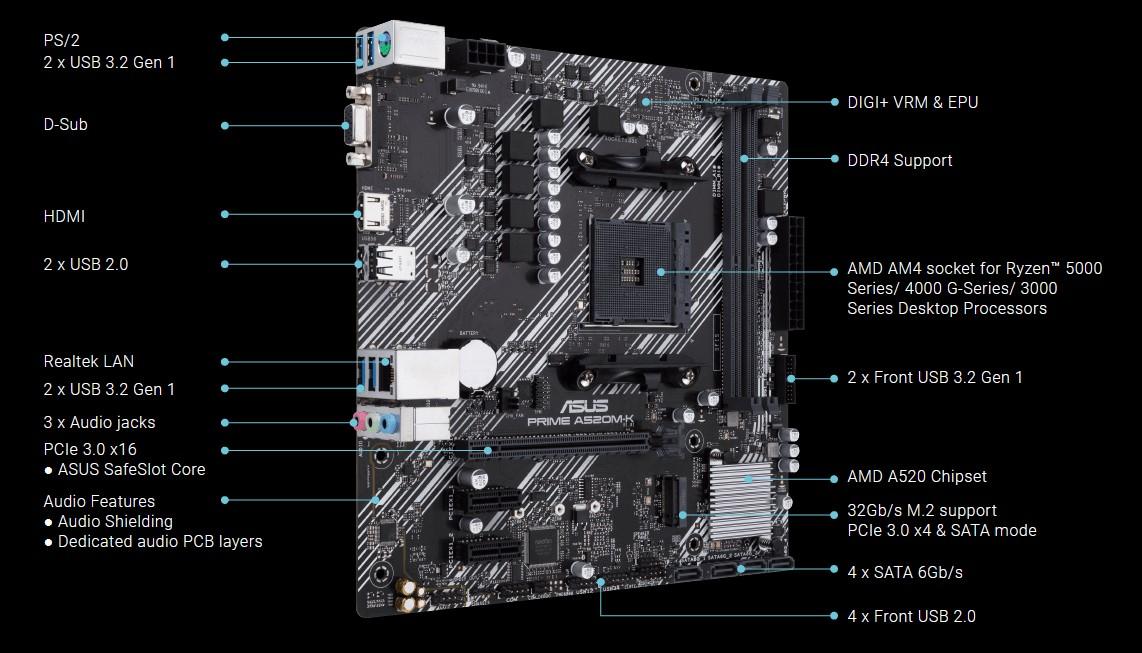

ASUS PRIME A520M-K AM4 2xDIMM DDR4 HDMI D-Sub 3xPCIe M.2 4xSATA 6xUSB 3.0 6xUSB 2.0 mATX MB


Manufacturer	ASUS
Manufacturer Part No	PRIME A520M-K

Marketing Description
Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Product Features
Tune it your way Comprehensive controls form the foundation of the ASUS Prime series. The Prime A520 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work - maximizing your productivity. Cooler by design PRIME A520M-K is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads. Build on a solid foundation Prime A520 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Achieve speed with onboard M.2 M.2 Slot supports data-transfer speed up to 32Gbps via x4 PCI Express 3.0 bandwidth. It's the perfect choice for an operating system or application drive, providing fast access to data. Little things make a big difference Prime A520 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customize your system to create a uniquely personal look. Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you've ever experienced. Premium Japanese capacitors Premium parts provide an immersive sound signature, with exceptional fidelity.
General
Product Type	Motherboard - micro ATX
Chipset Type	AMD A520
Processor Socket	Socket AM4
Max Processors Qty	1
Compatible Processors	Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)
Supported RAM
Max Size	64 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz
Supported RAM Integrity Check	Non-ECC, ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture
Audio
Type	HD Audio (8-channel)
Audio Codec	Realtek ALC887
Compliant Standards	High Definition Audio
LAN
Network Controller	Realtek RTL8111H
Network Interfaces	Gigabit Ethernet
Expansion / Connectivity
Expansion Slots	1 x CPU 2 x DIMM 288-pin 1 x PCIe 3.0 x16 2 x PCIe 3.0 x1
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces	1 x VGA 4 x USB 3.2 Gen 1 1 x HDMI 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x PS/2 keyboard / mouse 2 x USB 2.0 1 x LAN (Gigabit Ethernet)
Internal Interfaces	4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x SPDIF out - header 1 x serial - header 1 x speaker - header 1 x audio - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, Lighting Control, ASUS 5X Protection III, ASUS SafeSlot Core, Armoury Crate
Miscellaneous
Included Accessories	1 x M.2 screw, I/O back cover
Cables Included	2 x Serial ATA cable
Software Included	Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial)
Width	22.6 cm
Depth	22.1 cm
