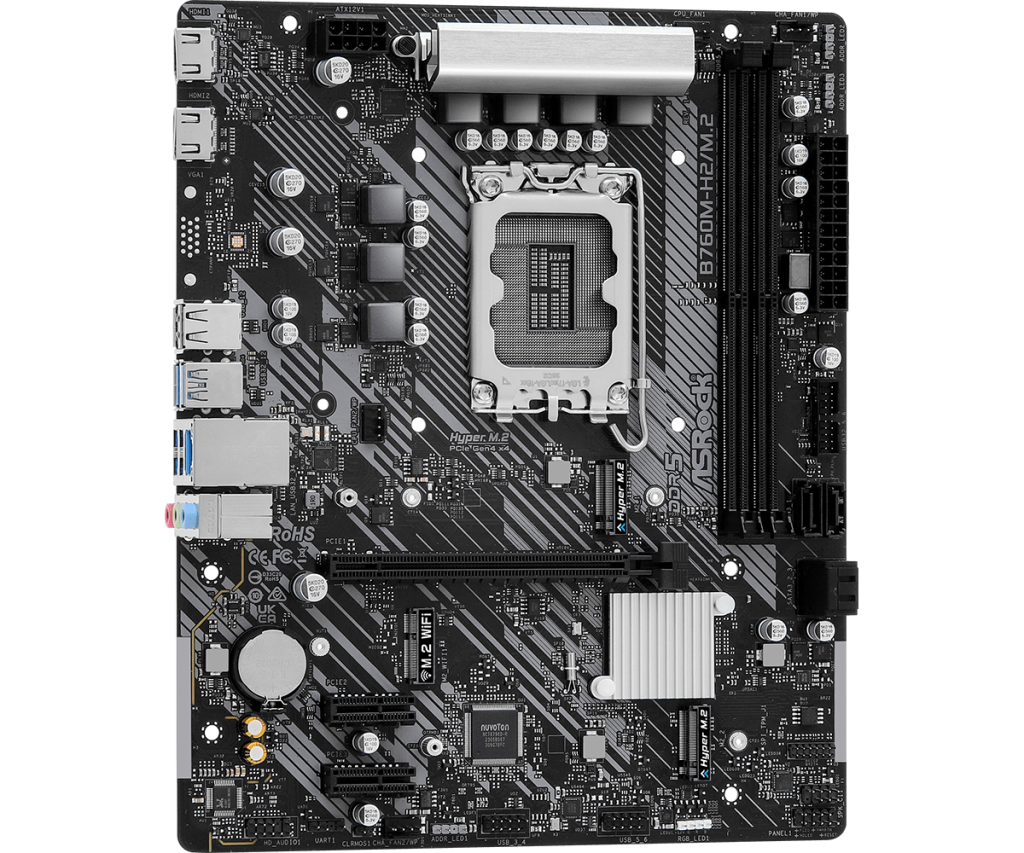

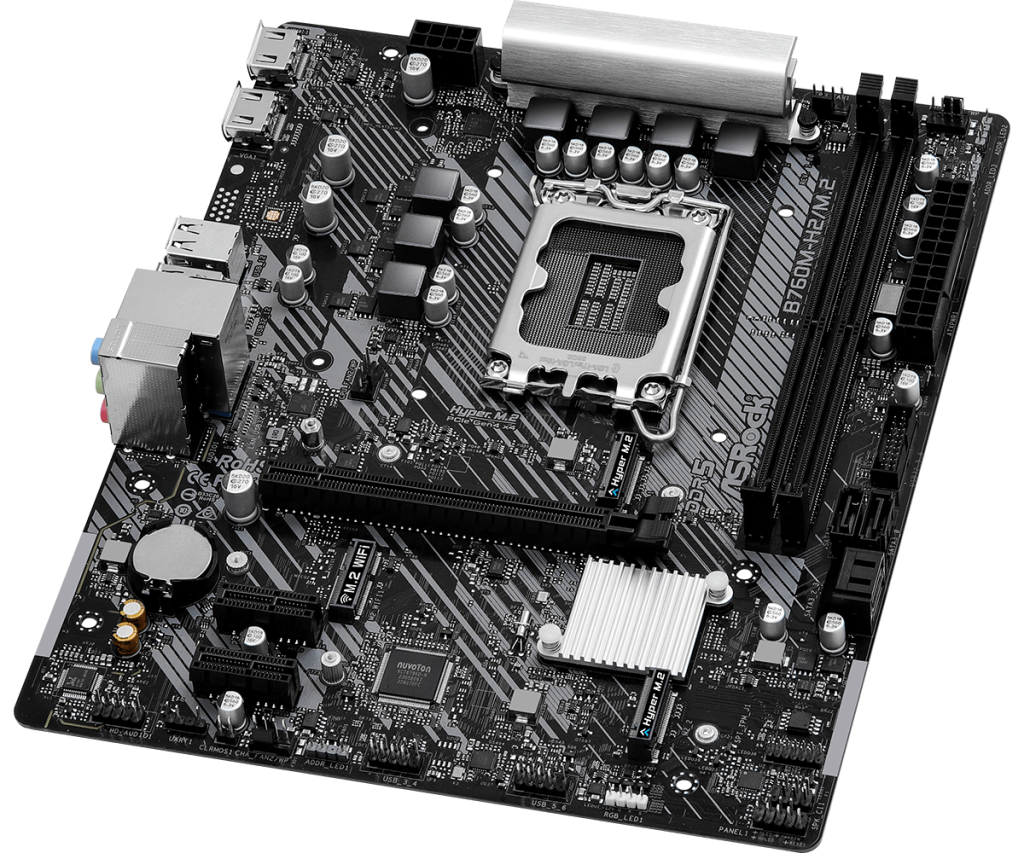

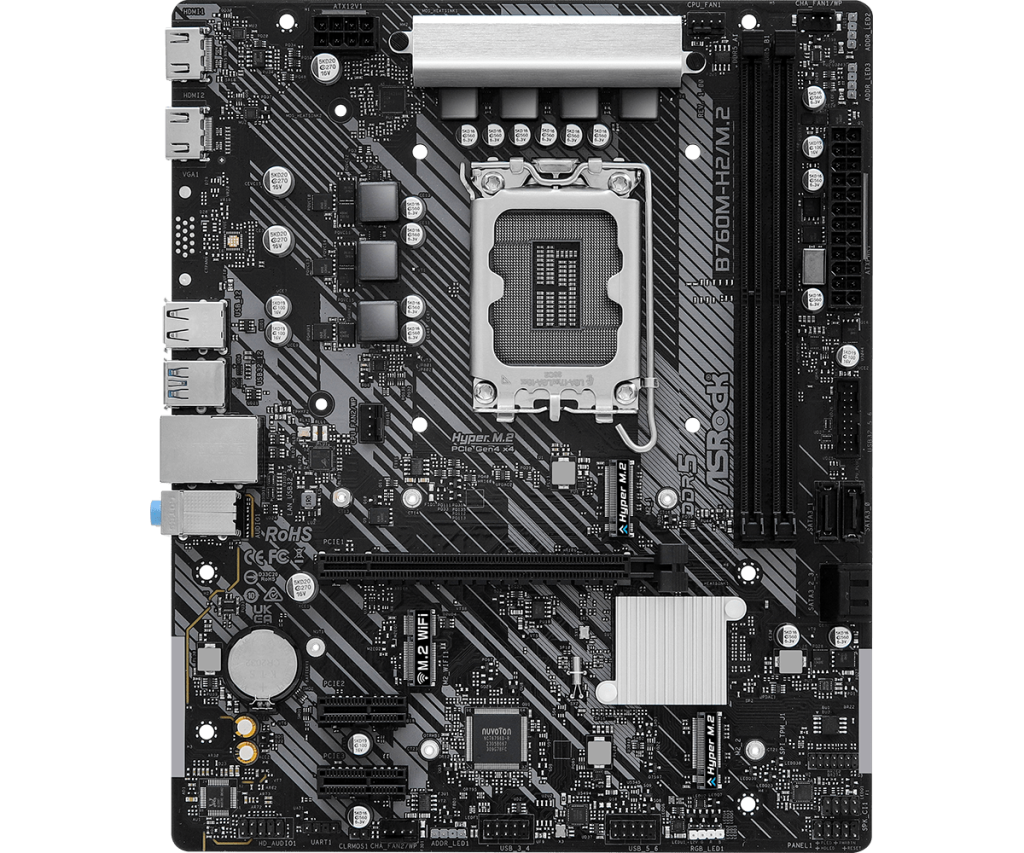

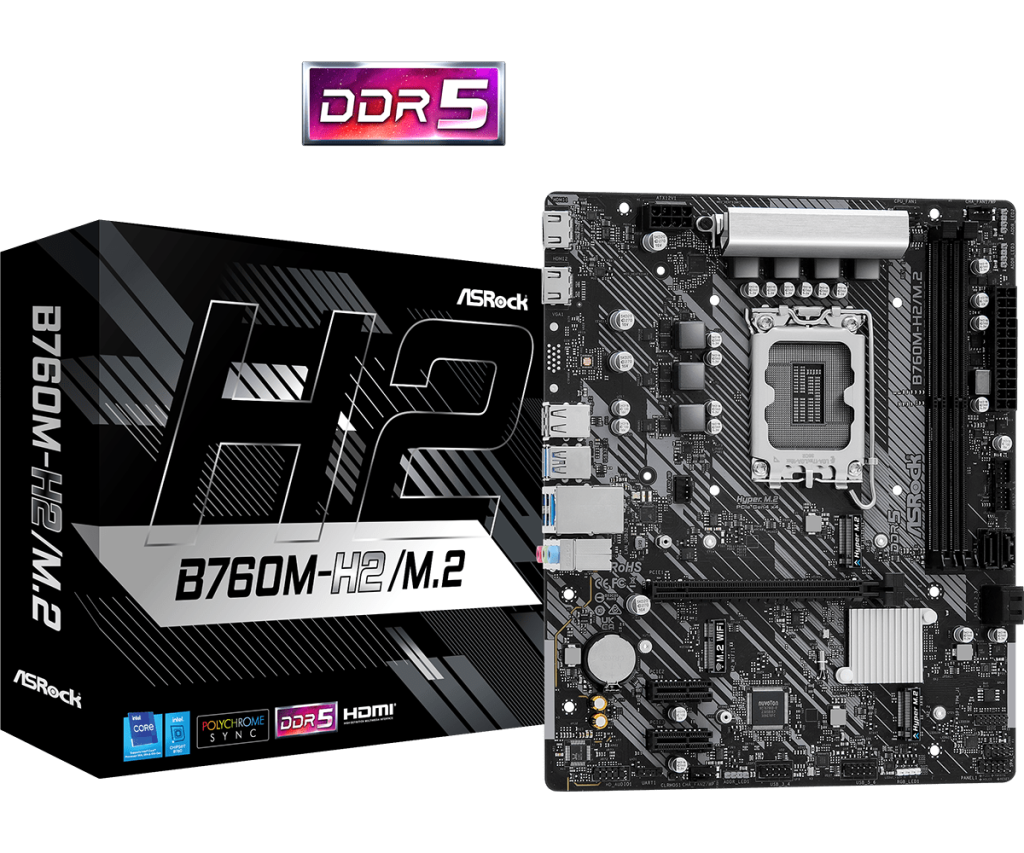

Дънна платка ASROCK B760M-H2/M.2, LGA1700, 2x DDR5, 2x M.2 NVMe, 4 xSATA3, 2x HDMI, mATX

Дънна платка ASROCK B760M-H2/M.2, LGA1700, 2x DDR5, 2x M.2 NVMe, 4 xSATA3, 2x HDMI, mATX

SKU: B760M-H2/M.2
ID: #35618
Цена: 209,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 14th, 13th Gen & 12th Gen Intel® Core™
CPU Socket: Intel LGA1700
Чипсет: Intel B760
Максимален капацитет RAM памет: 96 GB
Поддържана памет: DDR5
M.2 слот: 2 M.2 SSD slot (NVMe PCIe Gen4)
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 10
Graphics технология: Няма
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Не
HDMI: 2
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

  • CPU
    - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
    - Supports Intel® Thermal Velocity Boost (TVB)
    - Supports Intel® Adaptive Boost Technology (ABT)
  • Chipset
    - Intel® B760
  • Memory
    - Dual Channel DDR5 Memory Technology
    - 2 x DDR5 DIMM Slots
    - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
    - Max. capacity of system memory: 96GB
    - Supports Intel® Extreme Memory Profile (XMP) 3.0

    *1DPC 1R Up to 7200+ MHz (OC), 5600 MHz Natively.
    1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    - Intel® Xe Graphics Architecture (Gen 12)
    - 2 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • LAN
    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Dragon RTL8125BG
    - Supports Dragon 2.5G LAN Software
    - Smart Auto Adjust Bandwidth Control
    - Visual User Friendly UI
    - Visual Network Usage Statistics
    - Optimized Default Setting for Game, Browser, and Streaming Modes
    - User Customized Priority Control
  • Slots
    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    *Supports NVMe SSD as boot disks
  • Storage
    Chipset:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modes*
    - 4 x SATA3 6.0 Gb/s Connectors

    *Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    - 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
    - 6 x USB 2.0 (2 Rear, 4 Front)

    *All USB ports support ESD Protection
  • Connector
    - 1 x SPI TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~2/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

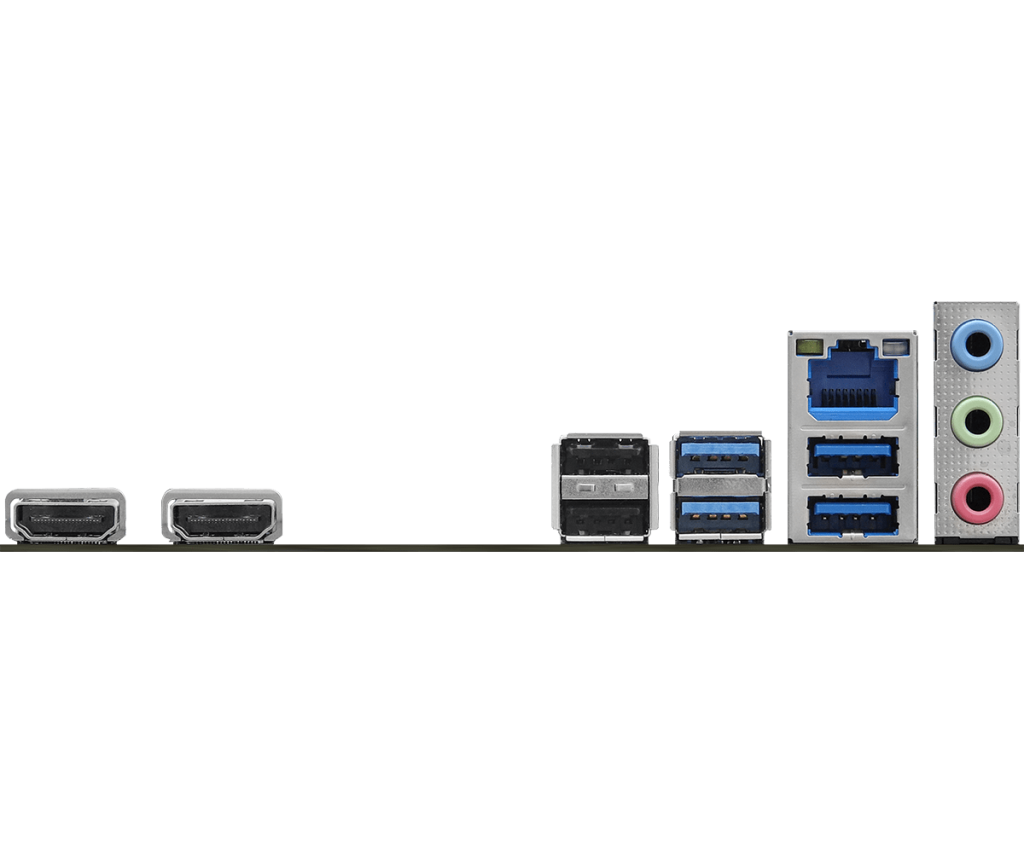

  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 2 x HDMI Ports
    - 4 x USB 3.2 Gen1 Type-A Ports
    - 2 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 1 x I/O Shield
    - 2 x SATA Data Cables
    - 3 x Screws for M.2 Sockets
  • Form Factor
    - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
