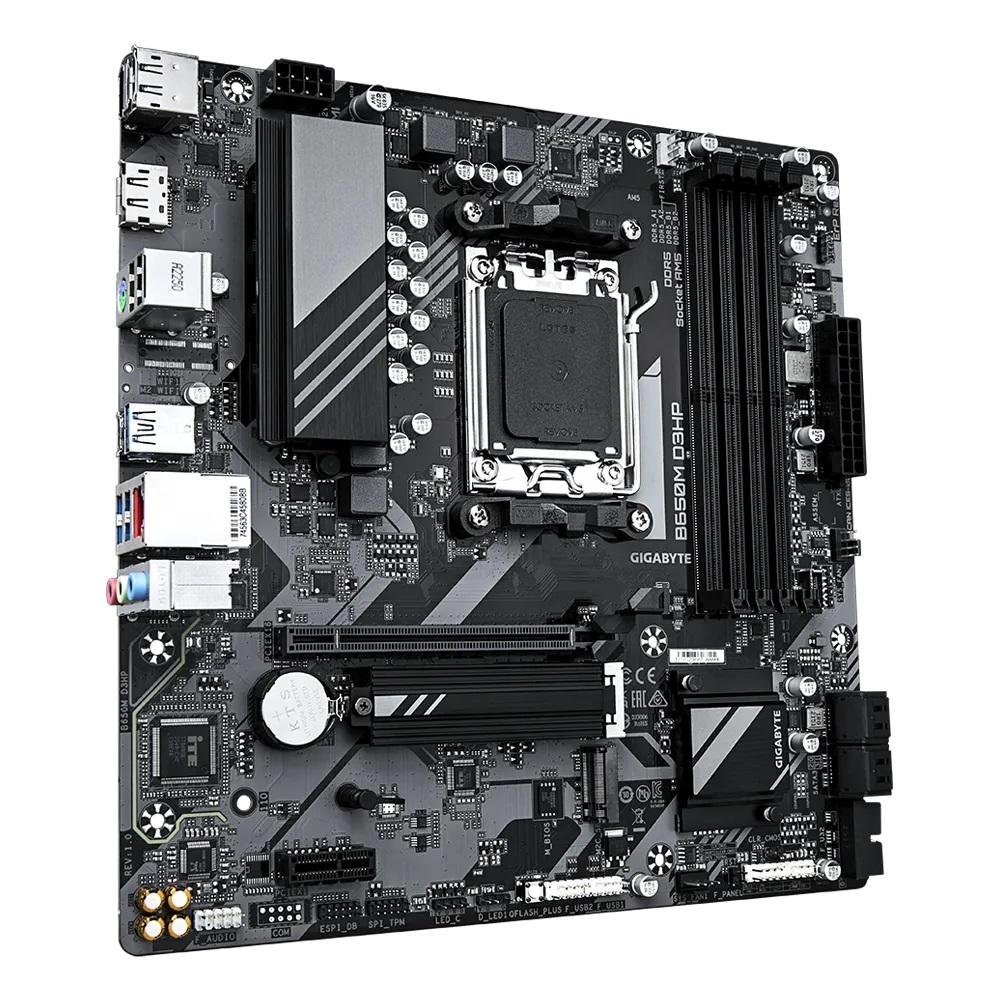

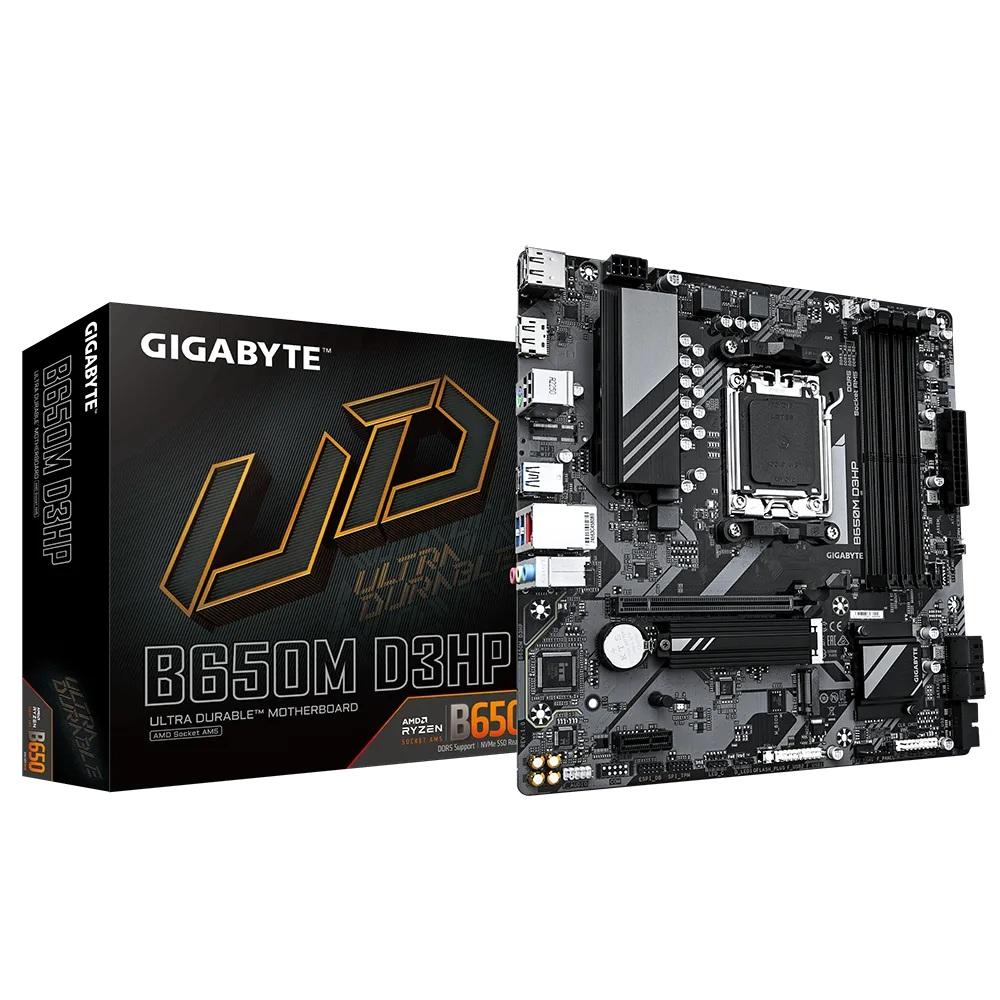

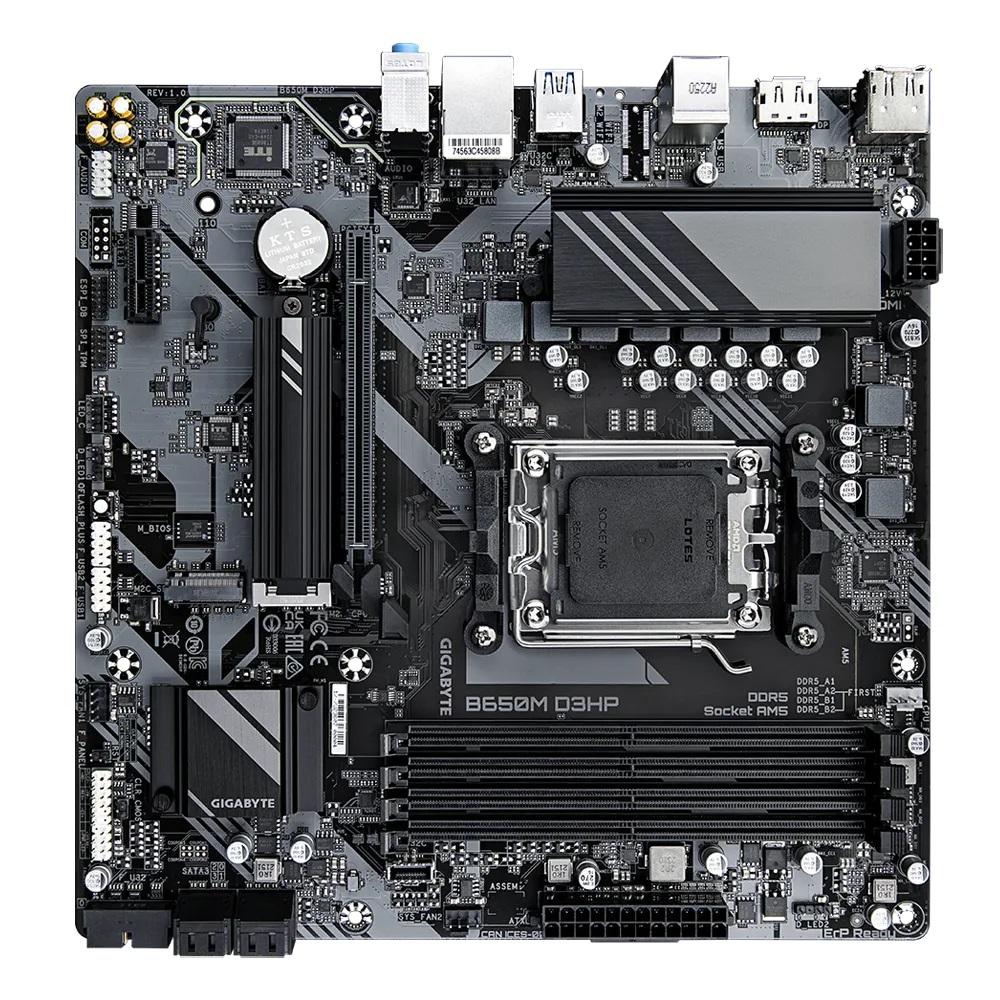

Дънна платка Gigabyte B650M D3HP, AM5, 4x DDR5, 2x M.2 NVMe, 4 x SATA 6Gb/s, HDMI, 2x DP, mATX

SKU: GB B650M D3HP 1.0

ID: #38249

Цена: 268,00 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5

CPU Socket: AMD AM5

Чипсет: AMD B650

Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB

Памет, слотове: 4

Поддържана памет: DDR5

M.2 слот: 2 x M.2 slots / 4 x SATA 6Gb/s ports

Поддръжка на RAID: SATA / NVMe RAID 0, 1, 10

Graphics технология: Няма

Мрежа: 1 x 10/100/1000 Mbps (RJ-45)

Wi-Fi Mодул: Не

HDMI: 1

DisplayPort: 2

Форм фактор: Micro ATX

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

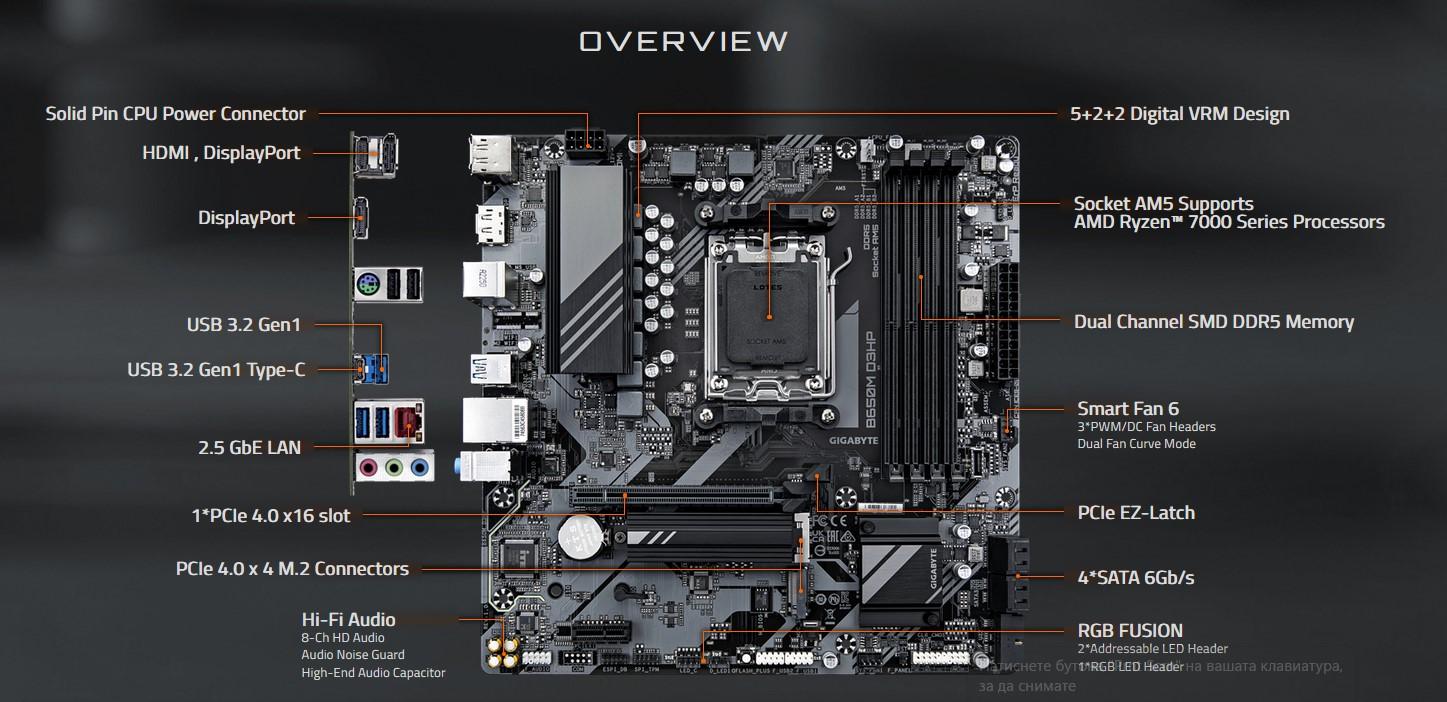

Описание

CPU

AMD Socket AM5, support for:
AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset

AMD B650
Memory

Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.

Support for up to triple-display at the same time
(Graphics specifications may vary depending on CPU support.)
Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB

CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 port on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

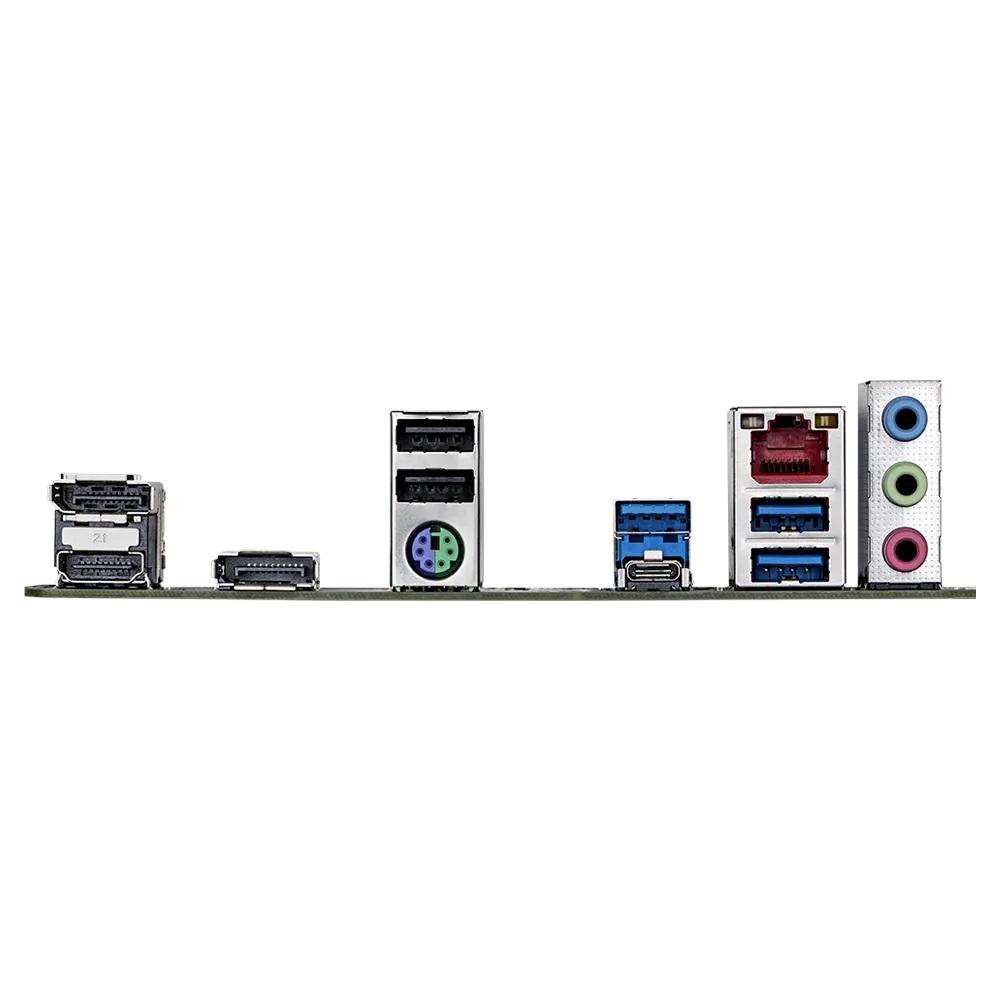

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x DisplayPorts
1 x RJ-45 port
3 x audio jacks
I/O Controller

iTE® I/O Controller Chip
H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
