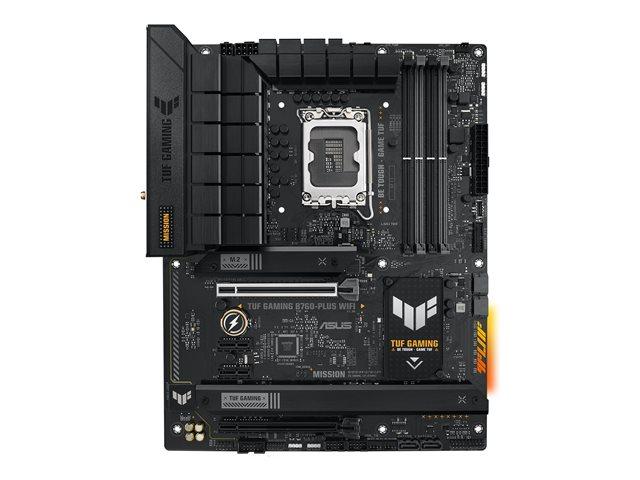

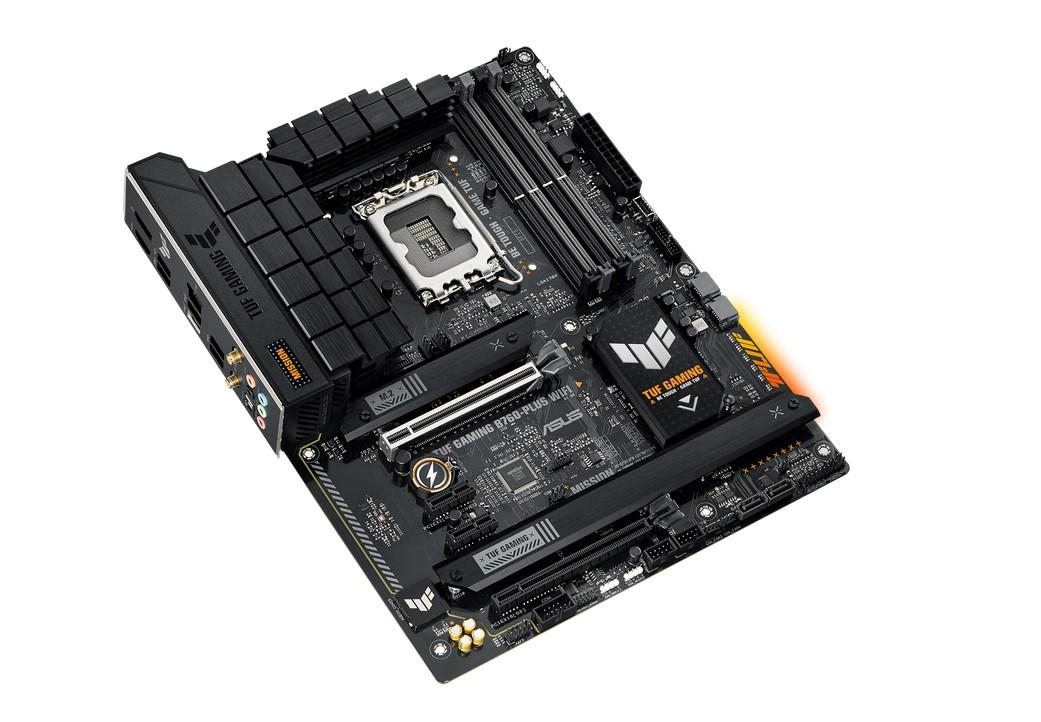

Дънна платка ASUS ROG STRIX B760-PLUS GAMING WIFI, LGA1700, 4x DDR5, WiFi 6, 3x M.2, 1xHDMI, 1xDP, USB Type-C, Aura Sync RGB, ATX

SKU: TUF GAMING B760-PLUS WIFI

ID: #32810

Характеристики

Поддържани процесори: Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost

CPU Socket: Intel LGA1700

Чипсет: Intel B760

Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB

Поддържана памет: DDR5

M.2 слот: 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Вграден Bluetooth: Bluetooth V5.2

Wi-Fi Mодул: Да

Безжична мрежа: 802.11ax (Wi-Fi 6)

HDMI: 1

DisplayPort: 1

Форм фактор: ATX

Гаранция (месеца): 36

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

ASUS TUF GAMING B760-PLUS WIFI LGA 1700 4DDR5 ATX 4xSATA MB 1xHDMI 2.1 1xDP 1.4 3xM.2


Manufacturer	ASUS
Manufacturer Part No	90MB1ER0-M1EAY0

General
Product Type	Motherboard - ATX
Chipset Type	Intel B760
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size	192 GB
Bus Clock	5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz
Supported RAM Integrity Check	Non-ECC, on-die ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type	HD Audio (8-channel)
Compliant Standards	Digital Theater Systems (DTS), High Definition Audio
LAN
Network Interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity

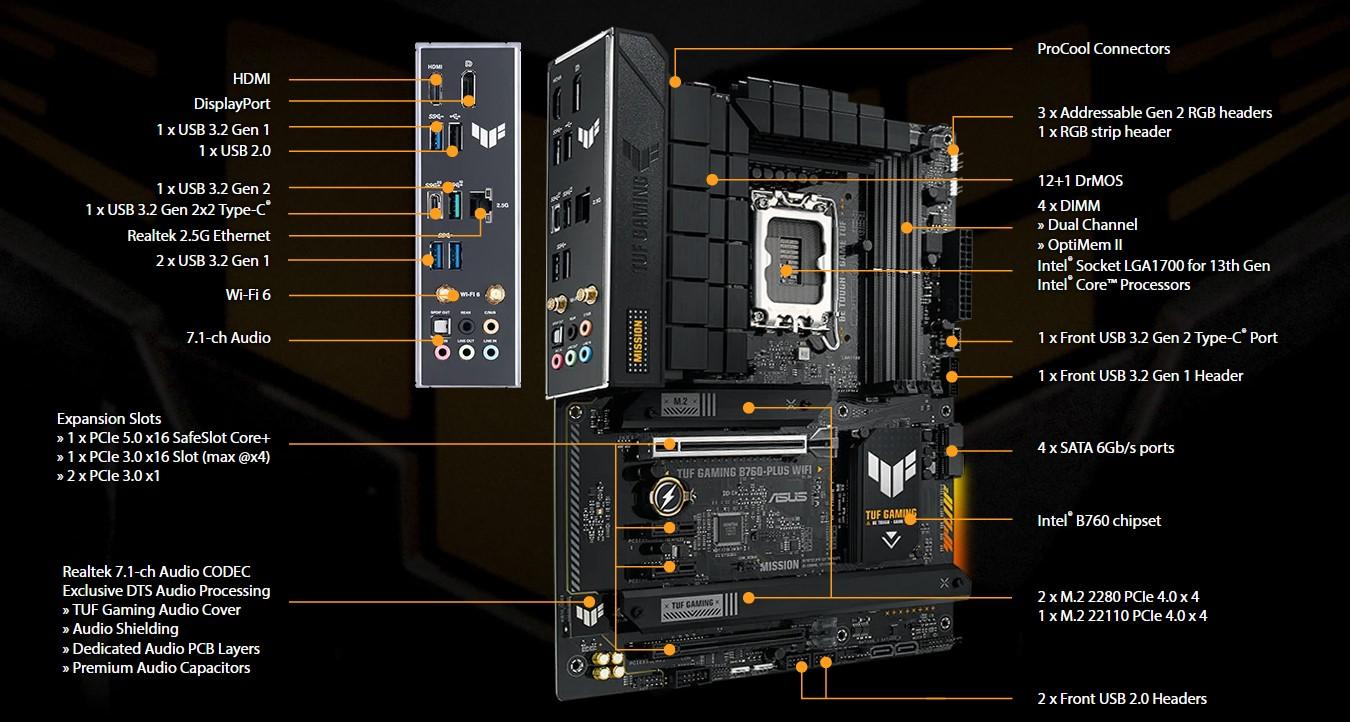

Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 1 x PCIe 5.0 x16
Storage Interfaces	PCIe 4.0 -connectors: 3 x M.2 SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features	Intel Rapid Storage Technology

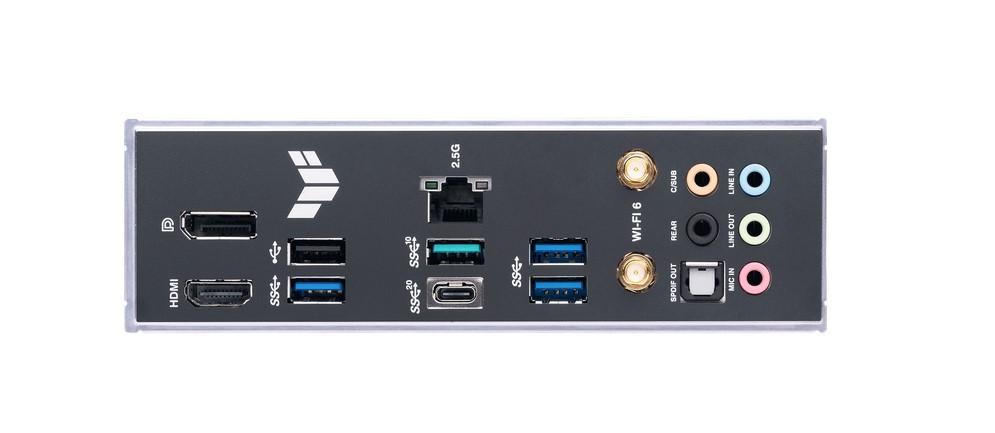

Interfaces	1 x DisplayPort 1 x HDMI 1 x USB-C 3.2 Gen2x2 1 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 1 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 2 x aerial 1 x SPDIF out 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out/headphones - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack
Internal Interfaces	1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x Thunderbolt - header 1 x serial - header
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, 6 Layer PCB, TUF LANGuard, overvoltage protection, AURA RGB Lighting Control, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, CPU Socket lever protector, VRM heatsink design, 12+1 DrMOS power stages, TUF Chokes military-grade, TUF 5K black metallic capacitors
Miscellaneous

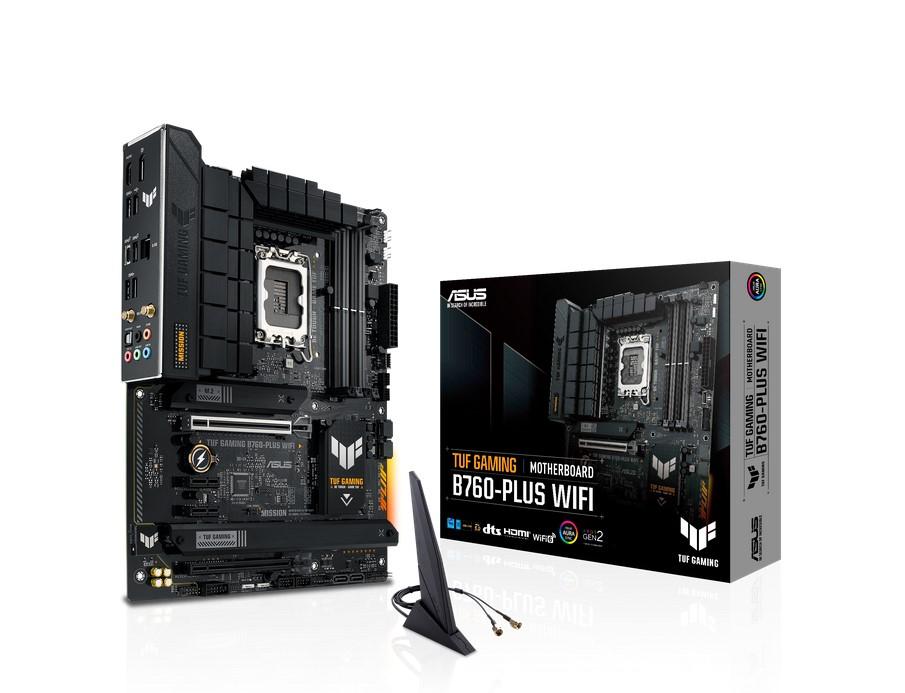

Included Accessories	ASUS Wi-Fi moving aerial, 2 x M.2 rubber package, M.2 screw package, TUF certification card, TUF GAMING sticker
Cables Included	2 x Serial ATA cable
Software Included	ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4, Norton 360 for Gamers, DTS Audio Processing
Width	30.5 cm
Depth	24.4 cm
