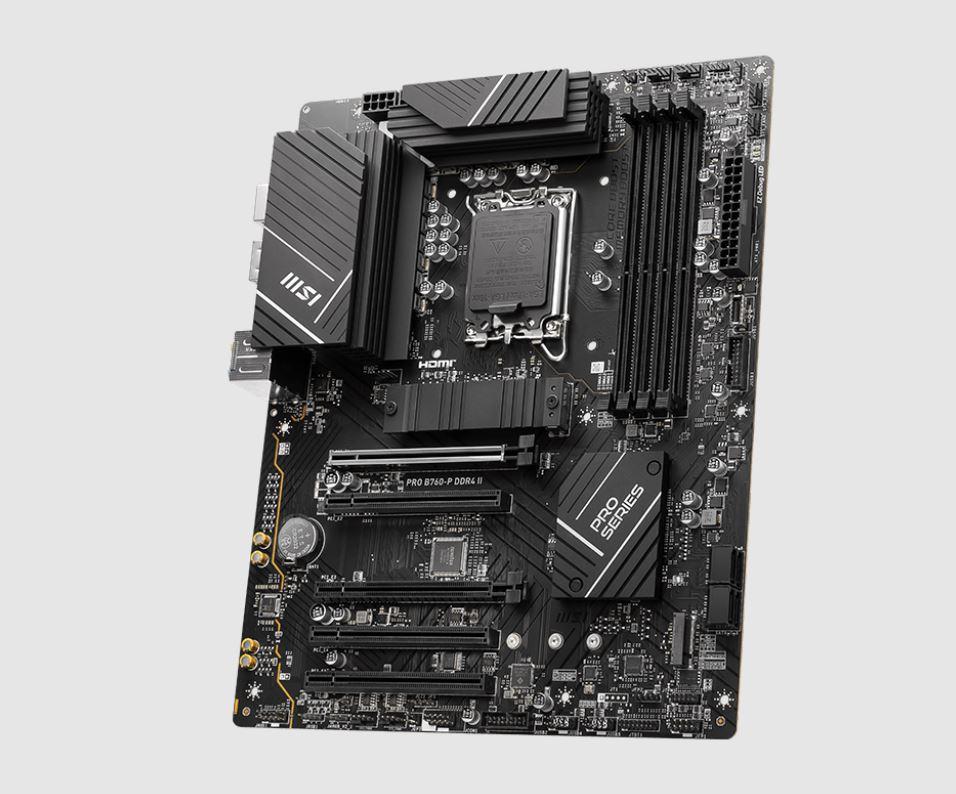

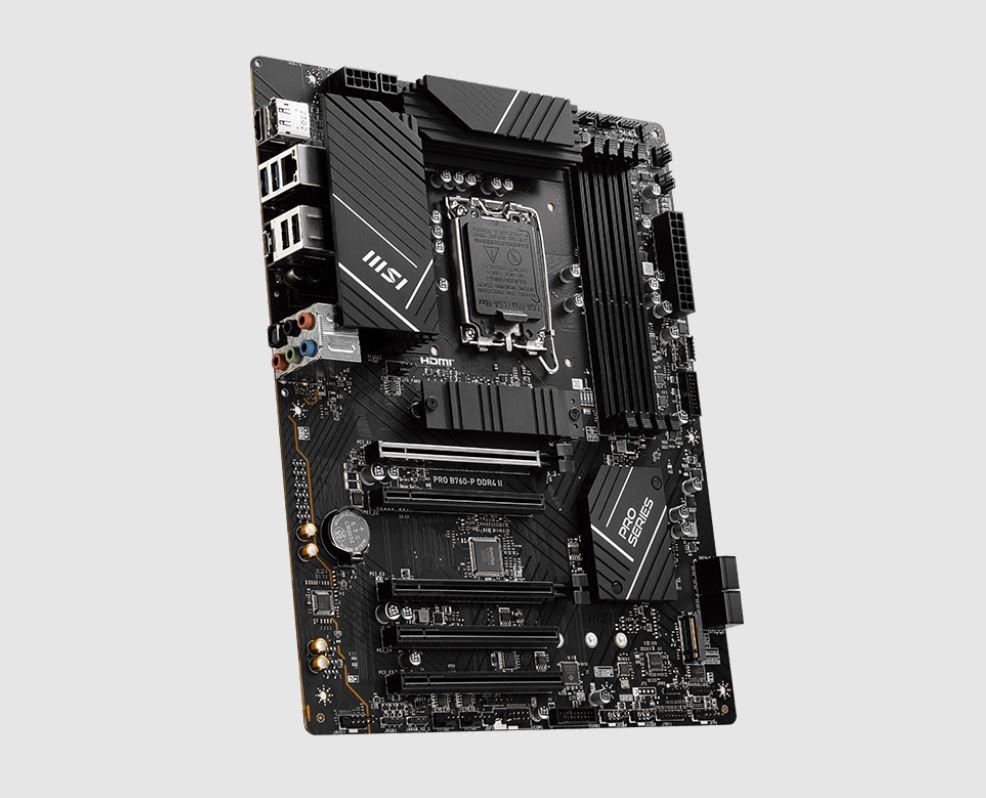

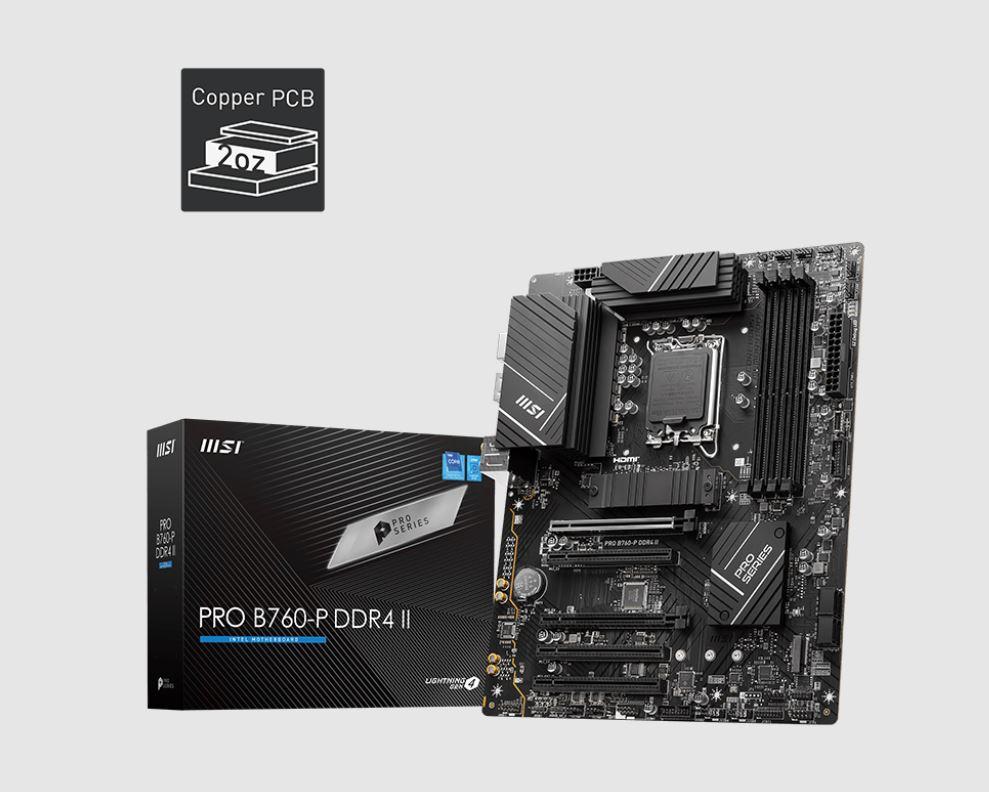

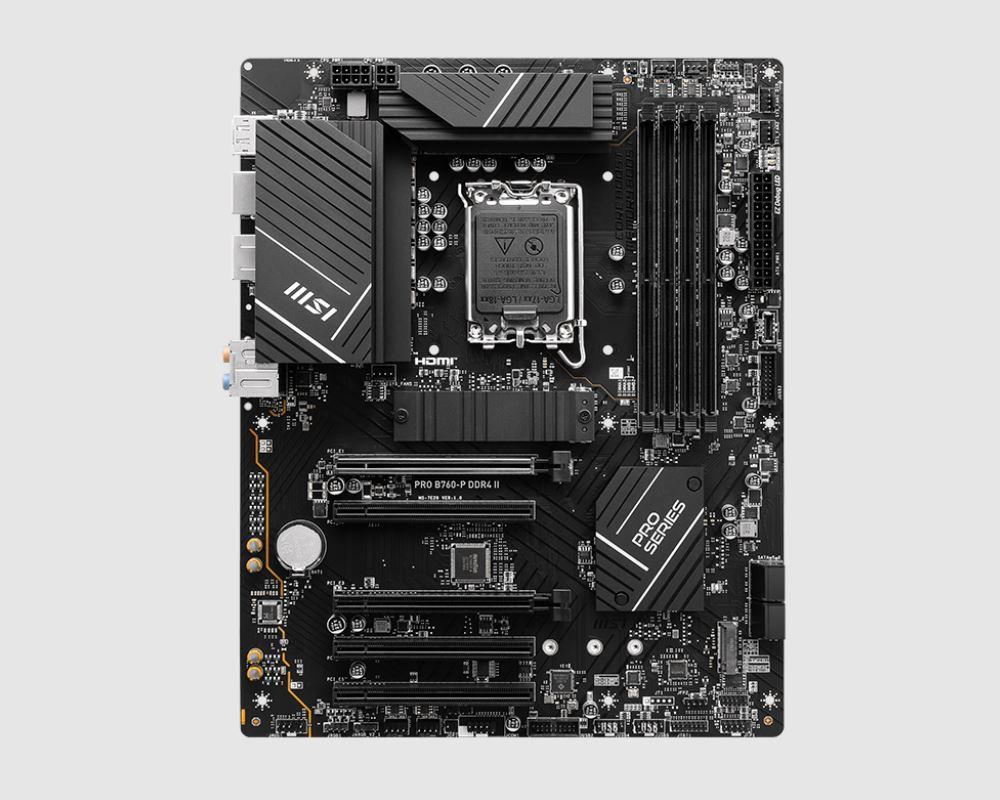

Дънна платка MSI PRO B760-P II DDR4, B760, LGA1700, DDR4, PCIe 4.0, 4x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen2 Type-C, HDMI, DP, ATX

SKU: PRO B760-P II / 911-7E29-002

ID: #39472

Цена: 293,00 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

CPU Socket: Intel LGA1700

Чипсет: Intel B760

Максимален капацитет RAM памет: 128 GB

Памет, слотове: 4

Поддържана памет: DDR4

M.2 слот: 1 x M.2 slots / 4 x SATA 6Gb/s

Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10

Graphics технология: Няма

Мрежа: 1 x 10/100/1000 Mbps (RJ-45)

HDMI: 1

DisplayPort: 1

Форм фактор: ATX

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type C (Rear)
LAN	Realtek^® RTL8125BG 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
LED FEATURE	4x EZ Debug LED

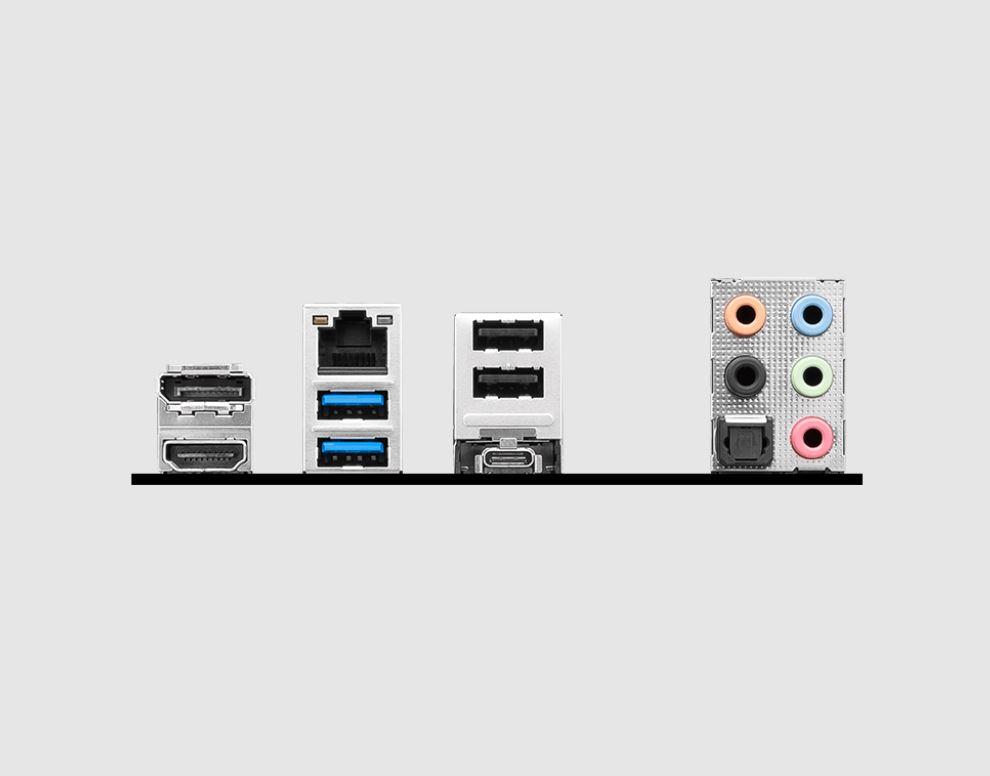

BACK PANEL PORTS	DisplayPort 2.5G LAN USB 2.0 Audio Connectors HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) S/PDIF-OUT
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
