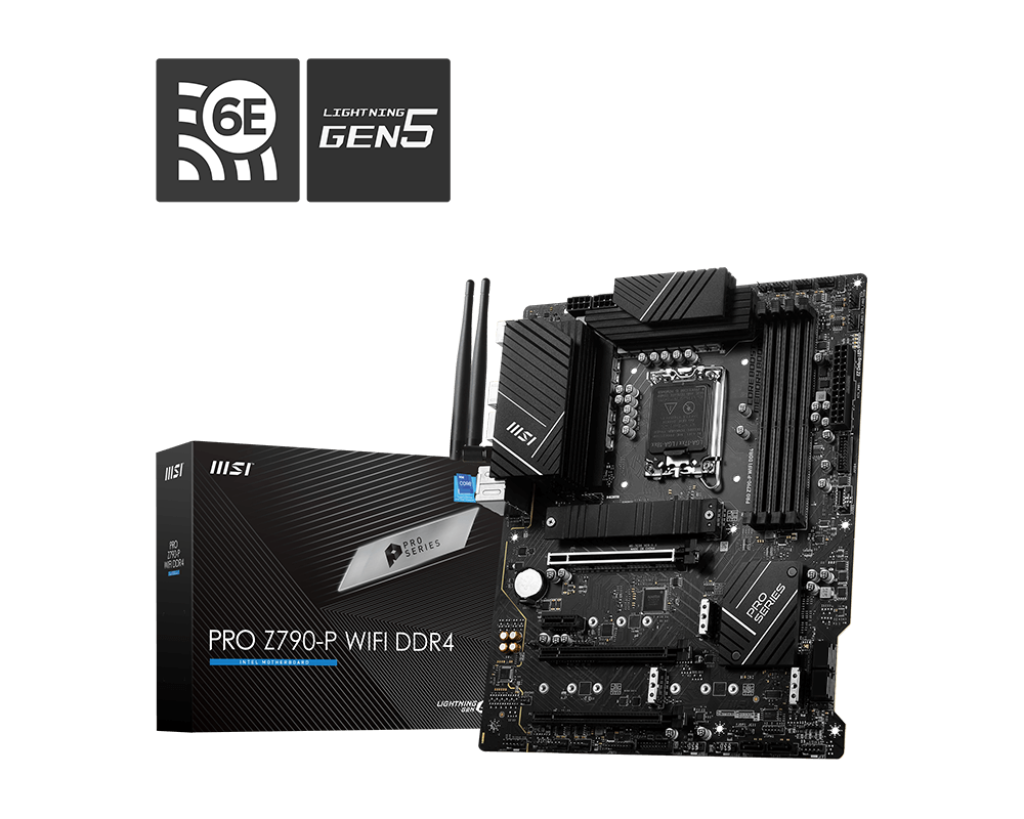

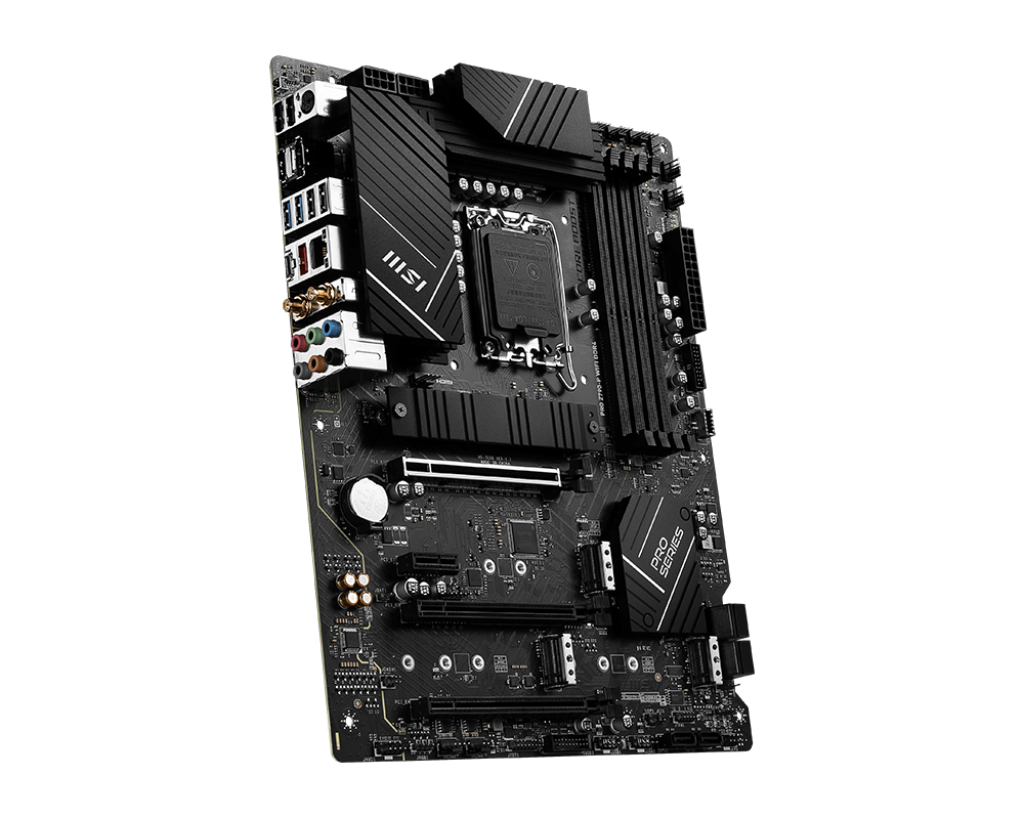

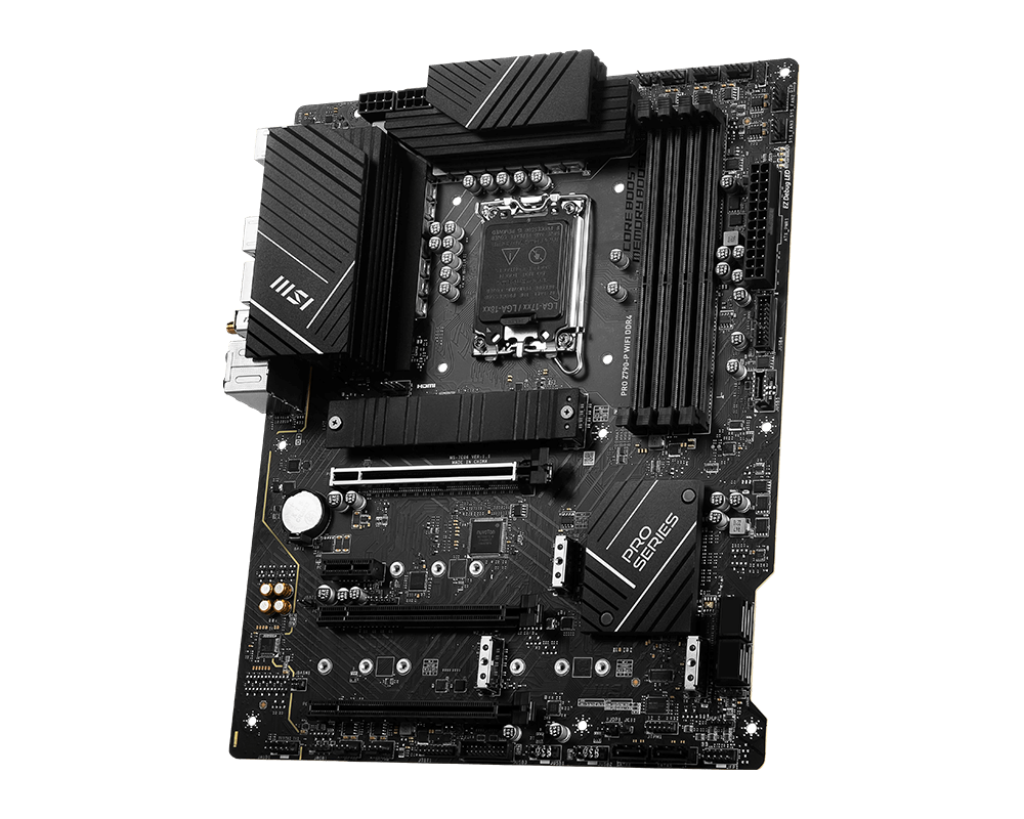

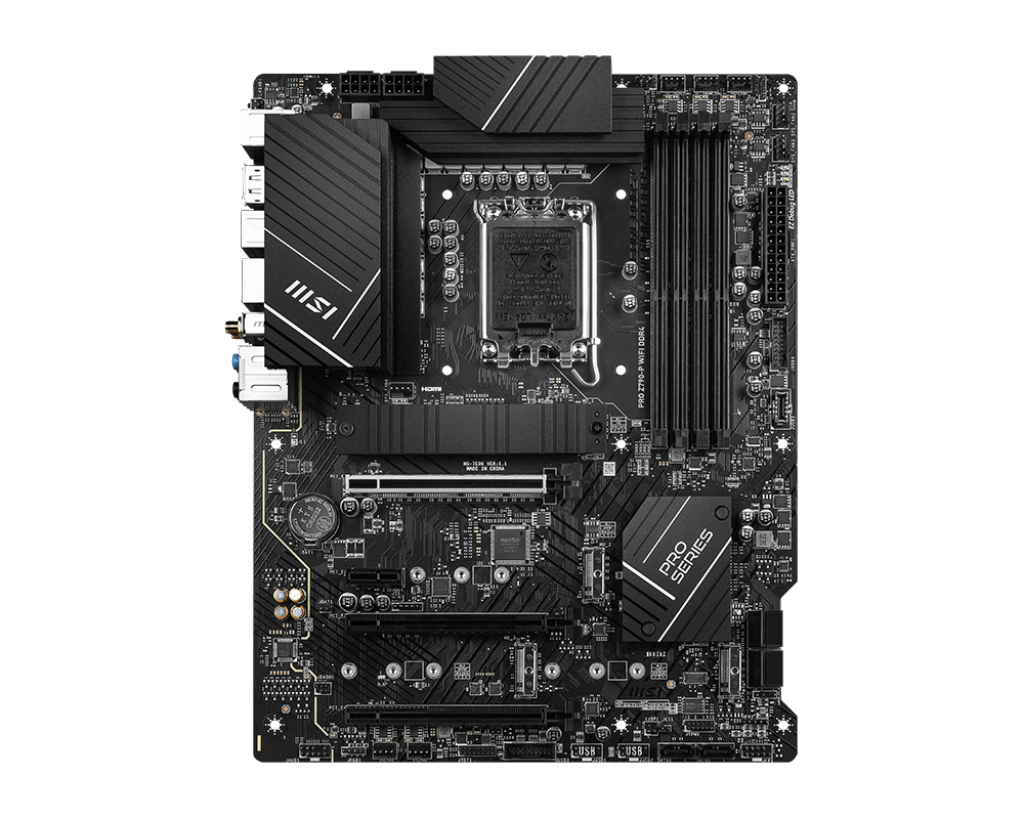

Дънна платка MSI PRO Z790-P WIFI, Z790, LGA1700, DDR4, PCI-E 4.0, 6x SATA 6Gb/s, 4x M.2, 1x USB 3.2 Gen2x2 Type-C, Wi-Fi, Bluetooth 5.3, DP/HDMI, ATX
Дънна платка MSI PRO Z790-P WIFI, Z790, LGA1700, DDR4, PCI-E 4.0, 6x SATA 6Gb/s, 4x M.2, 1x USB 3.2 Gen2x2 Type-C, Wi-Fi, Bluetooth 5.3, DP/HDMI, ATX
Дънна платка MSI PRO Z790-P WIFI, Z790, LGA1700, DDR4, PCI-E 4.0, 6x SATA 6Gb/s, 4x M.2, 1x USB 3.2 Gen2x2 Type-C, Wi-Fi, Bluetooth 5.3, DP/HDMI, ATX
Дънна платка MSI PRO Z790-P WIFI, Z790, LGA1700, DDR4, PCI-E 4.0, 6x SATA 6Gb/s, 4x M.2, 1x USB 3.2 Gen2x2 Type-C, Wi-Fi, Bluetooth 5.3, DP/HDMI, ATX
Дънна платка MSI PRO Z790-P WIFI, Z790, LGA1700, DDR4, PCI-E 4.0, 6x SATA 6Gb/s, 4x M.2, 1x USB 3.2 Gen2x2 Type-C, Wi-Fi, Bluetooth 5.3, DP/HDMI, ATX
Дънна платка MSI PRO Z790-P WIFI, Z790, LGA1700, DDR4, PCI-E 4.0, 6x SATA 6Gb/s, 4x M.2, 1x USB 3.2 Gen2x2 Type-C, Wi-Fi, Bluetooth 5.3, DP/HDMI, ATX

Дънна платка MSI PRO Z790-P WIFI, Z790, LGA1700, DDR4, PCI-E 4.0, 6x SATA 6Gb/s, 4x M.2, 1x USB 3.2 Gen2x2 Type-C, Wi-Fi, Bluetooth 5.3, DP/HDMI, ATX

SKU: PRO Z790-P WIFI / 911-7E06-010
ID: #28425
Цена: 465,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
CPU Socket: Intel LGA1700
Чипсет: Intel Z790
Максимален капацитет RAM памет: 4x DDR4, Maximum Memory Capacity 128GB
Поддържана памет: DDR4
M.2 слот: 4 x M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10
Graphics технология: Няма
Вграден Bluetooth: Bluetooth V5.3
Wi-Fi Mодул: Да
Безжична мрежа: 802.11ax Wi-Fi 6E
HDMI: 1 x 2.1
DisplayPort: 1
Форм фактор: ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Продукт
MSI Z790 4xDDR4 6xSATA3 RAID HDMI DP 4xM2 1XGLAN 3xPCIEx16 1xPCIEx1 WiFi
Supplier SKU
911-7E06-008
Category
Mainboard
Brand
REPOTEC
Description

Graphics
1x HDMI™; 1x DisplayPort; Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*; Support DP 1.4, maximum resolution of 4K 60Hz*
CPU's supported
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
Chipset
INTEL Z790
Expansion Slots
3x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 PCIe 5.0 supports up to x16 (From CPU); PCI_E2 PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
Storage
4x M.2 slot; M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices; M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 6x SATA 6G port
Memory Type
4x DDR4, Maximum Memory Capacity 128GB; Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR); Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)

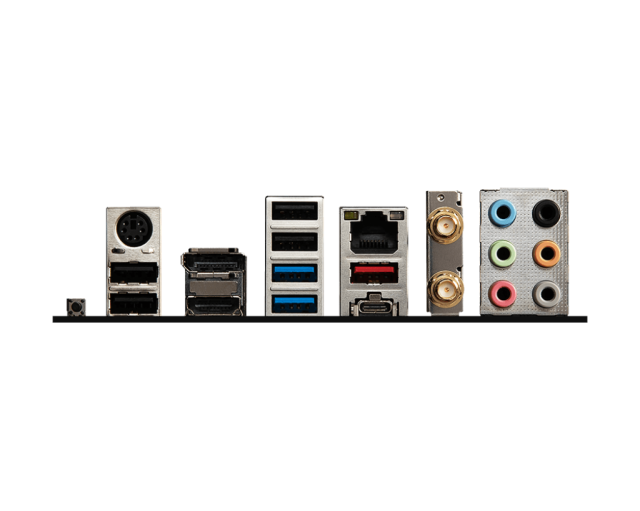

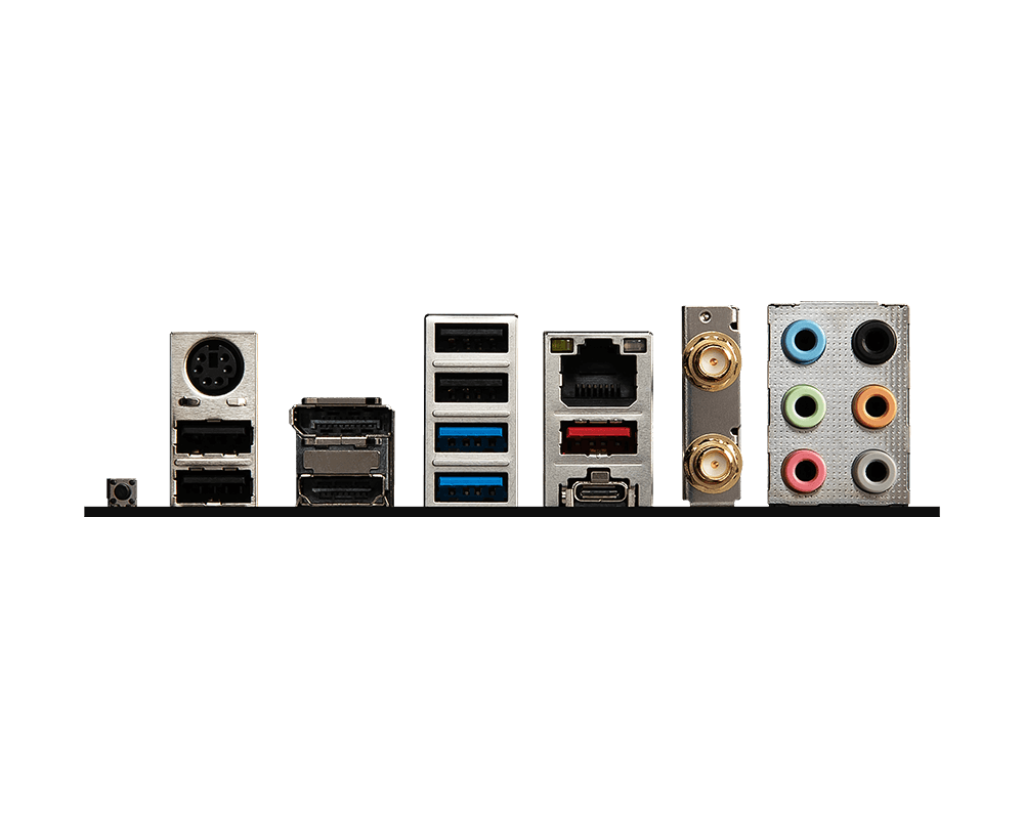

I/O
Keyboard / Mouse; DisplayPort; USB 2.0; 2.5G LAN; Wi-Fi / Bluetooth; Audio Connectors; Flash BIOS Button; USB 2.0; HDMI™; USB 3.2 Gen 1 5Gbps (Type-A); USB 3.2 Gen 2x2 20Gbps (Type-C); USB 3.2 Gen 2 10Gbps (Type-A)
Connectors
1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0; 4x USB 3.2 Gen1 Type A; 1x USB 3.2 Gen2 Type C
Audio
Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
LAN
Intel® 2.5Gbps LAN
Form Factor
ATX, 243.84mmx304.8mm
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Other
Intel® Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3, FIPS, FISMA
