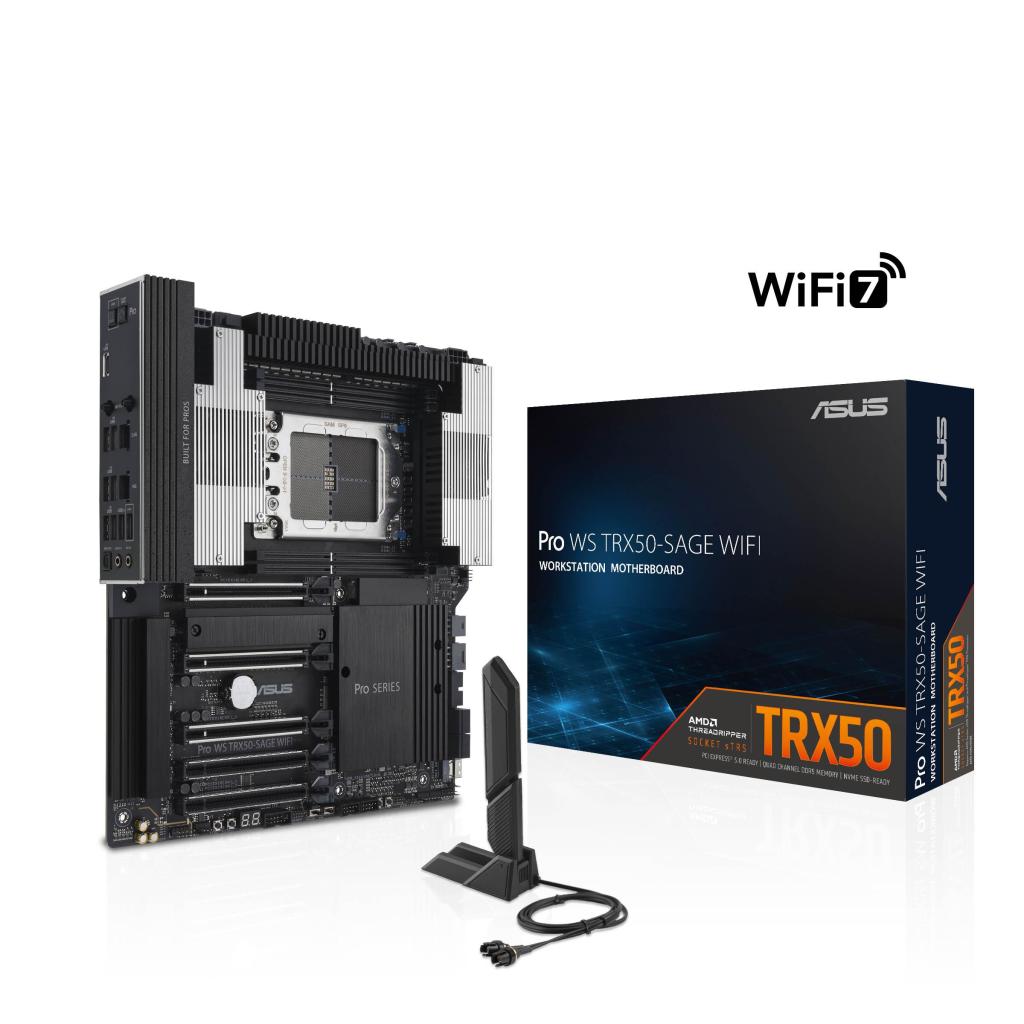

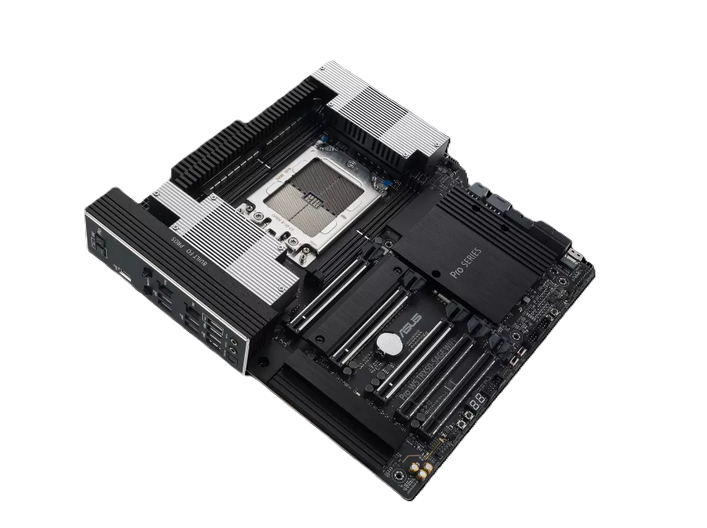

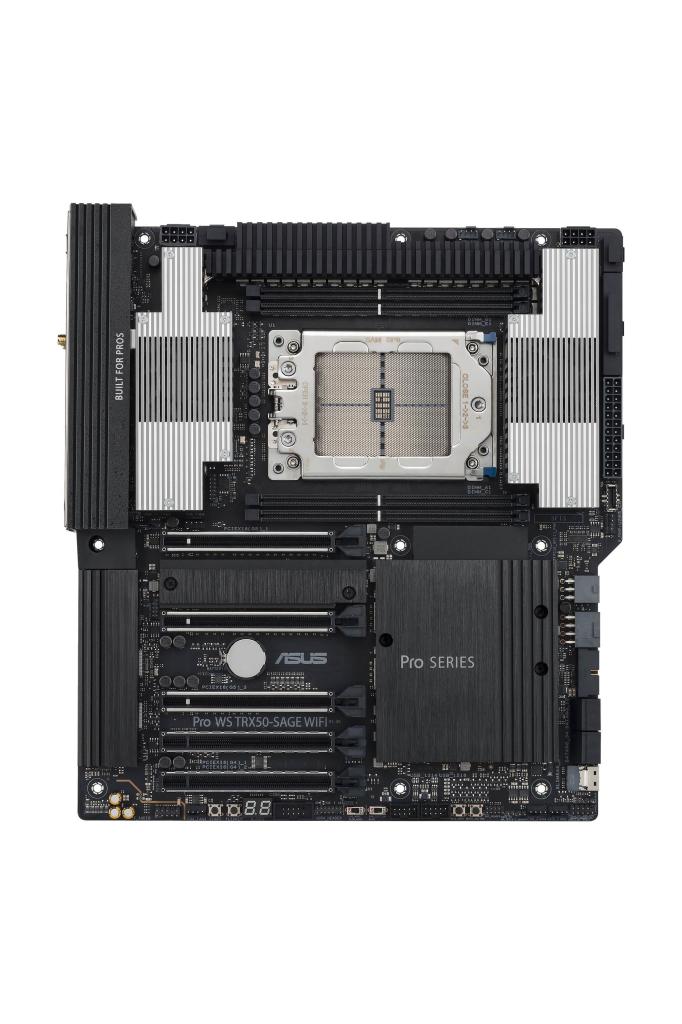

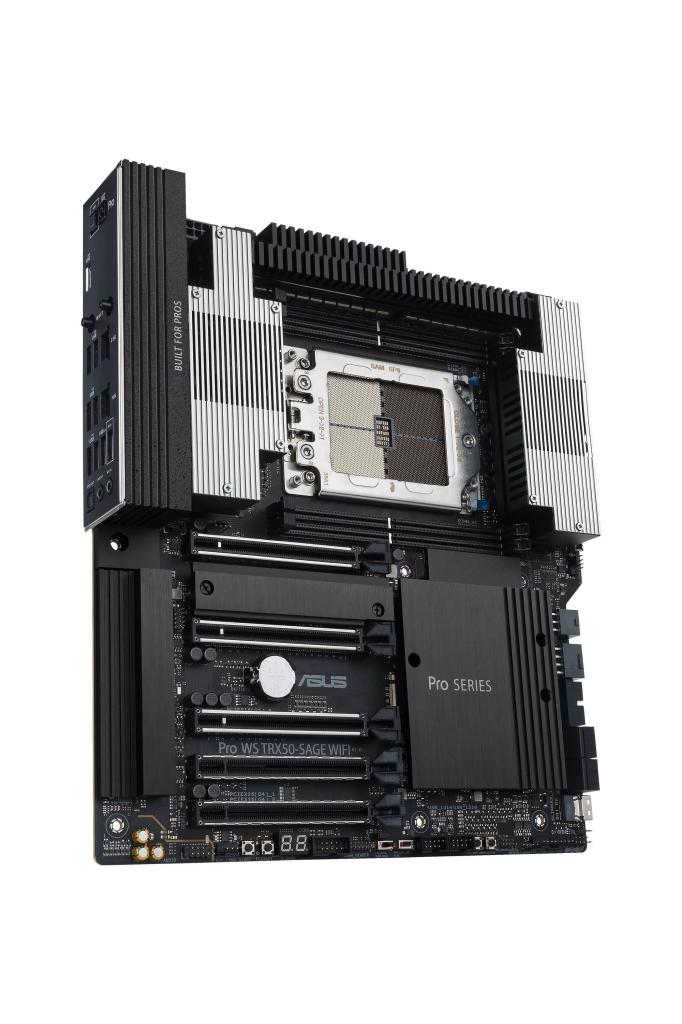

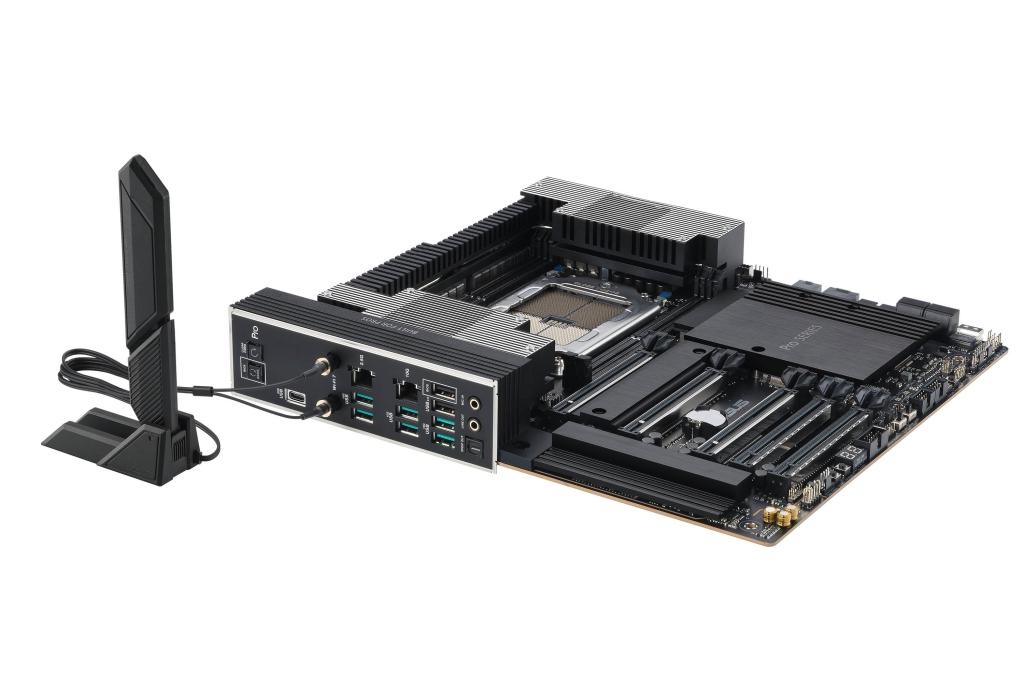

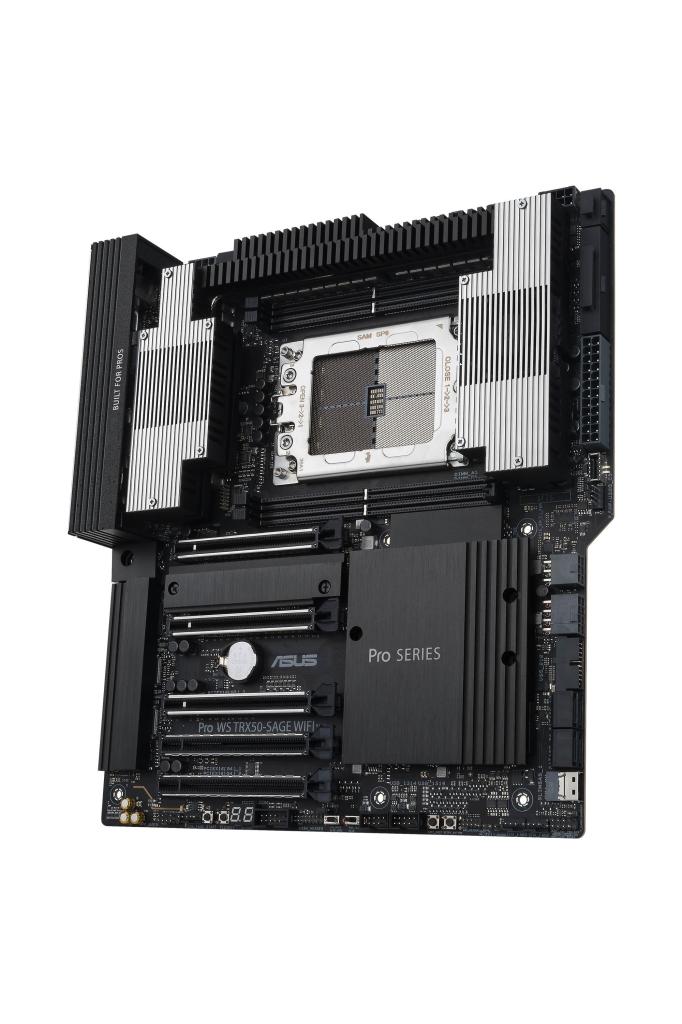

Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
нов продукт
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB
Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB

Дънна платка ASUS Pro WS TRX50-SAGE WIFI, sTR5 4x DDR5, 3x M.2slot, 4 x SATA 6Gb/s, Wi-Fi 7 / Bluetooth 5.4, 2x Ethernet, CEB

SKU: Pro WS TRX50-SAGE WIFI
ID: #43302
Цена: 1 919,00 лв.
981,17 €
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Threadripper™ PRO 9000 & 7000 WX-Series и Ryzen™ Threadripper™ 9000 & 7000 AMD процесори
CPU Socket: sTR5
Чипсет: AMD TRX50
Поддръжка на Dualchannel: Да
Памет, слотове: 4
Поддържана памет: DDR5
M.2 слот: 3 x M.2 slots and 4 x SATA 6Gb/s ports
Поддръжка на RAID: SATA RAID 0, 1, 5, 10
Graphics технология: Няма
Вграден Bluetooth: Bluetooth V5.4
Мрежа: 1 x 10Gb Ethernet / 1 x 2.5Gb Ethernet
Wi-Fi Mодул: Да
Безжична мрежа: 802.11be (Wi-Fi 7)
Форм фактор: CEB
Гаранция (месеца): 36

Бърза Поръчка

Описание

CPU
AMD Socket sTR5 for Ryzen™  Threadripper™  PRO 9000 & 7000 WX-Series and Ryzen™  Threadripper™  9000 & 7000 Series Processors **
*Refer to www.asus.com for CPU support list.
**System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration.This behavior is normal. Please allow sufficient time for the process to complete.
Chipset
AMD TRX50 Chipset
Memory
4 x DIMM slots, DDR5, ECC Registered Memory*
4 Channel Memory Architecture
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

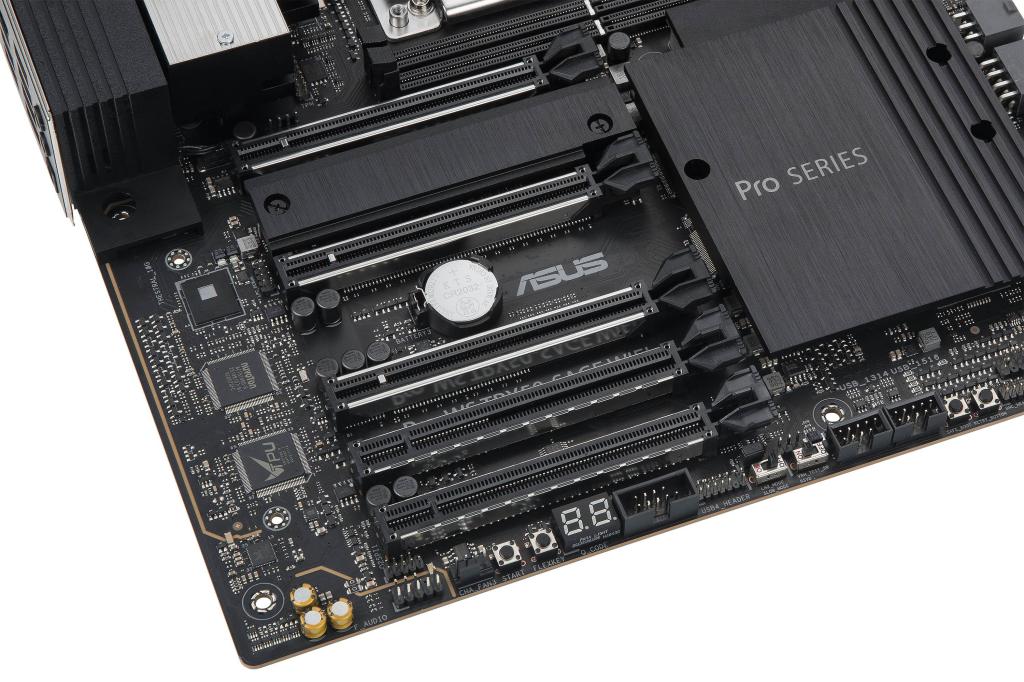

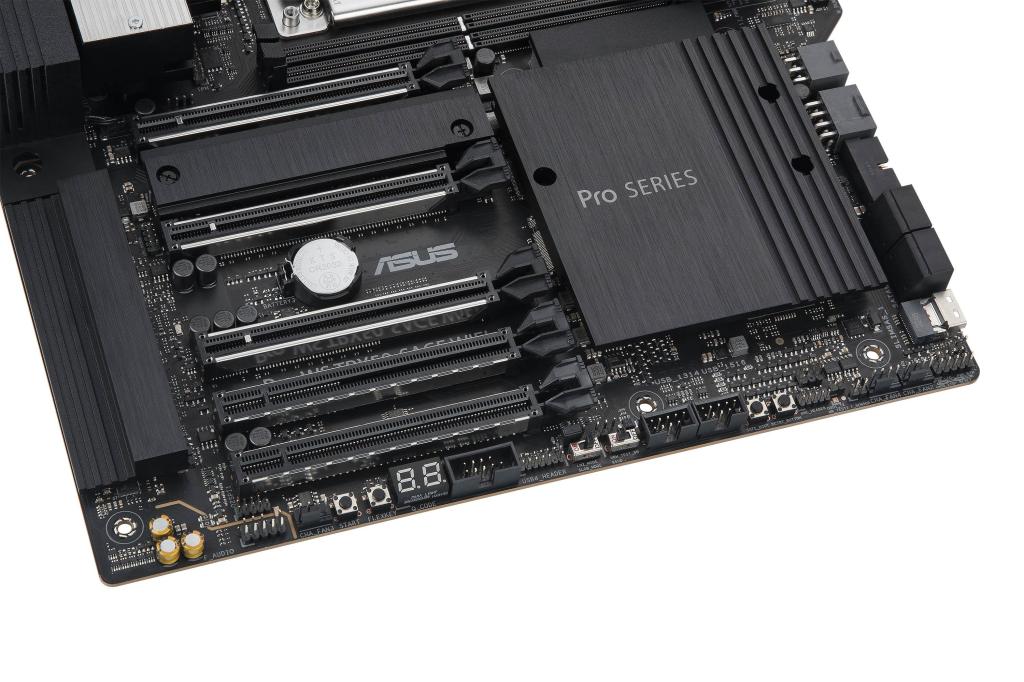

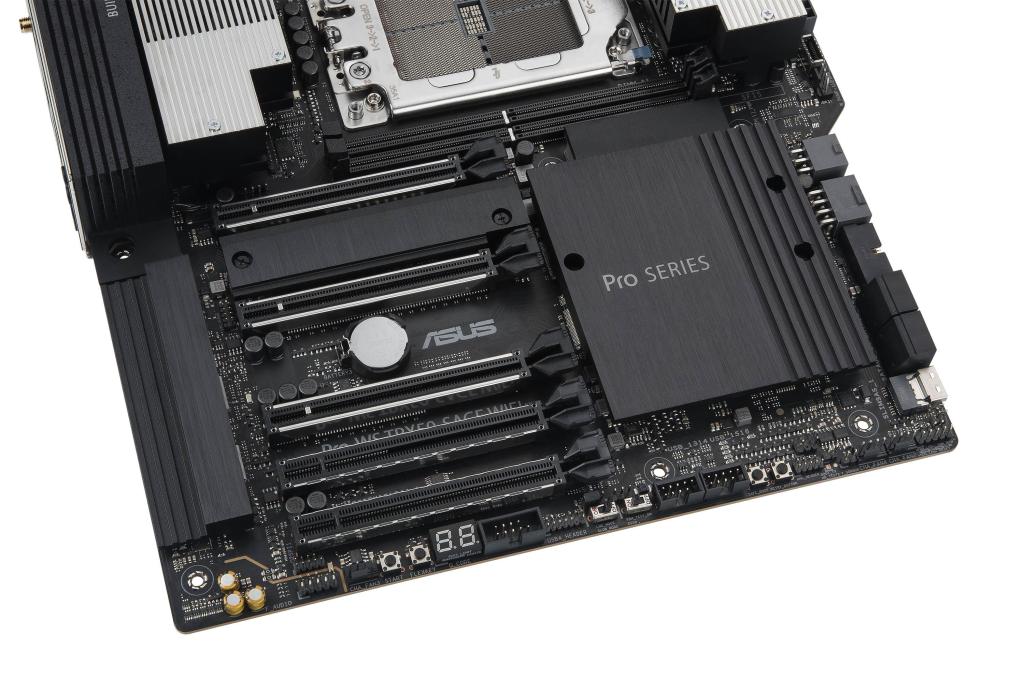

Expansion Slots
AMD Ryzen™  Threadripper™  PRO 9000 & 7000 WX-Series and Ryzen™  Threadripper™  9000 & 7000 Series Processors
2 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot(x8 mode)
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot(x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)

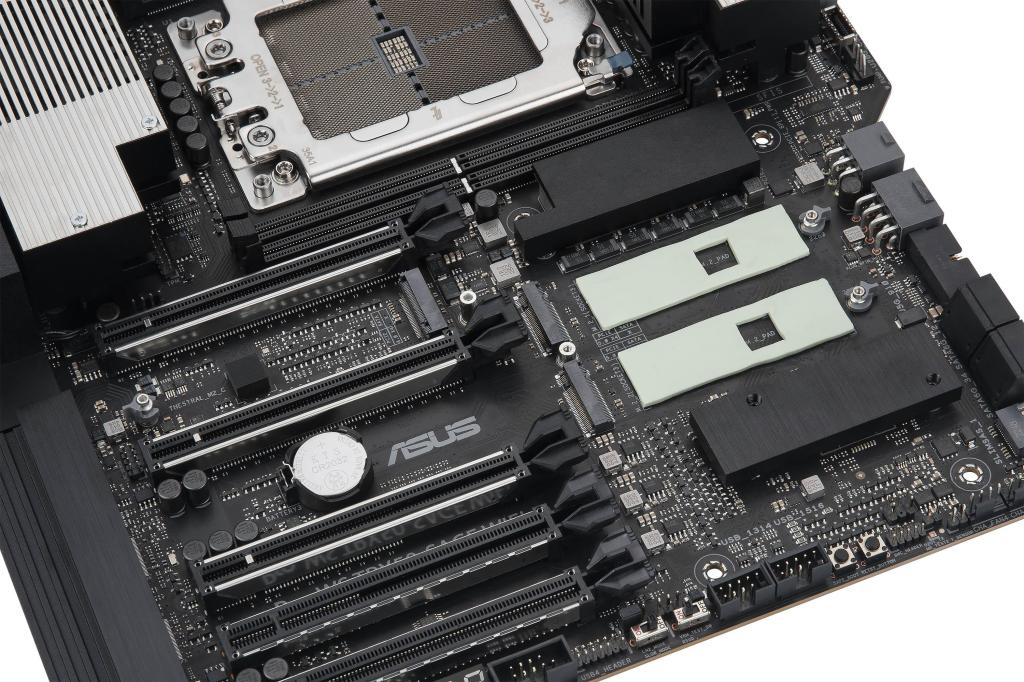

Storage
Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports
AMD Ryzen™  Threadripper™  PRO 9000 & 7000 WX-Series and Ryzen™  Threadripper™  9000 & 7000 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD TRX50 Chipset
M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Ethernet
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® I226-LM 2.5Gb Ethernet
Wireless & Bluetooth
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require  SV3 or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 9 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A )
2 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C® with up to 27W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC1220P Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Dedicated audio PCB layers
- Unique de-pop circuit
* A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

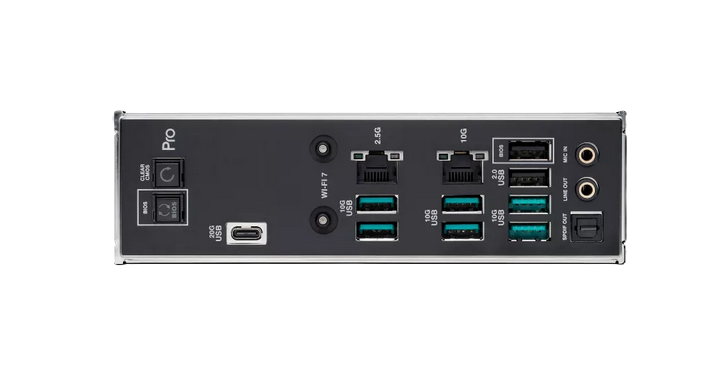

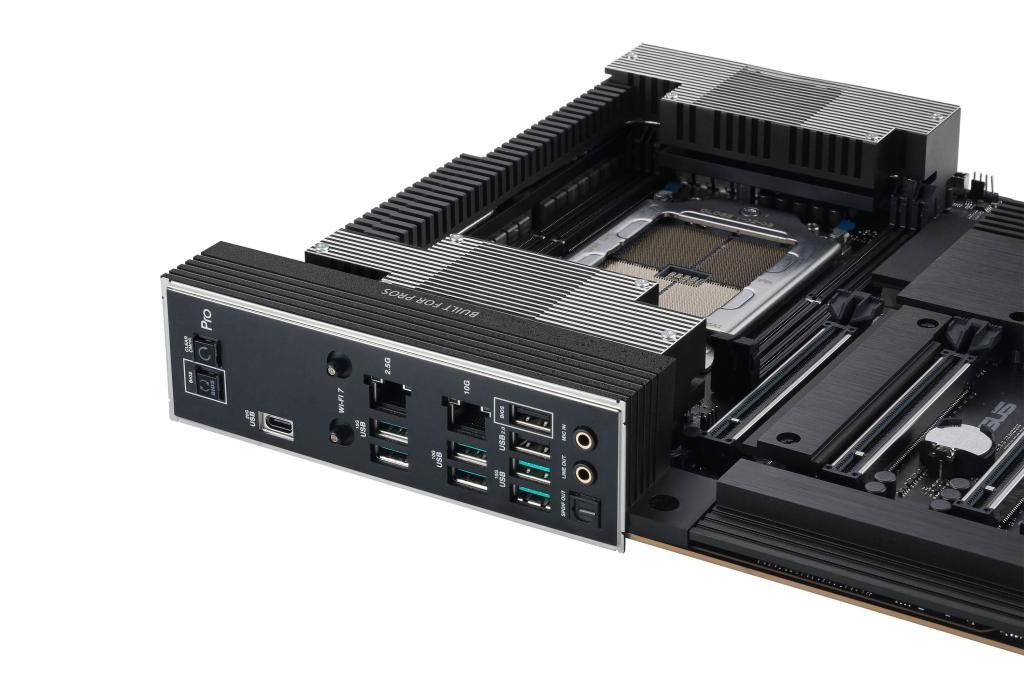

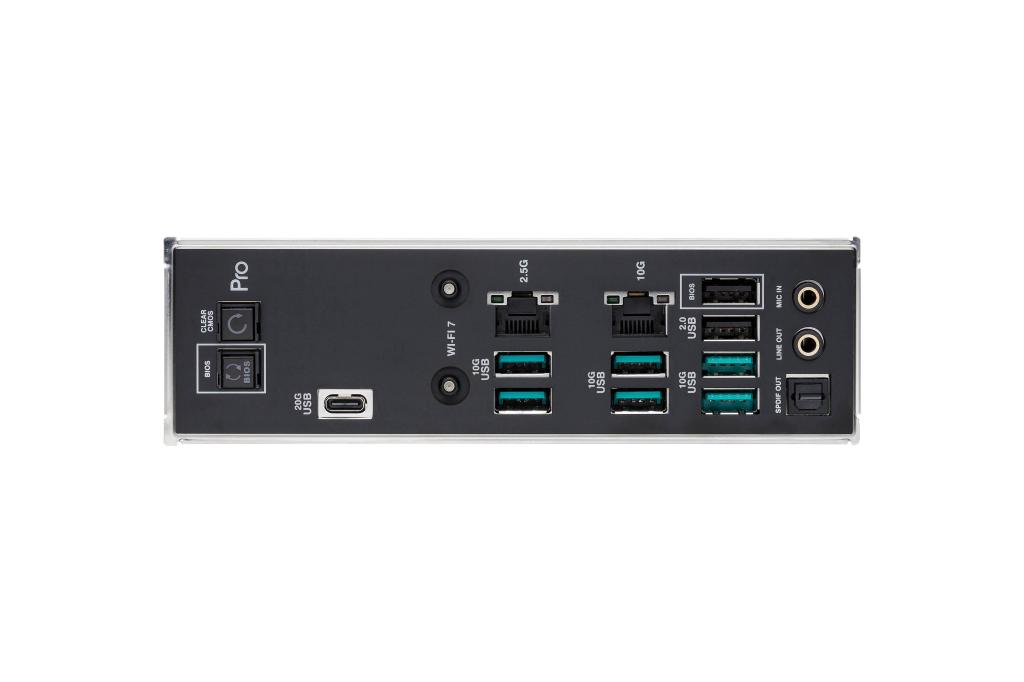

Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 port (2 x Type-A)
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
Power related
2 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
1 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x BMC header
1 x COM Port header
1 x USB4 header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button
1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin system panel header
1 x Chassis intrusion header
1 x Thermal Sensor header

Form Factor
CEB Form Factor
12 inch x 11 inch
(30.5 cm x 28.3 cm)

https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-trx50-sage-wifi/
