Дънна платка Gigabyte H810M H, LGA1851, 2x DDR5, 1x M.2 NVMe, 4x SATA 6Gb/s, VGA, HDMI, mATX
нов продукт
Дънна платка Gigabyte H810M H, LGA1851, 2x DDR5, 1x M.2 NVMe, 4x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка Gigabyte H810M H, LGA1851, 2x DDR5, 1x M.2 NVMe, 4x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка Gigabyte H810M H, LGA1851, 2x DDR5, 1x M.2 NVMe, 4x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка Gigabyte H810M H, LGA1851, 2x DDR5, 1x M.2 NVMe, 4x SATA 6Gb/s, VGA, HDMI, mATX

Дънна платка Gigabyte H810M H, LGA1851, 2x DDR5, 1x M.2 NVMe, 4x SATA 6Gb/s, VGA, HDMI, mATX

SKU: H810M H
ID: #41682
Цена: 204,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® Core™ Ultra Процесори (Серия 2)
CPU Socket: Intel LGA1851
Чипсет: Intel H810
Максимален капацитет RAM памет: 128 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 2
Поддържана памет: DDR5
Честота памет: 6400+(OC)
M.2 слот: 1 x M.2 slots / 4 x SATA 6Gb/s
Поддръжка на RAID: SATA RAID 0, 1, 5, 10
Graphics технология: Няма
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Не
HDMI: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

  • CPU
    LGA1851 socket: Support for Intel® Core™ Ultra Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
    L3 cache varies with CPU
  • Chipset
    Intel® H810 Express Chipset
  • Memory
    Support for DDR5 6400/5600 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.


    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


    Support for S/PDIF Out
  • LAN
    Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
  • Expansion Slots
    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.


    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
  • Storage Interface
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
    Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    - 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
    - 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports on the back panel
  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    2 x addressable RGB Gen2 LED strip headers
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x Clear CMOS jumper

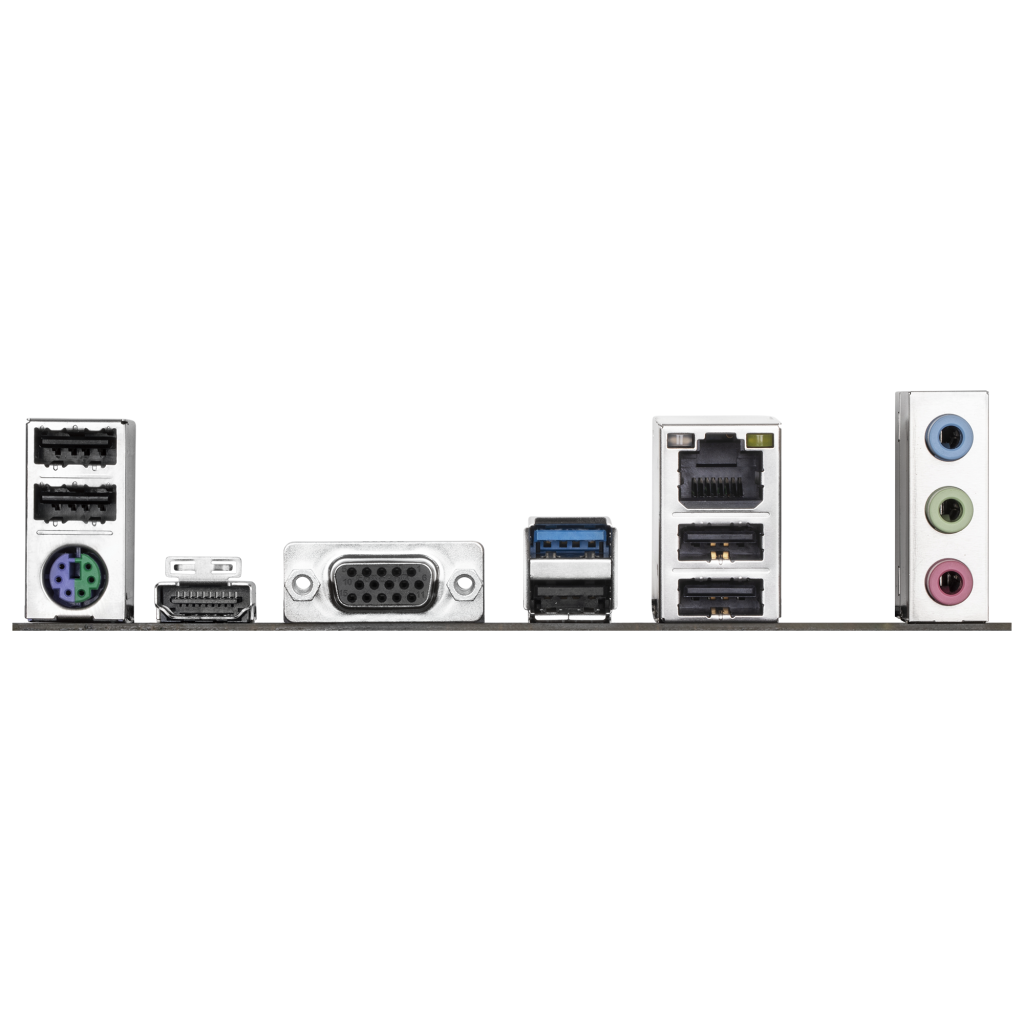

  • Back Panel Connectors
    1 x PS/2 keyboard/mouse port
    1 x HDMI port (Note)
    1 x D-Sub port
    1 x USB 3.2 Gen 1 port
    5 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks

    (Note) Actual support may vary by CPU.
  • I/O Controller
    iTE® I/O Controller Chip
  • H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
    Support for Smart Backup
  • Bundled Software
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit

    * The Intel® NPU driver is only supported on Windows 11.

  • Form Factor
    Micro ATX Form Factor; 24.4cm x 21.5cm



https://www.gigabyte.com/Motherboard/H810M-H#kf
