Дънна платка MSI MAG B760 TOMAHAWK WIFI DDR4, B760, LGA1700, DDR4, 3x M.2 slots, 4x SATA 6Gb/s, 3x M.2, 2x PCIe x16 slots, PCIe 5.0, HDMI, DPATX
Дънна платка MSI MAG B760 TOMAHAWK WIFI DDR4, B760, LGA1700, DDR4, 3x M.2 slots, 4x SATA 6Gb/s, 3x M.2, 2x PCIe x16 slots, PCIe 5.0, HDMI, DPATX
Дънна платка MSI MAG B760 TOMAHAWK WIFI DDR4, B760, LGA1700, DDR4, 3x M.2 slots, 4x SATA 6Gb/s, 3x M.2, 2x PCIe x16 slots, PCIe 5.0, HDMI, DPATX
Дънна платка MSI MAG B760 TOMAHAWK WIFI DDR4, B760, LGA1700, DDR4, 3x M.2 slots, 4x SATA 6Gb/s, 3x M.2, 2x PCIe x16 slots, PCIe 5.0, HDMI, DPATX

Дънна платка MSI MAG B760 TOMAHAWK WIFI DDR4, B760, LGA1700, DDR4, 3x M.2 slots, 4x SATA 6Gb/s, 3x M.2, 2x PCIe x16 slots, PCIe 5.0, HDMI, DPATX

SKU: MAG B760 TOMAHAWK WIFI
ID: #35094
Цена: 442,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
CPU Socket: Intel LGA1700
Чипсет: Intel B760
Максимален капацитет RAM памет: 128 GB
Поддържана памет: DDR4
M.2 слот: 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10
Вграден Bluetooth: Bluetooth V5.3
Wi-Fi Mодул: Да
Безжична мрежа: 802.11ax Wi-Fi 6E
HDMI: 1 (HDMI (Type A))
HDMI: 1
DisplayPort: 1
Форм фактор: ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

MSI MAG B760 TOMAHAWK WIFI DDR4, ATX, Socket 1700, Dual Channel DDR4 5333(OC)MHz, 2x PCIe x16 slots, 3x M.2 slots, 1x HDMI, 1x DP, 1x USB 3.2 Gen 2x2 Type-C, 4x USB 3.2 Gen 2, 4x USB 2.0, 7.1 HD Audio, 2.5Gbps LAN, WI-FI 6E, BT

Chipset INTEL B760
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA1700
Memory 4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile
Onboard Graphics 1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio Realtek® ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
LED FEATURE 4x EZ Debug LED

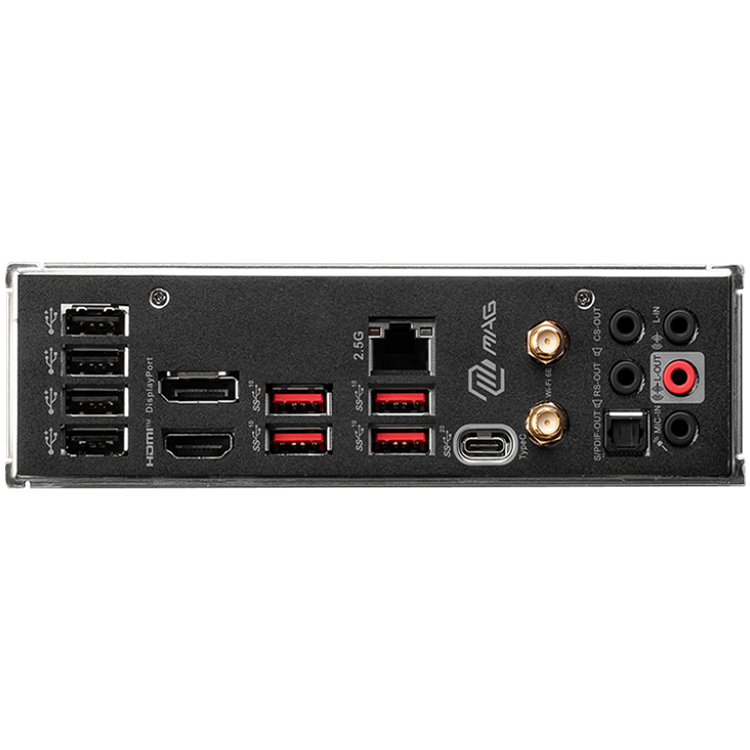

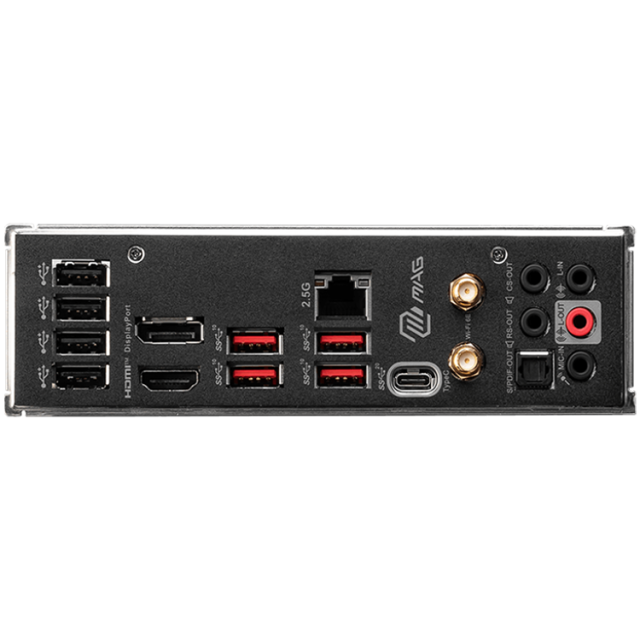

BACK PANEL PORTS
  1. USB 2.0
  2. DisplayPort 1.4
  3. USB 3.2 Gen 2 10Gbps Type-A
  4. 2.5G LAN Port
  5. Wi-Fi / Bluetooth Antenna
  6. HD Audio Connectors
  7. HDMI™ 2.1 Port
  8. USB 3.2 Gen 2x2 20Gbps Type-C
  9. Optical S/PDIF OUT
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info ATX
243.84mmx304.8mm
