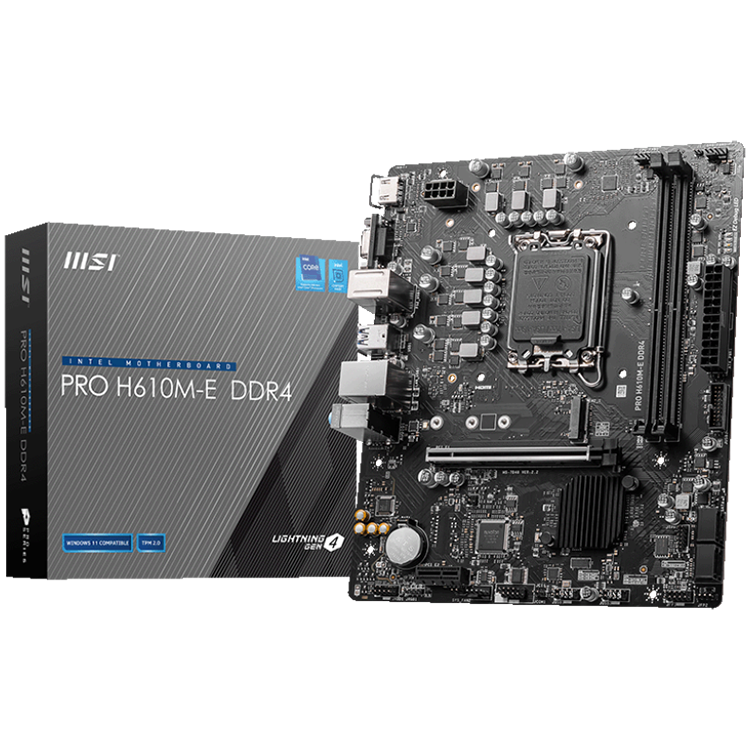

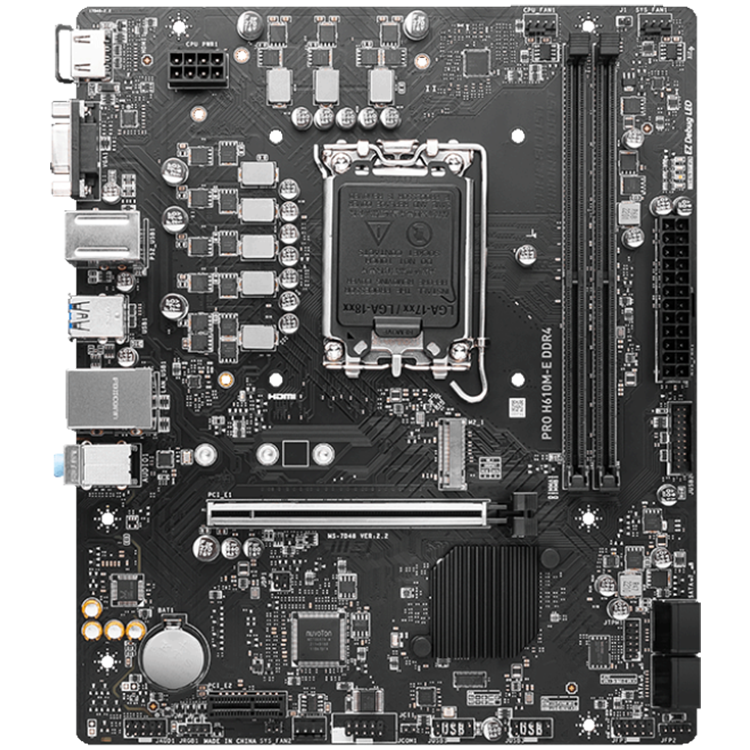

Дънна платка MSI PRO H610M-E, LGA1700, DDR4, 1x M.2 slot, 1x HDMI, 1x VGA, mATX
изчерпан
Дънна платка MSI PRO H610M-E, LGA1700, DDR4, 1x M.2 slot, 1x HDMI, 1x VGA, mATX
Дънна платка MSI PRO H610M-E, LGA1700, DDR4, 1x M.2 slot, 1x HDMI, 1x VGA, mATX
Дънна платка MSI PRO H610M-E, LGA1700, DDR4, 1x M.2 slot, 1x HDMI, 1x VGA, mATX

Дънна платка MSI PRO H610M-E, LGA1700, DDR4, 1x M.2 slot, 1x HDMI, 1x VGA, mATX

SKU: PRO_H610M-E
ID: #34176

Характеристики

Поддържани процесори: Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
CPU Socket: Intel LGA1700
Чипсет: Intel H610
Максимален капацитет RAM памет: 64 GB
Поддържана памет: DDR4
M.2 слот: 1x M.2 slot
Graphics технология: Няма
Мрежа: 1 Ethernet
Wi-Fi Mодул: Не
HDMI: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Направи запитване

Описание

MSI PRO H610M-E, mATX, Socket 1700, Dual Channel DDR4 3200+MHz, 1x PCIe x16 slot, 1x M.2 slot, 1x HDMI, 1x VGA, 2x USB 3.2 Gen 1, 4x USB 2.0, 7.1 HD Audio, Realtek ALC897 Codec



Processor

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1

  • Processor socket LGA1700

  1. Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors

Chipset

Intel® H610 Chipset

Memory

  • 2x DDR4 memory slots, support up to 64GB 1

  • Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)

  • Supports Dual-Channel mode

  • Supports non-ECC, un-buffered memory

  1. Please refer to www.msi.com for more information on compatible memory.

See supported memory

Expansion Slot

  • 1x PCIe x16 slot (From CPU)

    • Supports up to PCIe 4.0 x16

  • 1x PCIe x1 slot (From H610 chipset)

    • Supports PCIe 3.0 x1

Onboard Graphics

  • 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2

  • 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2

    1. Available only on processors featuring integrated graphics.

    2. Graphics specifications may vary depending on the CPU installed.

SATA Ports

  • 4x SATA 6Gb/s ports (From H610 chipset)

M.2 SSD Slot

  • 1x M.2 slot (Key M) (from CPU)

    • Supports up to PCIe 3.0 x4

    • Supports 2242/ 2260/ 2280 storage devices

Audio

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Realtek® RTL8111H 1Gbps LAN controller

Power Connectors

  • 1x 24-pin ATX main power connector

  • 1x 8-pin +12V power connector

Internal USB Connectors

  • 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)

    • Supports additional 2 USB 3.2 Gen 1 5Gbps ports

  • 2x USB 2.0 Type-A connectors (From Hub-GL850G)

    • Supports additional 4 USB 2.0 ports

Fan Connectors

  • 1x 4-pin CPU fan connector

  • 2x 4-pin system fan connectors

System Connectors

  • 1x Front panel audio connector

  • 2x System panel connectors

  • 1x Chassis Intrusion connector

  • 1x TPM module connector

  • 1x Serial port connector

Jumpers

  • 1x Clear CMOS jumper

LED Features

  • 1x 4-pin RGB LED connector

  • 4x EZ Debug LED

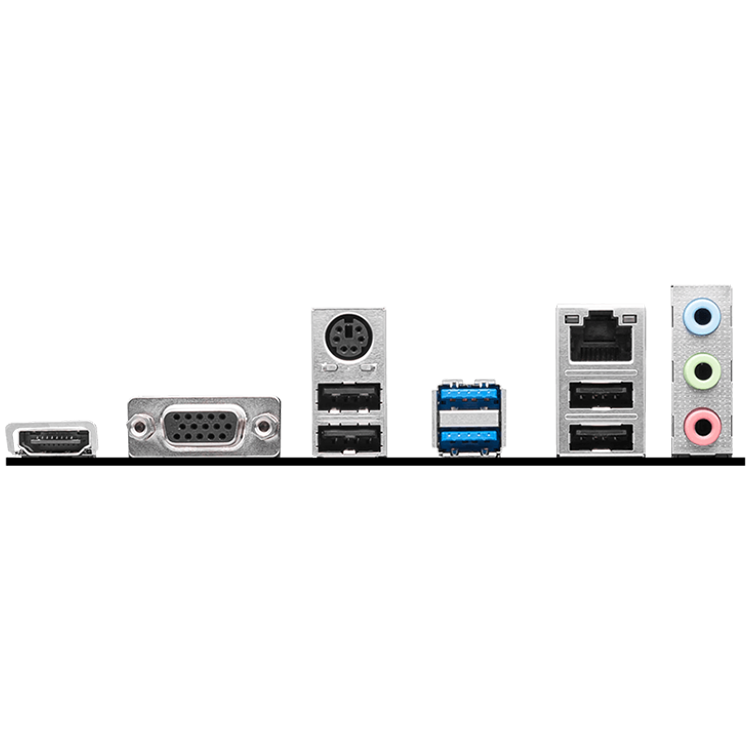

Back panel ports

  1. HDMI™

  2. VGA

  3. Keyboard / Mouse

  4. USB 3.2 Gen 1 5Gbps Type-A

  5. LAN port

  6. Audio connector

  7. USB 2.0

MSI PRO H610M-B DDR4 back panel ports

Dimensions

  • M-ATX Form Factor

  • 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
