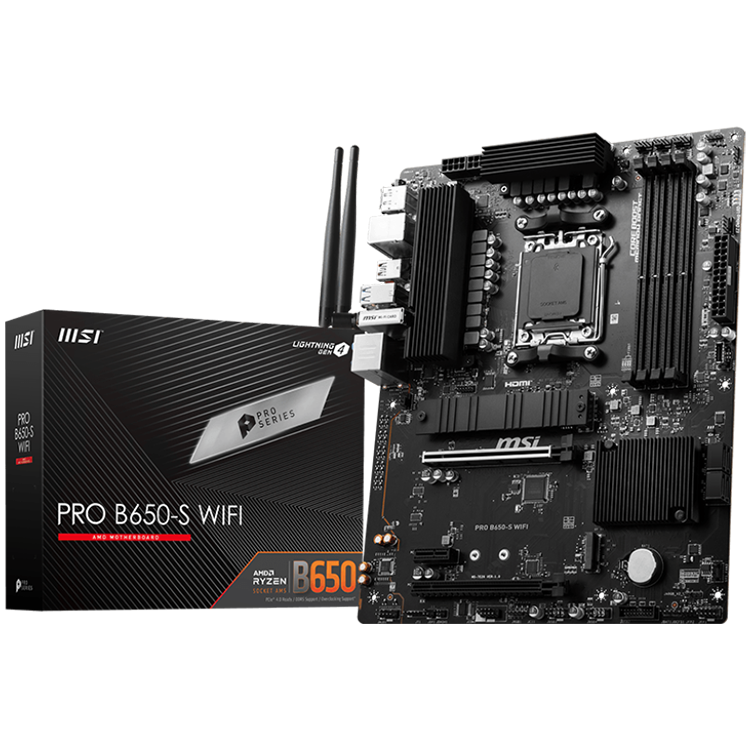

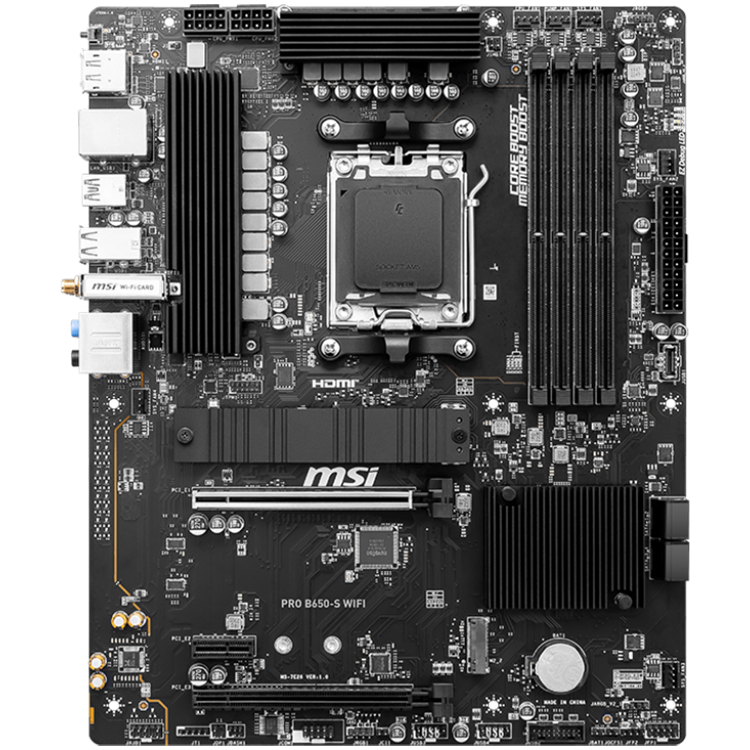

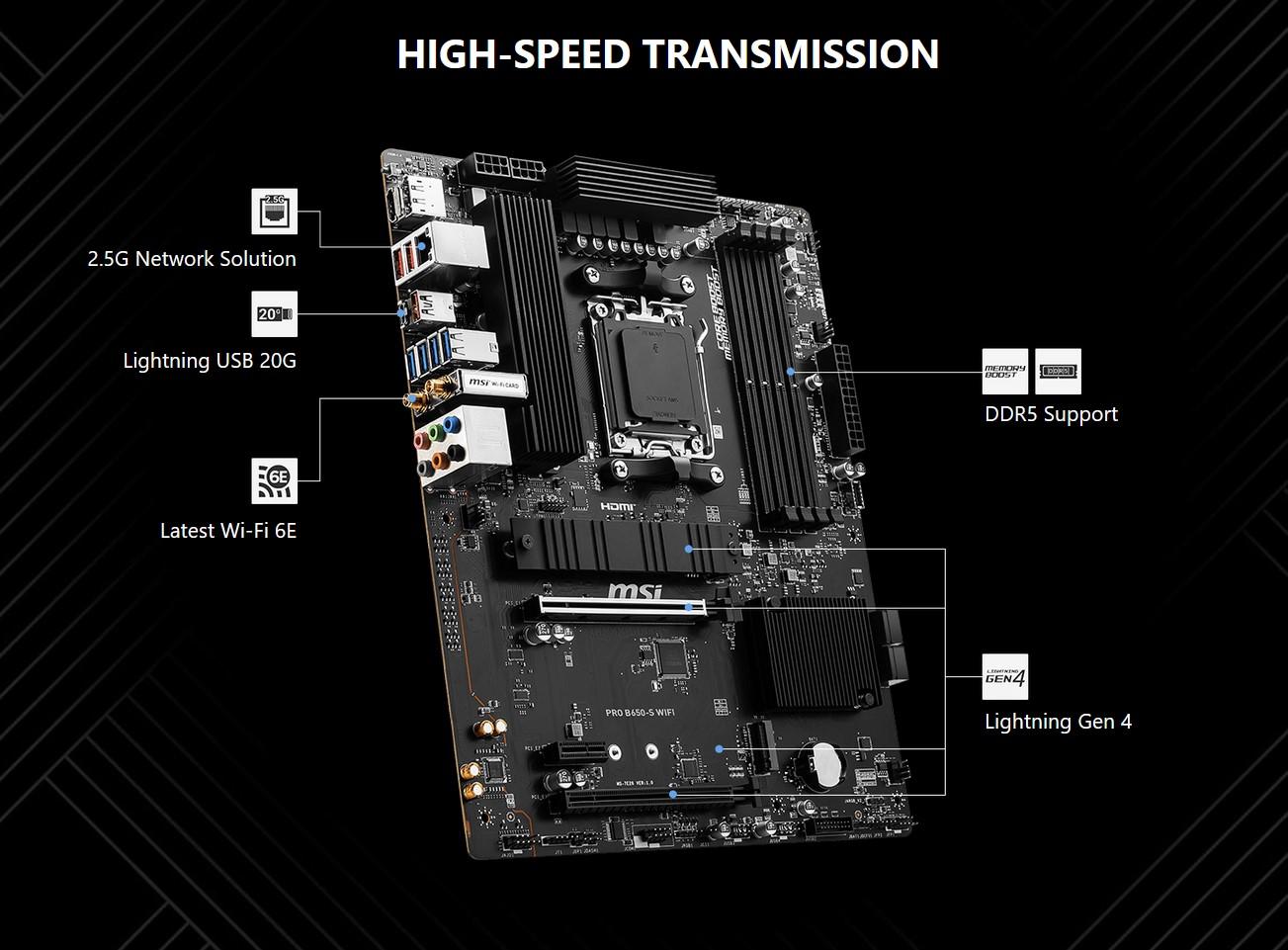

MSI PRO B650-S WIFI,ATX, Socket AM5,AMD B650 Chipset,4 DIMMs,Dual Channel DDR5 up to 7200+(OC)MHz,2x PCI-Ex16 slot, 2x M.2, 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1,4x USB 2.0,1x HDMI,1x DP,2.5G LAN,7.1 Audio,3y warranty
Model Name PRO B650-S WIFI
CPU Support Supports AMD RyzenTM 7000 Series Desktop Processors
CPU Socket AMD Socket AM5
Chipset AMD B650 Chipset
Expansion Slots 2x PCIe 4.0 x16 slots
1x PCIe 3.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMITM 2.1, DisplayPort 1.4
- Requires Processor Graphics
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Storage 2x M.2 Gen4 x4 64Gbps slots
4x SATA 6Gbps ports

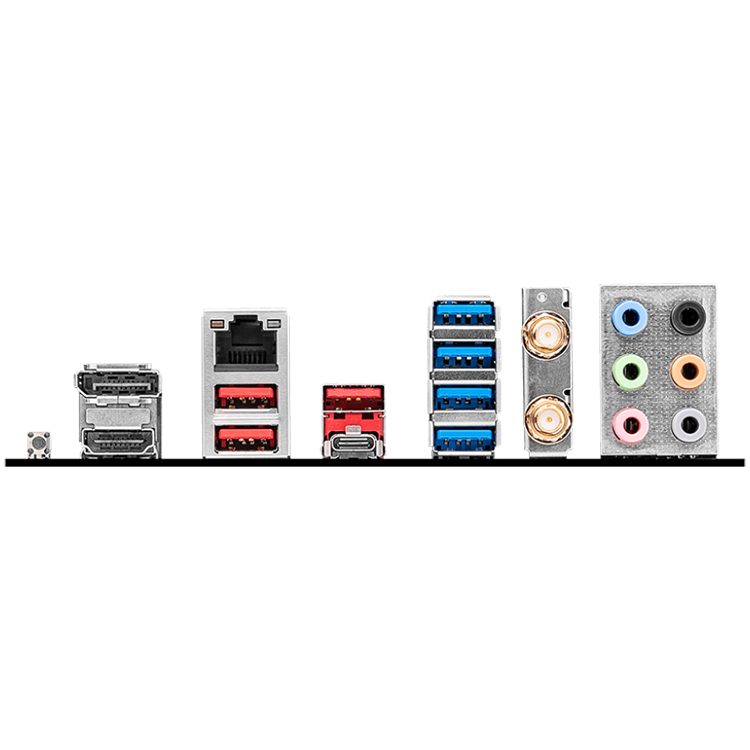

USB ports 1x USB 3.2 Gen 2x2 20G (1 Type-C)
4x USB 3.2 Gen 2 10Gbps (3 Type-A + 1 Type-C)
6x USB 3.2 Gen 1 5Gbps (6 Type-A)
4x USB 2.0
LAN Realtek® 8125BG 2.5G LAN
Wireless /
Bluetooth
AMD® Wi-Fi 6E, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost
