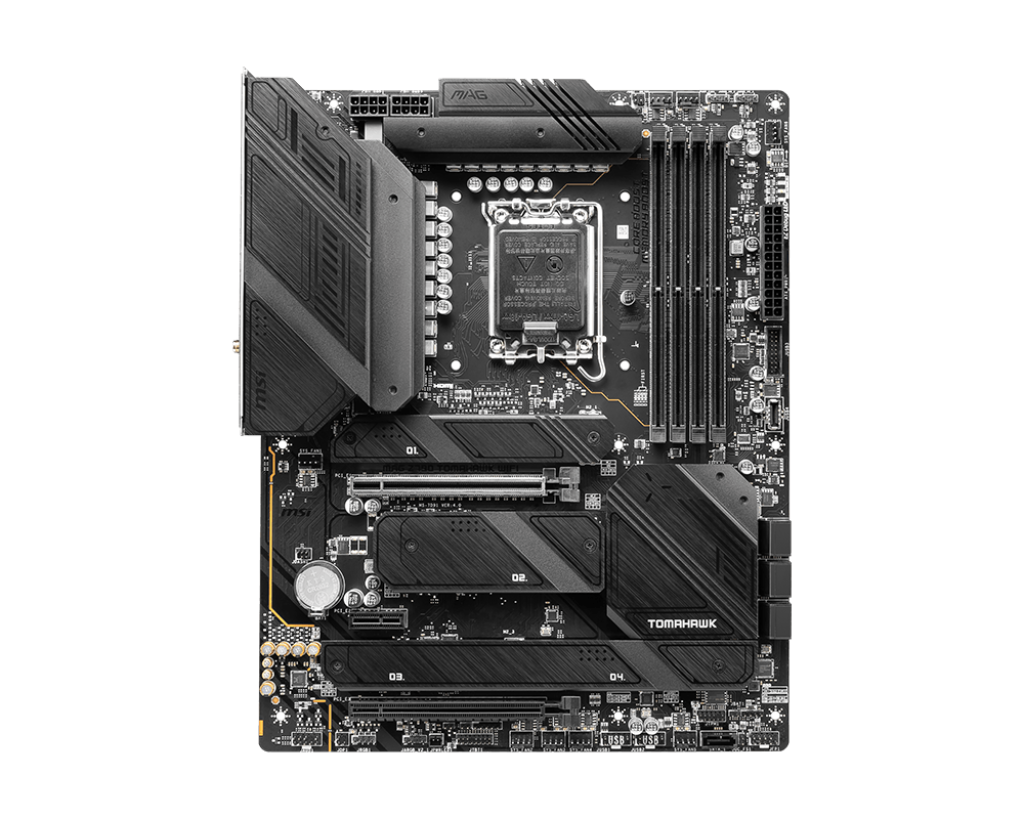

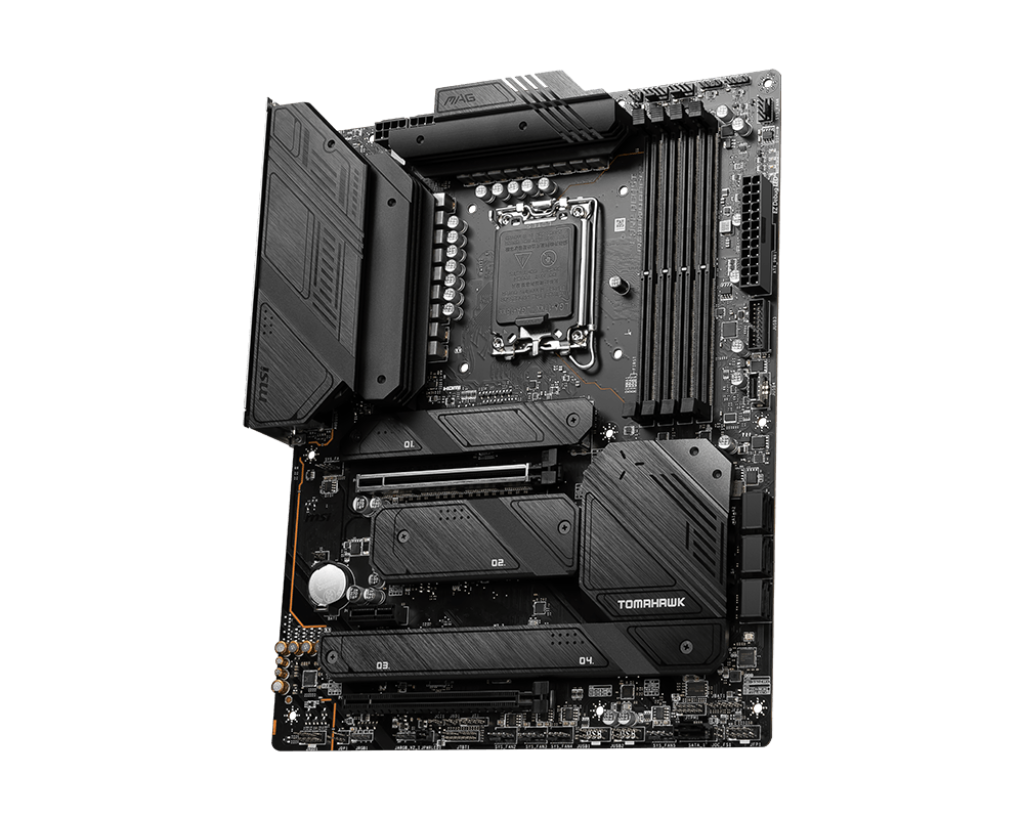

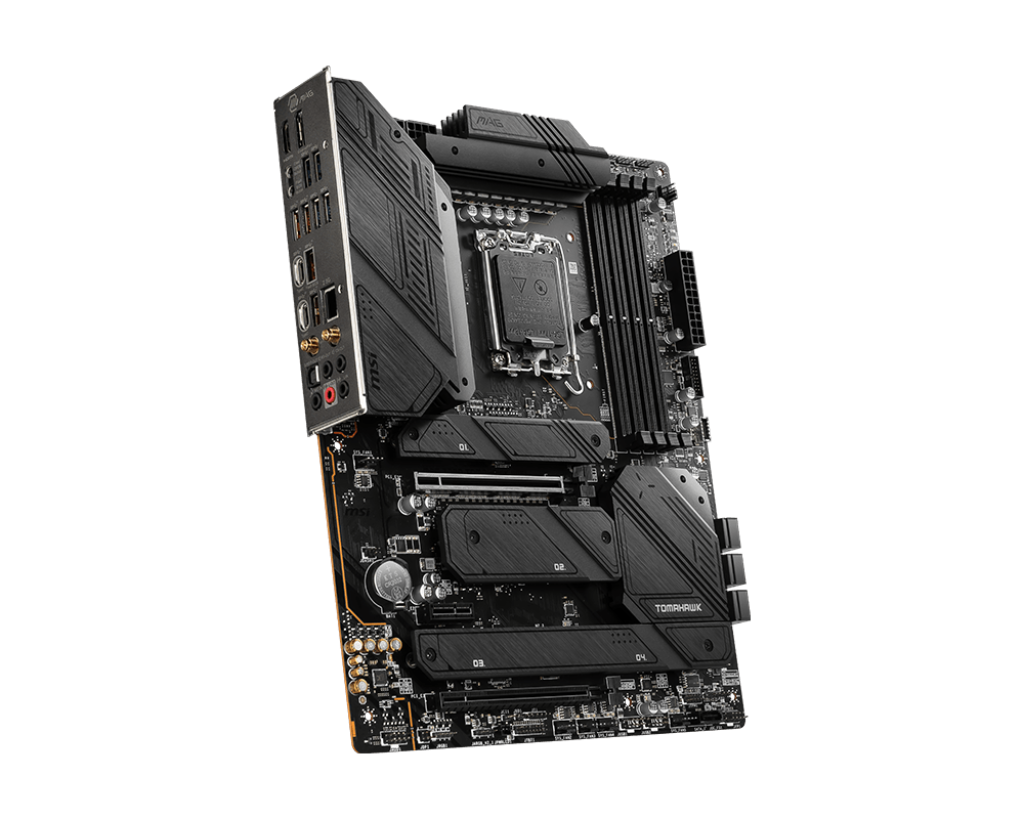

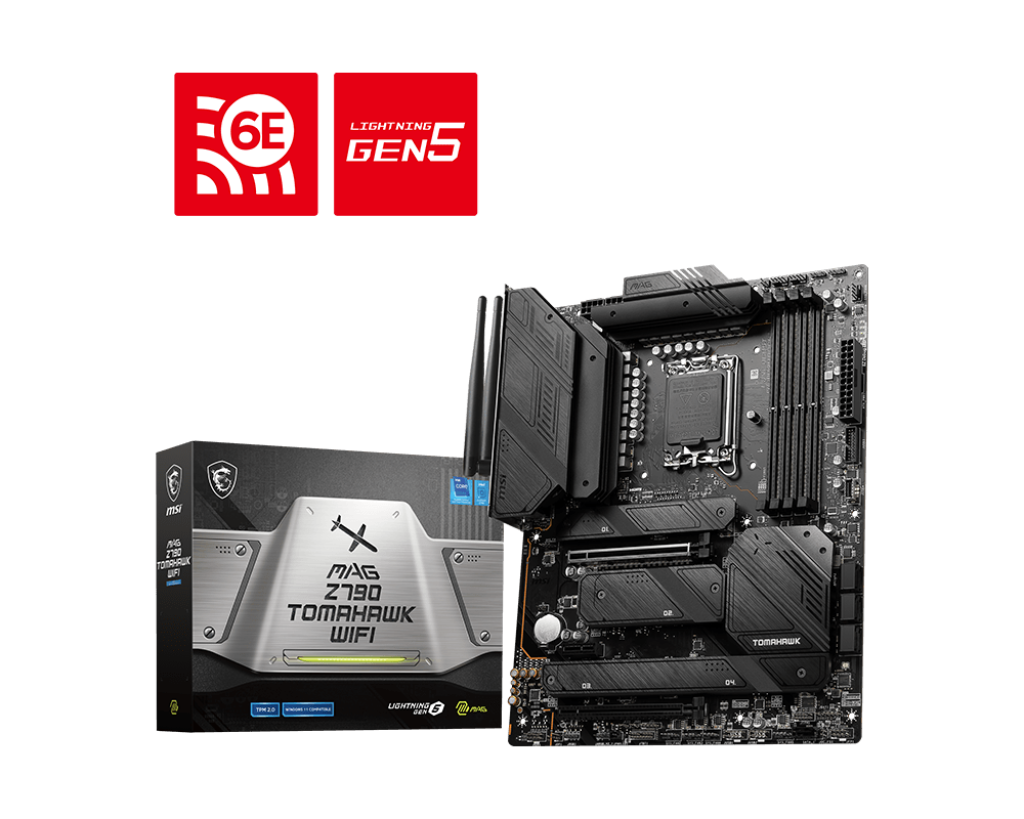

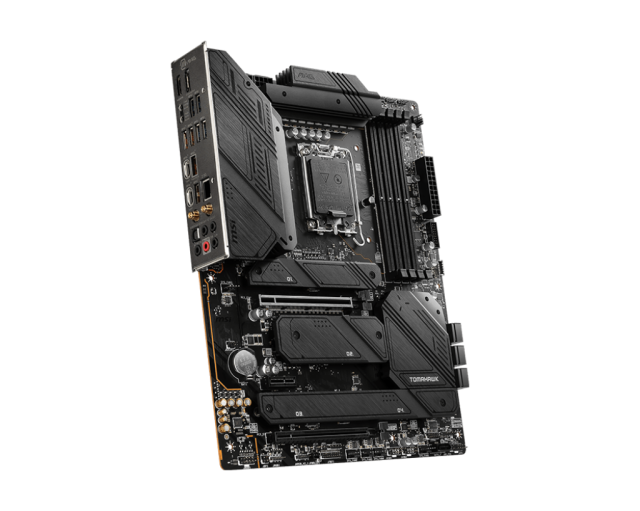

Дънна платка MSI MAG Z790 TOMAHAWK WIFI DDR5, Z790, LGA1700, DDR5, PCI-E 5.0, 7x SATA 6Gb/s, 4x M.2, 1x USB Type-C, DP/HDMI, ATX
Дънна платка MSI MAG Z790 TOMAHAWK WIFI DDR5, Z790, LGA1700, DDR5, PCI-E 5.0, 7x SATA 6Gb/s, 4x M.2, 1x USB Type-C, DP/HDMI, ATX
Дънна платка MSI MAG Z790 TOMAHAWK WIFI DDR5, Z790, LGA1700, DDR5, PCI-E 5.0, 7x SATA 6Gb/s, 4x M.2, 1x USB Type-C, DP/HDMI, ATX
Дънна платка MSI MAG Z790 TOMAHAWK WIFI DDR5, Z790, LGA1700, DDR5, PCI-E 5.0, 7x SATA 6Gb/s, 4x M.2, 1x USB Type-C, DP/HDMI, ATX
Дънна платка MSI MAG Z790 TOMAHAWK WIFI DDR5, Z790, LGA1700, DDR5, PCI-E 5.0, 7x SATA 6Gb/s, 4x M.2, 1x USB Type-C, DP/HDMI, ATX
Дънна платка MSI MAG Z790 TOMAHAWK WIFI DDR5, Z790, LGA1700, DDR5, PCI-E 5.0, 7x SATA 6Gb/s, 4x M.2, 1x USB Type-C, DP/HDMI, ATX

Дънна платка MSI MAG Z790 TOMAHAWK WIFI DDR5, Z790, LGA1700, DDR5, PCI-E 5.0, 7x SATA 6Gb/s, 4x M.2, 1x USB Type-C, DP/HDMI, ATX

SKU: 911-7D91-019
ID: #28424
Цена: 514,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
CPU Socket: Intel LGA1700
Чипсет: Intel Z790
Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB
Поддържана памет: DDR5
M.2 слот: 4 x M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10
Graphics технология: Няма
Вграден Bluetooth: Bluetooth V5.3
Wi-Fi Mодул: Да
Безжична мрежа: Wi-Fi 6E Wireless LAN
HDMI: 1 x 2.1
DisplayPort: 1
Форм фактор: ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Graphics
1x HDMI™; Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 8K 60Hz*
CPU's supported
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Chipset
INTEL Z790
Expansion Slots
2x PCI-E x16 slot; Supports x16/x4; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage
4x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; 7x SATA 6G
Memory Type
4x DDR5, Maximum Memory Capacity 192GB; Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel® XMP3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory

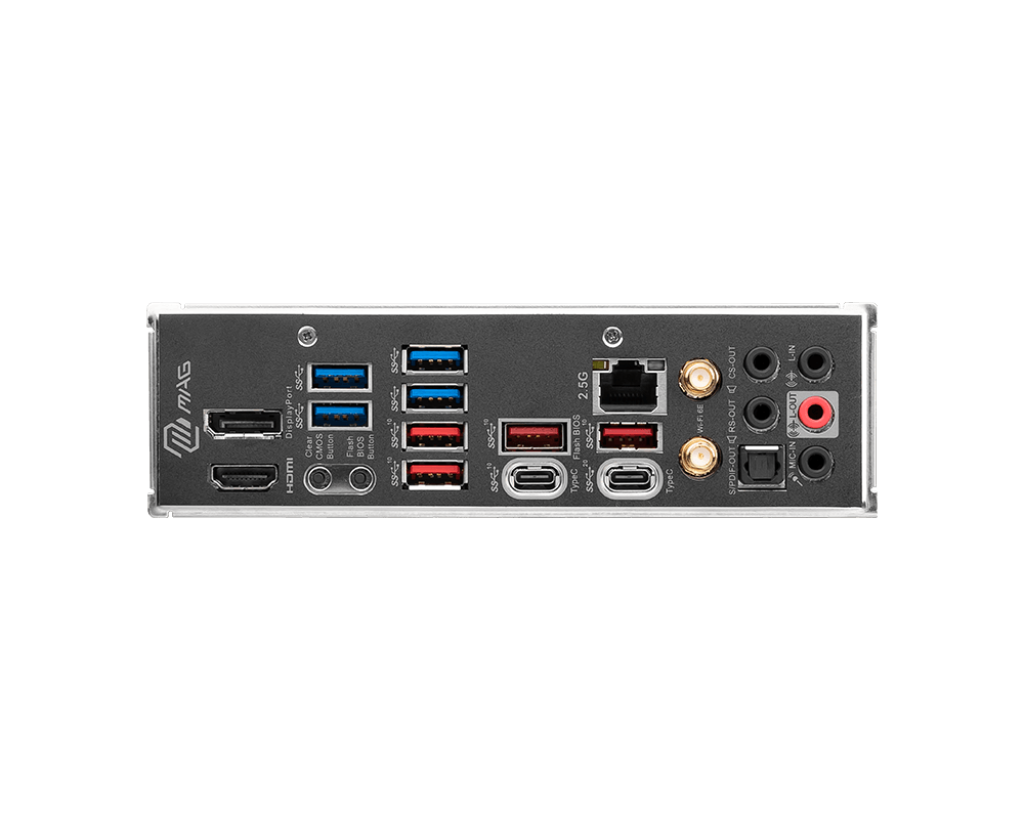

I/O
DisplayPort 1.4; USB 3.2 Gen 1 5Gbps Type-A; USB 3.2 Gen 2 10Gbps Type-A; 2.5G LAN Port,; HD Audio Connectors; HDMI™ 2.1 Port; Clear CMOS Button; Flash BIOS Button; USB 3.2 Gen 2 10Gbps Type-C; USB 3.2 Gen 2x2 20Gbps Type-C; Wi-Fi / Bluetooth Antenna; Optical S/PDIF OUT
Connectors
1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports
Audio
Realtek® ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel
LAN
Intel® 2.5Gbps LAN
Form Factor
ATX 243.84mmx304.8mm
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Other
Intel® Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3, FIPS, FISMA
