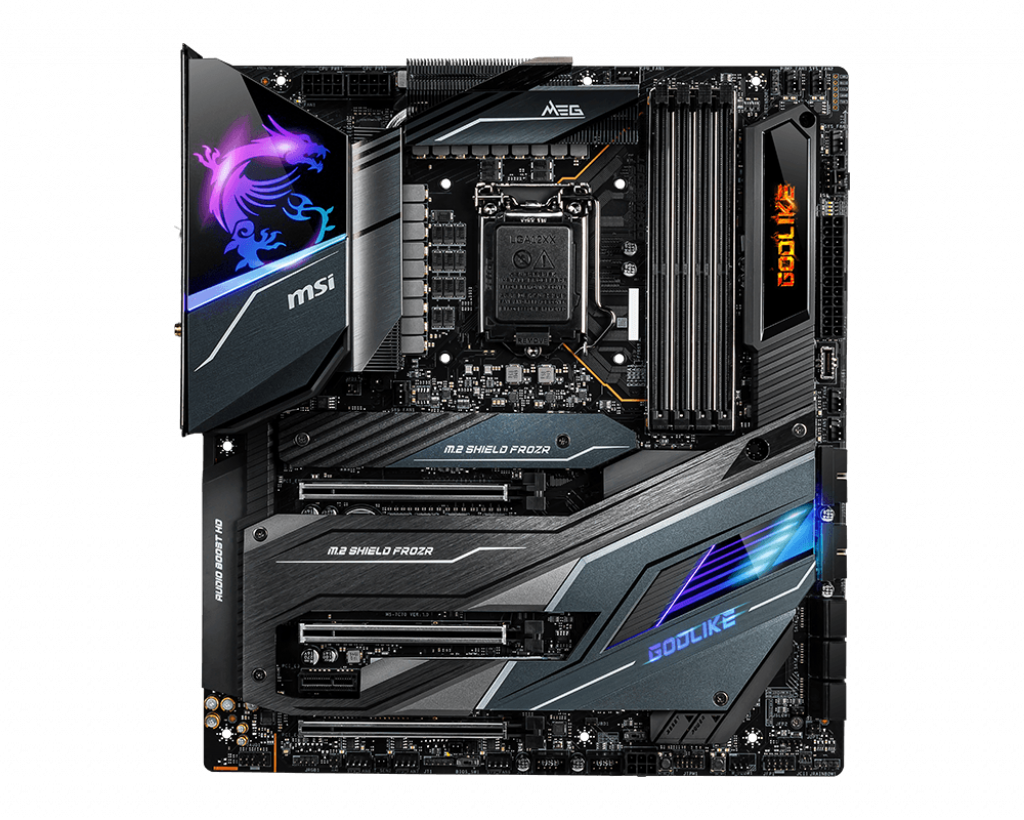

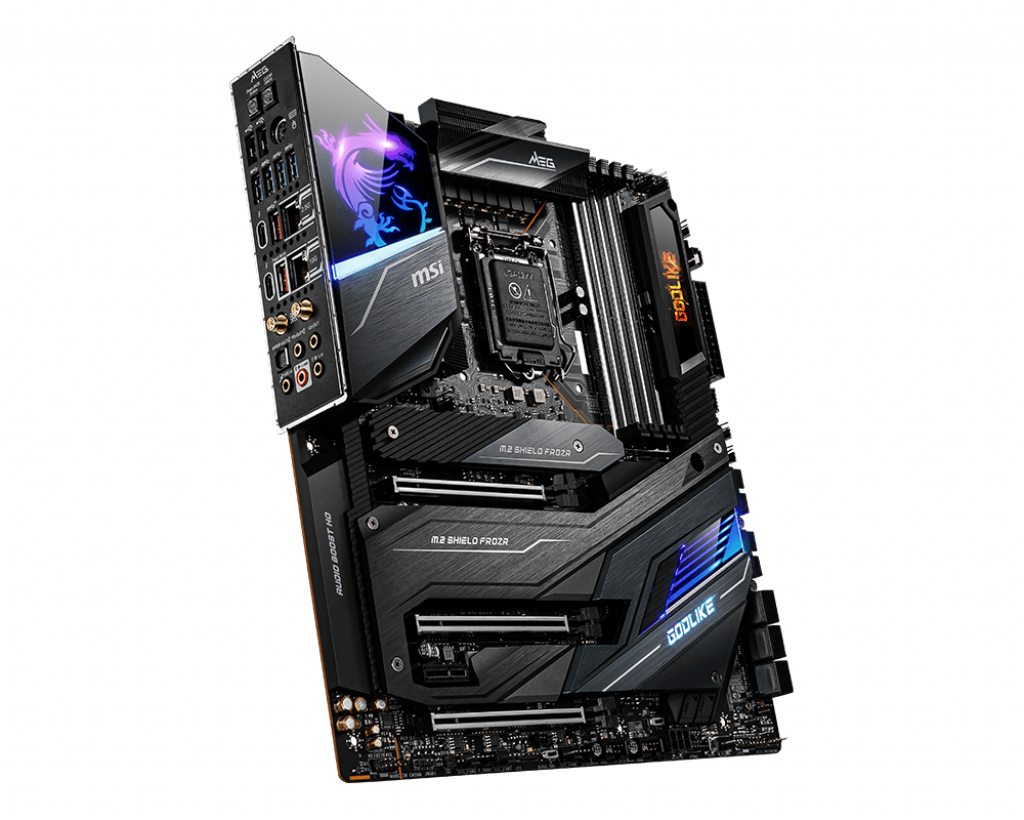

Дънна платка MSI MEG Z490 GODLIKE, Z490, (CrossFire/SLI) LGA1200, DDR4, 3x PCIe 3.0 x16 slots, 1x PCIe 3.0 x1 slot, 6x SATA 6Gb/s, 3x M.2, Wi-Fi 6, Bluetooth, E-ATX
Дънна платка MSI MEG Z490 GODLIKE, Z490, (CrossFire/SLI) LGA1200, DDR4, 3x PCIe 3.0 x16 slots, 1x PCIe 3.0 x1 slot, 6x SATA 6Gb/s, 3x M.2, Wi-Fi 6, Bluetooth, E-ATX
Дънна платка MSI MEG Z490 GODLIKE, Z490, (CrossFire/SLI) LGA1200, DDR4, 3x PCIe 3.0 x16 slots, 1x PCIe 3.0 x1 slot, 6x SATA 6Gb/s, 3x M.2, Wi-Fi 6, Bluetooth, E-ATX
Дънна платка MSI MEG Z490 GODLIKE, Z490, (CrossFire/SLI) LGA1200, DDR4, 3x PCIe 3.0 x16 slots, 1x PCIe 3.0 x1 slot, 6x SATA 6Gb/s, 3x M.2, Wi-Fi 6, Bluetooth, E-ATX
Дънна платка MSI MEG Z490 GODLIKE, Z490, (CrossFire/SLI) LGA1200, DDR4, 3x PCIe 3.0 x16 slots, 1x PCIe 3.0 x1 slot, 6x SATA 6Gb/s, 3x M.2, Wi-Fi 6, Bluetooth, E-ATX

Дънна платка MSI MEG Z490 GODLIKE, Z490, (CrossFire/SLI) LGA1200, DDR4, 3x PCIe 3.0 x16 slots, 1x PCIe 3.0 x1 slot, 6x SATA 6Gb/s, 3x M.2, Wi-Fi 6, Bluetooth, E-ATX

SKU: MEG Z490 GODLIKE / 911-7C70-001
ID: #35147
Цена: 1 061,00 лв.
Цената е с вкл. ДДС

Характеристики

M.2 слот: 3 x M.2 slots and 6 x SATA 6Gb/s ports
Поддръжка на RAID: SATA / RAID 0, 1, 5, 10
Graphics технология: CrossFire & SLI
Вграден Bluetooth: Bluetooth V5.1
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Да
Безжична мрежа: 802.11ax (Wi-Fi 6)
Форм фактор: Extended ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Processor
Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket12
  1. Onboard graphics output are disabled when using F SKU processors.
  2. BIOS updated to be compatible with 11th Gen Intel® Core™ Processors
Chipset
Intel® Z490 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB1
  • Supports 1R 2133/2666/2933 MHz
    • 1DPC 1R Max speed up to 5000+ MHz
    • 1DPC 2R Max speed up to 4600+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC mode, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer www.msi.com for more information on compatible memory.
Expansion Slots
  • 3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode
    • PCI_E1 & PCI_E2 slots (From CPU)
      Support up to PCIe 4.0 for 11th Gen Intel® CPU
      Support up to PCIe 3.0 for 10th Gen Intel® CPU
    • PCI_E3 slot (From chipset)
      Supports up to PCIe 3.0
  • 1x PCIe 3.0 x1 slot
Multi-GPU
  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology
Onboard Graphics
Intel® JHL7540 Thunderbolt™ 3 Controller
  • 2x Thunderbolt™ 3 (Type-C) ports on the back panel
  • Supports Thunderbolt™ 3 with a maximum resolution of 5120x2880 @60 Hz1
  • Supports DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz
  • Maximum shared memory is 1GB
  1. Thunderbolt 3 supports two displays in 4K resolution or one display in 5K resolution.
Storage
  • 6x SATA 6Gb/s ports1,2
  • 3x M.2 slots (Key M)
    • M2_1 slot
      CPU support mode (From 11th Gen Intel® CPU only)- supports PCIe 4.0 x4/3.0 x4
      Chipset support mode-supports PCIe 3.0 x4 and SATA 6Gb/s
      Supports 2242/ 2260/ 2280/ 22110 storage devices1
    • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices2
    • M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready3
    • Supports Intel® Smart Response Technology for Intel Core™ processors
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
  2. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_2 slot.
  3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel® Z490 Chipset
  • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices
USB
Intel® Z490 Chipset
  • 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia® ASM1074 Chipset
  • 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 4 ports through the internal USB 3.2 Gen 1 5Gbps connectors)
Intel® JHL7540 Thunderbolt™ 3 Controller
  • 2x USB 3.2 Gen 2 10Gbps Type-C ports on the back panel
Audio
Realtek® ALC1220 Codec + ESS E9018 combo DAC
  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output
Thunderbolt 3™
Intel® JHL7540 Thunderbolt™ 3 Controller
  • 2x Thunderbolt™ 3 (USB Type-C) ports on the back panel
  • Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices
  • Supports up to 10 Gbps transfer rate with USB 3.2 Gen 2 10Gbps devices
  • Supports up to 5V/3A , 15W power charging
  • Supports Daisy-chain up to six ThunderboltTM 3 devices
LAN
  • 1x Aquantia® AQC107 10G LAN controller
  • 1x Realtek® RTL8125B 2.5G LAN controller
WiFi & Bluetooth
Intel® AX201
  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
  • WiFi 6
  • Supports Bluetooth® 5.1 , FIPS, FISMA
  • The Wireless module is pre-install in the M2 (Key-E) slot
  1. Only support windows 10 64-bit
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 1x 6-pin ATX PCIE power connector
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 8x 4-pin system fan connectors
  • 1x 3-pin Water Flow connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 2x 2-pin Thermal Sensors connectors
  • 1x TPM module connector
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x 3-pin CORSAIR LED connector

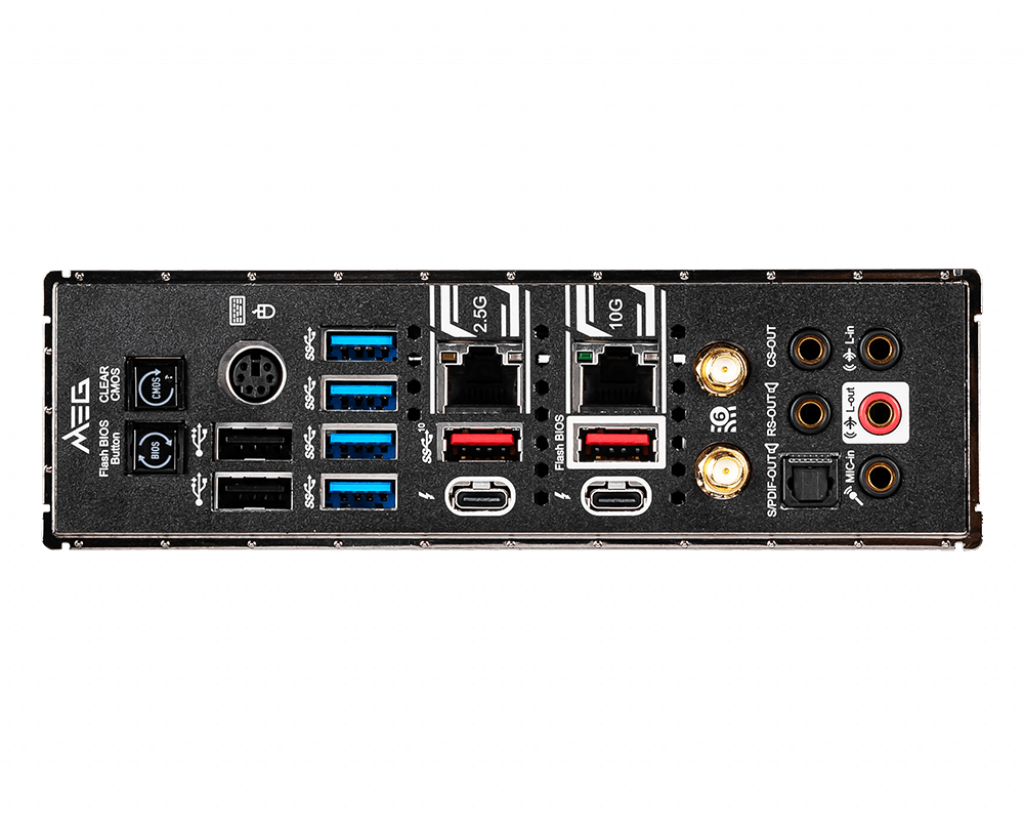

Back panel ports
  1. Clear CMOS Button
  2. PS/2 Keyboard / Mouse Port
  3. USB 3.2 Gen1 5Gbps (Type-A)
  4. 2.5G LAN
  5. 10G Super LAN
  6. Wi-Fi /Bluetooth Antenna Connectors
  7. HD Audio Connectors
  8. Flash BIOS Button
  9. USB 2.0
  10. Thunderbolt 3 (40Gbps)
  11. USB 3.2 Gen2 10Gbps (Type-A)
  12. Optical S/PDIF-Out
MEG Z490 GODLIKE
Dimensions
  • 12 in. x 10.9 in. (30.5 cm x 27.7 cm)
  • E-ATX Form Factor
