Дънна платка MSI B650 Gaming Plus WIFI, AM5, 4x DDR5, 2x PCI-E x16, 1x PCI-E x1,3xM.2, 4xSATA 6G, ,1x USB 3.2 Gen2x2 Type C, 2.5GLAN,Wi-Fi 6E, BT5.3,HDMI, DP, ATX

SKU: B650_GAMING_PLUS_WIFI

ID: #34218

Цена: 383,00 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: AMD Socket AM5 Ryzen™ 7000 Series

CPU Socket: AMD AM5

Чипсет: AMD B650

Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB

Поддържана памет: DDR5

M.2 слот: 2x M.2 SSD slot (NVMe PCIe Gen4)

Поддръжка на RAID: SATA / NVMe RAID 0, 1

Graphics технология: Няма

Вграден Bluetooth: Bluetooth V5.3

Wi-Fi Mодул: Да

Безжична мрежа: 802.11ax Wi-Fi 6E

HDMI: 1

DisplayPort: 1

Форм фактор: ATX

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

MSI Main Board Desktop B650 Gaming Plus WIFI, AM5, 4x DDR5, HDMI, DP, 2x PCI-E x16, 1x PCI-E x1,3xM.2, 4xSATA 6G, 4x USB 2.0, 4x USB 3.2 Gen1 Type A, 3x USB 3.2 Gen2 Type A,1x USB 3.2 Gen2 Type C,1x USB 3.2 Gen2x2 Type C, 2.5GLAN,Wi-Fi 6E, BT5.3 ATX

Chipset	AMD B650
CPU	Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Onboard Graphics	1x HDMI™ Support HDMI^TM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Multi-GPU	AMD MULTI-GPU Support
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek^® 8125BG 2.5G LAN
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED

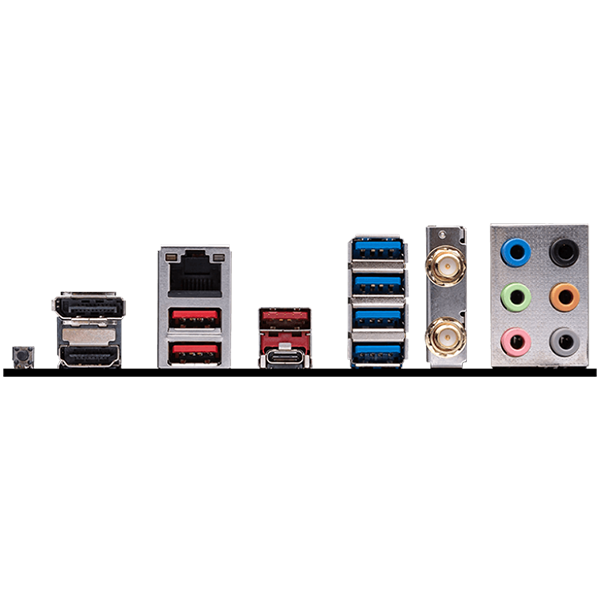

BACK PANEL PORTS	DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C)
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
PCB Info	ATX 243.84mmx304.8mm
