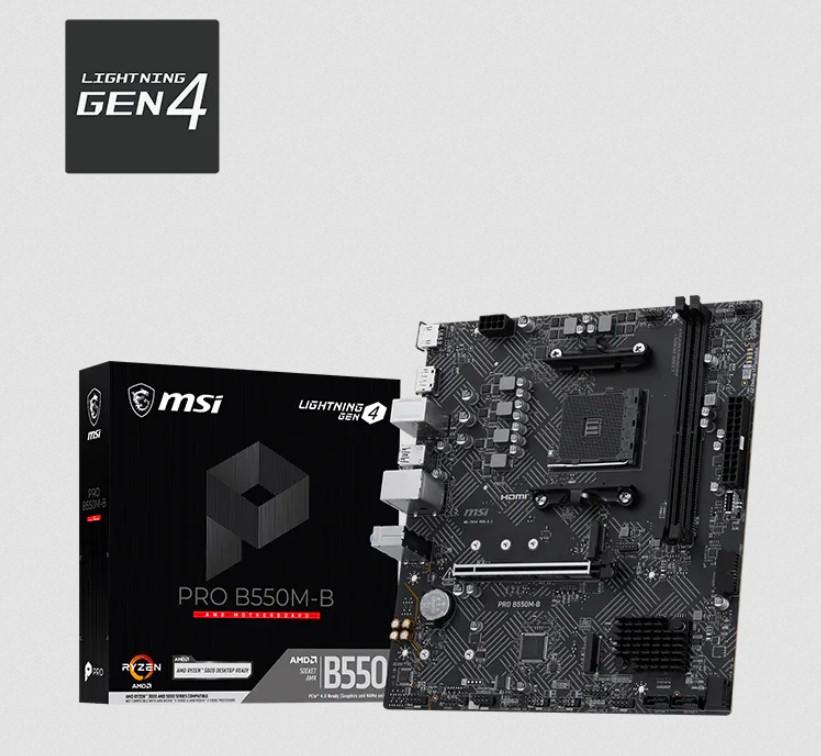

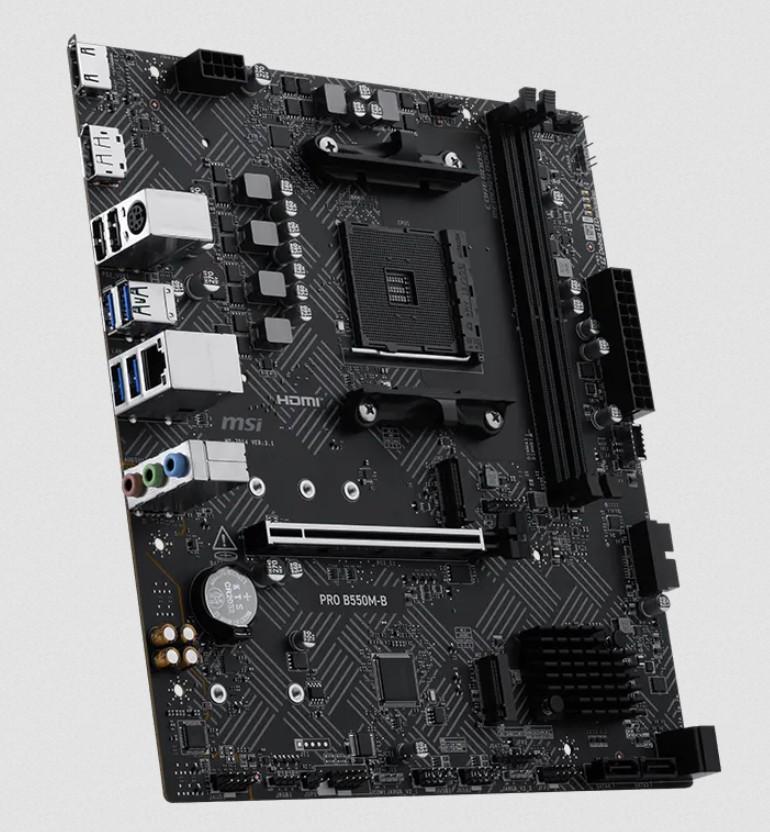

Дънна платка MSI B550M-B, AM4, 2x DDR4, 2x M2, 4x SATA 6Gb/s, DP, HDMI, Micro ATX

SKU: PRO B550M-B / 911-7D14-023

ID: #45585

Наличен

Цена: 84,00 €
164,29 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: AMD AM4 Socket for AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors

CPU Socket: AMD AM4

Чипсет: AMD B550

Максимален капацитет RAM памет: 64 GB

Памет, слотове: 2

Поддържана памет: DDR4

M.2 слот: 2 x M.2 slots / 4 x SATA 6Gb/s ports

Graphics технология: Няма

Мрежа: 1 x 10/100/1000 Mbps (RJ-45)

HDMI: 1

DisplayPort: 1

Форм фактор: Micro ATX

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

Chipset	AMD B550
CPU	Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4
Memory	2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE Max. overclocking frequency: • 1DPC 1R Max speed up to 4600+ MHz • 1DPC 2R Max speed up to 3866+ MHz Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI^TM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP 1.2, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) *The supported specification depends on installed processor.
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices 4x SATA 6G *The supported specification depends on installed processor.
RAID	Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
LAN	Realtek^® RTL8111H 1Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
LED FEATURE	4x EZ Debug LED

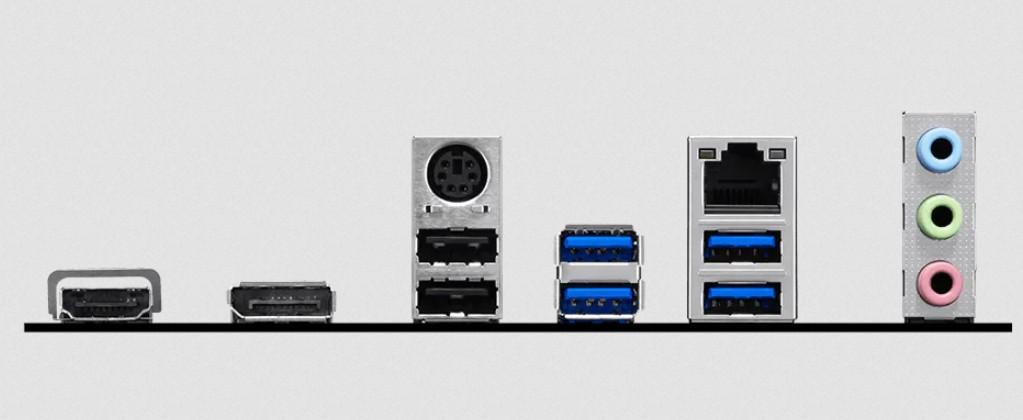

BACK PANEL PORTS	HDMI™ DisplayPort Keyboard / Mouse USB 5Gbps Type-A LAN Port Audio connectors USB 2.0 USB 5Gbps Type-A
PCB Info	mATX 220mmx243.84mm
	https://www.msi.com/Motherboard/PRO-B550M-B
