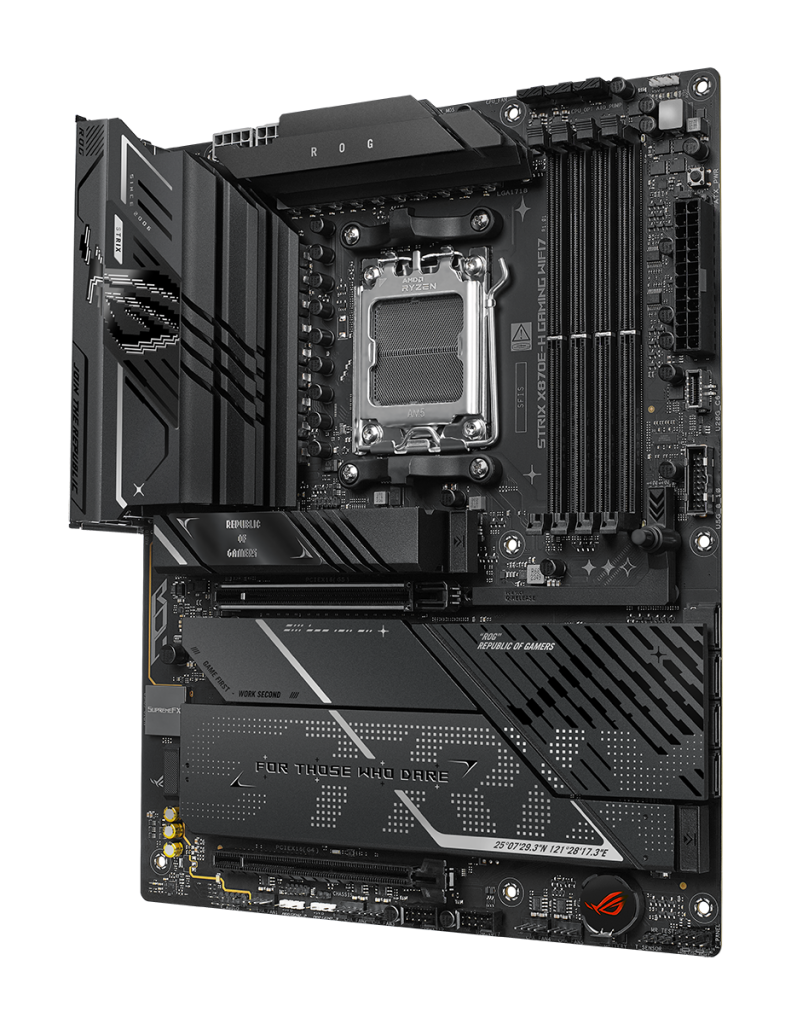

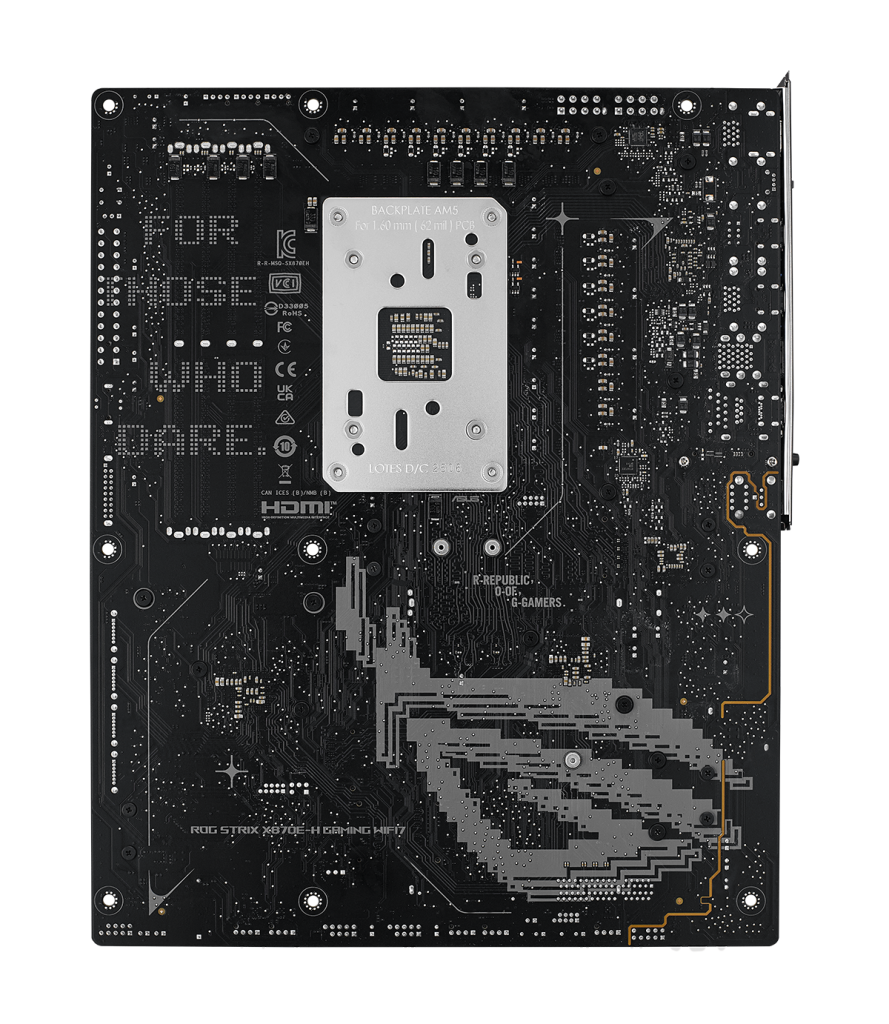

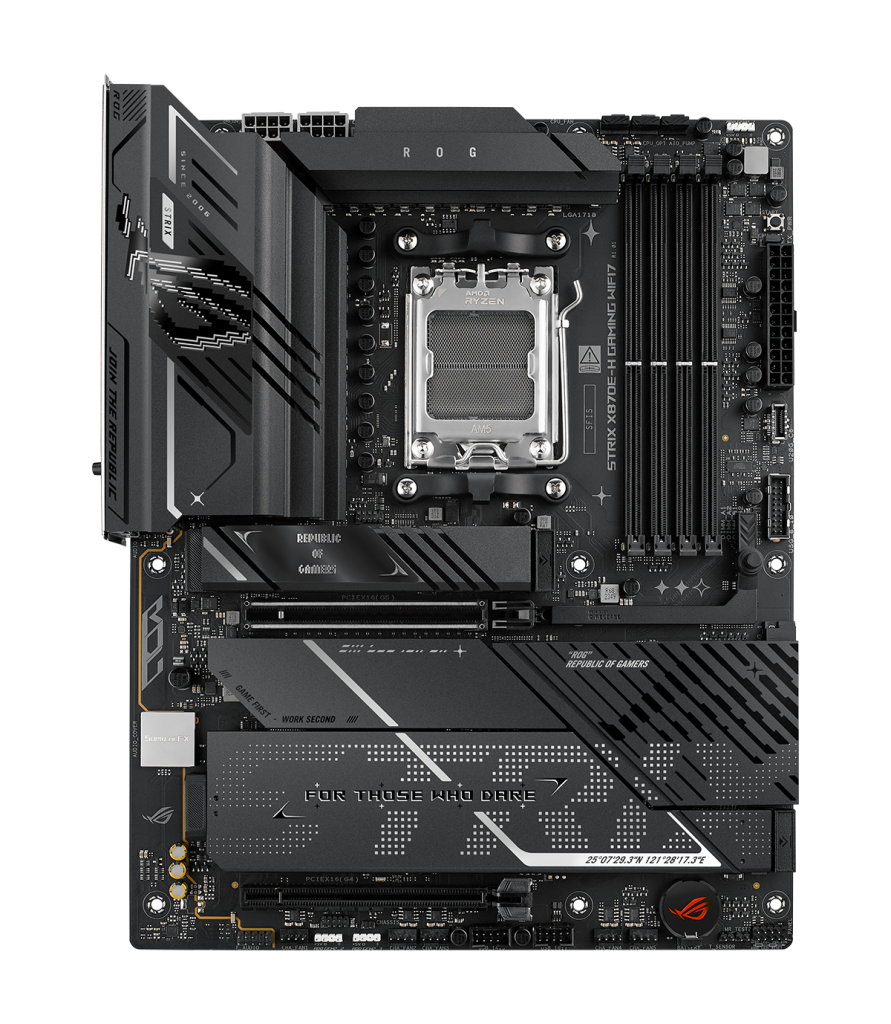

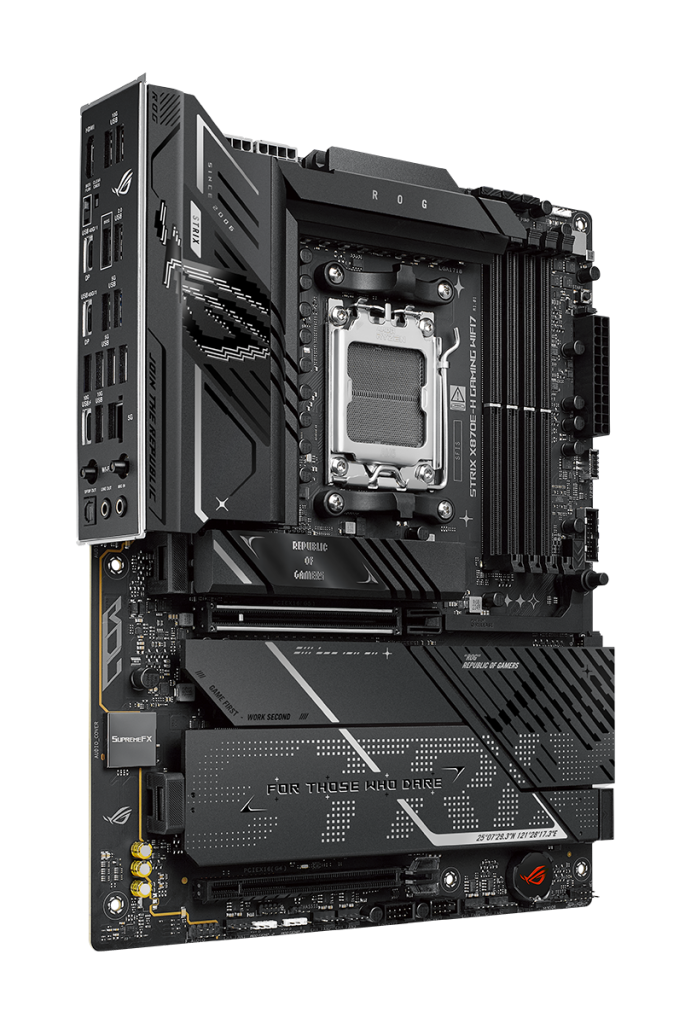

Дънна платка ASUS ROG STRIX X870E-H GAMING WIFI7, AM5, 4xDDR5, 4 x M.2 slots, 4 x SATA 6Gb/s, HDMI, ATX
нов продукт
Дънна платка ASUS ROG STRIX X870E-H GAMING WIFI7, AM5, 4xDDR5, 4 x M.2 slots, 4 x SATA 6Gb/s, HDMI, ATX
Дънна платка ASUS ROG STRIX X870E-H GAMING WIFI7, AM5, 4xDDR5, 4 x M.2 slots, 4 x SATA 6Gb/s, HDMI, ATX
Дънна платка ASUS ROG STRIX X870E-H GAMING WIFI7, AM5, 4xDDR5, 4 x M.2 slots, 4 x SATA 6Gb/s, HDMI, ATX
Дънна платка ASUS ROG STRIX X870E-H GAMING WIFI7, AM5, 4xDDR5, 4 x M.2 slots, 4 x SATA 6Gb/s, HDMI, ATX
Дънна платка ASUS ROG STRIX X870E-H GAMING WIFI7, AM5, 4xDDR5, 4 x M.2 slots, 4 x SATA 6Gb/s, HDMI, ATX
Дънна платка ASUS ROG STRIX X870E-H GAMING WIFI7, AM5, 4xDDR5, 4 x M.2 slots, 4 x SATA 6Gb/s, HDMI, ATX
Дънна платка ASUS ROG STRIX X870E-H GAMING WIFI7, AM5, 4xDDR5, 4 x M.2 slots, 4 x SATA 6Gb/s, HDMI, ATX
Дънна платка ASUS ROG STRIX X870E-H GAMING WIFI7, AM5, 4xDDR5, 4 x M.2 slots, 4 x SATA 6Gb/s, HDMI, ATX

Дънна платка ASUS ROG STRIX X870E-H GAMING WIFI7, AM5, 4xDDR5, 4 x M.2 slots, 4 x SATA 6Gb/s, HDMI, ATX

SKU: STRIX-X870E-H-WF / 90MB1M90-M0EAY0
ID: #43214
Цена: 900,00 лв.
460,16 €
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: 9-то Поколение AMD процесори
CPU Socket: AMD AM5
Чипсет: AMD X870E
Максимален капацитет RAM памет: 256 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 4
Поддържана памет: DDR5
Честота памет: 8000+(OC)
Поддръжка на RAID: SATA / RAID 0, 1, 10
Graphics технология: Няма
Вграден Bluetooth: Bluetooth V5.4
Мрежа: Gigabit Ethernet (RJ-45)
Wi-Fi Mодул: Да
Безжична мрежа: 802.11be (Wi-Fi 7)
HDMI: 1
Форм фактор: ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 &
8000 & 7000 Series Desktop Processors*
* Refer to
https://www.asus.com/support/download-center/ for CPU support list.
Chipset
AMD X870E
Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™
9000 & 8000 & 7000 Series Processors
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO™)
Supports DIMM Fit / DIMM Fit Pro
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate
(speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list
under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Adjustments will be made based on the specifications of mass-produced memory
products available on the market.
** Non-ECC, un-buffered DDR5 memory
supports On-Die ECC function.
Graphics
1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB
Type-C® display outputs***
* Graphics specifications may vary between
CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI
2.1.
*** Supports max. 4K@60Hz as specified in
DisplayPort 1.4a
**** VGA resolution support depends on
processors' or graphic cards' resolution.
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop
Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4
mode)**
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table
on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/download-center/ for
the list of supported peripherals.
Storage
Supports 4 x M.2 slots and 4 x SATA 6Gb/s
ports
AMD Ryzen™ 9000 & 7000 Series Desktop
Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110
(supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not
supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* M.2_2 shares bandwidth with PCIEX16(G5).
When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
** M.2_2 will be disabled when using AMD
Ryzen™ 8000 Series Desktop Processors.
RAID Support
AMD RAIDXpert2 Technology*
Ryzen™ 9000 Series Processors: RAID
0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types.
Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7 (Realtek® RTL8922AE)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the
operating system
For
Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,
Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For
Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth
regulatory may vary between countries.
*** The Bluetooth® version may vary, please
refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 14 ports)
2 x USB4® (40Gbps) ports  (2 x USB Type-C®)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB
Type-C® with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB
Type-C®)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
2 x USB 2.0 headers support 4 additional
USB 2.0 ports
* USB Type-C® power delivery output: max.
5V/3A
** USB Type-C® power delivery output: 5V/9V
max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio
Realtek ALC1220P 7.1 Surround Sound
High Definition Audio CODEC*
- Impedance sense for front and rear
headphone outputs
- Internal audio Amplifier to enhance the
highest quality sound for headphone and speakers
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz
playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does
not support spatial audio. If you wish to use spatial audio, make sure to
connect your audio output device to the audio jack on the front panel of your
chassis or use a USB interface audio device.

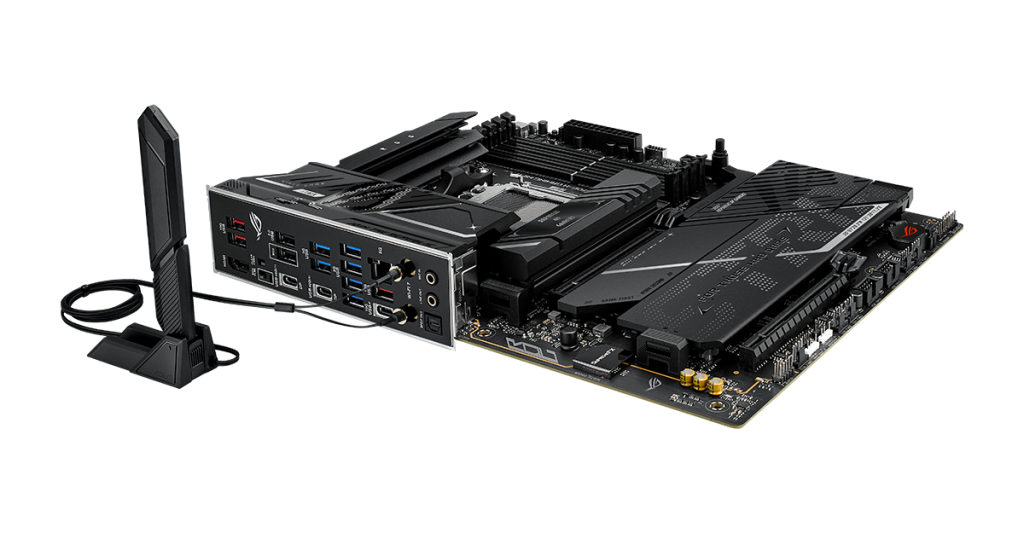

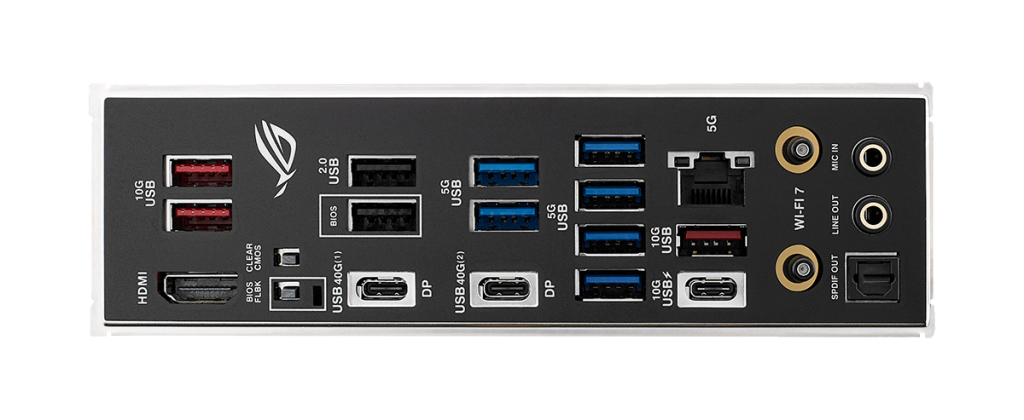

Back Panel I/O Ports
2 x USB4® (40Gbps) ports(2 x USB Type-C®)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB
Type-C® with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB
Type-C®)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
2 x USB 2.0 headers support 4 additional
USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Special Features
Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers
Software Features
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
* For more software features, please visit
the asus support site or refer to www.asus.com/support for additional
information.
** For detailed information on the
supported models and restricted regions for this redemption offer, please refer
to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

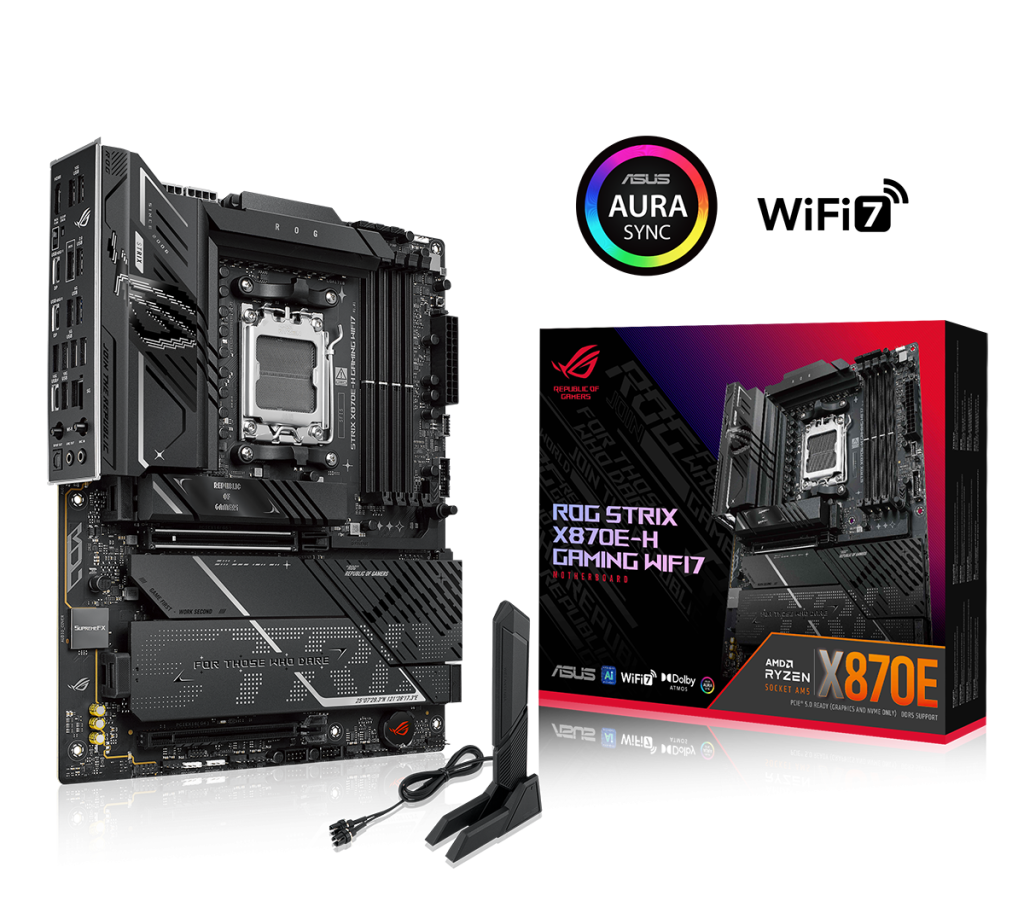

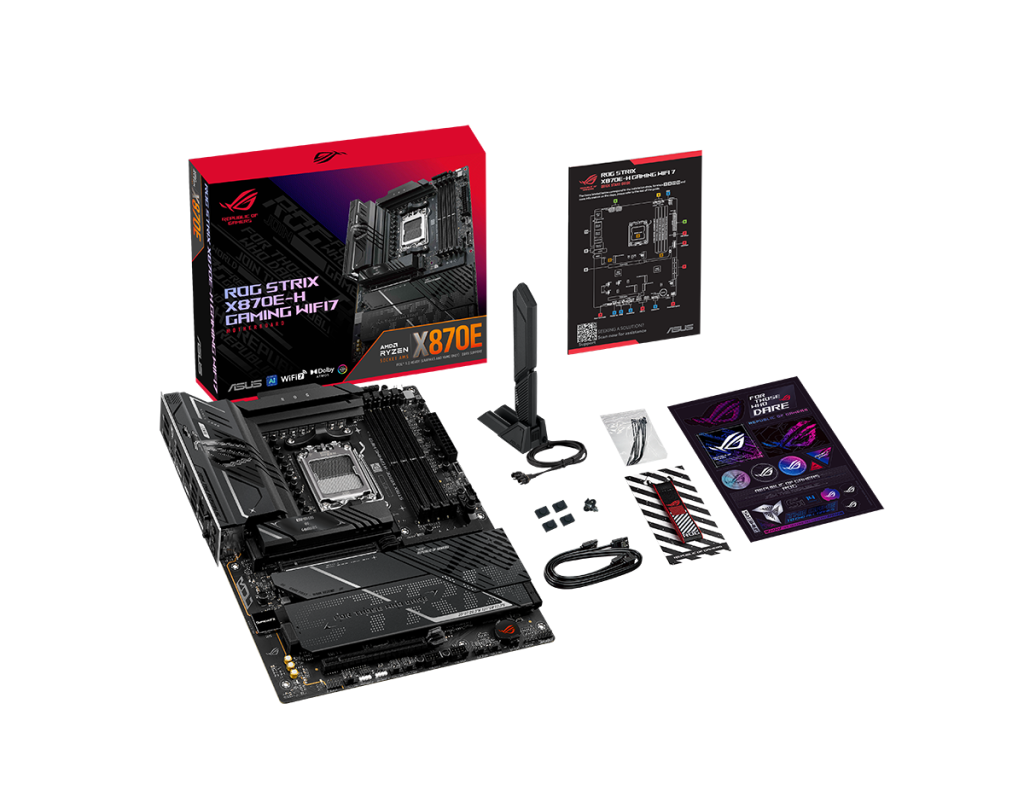

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber
Documentation
1 x Quick start guide
Operating System
Windows 11
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
