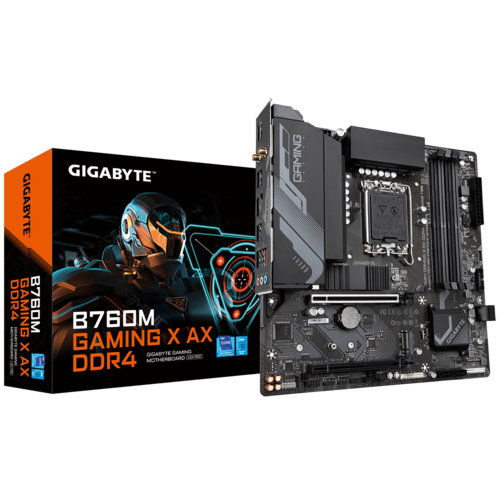

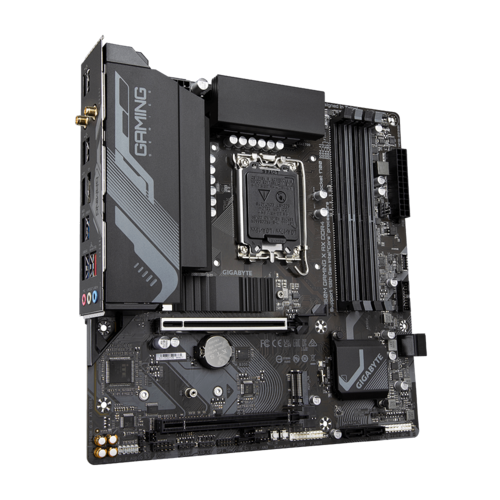

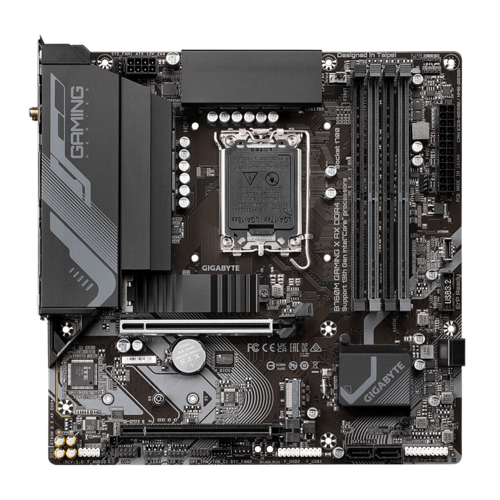

Дънна платка Gigabyte B760M GAMING X AX, B760, LGA1700, DDR4, 2x M.2, 4x SATA 6Gb/s, HDMI, DP, Wi-Fi 6E, Bluetooth 5.3, Micro ATX
Дънна платка Gigabyte B760M GAMING X AX, B760, LGA1700, DDR4, 2x M.2, 4x SATA 6Gb/s, HDMI, DP, Wi-Fi 6E, Bluetooth 5.3, Micro ATX
Дънна платка Gigabyte B760M GAMING X AX, B760, LGA1700, DDR4, 2x M.2, 4x SATA 6Gb/s, HDMI, DP, Wi-Fi 6E, Bluetooth 5.3, Micro ATX
Дънна платка Gigabyte B760M GAMING X AX, B760, LGA1700, DDR4, 2x M.2, 4x SATA 6Gb/s, HDMI, DP, Wi-Fi 6E, Bluetooth 5.3, Micro ATX

Дънна платка Gigabyte B760M GAMING X AX, B760, LGA1700, DDR4, 2x M.2, 4x SATA 6Gb/s, HDMI, DP, Wi-Fi 6E, Bluetooth 5.3, Micro ATX

SKU: B760M GAMING X AX v.1.2
ID: #35970
Цена: 360,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 14th, 13th Gen & 12th Gen Intel® Core™
CPU Socket: Intel LGA1700
Чипсет: Intel B760
Максимален капацитет RAM памет: 128GB
Памет, слотове: 4
Поддържана памет: DDR4
M.2 слот: 2 x M.2 slots / 4 x SATA 6Gb/s ports
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10
Graphics технология: Няма
Вграден Bluetooth: Bluetooth V5.3
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Да
Безжична мрежа: 802.11ax Wi-Fi 6E
HDMI: 1
DisplayPort: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

B760M GAMING X AX DDR4 1.2/1.4
  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
  1. Intel® B760 Express Chipset
  1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out
  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Intel® Wi-Fi 6E AX211
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
CPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Chipset:
  1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  3. 1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 2 x addressable LED strip headers
  6. 2 x RGB LED strip headers
  7. 2 x M.2 Socket 3 connectors
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x S/PDIF Out header
  12. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  13. 1 x USB 3.2 Gen 1 header
  14. 2 x USB 2.0/1.1 headers
  15. 2 x Thunderbolt™ add-in card connectors
  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  17. 1 x serial port header
  18. 1 x reset button
  19. 1 x Q-Flash Plus button
  20. 1 x reset jumper
  21. 1 x Clear CMOS jumper
  1. 3 x USB 3.2 Gen 1 ports
  2. 5 x USB 2.0/1.1 ports
  3. 2 x SMA antenna connectors (2T2R)
  4. 1 x HDMI 2.0 port
  5. 1 x DisplayPort
  6. 1 x RJ-45 port
  7. 3 x audio jacks
  1. iTE® I/O Controller Chip
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  1. Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
