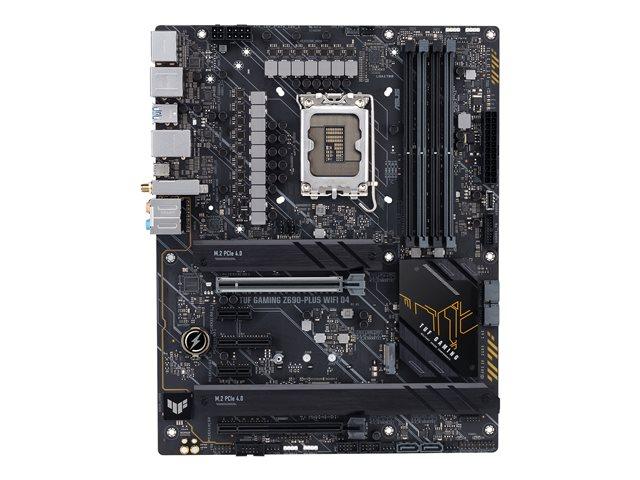

Дънна платка Asus TUF GAMING Z690-PLUS D4, Z690, LGA1700, 4xDDR4, PCIe 5.0, (DP&HDMI), 4x SATA3, 4x M.2, 1x USB 3.2 Gen 2, ATX
изчерпан
Дънна платка Asus TUF GAMING Z690-PLUS D4, Z690, LGA1700, 4xDDR4, PCIe 5.0, (DP&HDMI), 4x SATA3, 4x M.2, 1x USB 3.2 Gen 2, ATX
Дънна платка Asus TUF GAMING Z690-PLUS D4, Z690, LGA1700, 4xDDR4, PCIe 5.0, (DP&HDMI), 4x SATA3, 4x M.2, 1x USB 3.2 Gen 2, ATX

Дънна платка Asus TUF GAMING Z690-PLUS D4, Z690, LGA1700, 4xDDR4, PCIe 5.0, (DP&HDMI), 4x SATA3, 4x M.2, 1x USB 3.2 Gen 2, ATX

SKU: 4338554
ID: #26670

Характеристики

Поддържани процесори: Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost
CPU Socket: Intel LGA1700
Чипсет: Intel Z690
Максимален капацитет RAM памет: 128 GB
Поддръжка на Dualchannel: Да
Поддържана памет: DDR4
Честота памет: 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600
M.2 слот: 4 x M.2 slots and 4 x SATA 6Gb/s ports
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5
Graphics технология: Няма
Вграден Bluetooth: Не
Мрежа: 10/100/1000 Mbps
Wi-Fi Mодул: Не
HDMI: 1
DisplayPort: 1
Форм фактор: ATX
Гаранция (месеца): 36

Направи запитване

Описание

ASUS TUF GAMING Z690-PLUS D4 LGA 1700

Manufacturer ASUS
Manufacturer Part No TUF GAMING Z690-PLUS D4

Marketing Description
ASUS TUF GAMING Z690-PLUS WIFI D4 takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING Z690-PLUS WIFI D4 sports the TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
Product Features
  • Rock-solid performance
    With upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storage, TUF GAMING Z690 motherboards are the perfect foundation for your next high-core-count battle rig.
  • DrMOS
    The onboard VRMs feature 14+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 12th Gen Intel Core processors demand. The power stages are each rated to handle 80 amperes to provide stable performance for current and future Intel processors.
  • Six-Layer PCB design
    Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds.
  • ProCool connectors
    Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
  • Digi+ VRM
    The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
  • Three M.2 slots with heatsinks
    Three out of four M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.
  • Comprehensive fan controls
    TUF GAMING Z690 motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 4 utility or the award-winning ASUS UEFI BIOS.
  • DDR4 OC 5333
    Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
  • Four PCIe 4.0 M.2
    The four PCIe 4.0 M.2 slots support up to two 22110 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.
  • PCIe 5.0
    The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express.
  • Front USB Port
    A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 3.2 Gen 2 Type-C connector that provides data transfer speeds of up to 10 Gbps.
  • USB 3.2 Gen 2x2 Type-C
    Extensive USB support ensures connections to a wide array of peripherals. TUF GAMING Z690-PLUS WIFI D4 includes a USB 3.2 Gen 2x2 Type-C port on the rear I/O panel that delivers increased bandwidth and transmission speeds of up to 20 Gbps.
  • Thunderbolt 4 support
    TUF GAMING Z690 series features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card TUF GAMING Z690-PLUS WIFI D4 can also enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.
  • Easy PC DIY
    TUF GAMING motherboards are designed to be easy to set up and configure just the way you want - even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software provides Fan Xpert 4 and hardware information and offers full full control of Two-Way AI Noise Cancellation, RGB lighting and peripheral settings. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity.
  • Build with confidence
    TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
  • SafeSlot & SafeDIMM
    PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.
  • ESD Guards
    ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge - greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.
  • DRAM Overvoltage Protection
    Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
  • Stainless Steel Back I/O Panel
    TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that's three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
  • M.2 Q-Latch
    The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
  • Q-LED
    The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup.
  • Armoury Crate
    Armoury Crate is exclusive ASUS software that gives you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. It also provides hardware information and control of settings for a select and growing number of products, including keyboard and mouse preferences, Fan Xpert 4 and Two-Way AI Noise Cancelation, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news sections to help you stay in touch with the gaming community.
  • Immersive Gaming
    TUF GAMING Z690 motherboards provide a high-performance gaming package with a long list of features to improve your experiences, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
  • Intel WiFi 6
    The Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. The WiFi antenna designs with four-way positioning that enables better signal reception, and a magnetic base to secure the antenna on the top or side of the PC case.
General
Product Type Motherboard - ATX
Chipset Type Intel Z690
Processor Socket LGA1700 Socket
Max Processors Qty 1
Compatible Processors (supports 12th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size 128 GB
Technology DDR4
Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5333 MHz (O.C.), 5133 MHz (O.C.)
Supported RAM Integrity Check Non-ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type HD Audio (8-channel)
Compliant Standards High Definition Audio
LAN
Network Interfaces 2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots 1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x4
2 x PCIe 3.0 x1
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
Interfaces 1 x DisplayPort
1 x HDMI
1 x USB-C Gen2x2
2 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
1 x audio line-in - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x TOSLINK
1 x USB-C Gen1
1 x LAN (2.5Gigabit Ethernet)
Internal Interfaces 4 x USB 2.0 - header
1 x USB-C Gen2 - header
2 x USB 3.2 Gen 1 - header
1 x audio - header
1 x Thunderbolt - header
1 x serial - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type AMI
BIOS Features UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up Wake on LAN (WOL), wake on PME
Hardware Features Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, 6 Layer PCB, TUF LANGuard, ASUS Overvoltage Protection, ASUS Fan Xpert 4, ASUS SafeSlot, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, M.2 Q-Latch, SafeDIMM, 14+1 DrMOS power stages
Miscellaneous
Included Accessories 1 x M.2 screw, TUF stickers, 2 x M.2 rubber package
Cables Included 2 x Serial ATA cable
Software Included Drivers & Utilities, ASUS AI Suite III, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial), ASUS AURA Creator, MyAsus
Width 30.5 cm
Depth 24.4 cm
Technical data provided by third party. We assume no liability for errors within these data.
