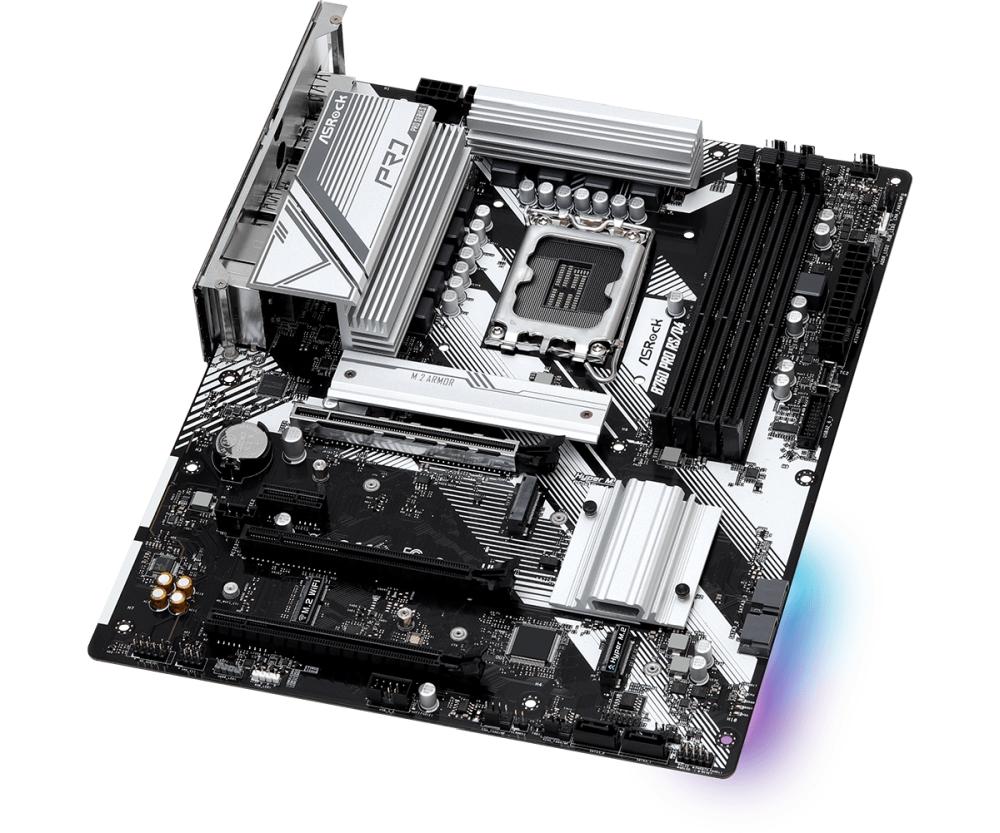

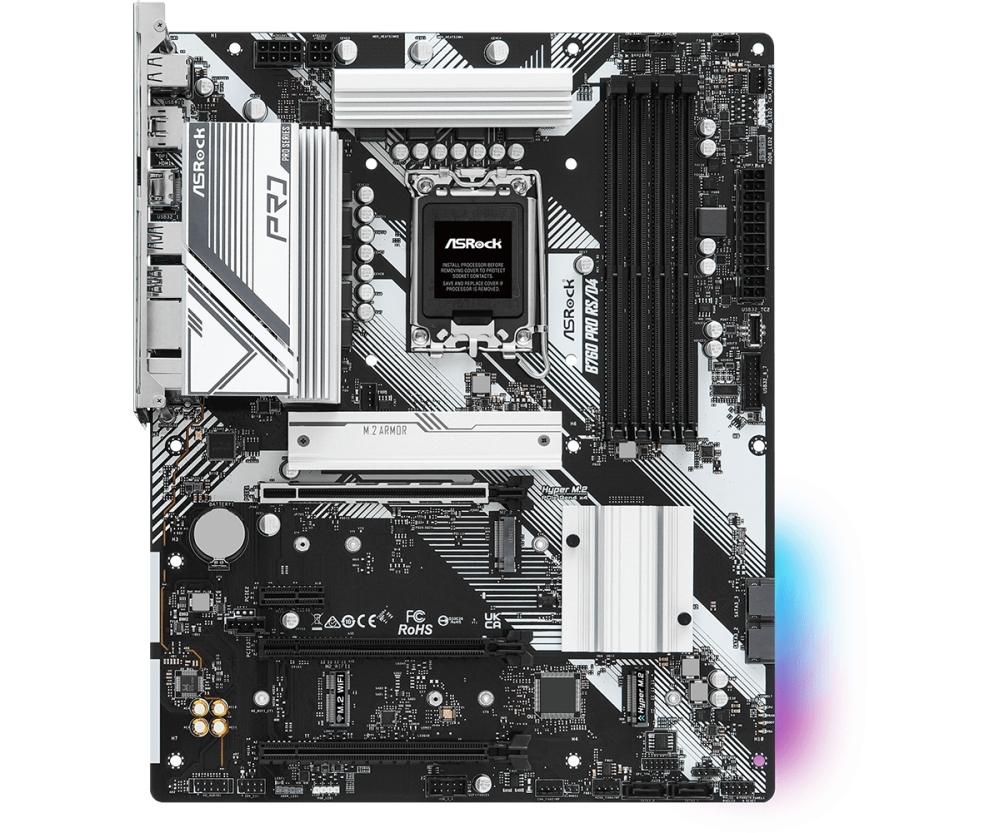

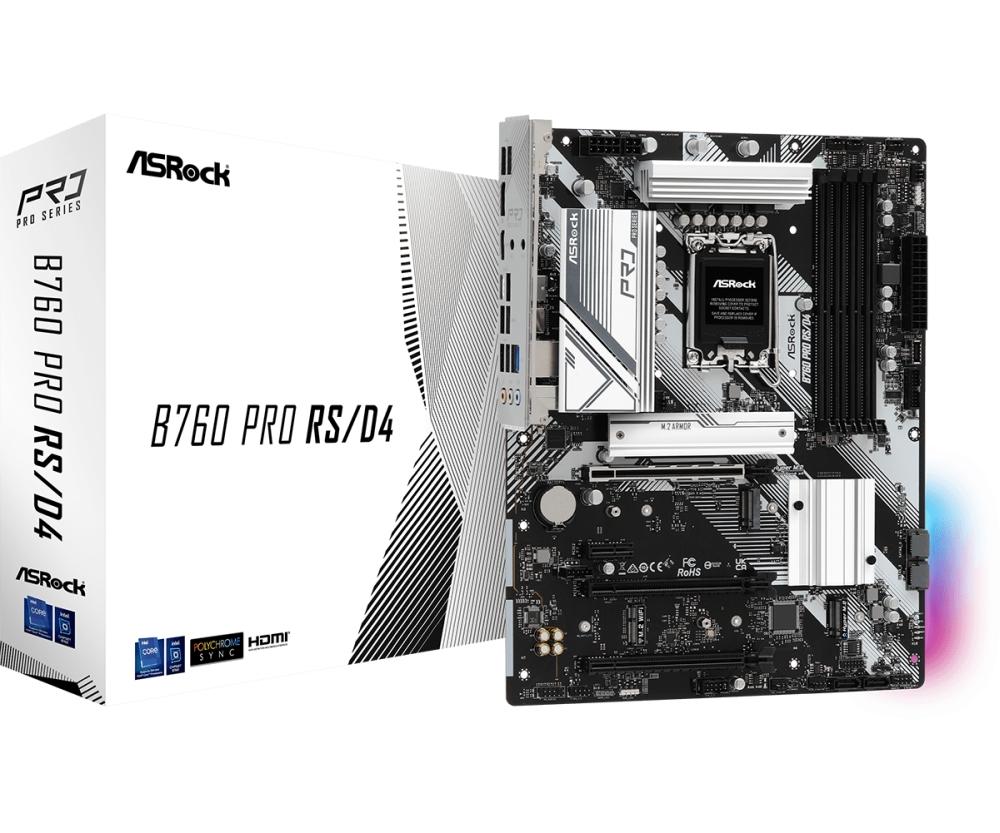

Дънна платка Asrock B760 PRO RS/D4, B760, LGA1700, DDR4,, 4x SATA3 6.0, 1x Hyper M.2, 1 x USB 3.2 Gen1 Type-C, HDMI, DP ATX

Дънна платка Asrock B760 PRO RS/D4, B760, LGA1700, DDR4,, 4x SATA3 6.0, 1x Hyper M.2, 1 x USB 3.2 Gen1 Type-C, HDMI, DP ATX

SKU: B760 PRO RS/D4 / 90-MXBL80-A0UAYZ
ID: #24570
Цена: 268,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 14th, 13th Gen & 12th Gen Intel® Core™
CPU Socket: AMD AM4
Чипсет: Intel B760
Максимален капацитет RAM памет: 128 GB
Памет, слотове: 4 x DDR4 DIMM Slots, Max. capacity of system memory: 128GB
Поддържана памет: DDR4
M.2 слот: M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
Поддръжка на RAID: SATA RAID 0, 1, 5, 10
Мрежа: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
HDMI: 1
DisplayPort: 1
Форм фактор: ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

  • PU
    - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
    - Supports Intel® Thermal Velocity Boost (TVB)
    - Supports Intel® Adaptive Boost Technology (ABT)
  • Chipset
    - Intel® B760
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 128GB
    - Supports Intel® Extreme Memory Profile (XMP) 2.0

    *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
    1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
    2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.
    2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    - Intel® Xe Graphics Architecture (Gen 12)
    - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Nahimic Audio
  • LAN
    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Dragon RTL8125BG
    - Supports Dragon 2.5G LAN Software
    - Smart Auto Adjust Bandwidth Control
    - Visual User Friendly UI
    - Visual Network Usage Statistics
    - Optimized Default Setting for Game, Browser, and Streaming Modes
    - User Customized Priority Control
  • Slots
    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
    - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*
    - 1 x PCIe 3.0 x1 Slot (PCIE2)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
    - Supports AMD CrossFire™

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors

    *Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    - 1 x USB 3.2 Gen2 Type-C (Front)
    - 1 x USB 3.2 Gen1 Type-C (Rear)
    - 7 x USB 3.2 Gen1 Type-A (5 Rear, 2 Front)
    - 4 x USB 2.0 (2 Rear, 2 Front)
    * All USB ports support ESD Protection
  • Connector
    - 1 x SPI TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 2 x RGB LED Headers*
    - 2 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s

    *Support in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~5/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.

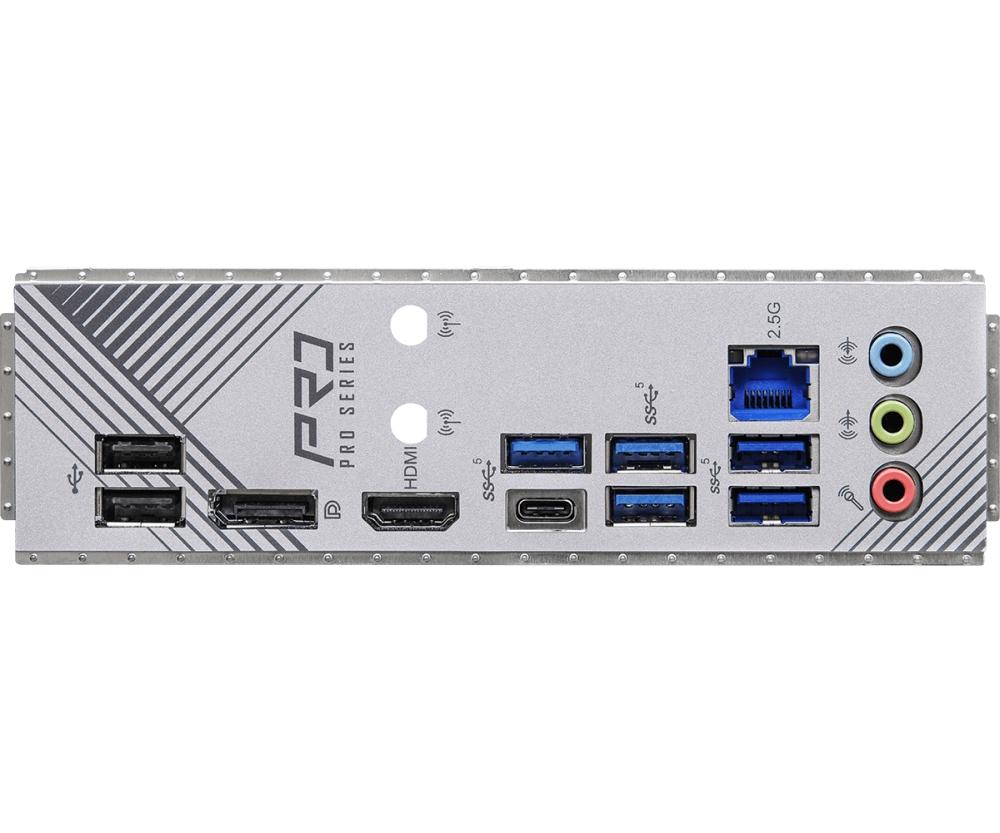

  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen1 Type-C Port
    - 5 x USB 3.2 Gen1 Type-A Ports
    - 2 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 2 x SATA Data Cables
    - 4 x Screws for M.2 Sockets
    - 1 x Standoff for M.2 Socket
  • Form Factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
