Дънна платка ASUS PRIME H610M-A D4-CSM, LGA 1700, 2x DDR4, 2x M.2 slots, 4x SATA, VGA, HDMI, DP, mATX
нов продукт
Дънна платка ASUS PRIME H610M-A D4-CSM, LGA 1700, 2x DDR4, 2x M.2 slots, 4x SATA, VGA, HDMI, DP, mATX
Дънна платка ASUS PRIME H610M-A D4-CSM, LGA 1700, 2x DDR4, 2x M.2 slots, 4x SATA, VGA, HDMI, DP, mATX
Дънна платка ASUS PRIME H610M-A D4-CSM, LGA 1700, 2x DDR4, 2x M.2 slots, 4x SATA, VGA, HDMI, DP, mATX
Дънна платка ASUS PRIME H610M-A D4-CSM, LGA 1700, 2x DDR4, 2x M.2 slots, 4x SATA, VGA, HDMI, DP, mATX
Дънна платка ASUS PRIME H610M-A D4-CSM, LGA 1700, 2x DDR4, 2x M.2 slots, 4x SATA, VGA, HDMI, DP, mATX

Дънна платка ASUS PRIME H610M-A D4-CSM, LGA 1700, 2x DDR4, 2x M.2 slots, 4x SATA, VGA, HDMI, DP, mATX

SKU: PRIME H610M-A D4-CSM / 90MB19P0-M0EAY0
ID: #43065
Цена: 155,00 лв.
79,25 €
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 14th, 13th Gen & 12th Gen Intel® Core™
CPU Socket: Intel LGA1700
Чипсет: Intel H610
Максимален капацитет RAM памет: 64 GB
Памет, слотове: 2
Поддържана памет: DDR4
M.2 слот: 2 x M.2 slots / 4 x SATA 6Gb/s ports
Graphics технология: Няма
Мрежа: Gigabit Ethernet (RJ-45)
Wi-Fi Mодул: Не
HDMI: 1
DisplayPort: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Model
PRIME H610M-A D4-CSM

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H610 Chipset
Memory

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*



Dual Channel Memory Architecture



Supports Intel® Extreme Memory Profile (XMP)


* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics

1 x DisplayPort**



1 x D-Sub port



1 x HDMI® port***



* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.



** Supports max. 4K@60Hz as specified in DisplayPort 1.4.


*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots

Intel® Core™ Processors (14th & 13th & 12th Gen)

1 x PCIe 4.0 x16 slot

Intel® H610 Chipset

1 x PCIe 3.0 x1 slot
Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports



Intel® H610 Chipset



M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)



M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)



4 x SATA 6Gb/s ports


Ethernet
1 x Intel® 1Gb Ethernet
Wireless & Bluetooth

V-M.2 slot only (Key E, CNVi & PCIe)*


* Wi-Fi module is sold separately.
USB

Rear USB (Total 6 ports)



2 x USB 3.2 Gen 2 ports (2 x Type-A)



4 x USB 2.0 ports (4 x Type-A)



Front USB (Total 5 ports)



1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*



- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking



- Supports up to 24-Bit/192 kHz playback



Audio Features



- Audio Shielding



- Premium audio capacitors



- Dedicated audio PCB layers


* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

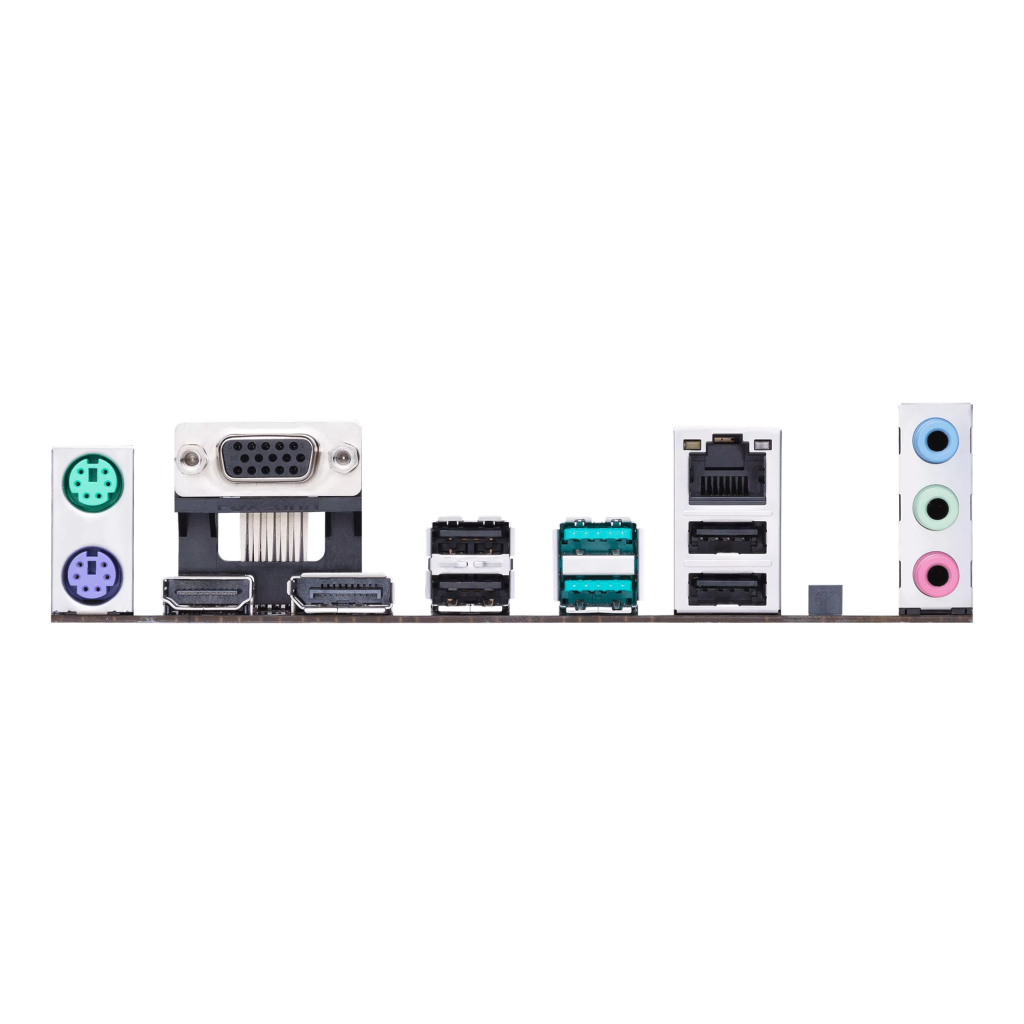

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)



4 x USB 2.0 ports (4 x Type-A)



1 x DisplayPort



1 x HDMI® port



1 x D-Sub port



1 x V-M.2 slot (Key E)



1 x Intel® 1Gb Ethernet port



3 x Audio jacks



1 x PS/2 Keyboard (purple) port


1 x PS/2 Mouse (green) port
Internal I/O Connectors

Fan and Cooling related



1 x 4-pin CPU Fan header



2 x 4-pin Chassis Fan headers



Power related



1 x 24-pin Main Power connector



1 x 8-pin +12V Power connector



Storage related



2 x M.2 slots (Key M)



4 x SATA 6Gb/s ports



USB



1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports



2 x USB 2.0 headers support additional 3 USB 2.0 ports



Miscellaneous



3 x Addressable Gen 2 headers



2 x AURA RGB headers



1 x Clear CMOS header



1 x Front Panel Audio header (AAFP)



1 x COM Port header



1 x S/PDIF Out header



1 x Speaker header



1 x SPI TPM header (14-1pin)



1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III



- DIGI+ VRM



- LANGuard



- Overvoltage Protection



- SafeSlot Core



- Stainless-Steel Back I/O



ASUS Q-Design



- Q-DIMM



- Q-Slot



ASUS Thermal Solution



- VRM heatsink design



AURA Sync



- AURA RGB headers


- Addressable Gen 2 headers
Software Features

ASUS Exclusive Software



Armoury Crate



- AURA Creator



- AURA Sync



- Fan Xpert 2+



AI Suite 3



- Performance And Power Saving Utility



TurboV EVO



EPU



DIGI+ VRM



ASUS CPU-Z



IT Management software supported



- ASUS Control Center Express(ACCE)



Norton Anti-virus software (Free Trial version)



WinRAR



UEFI BIOS



ASUS EZ DIY



- ASUS CrashFree BIOS 3



- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories

Cables



2 x SATA 6Gb/s cables



Miscellaneous

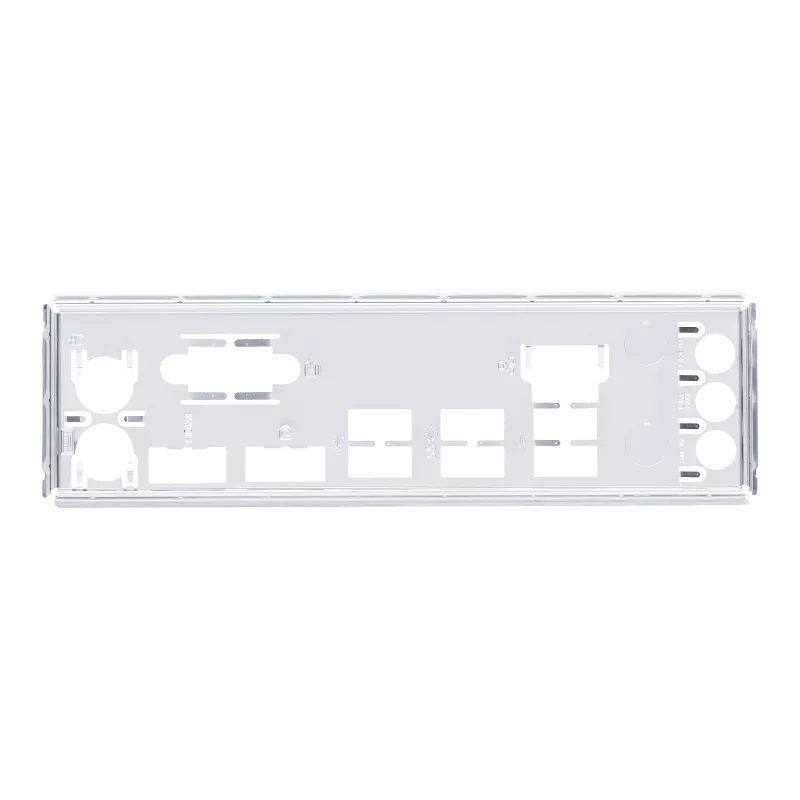

1 x I/O Shield



1 x M.2 SSD screw package



Installation Media



1 x Support DVD



Documentation



1 x ACC Express Activation Key Card


1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor

mATX Form Factor


9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)

https://www.asus.com/motherboards-components/motherboards/csm/prime-h610m-a-d4-csm/techspec/
