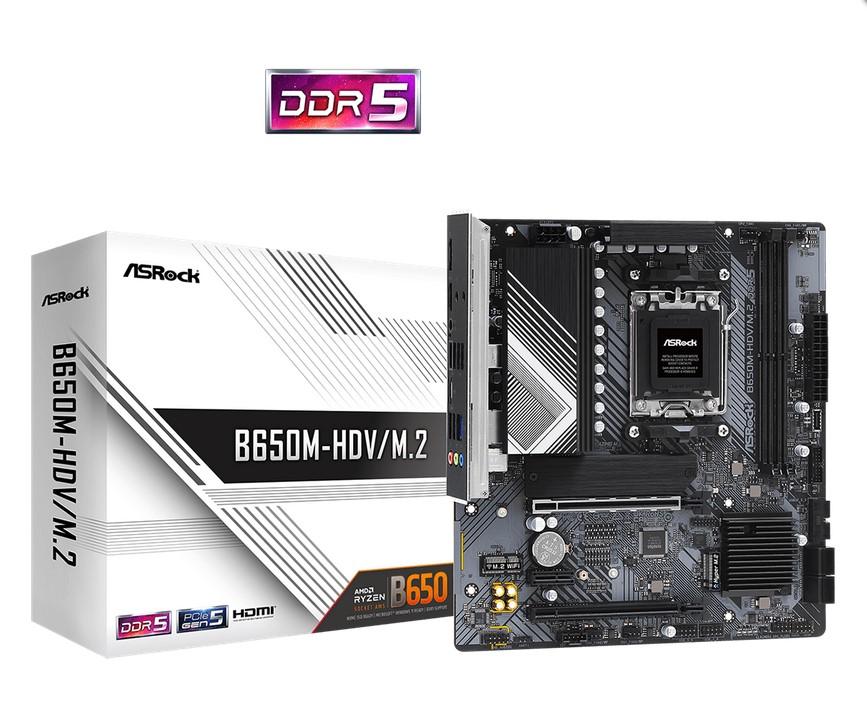

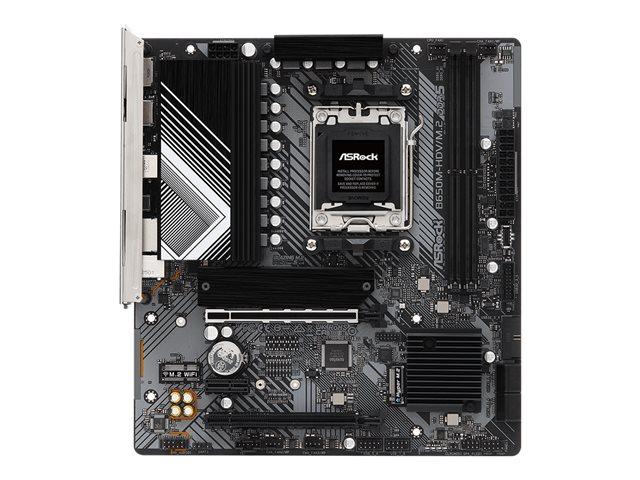

Дънна платка ASRock B650M-HDV/M.2, B650, AM5, DDR5, PCIe 4.0, 1x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Type-C, 2x USB 3.2 Gen 1, Micro ATX
Дънна платка ASRock B650M-HDV/M.2, B650, AM5, DDR5, PCIe 4.0, 1x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Type-C, 2x USB 3.2 Gen 1, Micro ATX
Дънна платка ASRock B650M-HDV/M.2, B650, AM5, DDR5, PCIe 4.0, 1x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Type-C, 2x USB 3.2 Gen 1, Micro ATX
Дънна платка ASRock B650M-HDV/M.2, B650, AM5, DDR5, PCIe 4.0, 1x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Type-C, 2x USB 3.2 Gen 1, Micro ATX

Дънна платка ASRock B650M-HDV/M.2, B650, AM5, DDR5, PCIe 4.0, 1x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Type-C, 2x USB 3.2 Gen 1, Micro ATX

SKU: B650M-HDV/M.2
ID: #31296
Цена: 252,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: AM5 Supports AMD Ryzen™ 7000 Series Processors
CPU Socket: AMD AM5
Чипсет: AMD B650
Максимален капацитет RAM памет: 96 GB
Памет, слотове: 2
Поддържана памет: DDR5
M.2 слот: 2 M.2
Graphics технология: Няма
Wi-Fi Mодул: Не
HDMI: 1
DisplayPort: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

ASROCK B650M-HDV/M.2 AM5 2xDDR5 2xPCIe x16

Manufacturer ASROCK
Manufacturer Part No B650M-HDV/M.2

General
Product Type Motherboard - micro ATX
Chipset Type AMD B650
Processor Socket Socket AM5
Max Processors Qty 1
Compatible Processors Ryzen (supports Ryzen 7000 Series)
Supported RAM
Max Size 64 GB
Technology DDR5
Bus Clock 6400 MHz (O.C.)
Supported RAM Integrity Check Non-ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology
Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC897
Compliant Standards High Definition Audio
LAN
Network Controller Dragon RTL8125BG
Network Interfaces 2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots 1 x CPU
2 x DIMM 288-pin
1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 4.0 x1
1 x M.2 socket (2230 M.2 Key E slot)
1 x M.2 socket (2260/2280 M.2 Key M slot)
1 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces 1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen 1
2 x USB 3.2 Gen 1
2 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
2 x aerial
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
Internal Interfaces 1 x USB-C 3.2 Gen 2 - header
4 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x SPI - header
1 x audio - header
1 x speaker - header
1 x Thunderbolt - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type AMI
BIOS Features UEFI BIOS

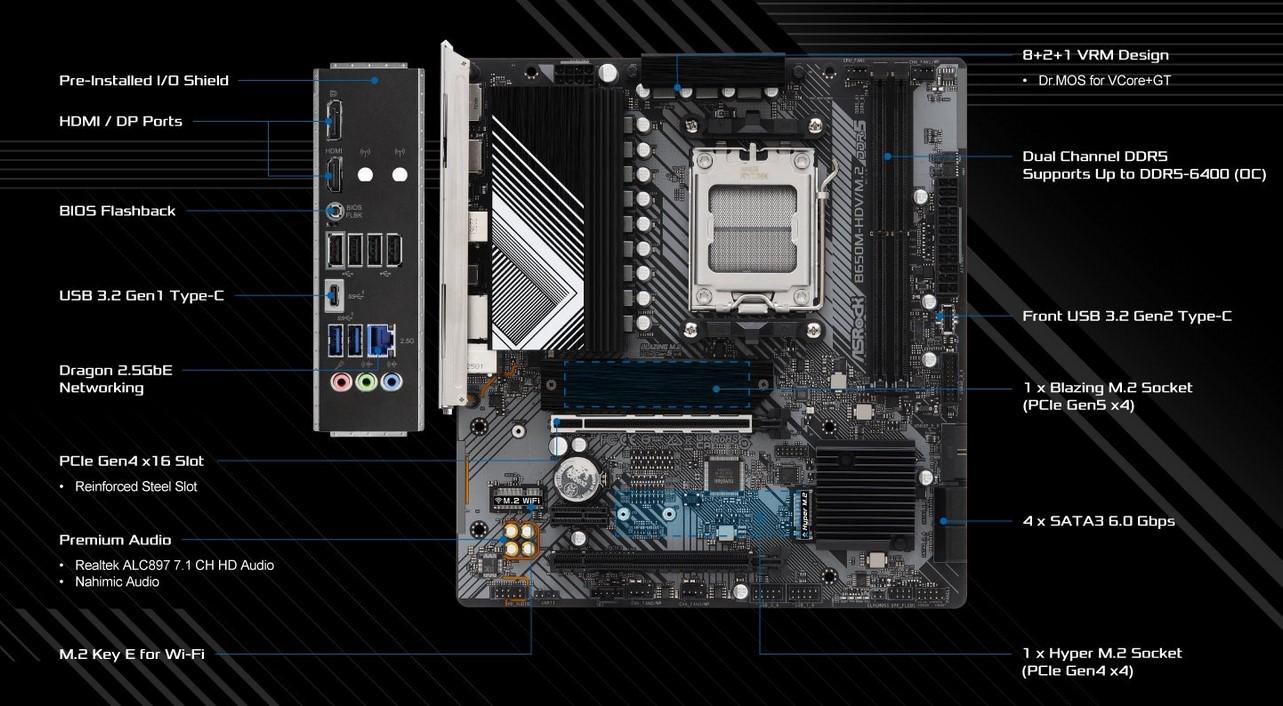

Hardware Features ASRock Instant Flash, ASRock Full HD UEFI, Dr.MOS MOSFET, ASRock Steel Slots, 2oz Copper PCB, Water Pump Header, pre-mounted I/O shield, ASRock POST Status Checker (PSC), 8+2+1 Phase Power Design, ASRock Auto Driver Installer, BIOS FlashBack button, 50A Power Stage
Miscellaneous
Included Accessories 2 x M.2 screws
Cables Included 2 x Serial ATA cable
Software Included ASRock A-Tuning
Compliant Standards FCC Part 15, EuP Ready, ErP Ready, RoHS 2011/65/EU, EMC 2014/30/EU, DisplayPort 1.4, HDCP 2.3
Width 22.6 cm
Depth 24.4 cm
Technical data provided by third party. We assume no liability for errors within these data.
