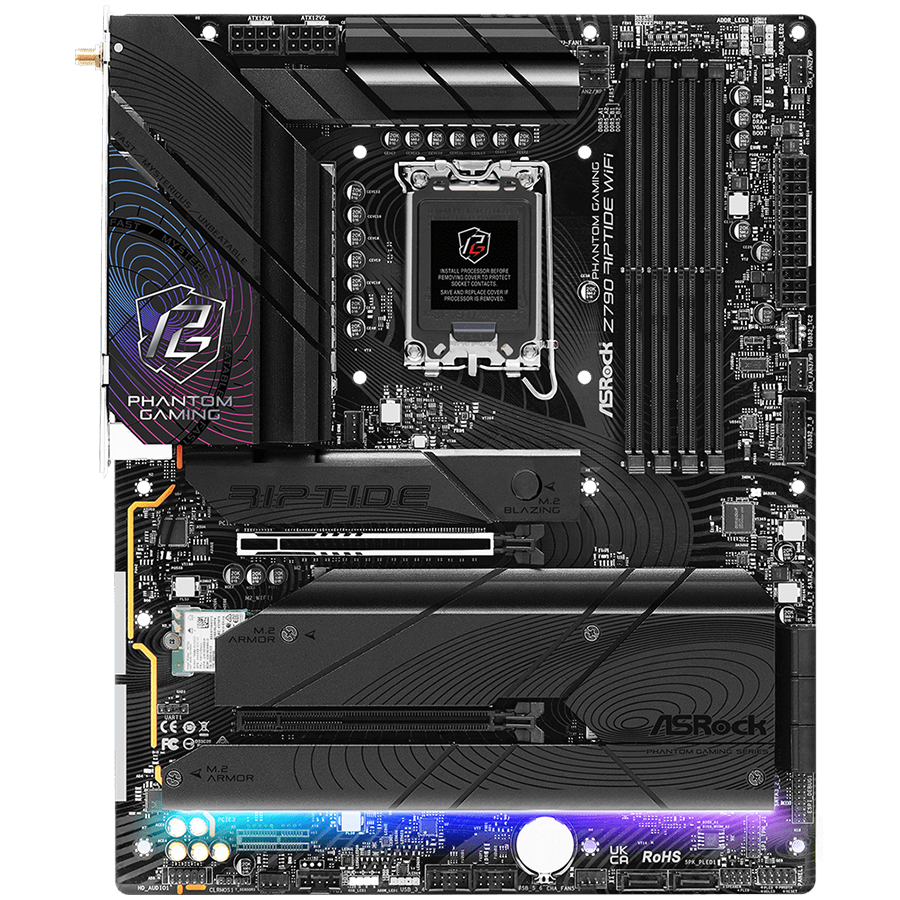

Дънна платка ASRock Z790 Riptide WiFi, Z790, LGA1700, DDR5, PCIe 5.0(CF), 5x M.2, 8x SATA 6Gb/s, HDMI, DP, 4x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen1 Type-C, ATX

SKU: Z790 RIPTIDE WIFI

ID: #37807

Цена: 532,00 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 14th, 13th Gen & 12th Gen Intel® Core™

CPU Socket: Intel LGA1700

Чипсет: Intel Z790

Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB

Поддръжка на Dualchannel: Да

Памет, слотове: 4

Поддържана памет: DDR5

M.2 слот: 5x M.2 SSD slot (NVMe PCIe) / 8x SATA 6G

Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10

Graphics технология: CrossFire

Вграден Bluetooth: Bluetooth V5.3

Мрежа: 1 x 10/100/1000 Mbps (RJ-45)

Wi-Fi Mодул: Да

Безжична мрежа: 802.11 a/ b/ g/ n/ ac/ ax/ be (Wi-Fi 7)

HDMI: 1

DisplayPort: 1

Форм фактор: ATX

Гаранция (месеца): 24

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

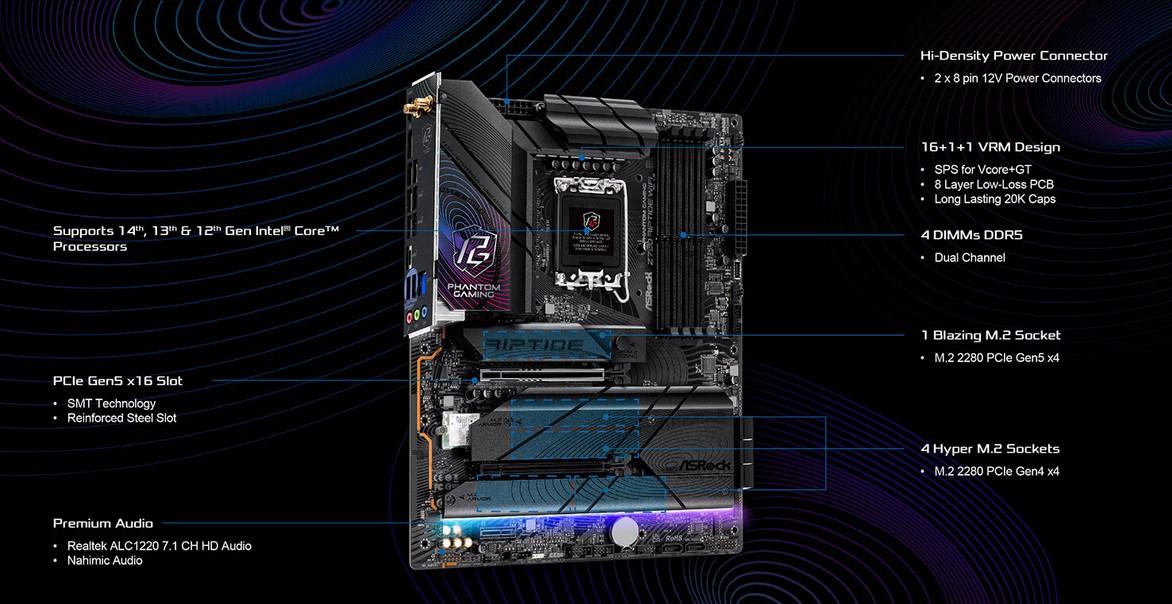

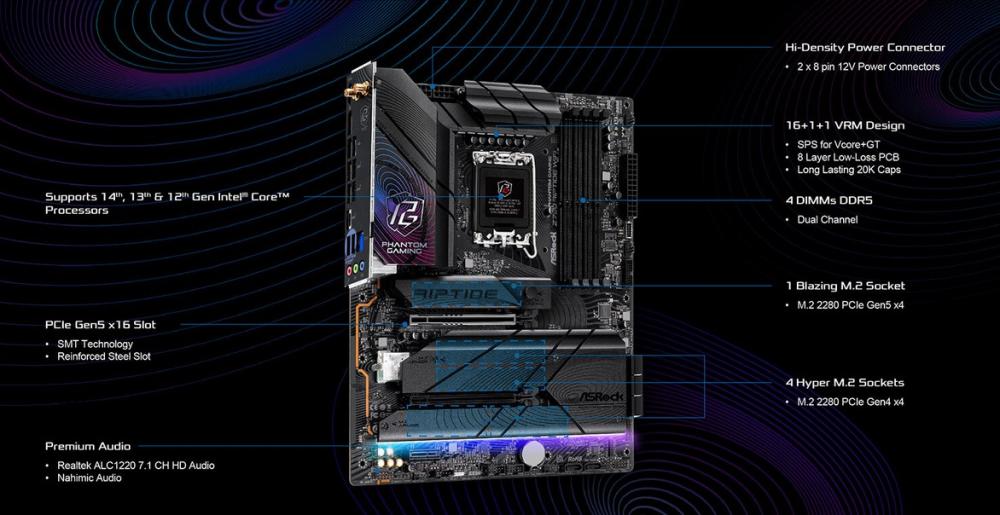

CPU

- Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
- Supports Intel^® Hybrid Technology
- Supports Intel^® Turbo Boost Max 3.0 Technology
- Supports Intel^® Thermal Velocity Boost (TVB)
- Supports Intel^® Adaptive Boost Technology (ABT)
Chipset

- Intel^® Z790
Memory

- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC)*
- Max. capacity of system memory: 192GB
- Supports Intel^® Extreme Memory Profile (XMP) 3.0

* 1DPC 1R Up to 8000+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6800+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively.
2DPC 2R Up to 5600+ MHz (OC), 3600 MHz Natively.
BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics

- Intel^® Xe Graphics Architecture (Gen 12)
- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

* Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Killer E3100G
- Supports Killer LAN Software
Wireless LAN

- 802.11be 2x2 Wi-Fi 7 Module
- Supports IEEE 802.11a/b/g/n/ac/ax/be
- Supports 2.4GHz/5GHz/6GHz frequency band*
- Supports 320MHz channel bandwidth with 6GHz frequency band*
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4**
- Supports MU-MIMO

*Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows^® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available.
A 6GHz compatible router is required for 7 functionality.

**Bluetooth Audio Offload (HFP, A2DP, and LE Audio) is not supported.
Slots

CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x PCIe 3.0 x1 Slot (PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT)
- Supports AMD CrossFire™

* Supports NVMe SSD as boot disks
If M.2_GEN5 is occupied, PCIE1 will downgrade to x8 mode.
Storage

CPU:
- 1 x Blazing M.2 Socket (M.2_GEN5, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 8 x SATA3 6.0 Gb/s Connectors

* Supports Intel^® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
If M.2_GEN5 is occupied, PCIE1 will downgrade to x8 mode.
RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 and RAID 10 for M.2 NVMe storage devices
USB

- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 2 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
Connector

- 1 x eDP Signal Connector
- 1 x Thermistor Cable Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**

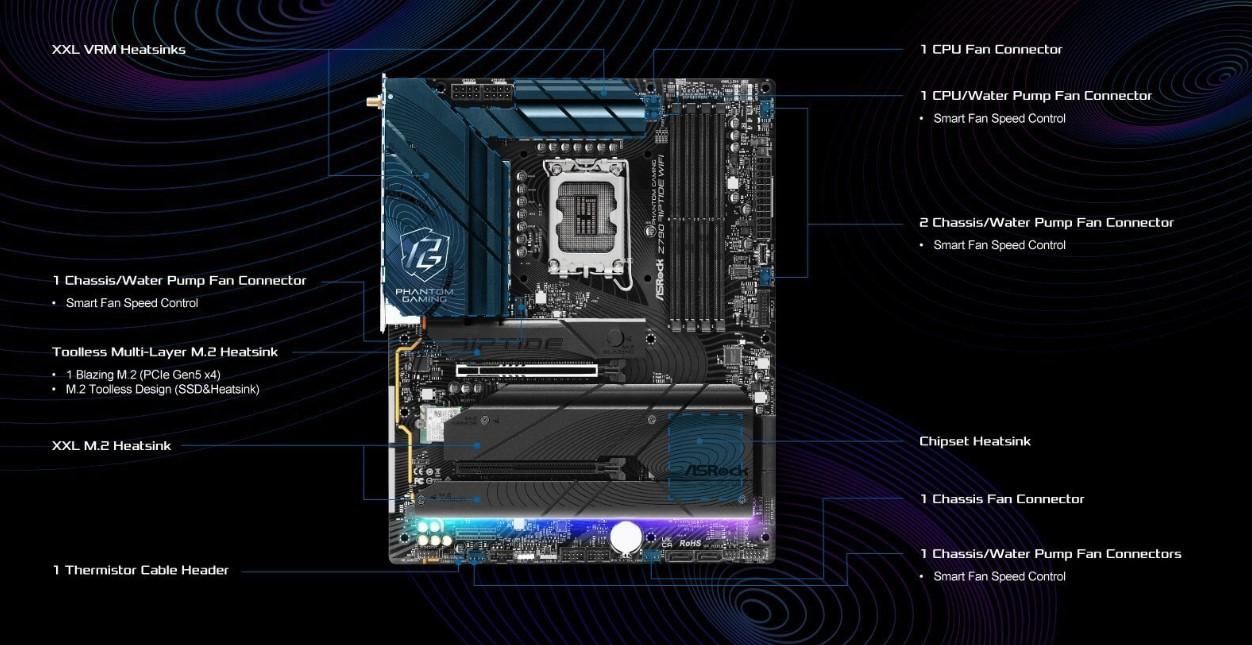

- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 1 x Chassis Fan Connector (4-pin)*****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN5 supports the fan power up to 1A (12W).
****** CHA_FAN1~4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

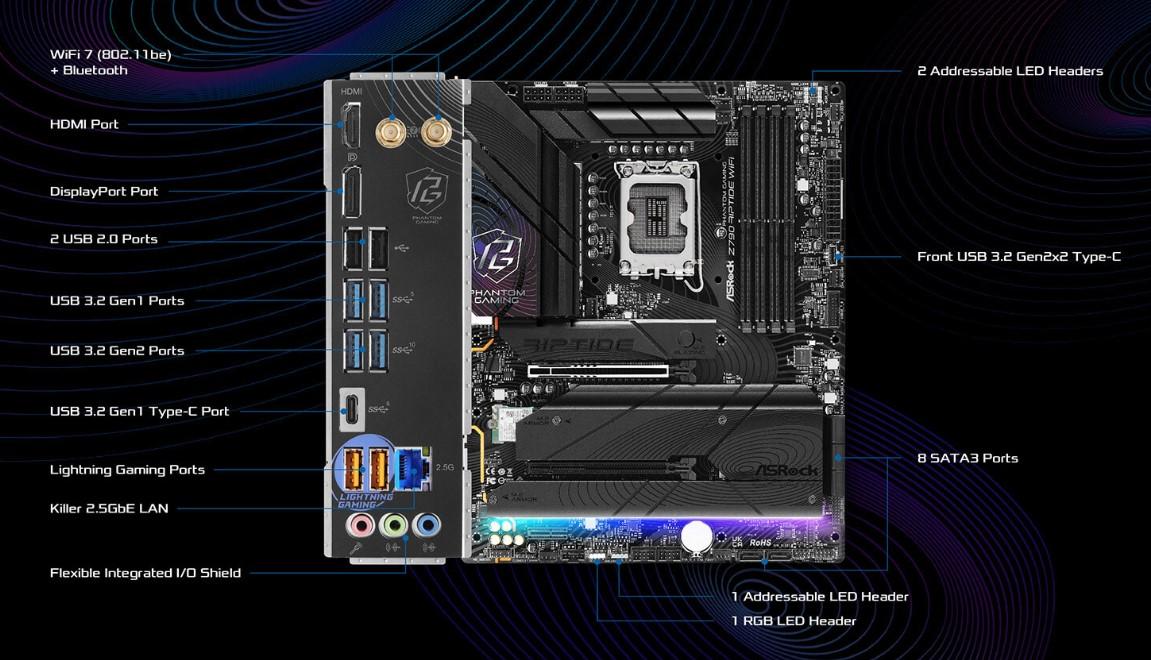

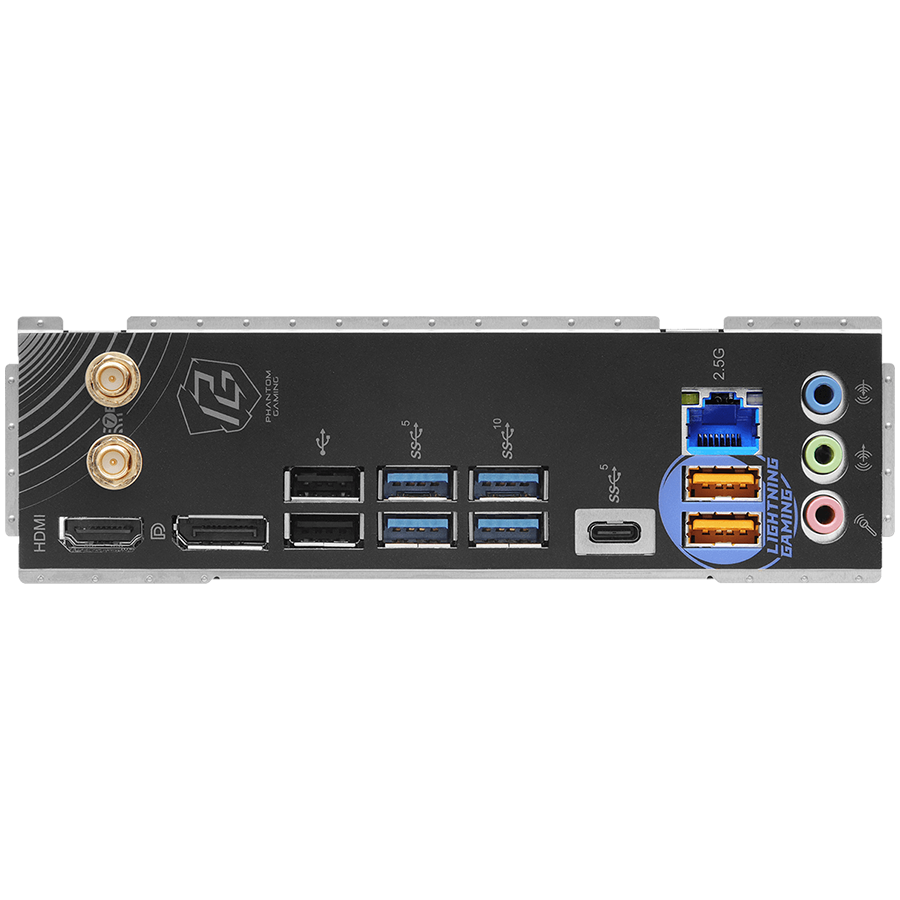

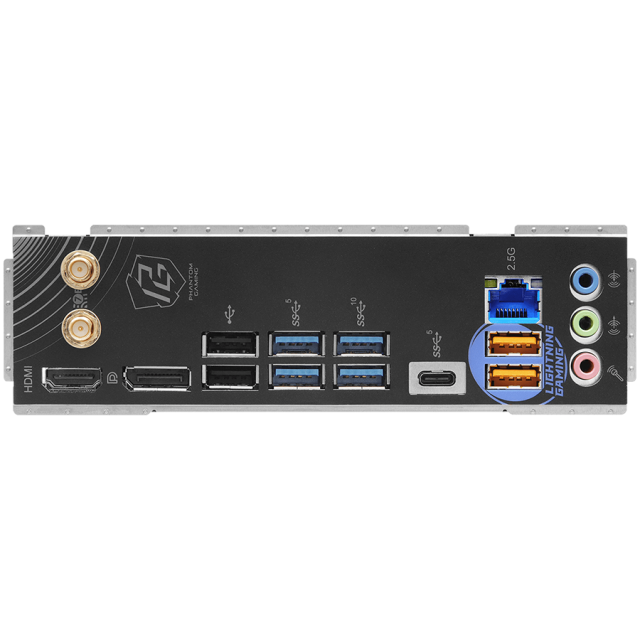

Rear Panel I/O

- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 3.2 Gen1 Type-A Ports (USB32_56 are Lightning Gaming Ports.)
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI

Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

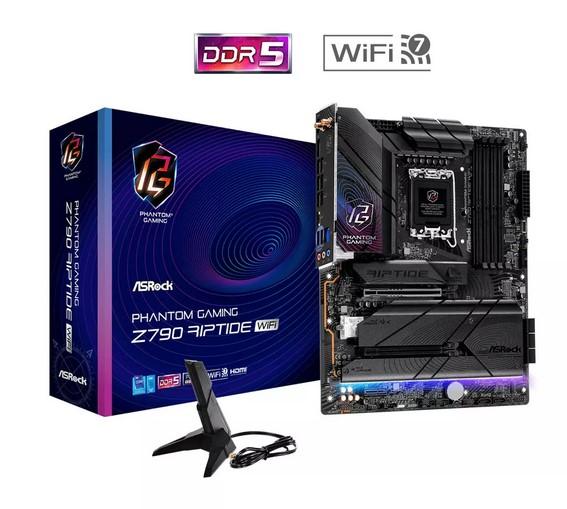

Accessories

- 1 x User Manual
- 2 x SATA Data Cables
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 1 x ARGB Splitter Cable
- 1 x Thermistor Cable
Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB
OS

- Microsoft Windows^® 10 64-bit / 11 64-bit
Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
