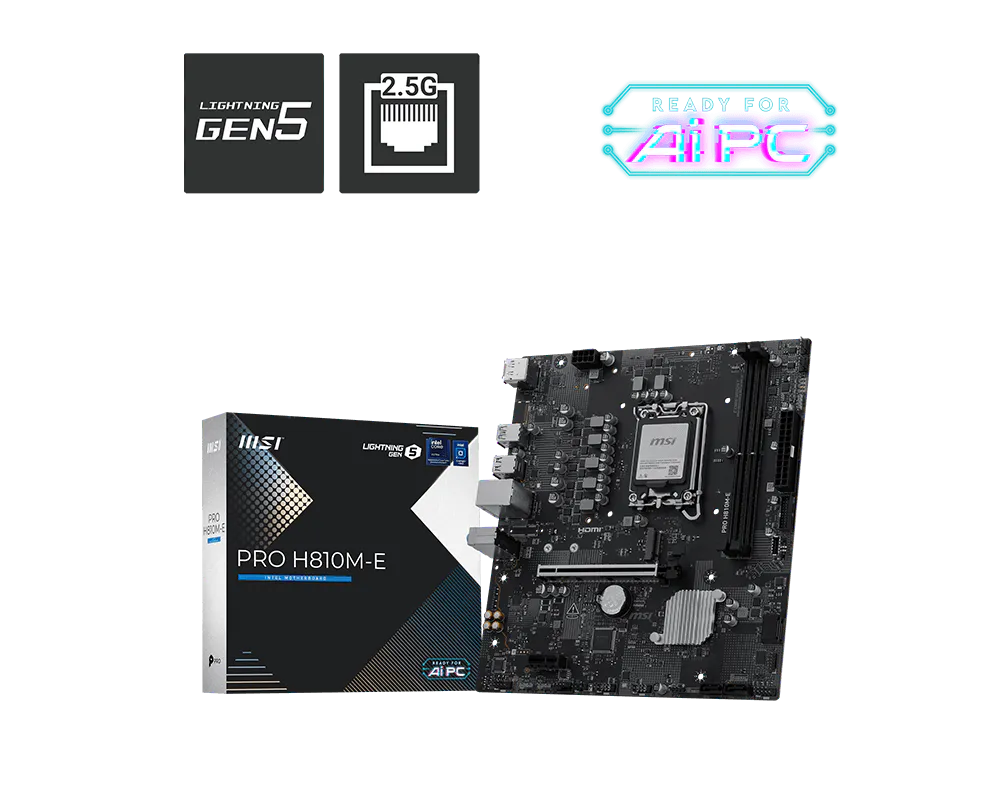

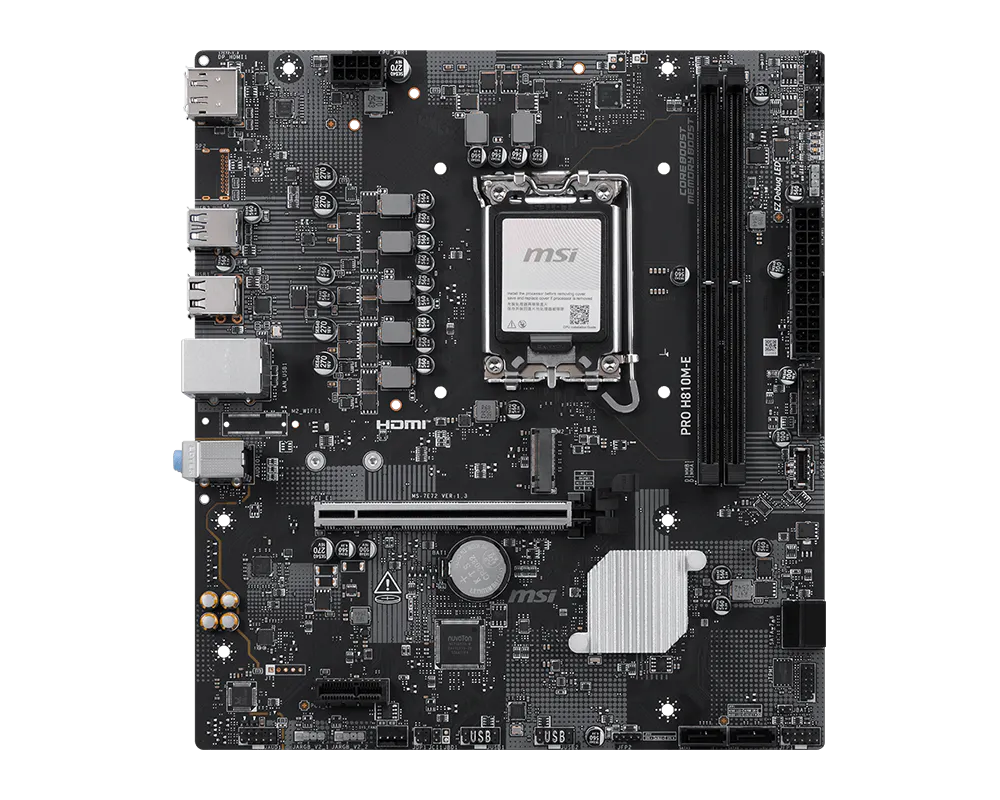

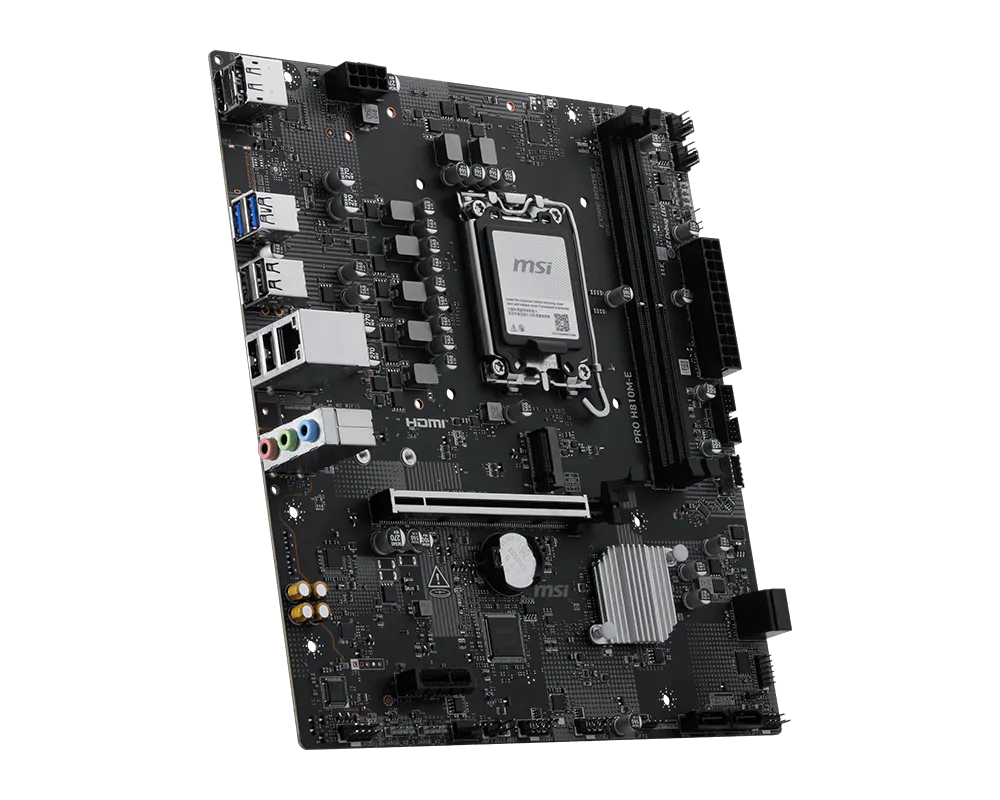

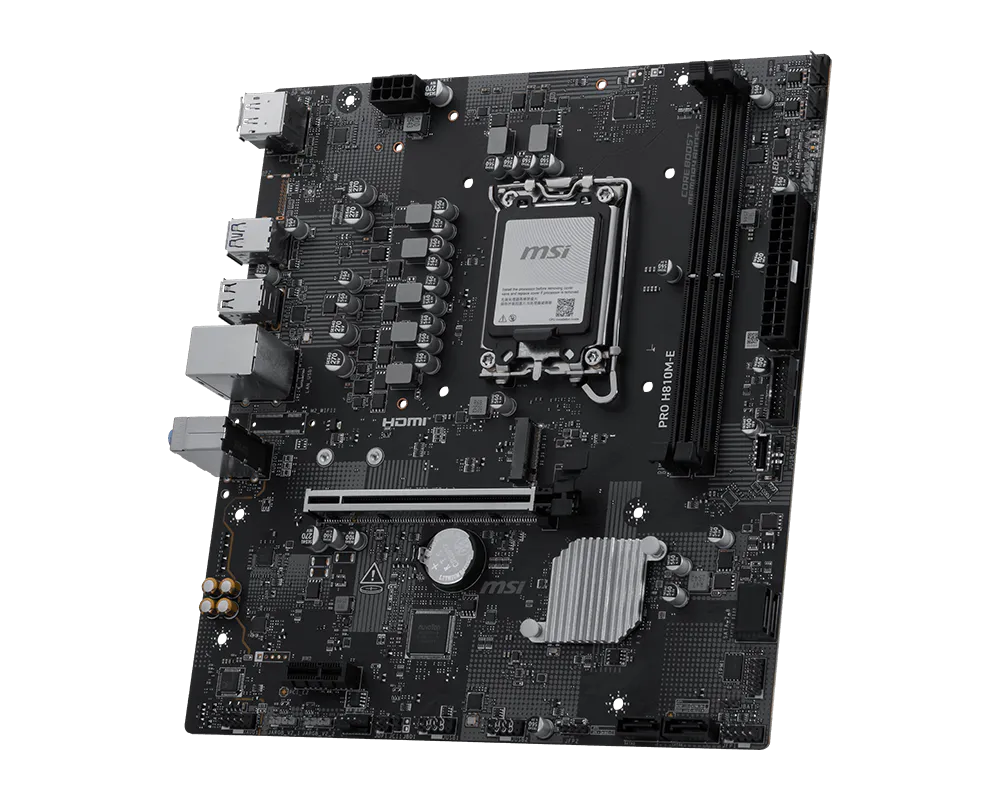

Дънна платка MSI PRO H810M-E, LGA1851, 2x DDR5, 1x M.2, 4x SATA 6G, HDM, DisplayPort, mATX

SKU: 911-7E72-001

ID: #46530

Наличен

Цена: 86,00 €

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel Core Ultra Processors (Series 2)

CPU Socket: Intel LGA1851

Чипсет: Intel H810

Максимален капацитет RAM памет: 128 GB

Памет, слотове: 2

Поддържана памет: DDR5

M.2 слот: 1 x M.2 slots / 4 x SATA 6Gb/s

Graphics технология: Няма

Мрежа: 100/1000/2500 Mbps

Wi-Fi Mодул: Не

HDMI: 1

DisplayPort: 1

Форм фактор: Micro ATX

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

Chipset	INTEL H810
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory	2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 7200 - 4800 (JEDEC) MT/s Max. overclocking: • 1DPC 1R Max speed up to 7200 MT/s • 1DPC 2R Max speed up to 6400 MT/s Supports Intel^® POR Speed and JEDEC Speed Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
LAN	Realtek^® 8125D 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
LED FEATURE	4x EZ Debug LED 1x EZ Memory Detection LED

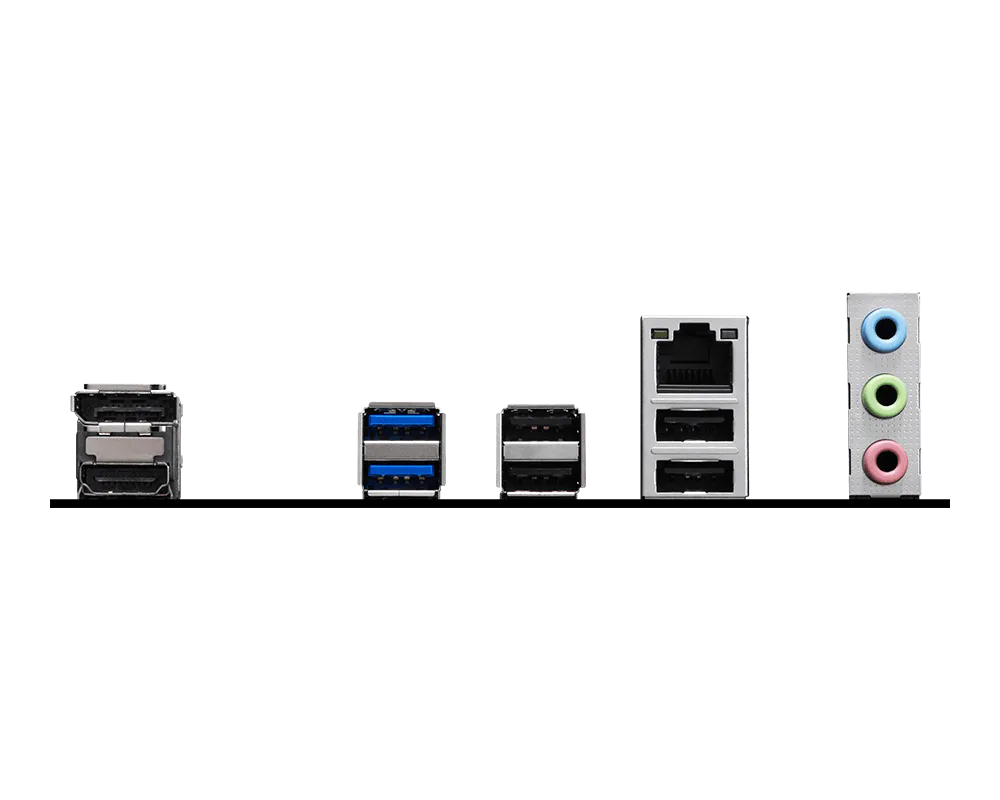

BACK PANEL PORTS	DisplayPort USB 5Gbps Type-A USB 2.0 2.5G LAN Audio Connectors HDMI^TM USB 2.0
PCB Info	mATX 220mmx243.84mm
