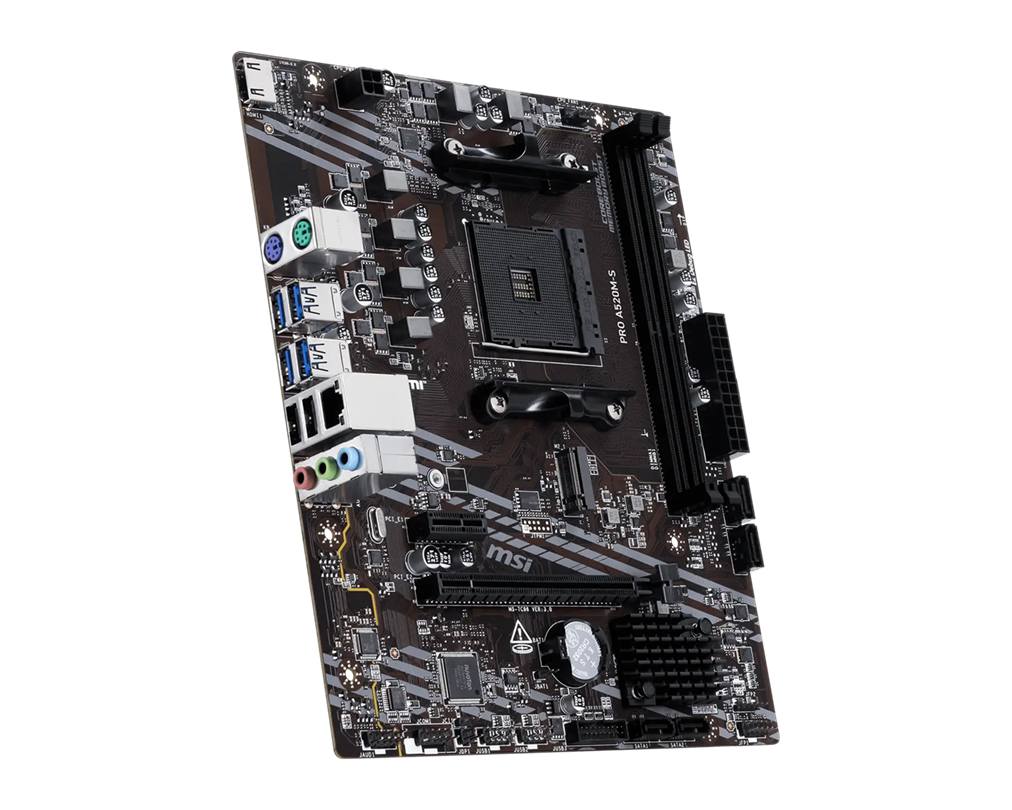

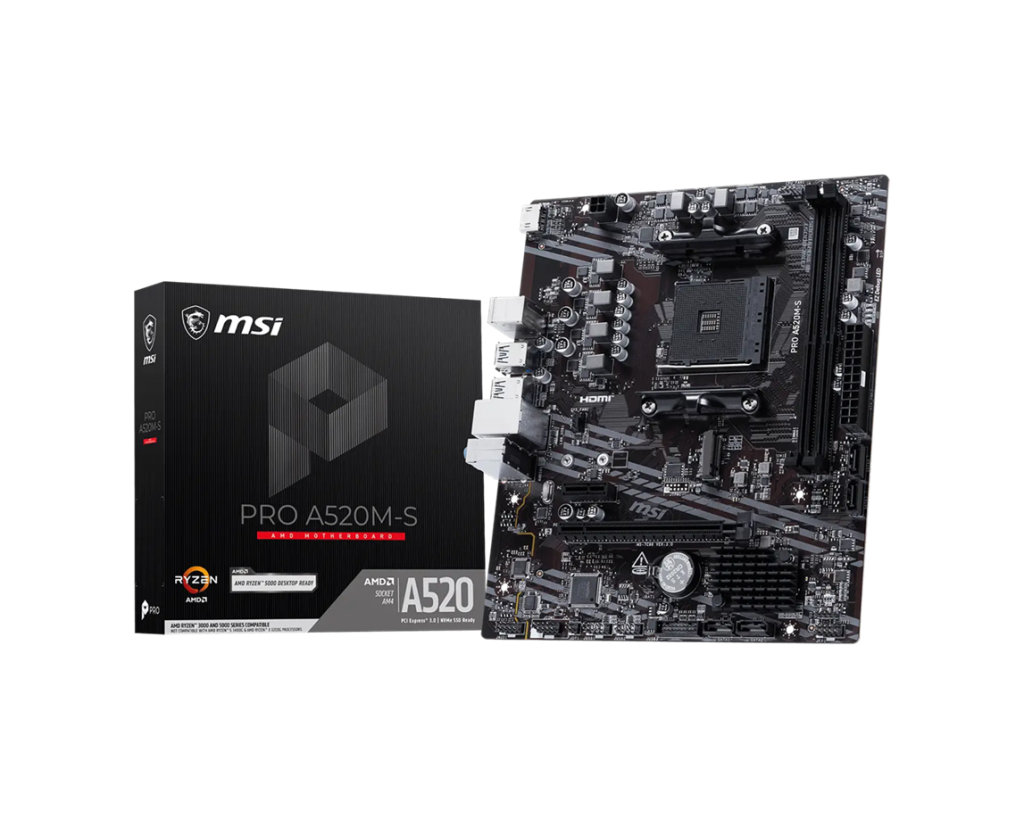

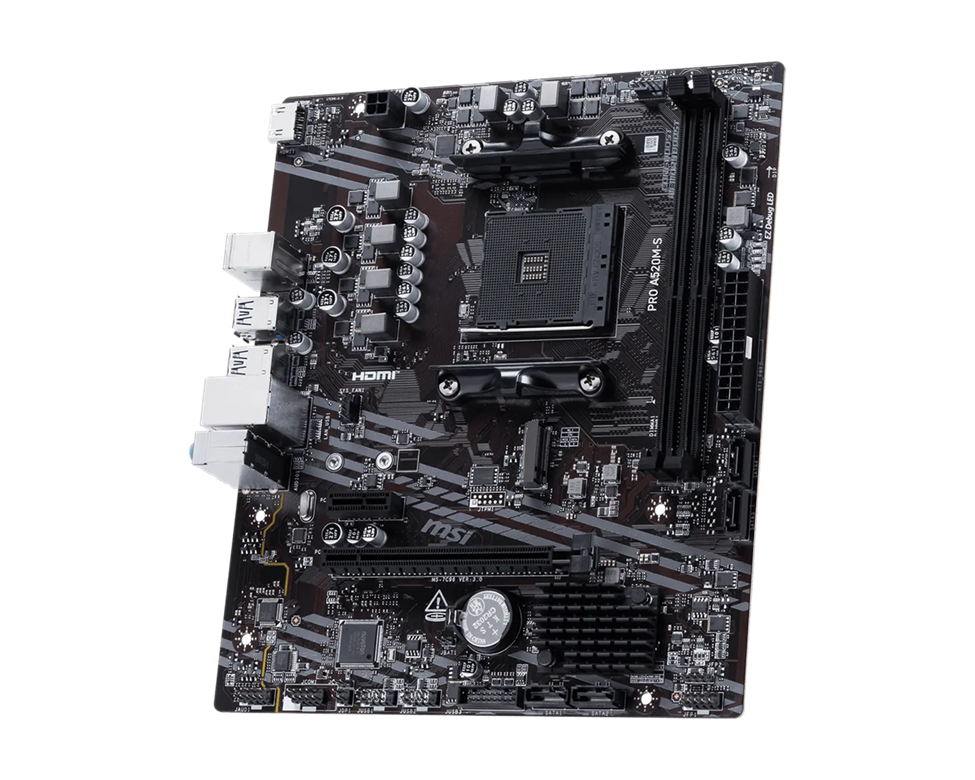

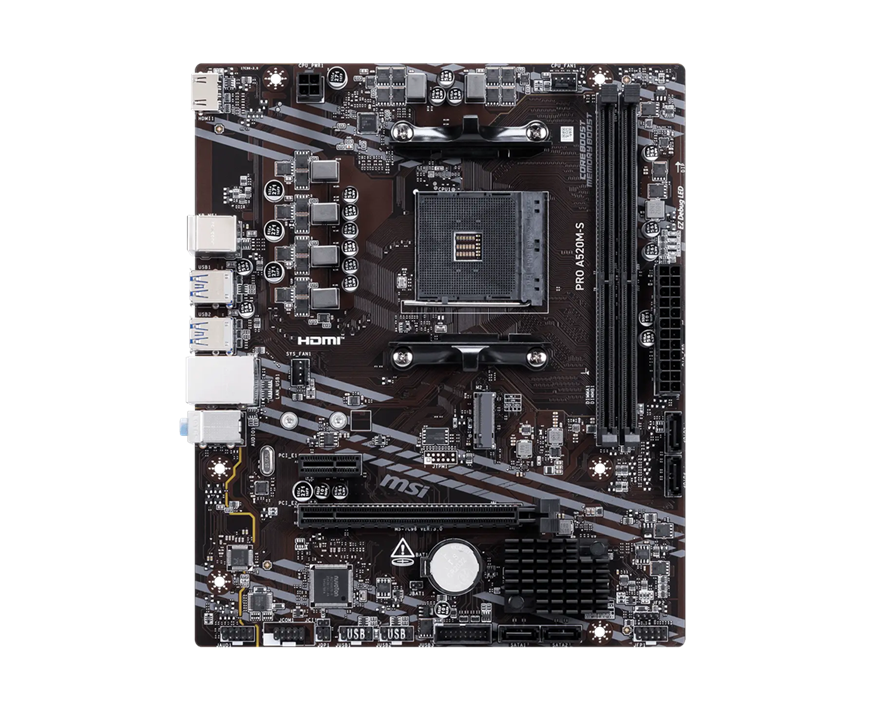

Дънна платка MSI PRO A520M-S, AM4, 2x DDR4, 1x M.2, 4x SATA 6G, HDM, mATX
нов продукт
Дънна платка MSI PRO A520M-S, AM4, 2x DDR4, 1x M.2, 4x SATA 6G, HDM, mATX
Дънна платка MSI PRO A520M-S, AM4, 2x DDR4, 1x M.2, 4x SATA 6G, HDM, mATX
Дънна платка MSI PRO A520M-S, AM4, 2x DDR4, 1x M.2, 4x SATA 6G, HDM, mATX
Дънна платка MSI PRO A520M-S, AM4, 2x DDR4, 1x M.2, 4x SATA 6G, HDM, mATX
Дънна платка MSI PRO A520M-S, AM4, 2x DDR4, 1x M.2, 4x SATA 6G, HDM, mATX

Дънна платка MSI PRO A520M-S, AM4, 2x DDR4, 1x M.2, 4x SATA 6G, HDM, mATX

SKU: 911-7C96-071
ID: #46529
Наличен
Цена: 54,00 €
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000
CPU Socket: AMD AM4
Чипсет: AMD A520
Максимален капацитет RAM памет: 64 GB
Памет, слотове: 2
Поддържана памет: DDR4
M.2 слот: 1 x M.2 slots / 4 x SATA 6Gb/s
Graphics технология: Няма
Мрежа: 1 x Gigabit Ethernet (RJ-45)
Wi-Fi Mодул: Не
HDMI: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Chipset AMD A520
CPU Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
Socket AM4
Memory 2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
Ryzen™ 5000 Series Processors max. overclocking:
• 1DPC 1R Max speed up to 4600+ MT/s
• 1DPC 2R Max speed up to 3866+ MT/s

Supports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode

• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMITM 1.4, maximum resolution of 4K 30Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU)
*The supported specification depends on installed processor.
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Realtek® RTL8111H 1Gbps LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
LED FEATURE 4x EZ Debug LED

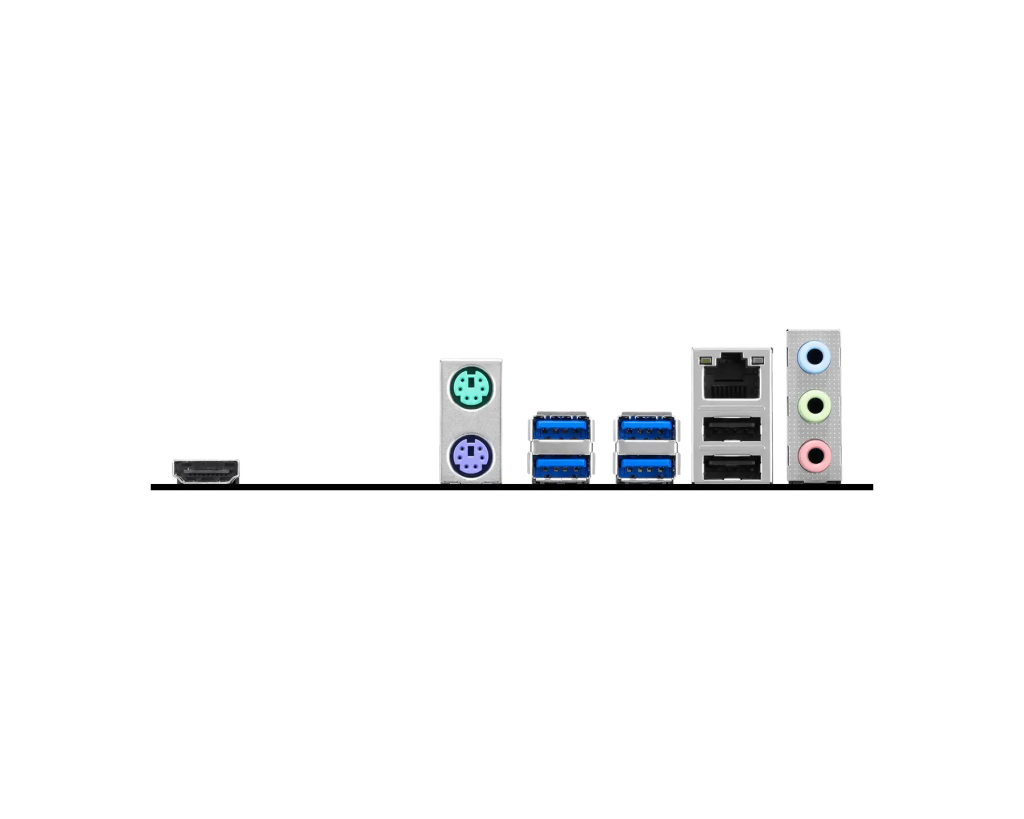

BACK PANEL PORTS
  1. HDMI™
  2. Keyboard / Mouse
  3. USB 5Gbps Type-A
  4. LAN Port
  5. Audio connectors
  6. USB 2.0
PCB Info mATX
200mmx236mm
