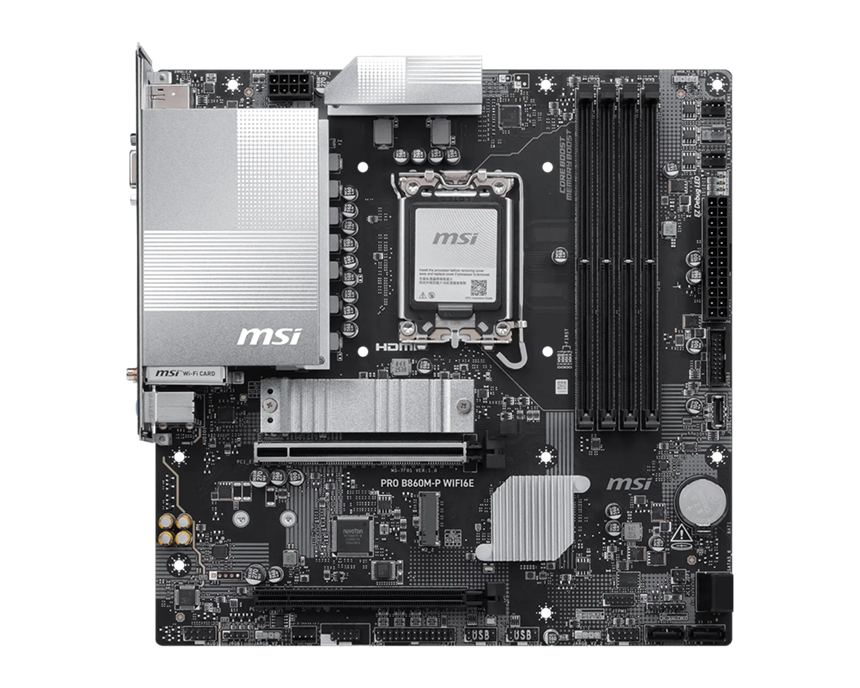

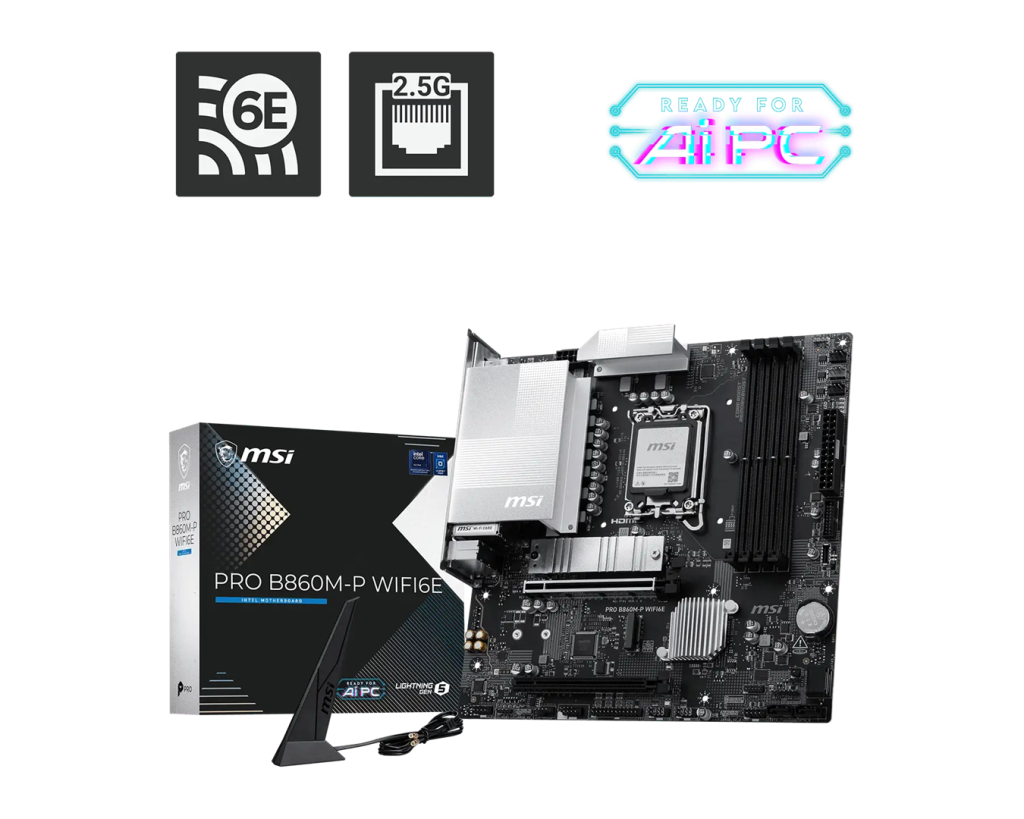

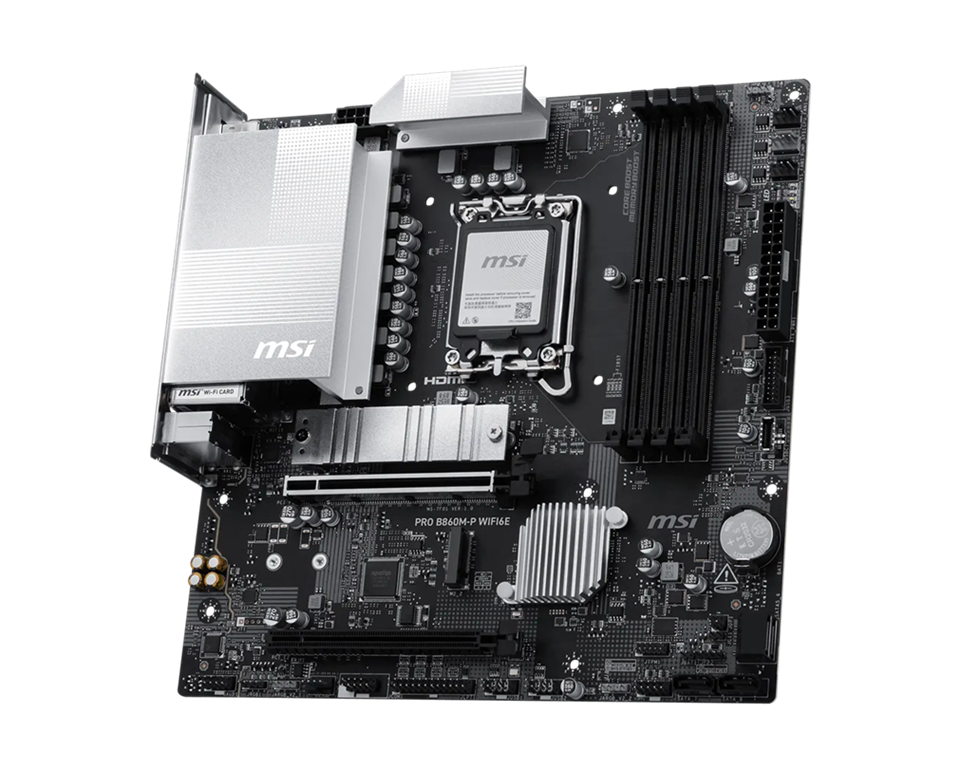

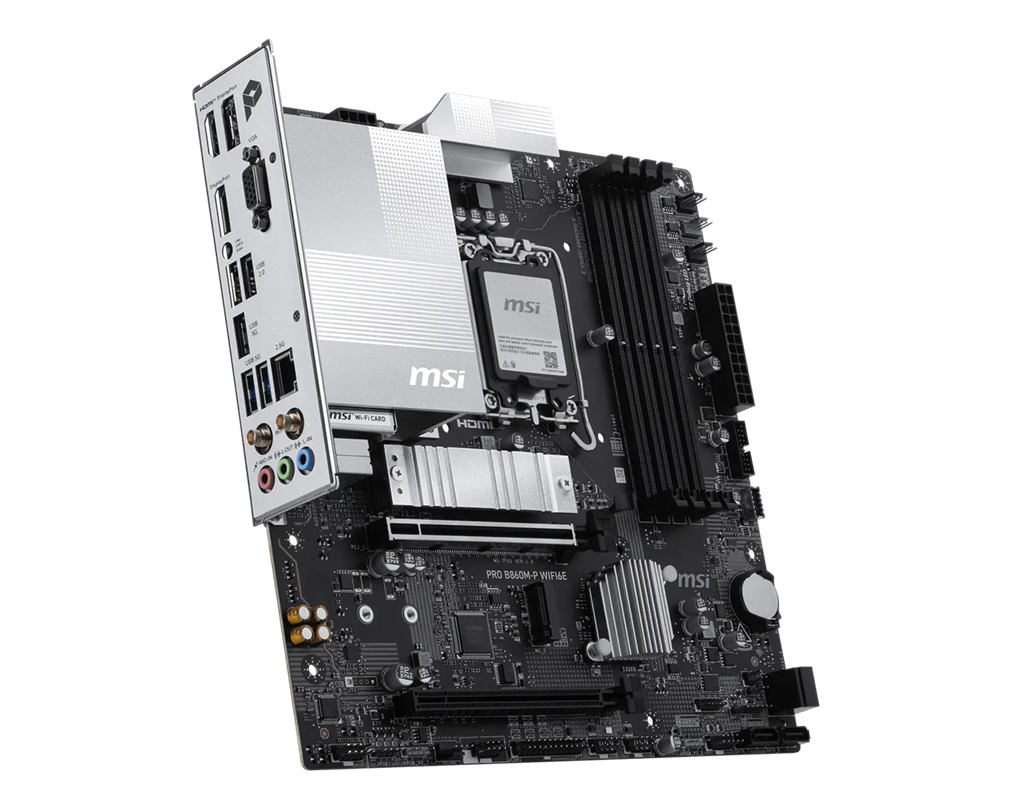

Дънна платка MSI PRO B860M-P WIFI6E, LGA1851, 4x DDR5, 2x M.2, 4x SATA 6G, VGA, HDM, DisplayPort, mATX

SKU: 911-7F01-004

ID: #46531

Наличен

Цена: 151,00 €

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel Core Ultra Processors (Series 2)

CPU Socket: Intel LGA1851

Чипсет: Intel B860

Максимален капацитет RAM памет: 256 GB

Памет, слотове: 4

Поддържана памет: DDR5

M.2 слот: 2 x M.2 slots / 4 x SATA 6Gb/s ports

Graphics технология: Няма

Вграден Bluetooth: Bluetooth V5.3

Мрежа: 10/100/1000/2500 Mbps

Wi-Fi Mодул: Да

Безжична мрежа: 802.11ax (Wi-Fi 6E)

HDMI: 1

DisplayPort: 1

VGA: 1

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

Chipset	INTEL B860
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel^® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel^® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz* 2x DisplayPort Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
LAN	Realtek^® 8125 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3*, FIPS, FISMA The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
LED FEATURE	4x EZ Debug LED 1x EZ Memory Detection LED

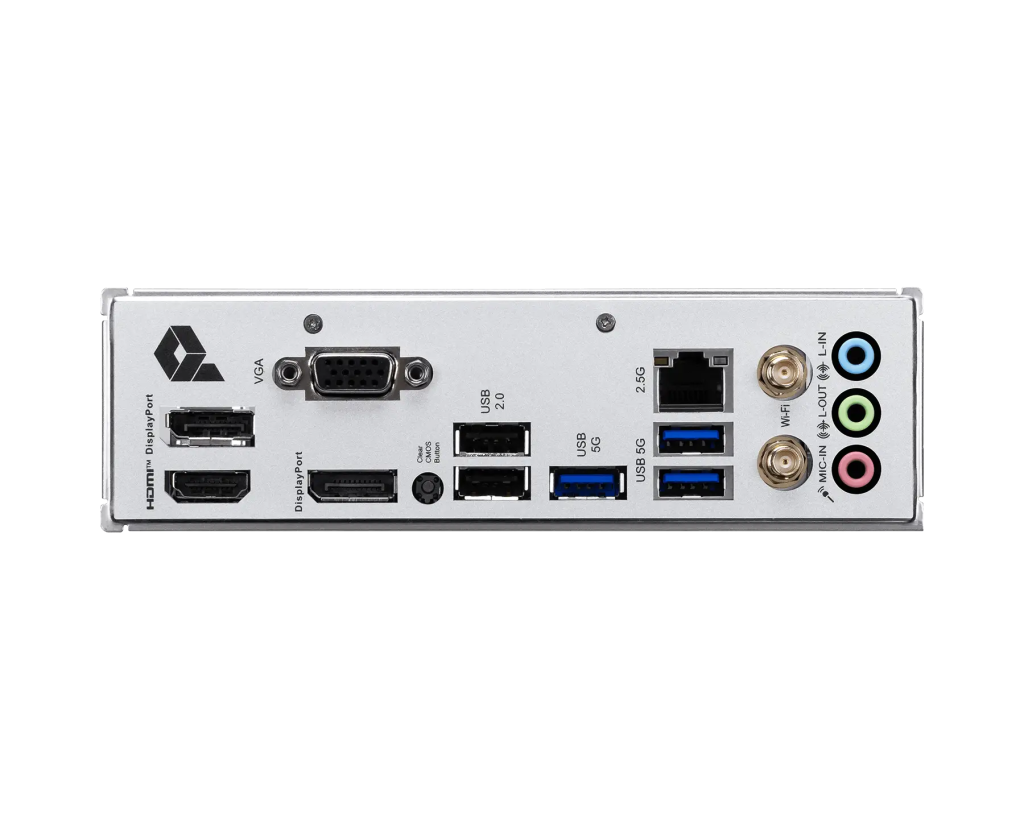

BACK PANEL PORTS	DisplayPort VGA USB 2.0 USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ DisplayPort Clear CMOS Button USB 5Gbps Type-A
PCB Info	mATX 243.84mmx243.84mm
