| Marketing Description |

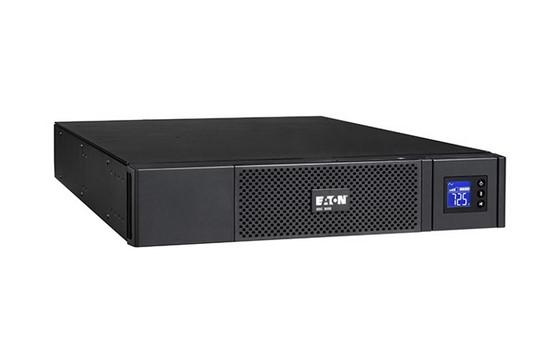

Eaton 5SC 3000VA Rack/Tower UPS provides line-interactive, affordable and reliable protection for small business servers.
The 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today's most sensitive IT equipment. With its 8 IEC outputs and flexible design the 5SC fits anywhere easily. |
| Product Features |
- LCD interface clearly shows key information
- Sinewave output for compatibility with today's small business servers
- Compact design for easy integration even with space constraints and up to eight outlets for better flexibility
- Reliable, long-lasting UPS with patented ABM technology that increases battery service life by up to 50%
- Serial and USB ports are HID compliant for automatic integration into major OS
- Eaton Intelligent Power software delivered as standard is compatible with all major operating systems
|
| General |
| Device Type |
UPS - rack-mountable / external |
| Height (Rack Units) |
2U |
| Colour |
Black |
| Power Device |
| UPS Technology |
Line interactive |
| Input Voltage |
AC 230 V |
| Input Voltage Range |
AC 184 - 276 V |
| Frequency Provided |
50/60 Hz ± 0.1% |
| Frequency Required |
50/60 Hz |
| Input Connectors |
1 x power IEC 60320 C20 16A |
| Power Output Connectors Details |
8 x power IEC 60320 C13
1 x power IEC 60320 C19 16A |
| Output Voltage |
AC 220/230/240 V + 6% / - 10% - 50/60 Hz |
| Power Capacity |
2700 Watt / 3000 VA |
| Output Waveform |
Sinewave |
| Battery |
| Run Time (Up To) |
10 min at half load
6 min at 70% load |
| Networking |
| Remote Management Interface |
RS-232, USB |
| Expansion / Connectivity |
| Interfaces |
1 x management (USB) - 4 pin USB Type B
1 x management (RS-232) - 9 pin D-Sub (DB-9)
1 x remote power (on/off) - terminal block |
| Expansion Slots |
1 Expansion Slot |
| Miscellaneous |
| Included Accessories |
Rack mounting rails |
| Rack Mounting Kit |
Included |
| Features |
Built-in 2 cooling fans, Advance Battery Management (ABM), LCD display, deep discharge protection, remote ON/OFF function, cooling fan, buck operation, booster technology, fader technology, high frequency line interactive technology |
| Compliant Standards |
TUV, UL 1778, CB, IEC 62040-1-1, IEC 62040-2, cTUVus, EN 62040-1-1, EN 62040-2 |
| Software / System Requirements |
| Software Included |
Eaton Intelligent Power Software Suite |
| OS Required |
Apple MacOS, Linux, Microsoft Windows |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 2 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Sound Emission |
45 dB |
| Dimensions & Weight |
| Width |
44.1 cm |
| Depth |
64.7 cm |
| Height |
8.62 cm |
| Weight |
35.3 kg |
