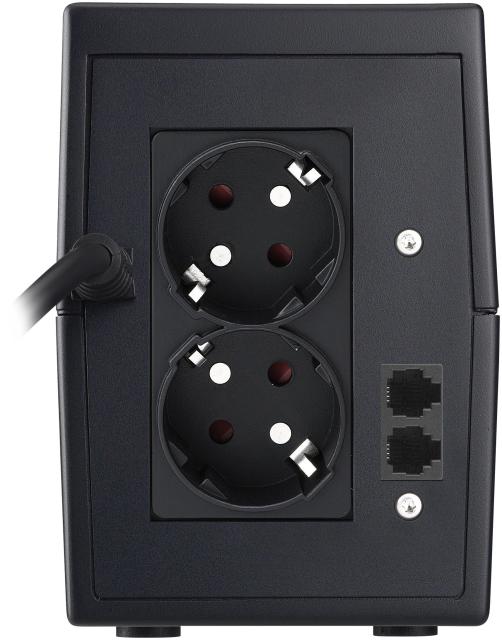

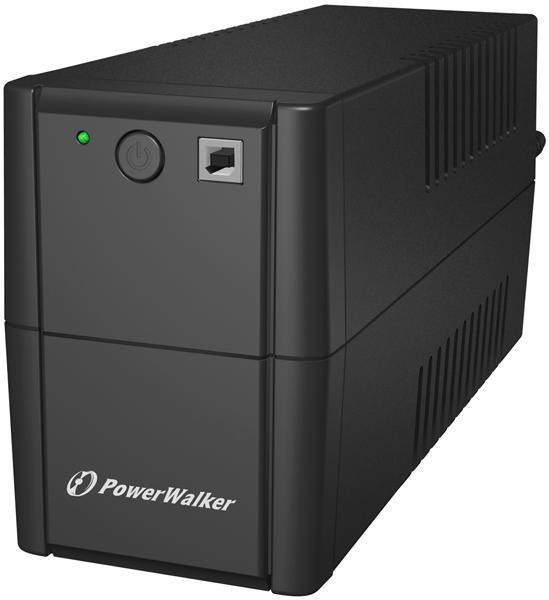

Powerwalker UPS VI 650SH, 650VA/360W, Line Interactive

•

  Type	Line-Interactive (VI)
  Phases (IN-OUT)	1-1
  Form Factor	Tower
  Power Capacity	650VA / 360W
  Output Power Factor	0.55
  Input
  Input Voltage Range	170-280 VAC ±7%
  Frequency Range	50Hz or 60Hz (self-adaptive)
  Output
  Waveform	Simulated Sine Wave
  VA	650
  Nominal Output Voltage	230 VAC
  Frequency (Battery Mode)	±1Hz
  Output Power Factor	0.55
  Input & Output Connectors
  Input Connector	CEE 7/7
  Type F (CEE 7/3)	2
  Technical Details
  LINE Mode Efficiency [%] (Full Load)	95.0
  Battery Mode Efficiency [%] (Full Load)	60.0
  Transfer Time (AC / Line Mode to Battery Mode) [ms]	4-8ms
  Data Line Protection	RJ-11 Port
  Additional Features	Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
  IEC 62040-3 classification	VI-SY-333
  Batteries and Autonomy
  Batteries	1x 12.0V/7.0Ah
  DC Voltage	1x 12.0V
  Recharge Time	4h to 90%
  Full Load Backup Time [min]	0.1
  Half Load Backup Time [min]	6.0
  Charger	1.2A
  Recharge Time	4h to 90%
  Communication
  Communication	USB Type B – for Monitoring Software
  Software	WinPower
  Management and Environment
  Software	WinPower
  Communication	USB Type B – for Monitoring Software
  Noise Level	< 30dB
  Fan Logic	No fan
  Temperature	0°C – 40°C
  Humidity	0% – 90% RH (non-condensing)
  IP	IP 20
  Logistics
  Outer Carton Height [mm]	250
  Outer Carton Width [mm]	380
  Outer Carton Depth [mm]	598
  Package Height [mm]	223
  Package Width [mm]	140
  Package Depth [mm]	330
  Package Weight [kg]	4.9
  Product Height [mm]	143
  Product Width [mm]	100
  Product Depth [mm]	290
  Product Weight [kg]	4.4
  Package Content	Manual, USB Cable, UPS
  Manual Languages	DE, SE, DK, FI, NO, RU, PL, FR, PT, CZ, EN
  EAN	4260074975055
  Product Dimensions (DxWxH) [mm]	290 x 100 x 143 mm
  Package Dimensions (DxWxH) [mm]	330 x 140 x 223 mm
  Outer Carton Dimensions (DxWxH)	598 x 380 x 250 mm
  Pcs. per Outer Carton	4
  Pcs. per Layer	16
  Pcs. per Pallet [Oversized]	128
