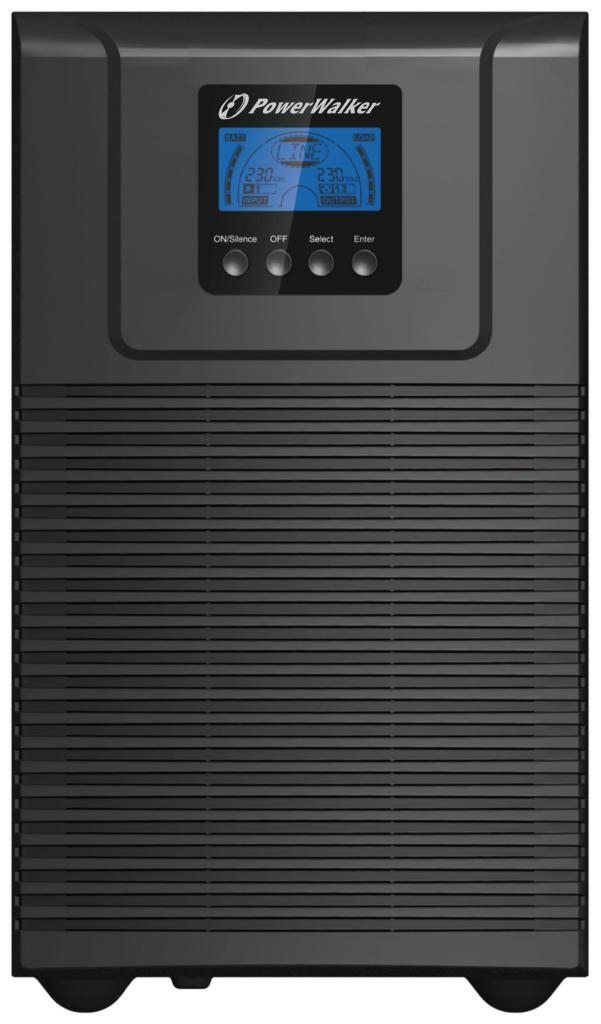

PowerWalker UPS VFI 2000 TG, 2000VA/1800W, On-Line

• General features
  Type Online
  Power capacity 2000VA / 1800W
  Output Power Factor 0.90
  Input
  Input Voltage Range 176-300 VAC or 80x285 VAC in bypass mode
  Max THDi ≤5%
  Input PF ≥ 0.99 at full load
  Frequency Range 40Hz - 70Hz
  Frequency (Synchronized Range) 45Hz - 55Hz or 54Hz - 66Hz
  Output
  Nominal Output Voltage 220/230/240 VAC
  Pure Sine Wave Yes
  THDv ≤2% Full Linear Load; ≤5% Non-Linear Load
  Voltage Regulation (Bat. Mod.) ±2%
  Frequency (Battery Mode) ±0,05Hz
  Technical details
  Load Crest Ratio 3:1
  Transfer Time [AC to Battery] 0ms
  Transfer Time [Inverter to Bypass] 4ms
  Generator support Yes
  Overload Capacity Line: constant @100%-105%; 1min @105%-130%; 10s @130%-150%; 300ms @>150%; bypass at higher; BAT: 10s @100%-150%; cut-off at higher
  Charger 1.5A
  Fan Logic Always ON;
  Low speed: bypass/ECO or line mode with load below 70%
  High speed: Battery mode or line mode with load above 70%
  Efficiency
  LINE mode full Load 90.0%
  Batteries and autonomy time
  Batteries 4x 12V/9Ah
  DC Voltage 4 x 12V
  Recharge Time 4h to 90%

  Full Load Backup Time 3.8min
  Half Load Backup Time 11min

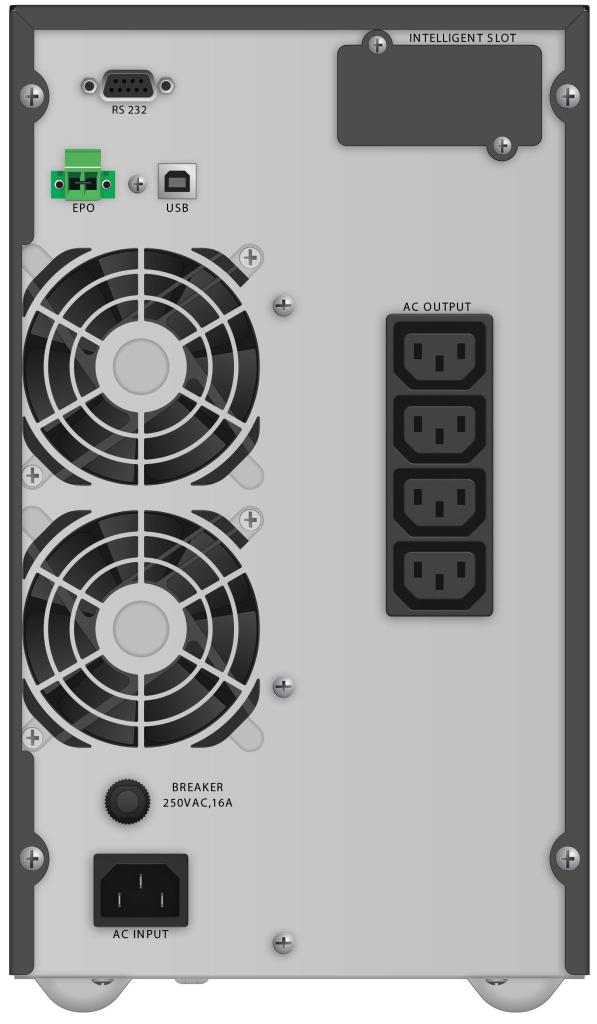

  Connections and communication
  IEC C13 Outlet 4
  Input C14
  Software WinPower
  USB port Yes
  HID Support Yes
  RS-232 Port Yes
  Extension Slot Yes, 1
  EPO Port Yes
  Environment
  Noise Level < 50dB
  Temperature 0°C – 40°C
  Humidity 0% - 95% RH (non-condensing)
  Logistics
  IEC 62040-3 classification VFI-SS-311
  Package Content UPS, Manual, USB Cable, Input Power Cable, 2x IEC Cable
  Manual Languages EN/DE/PL
  EAN 4260074978315
  Width 190 mm
  Height 328 mm
  Depth 399 mm
  Weight 17.2 kg
  Giftbox - Width 324 mm
  Giftbox - Height 464 mm
  Giftbox - Depth 500 mm
  Giftbox - Weight 20 kg
  Pcs. per box 1
  Pcs. per pal 14
