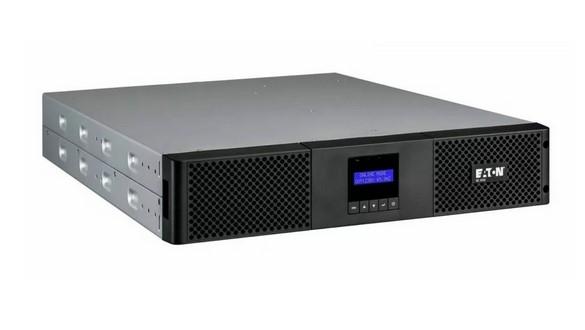

UPS EATON 9E 3000i, 3000VA/2700W, LCD дисплей, On-Line, Rack 2U

SKU: 9E3000IR

ID: #40612

Цена: 2 793,00 лв.

Цената е с вкл. ДДС

Характеристики

Капацитет: 3000VA / 2700W

Тип: ON Line

Формфактор: Rack

Брой изводи: 8

Тип изводи: 1 x power IEC 60320 C20 / 6 x power IEC 60320 C13 / 1 x power IEC 60320 C19

Слотове за свързване: 1 x USB 2.0 / 1 x RS232

Гаранция (месеца): 24

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

EATON 9E 3000i Rack 2U 3KVA


Manufacturer	EATON
Manufacturer Part No	9E3000IR

Marketing Description
The Eaton 9E UPS gives IT managers an easy way to manage the power in their data center, without having to worry about cost, space or downtime. Developed specifically for IT managers, the 9E confronts typical data center problems head on. It addresses ROI, energy costs, remote management, and efficiency... giving you more time to focus on other important data center issues.
General
Device Type	UPS - rack-mountable / external
Height (Rack Units)	2U
Rack Size	19"
Colour	Black
Power Device
UPS Technology	On-line
Input Voltage	AC 200/220/230/240 V
Input Voltage Range	AC 140 - 276 V
Frequency Provided	50/60 Hz
Input Wiring	1-phase
Frequency Required	50/60 Hz
Input Connectors	1 x power IEC 60320 C20
Power Output Connectors Details	6 x power IEC 60320 C13 1 x power IEC 60320 C19
Output Voltage	AC 220/230/240 V 50/60 Hz
Power Capacity	2700 Watt / 3000 VA
Output Waveform	Sinewave
Efficiency	91%, 97% Eco mode
Power Factor (PF)	0.99
Battery
Quantity	6
Technology	Lead Acid
Voltage Provided	12 V
Capacity	9 Ah
Run Time (Up To)	10.5 min at half load 3.5 min at full load
Features	Sealed, hot-swappable
Networking
Remote Management Interface	RS-232, USB
Expansion / Connectivity
Interfaces	1 x management (RS-232) - RS-232 1 x management (USB) - 4 pin USB Type B RPO - mini terminal block
Expansion Slots	1 (total) / 1 (free) x Communication slot
Miscellaneous
Cables Included	2 x power cable (IEC) USB cable
Rack Mounting Kit	Included
Features	Auto shutdown circuit, LCD display, internal bypass, deep discharge protection, temperature-compensated battery charging, double conversion, automatic battery test
Compliant Standards	TUV, EN 62040-2:2006, EMC 2014/30/EU, LVD 2014/35/EU, EN/IEC 63000:2018, RoHS 2011/65/EU Amendment 2015/863, IEC/EN 62040-1, IEC/EN 62040-2, EN IEC 62040-1:2019 + A11:2021
Software / System Requirements
Software Included	Intelligent Power Editions, Eaton Intelligent Power Manager
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	0 - 96% (non-condensing)
Sound Emission	45 dB
Dimensions & Weight
Width	43.8 cm
Depth	60.8 cm
Height	8.65 cm
Weight	31.3 kg
