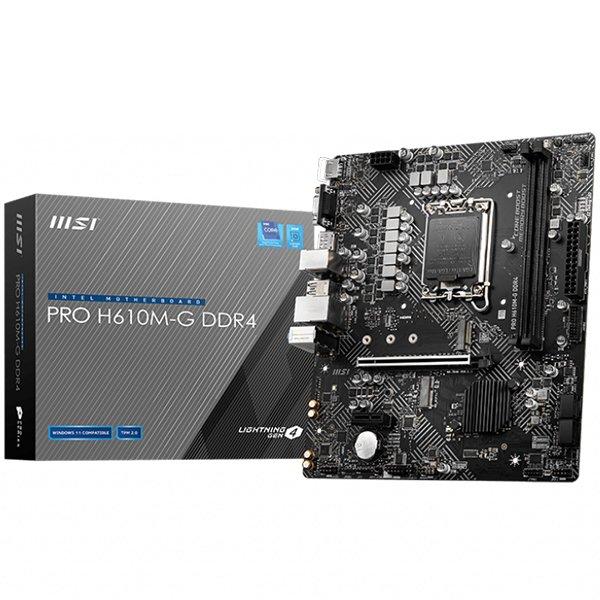

Дънна платка MSI PRO H610M-G DDR4, H610, LGA1700, DDR4, PCI-E 4.0, 1x M.2 slot, 4x SATA 6Gb/s, 2x USB 3.2 Gen 1, mATX

Chipset

Intel^® H610 Chipset

Memory

• 2x DDR4 memory slots, support up to 64GB¹
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

1. Please refer to www.msi.com for more information on compatible memory.

Expansion Slot

• 1x PCIe x16 slot (From CPU)
  • Supports up to PCIe 4.0 x16
• 1x PCIe x1 slot
  • Supports PCIe 3.0 x1
• 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

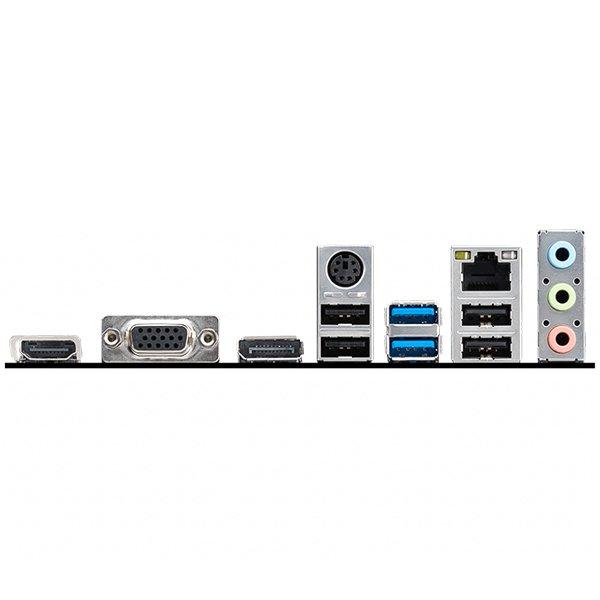

Onboard Graphics

• 1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz ^{1 2}
• 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz¹
• x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz^{1 2}

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

SATA Ports

• 4x SATA 6Gb/s ports¹

1. * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

M.2 SSD Slot

• 1x M.2 slot (Key M, from chipset)¹
  • Supports up to PCIe 3.0 x4
  • Supports up to SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel^® Smart Response Technology for Intel Core™ processors

1. SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

USB

Audio

Realtek^® ALC892/ ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Intel^® I219V 1Gbps LAN controller

Power Connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector

Fan Connectors

• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector

System Connectors

• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector

Jumpers

• 1x Clear CMOS jumper

LED Features

• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED

Dimensions

• mATX Form Factor
• 9.61 x 8.31 in. (24.4 cm x 21.1 cm)
