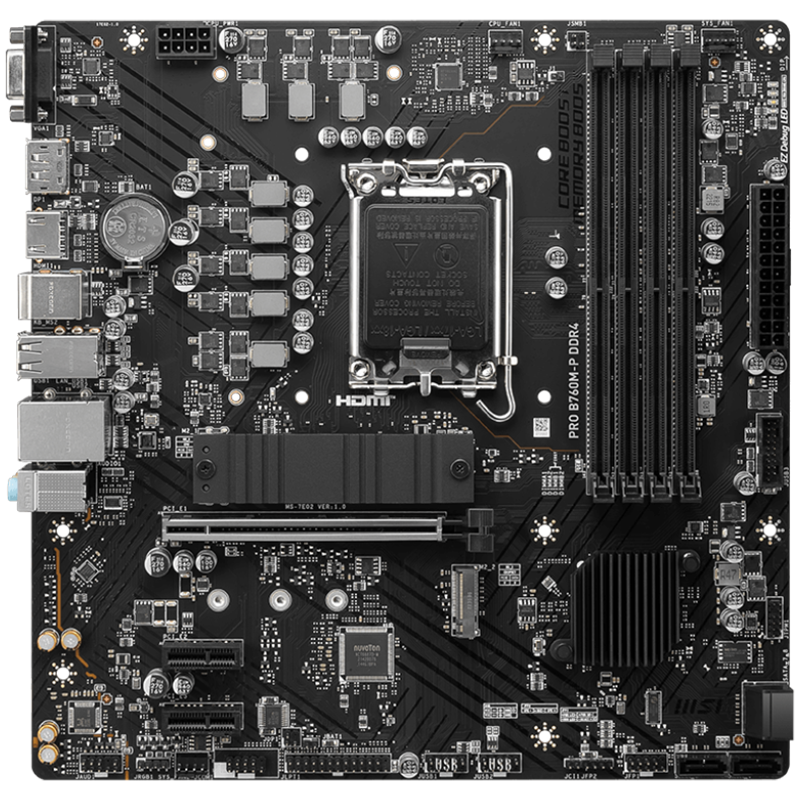

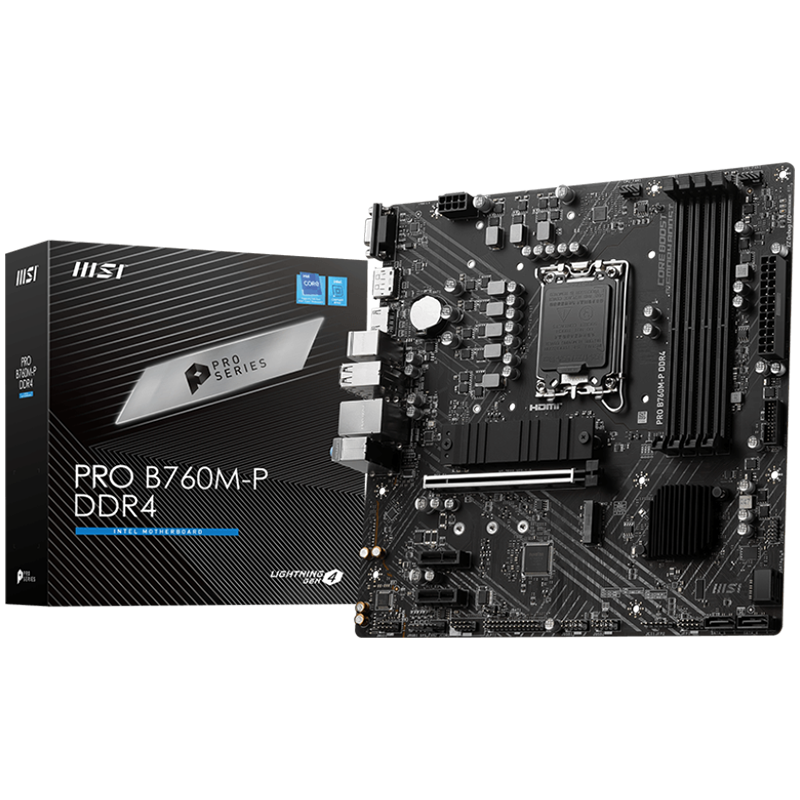

Дънна платка MSI PRO B760M-P DDR4, LGA1700, 4x DDR4, 2x M.2 slots, 1x PCIe x16 slots, 1x HDMI, 1x DP, 1x VGA, mATX
Дънна платка MSI PRO B760M-P DDR4, LGA1700, 4x DDR4, 2x M.2 slots, 1x PCIe x16 slots, 1x HDMI, 1x DP, 1x VGA, mATX
Дънна платка MSI PRO B760M-P DDR4, LGA1700, 4x DDR4, 2x M.2 slots, 1x PCIe x16 slots, 1x HDMI, 1x DP, 1x VGA, mATX
Дънна платка MSI PRO B760M-P DDR4, LGA1700, 4x DDR4, 2x M.2 slots, 1x PCIe x16 slots, 1x HDMI, 1x DP, 1x VGA, mATX

Дънна платка MSI PRO B760M-P DDR4, LGA1700, 4x DDR4, 2x M.2 slots, 1x PCIe x16 slots, 1x HDMI, 1x DP, 1x VGA, mATX

SKU: PRO B760M-P DDR4
ID: #38387
Цена: 216,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
CPU Socket: Intel LGA1700
Чипсет: Intel B760
Максимален капацитет RAM памет: 128 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 4
Поддържана памет: DDR4
M.2 слот: 2 x M.2 slots / 4 x SATA 6Gb/s ports
Поддръжка на RAID: SATA RAID 0, 1, 5, 10
Graphics технология: Няма
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Не
HDMI: 1
DisplayPort: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

odel Name PRO B760M-P DDR4
CPU Support Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel®
Pentium® Gold and Celeron® Processors
CPU Socket LGA 1700
Chipset Intel® B760 Chipset
Expansion Slots 1x PCIe 4.0 x16 slot
2x PCIe 4.0 x1 slots
Display Interface Support 4K@30Hz as specified in HDMI™ 1.4, DisplayPort
1.4, VGA – Requires Processor Graphics
Memory 4x DDR4, Maximum Memory Capacity 128GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

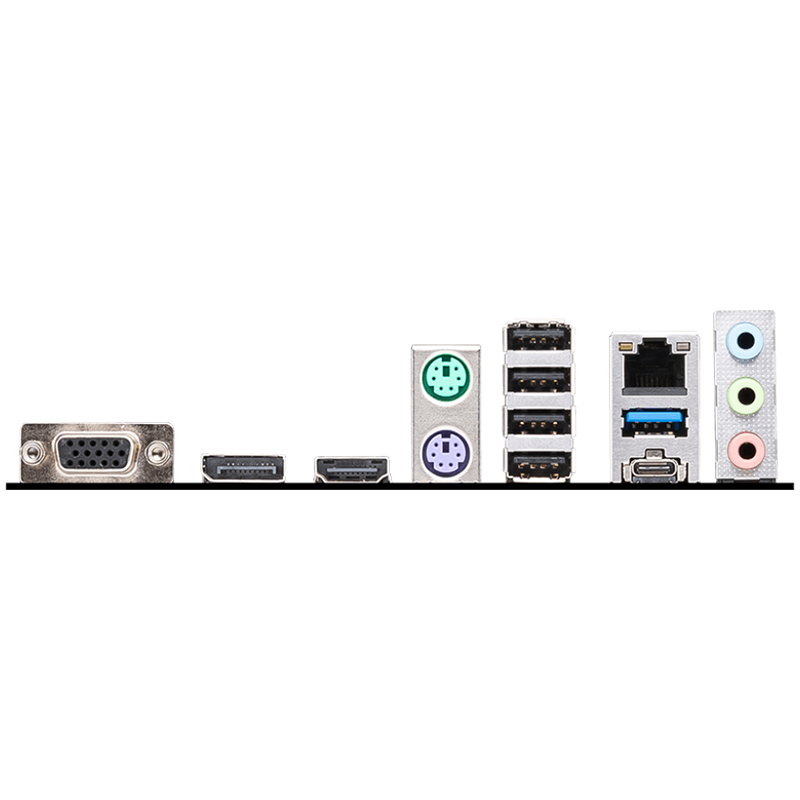

USB ports 1x USB 3.2 Gen 2 10Gbps (1 Type-C),
3x USB 3.2 Gen 1 5Gbps (3 Type-A),
8x USB 2.0
LAN Realtek® RTL8111H Gigabit LAN
Audio 8-Channel (7.1) HD Audio with Audio Boost
