Дънна платка MSI PRO B760M-B DDR4, LGA1700, 2x DDR4, 1x M.2 NVMe, 4x SATA 6G, HDMI, Micro ATX
нов продукт
Дънна платка MSI PRO B760M-B DDR4, LGA1700, 2x DDR4, 1x M.2 NVMe, 4x SATA 6G, HDMI, Micro ATX
Дънна платка MSI PRO B760M-B DDR4, LGA1700, 2x DDR4, 1x M.2 NVMe, 4x SATA 6G, HDMI, Micro ATX
Дънна платка MSI PRO B760M-B DDR4, LGA1700, 2x DDR4, 1x M.2 NVMe, 4x SATA 6G, HDMI, Micro ATX
Дънна платка MSI PRO B760M-B DDR4, LGA1700, 2x DDR4, 1x M.2 NVMe, 4x SATA 6G, HDMI, Micro ATX

Дънна платка MSI PRO B760M-B DDR4, LGA1700, 2x DDR4, 1x M.2 NVMe, 4x SATA 6G, HDMI, Micro ATX

SKU: PRO B760M-B DDR4
ID: #41032
Цена: 191,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
CPU Socket: Intel LGA1700
Чипсет: Intel B760
Максимален капацитет RAM памет: 64 GB
Памет, слотове: 2
Поддържана памет: DDR4
Честота памет: 4800 MHz
M.2 слот: 1 x M.2 slots / 4 x SATA 6Gb/s
Graphics технология: Няма
Мрежа: Gigabit Ethernet (RJ-45)
HDMI: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Chipset INTEL B760
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory 2x DDR4, Maximum Memory Capacity 64GB
Memory  4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16
1x PCI-E x1
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 1x M.2 (Qty)
M.2_1 源 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0
4x USB 2.0
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Realtek® RTL8125B 2.5Gbps LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 5Gbps Type A ports
LED FEATURE 4x EZ Debug LED

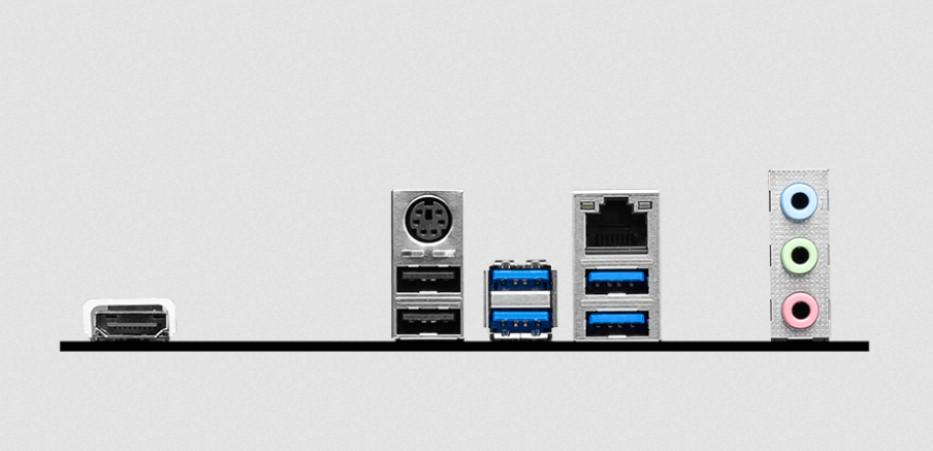

BACK PANEL PORTS
  1. HDMI™
  2. Keyboard / Mouse
  3. 2.5G LAN
  4. Audio Connectors
  5. USB 2.0
  6. USB 3.2 Gen 1 5Gbps (Type-A)
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info mATX
220mmx243.84mm
