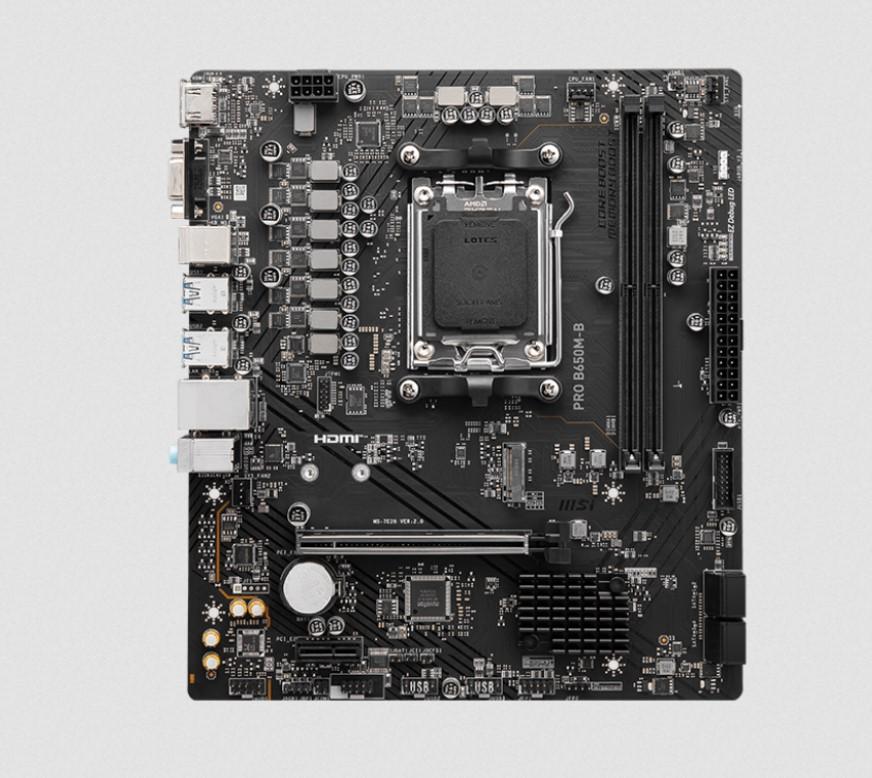

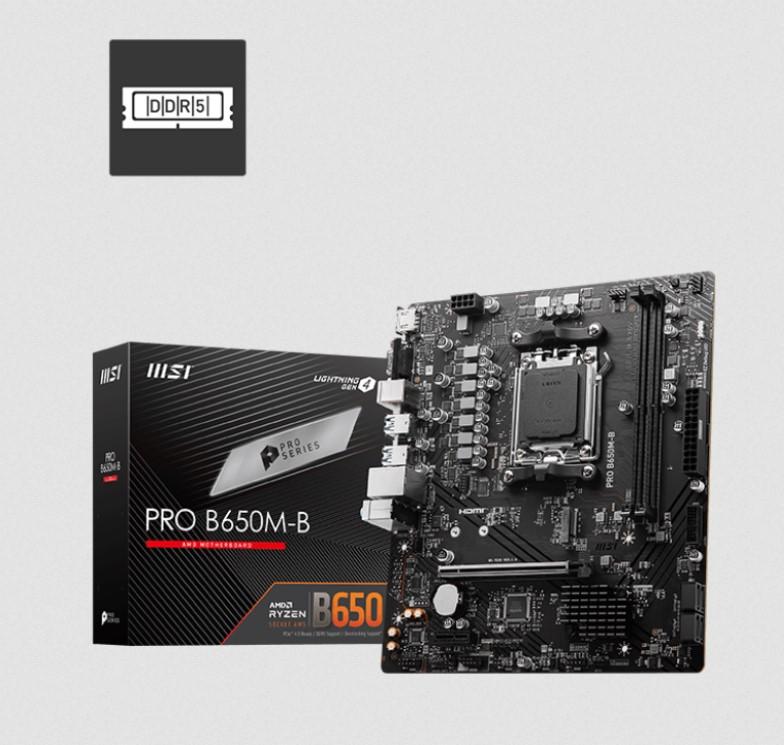

Дънна платка MSI PRO B650M-B, AM5, 2x DDR5, 1x M.2, 4x SATA 6G, HDMI, VGA, mATX
Дънна платка MSI PRO B650M-B, AM5, 2x DDR5, 1x M.2, 4x SATA 6G, HDMI, VGA, mATX
Дънна платка MSI PRO B650M-B, AM5, 2x DDR5, 1x M.2, 4x SATA 6G, HDMI, VGA, mATX
Дънна платка MSI PRO B650M-B, AM5, 2x DDR5, 1x M.2, 4x SATA 6G, HDMI, VGA, mATX

Дънна платка MSI PRO B650M-B, AM5, 2x DDR5, 1x M.2, 4x SATA 6G, HDMI, VGA, mATX

SKU: PRO B650M-B
ID: #36044
Цена: 187,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5
CPU Socket: AMD AM5
Чипсет: AMD B650
Максимален капацитет RAM памет: 96 GB
Поддържана памет: DDR5
M.2 слот: 1 M.2 SSD slot (NVMe PCIe Gen4)
Graphics технология: Няма
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Не
HDMI: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Chipset AMD B650
CPU Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Onboard Graphics 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® RTL8125BG 2.5G LAN
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
LED FEATURE 4x EZ Debug LED

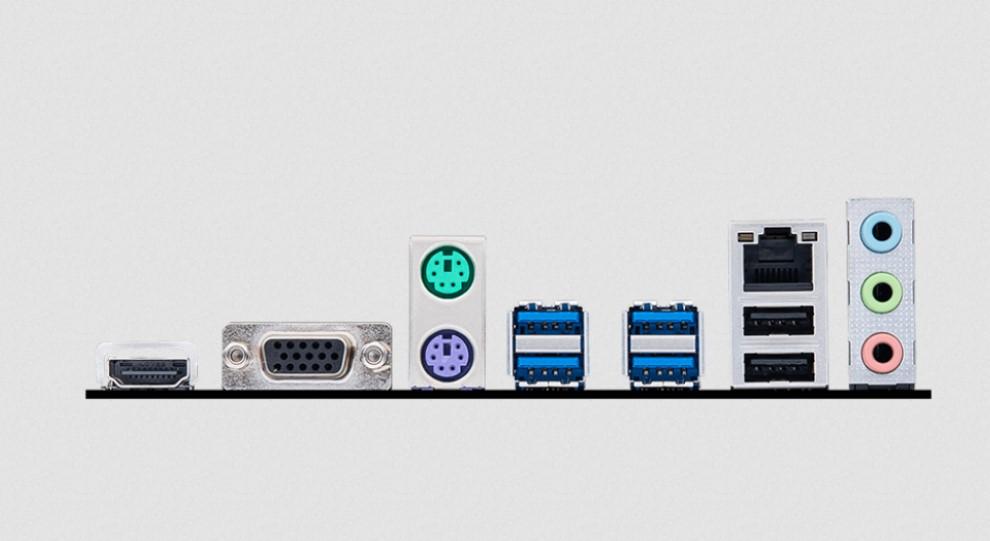

BACK PANEL PORTS
  1. HDMI™
  2. VGA
  3. Keyboard/Mouse
  4. USB 3.2 Gen 1 5Gbps (Type-A)
  5. LAN port
  6. Audio connectors
  7. USB 2.0
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info mATX
215mmx243.84mm
