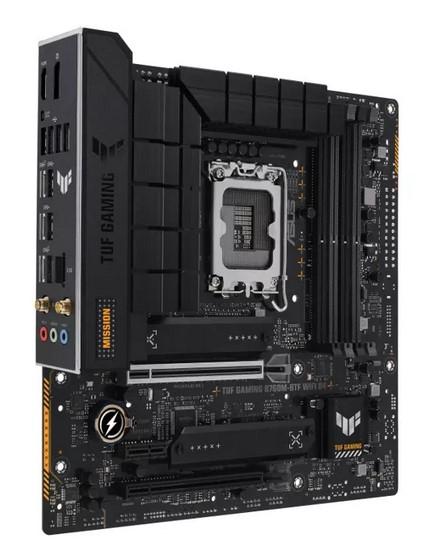

Дънна платка ASUS TUF GAMING B760M-BTF WIFI D4, LGA1700, 4x DDR4, 4x SATA 3x M.2, Wi-Fi, Bluetooth, HDMI/DP, microATX
Дънна платка ASUS TUF GAMING B760M-BTF WIFI D4, LGA1700, 4x DDR4, 4x SATA 3x M.2, Wi-Fi, Bluetooth, HDMI/DP, microATX
Дънна платка ASUS TUF GAMING B760M-BTF WIFI D4, LGA1700, 4x DDR4, 4x SATA 3x M.2, Wi-Fi, Bluetooth, HDMI/DP, microATX
Дънна платка ASUS TUF GAMING B760M-BTF WIFI D4, LGA1700, 4x DDR4, 4x SATA 3x M.2, Wi-Fi, Bluetooth, HDMI/DP, microATX

Дънна платка ASUS TUF GAMING B760M-BTF WIFI D4, LGA1700, 4x DDR4, 4x SATA 3x M.2, Wi-Fi, Bluetooth, HDMI/DP, microATX

SKU: 90MB1E50-M0EAY0
ID: #30782
Цена: 380,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
CPU Socket: Intel LGA1700
Чипсет: Intel B760
Максимален капацитет RAM памет: 128 GB
Поддръжка на Dualchannel: Да
Поддържана памет: DDR4
M.2 слот: 2 M.2 SSD slot (NVMe PCIe Gen4)
Поддръжка на RAID: SATA RAID 0, 1, 5, 10
Graphics технология: Няма
Вграден Bluetooth: Bluetooth 5.2
Мрежа: 10/100/1000 Mbps
Wi-Fi Mодул: Да
Безжична мрежа: 802.11ax (Wi-Fi 6)
HDMI: 1
DisplayPort: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание


Model
TUF GAMING B760M-BTF WIFI D4
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Graphics
1 x DisplayPort**
1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled.
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
3 x USB 3.2 Gen 1 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
** USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

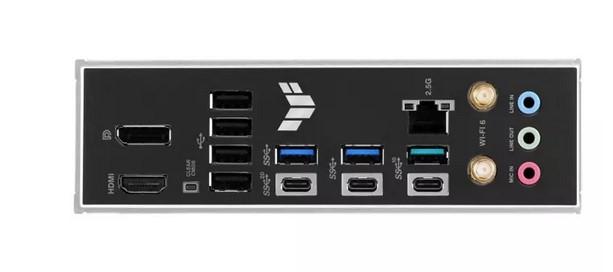

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x USB Type-C®)
3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 10-1 pin System Panel header
1 x Thunderbolt™ (USB4®) header

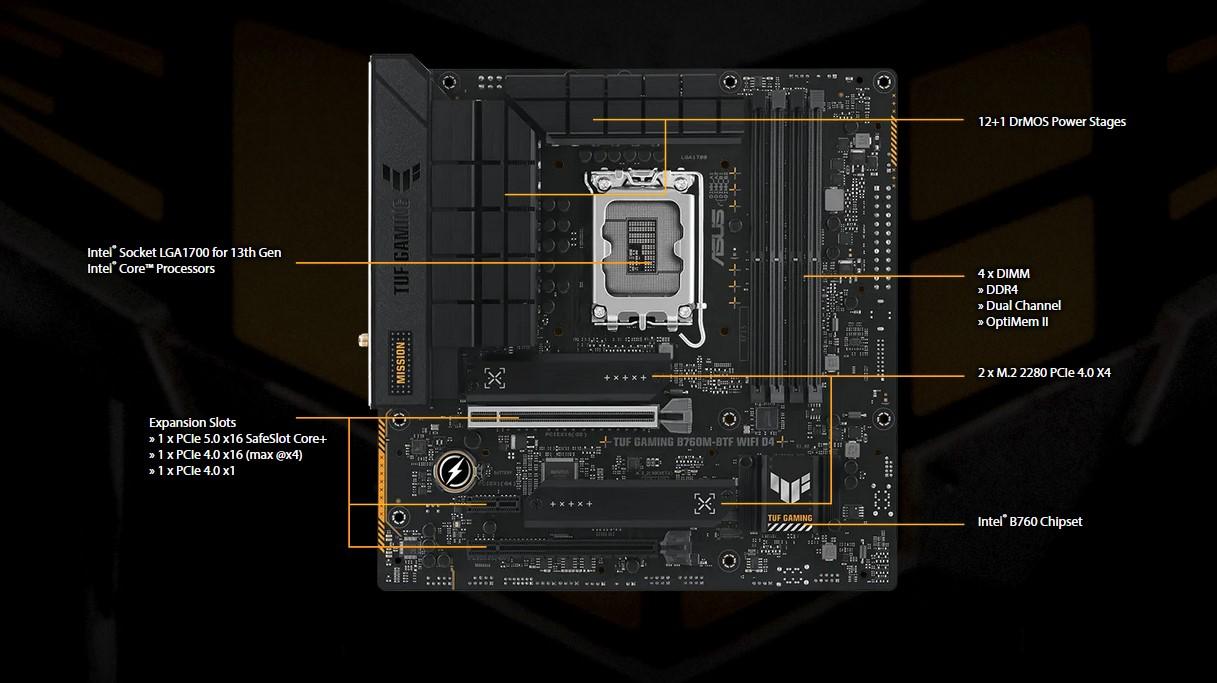

Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- FAN Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
