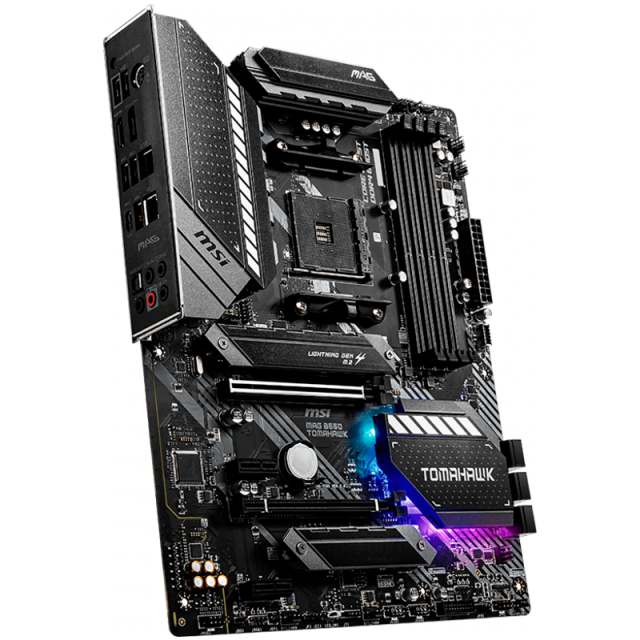

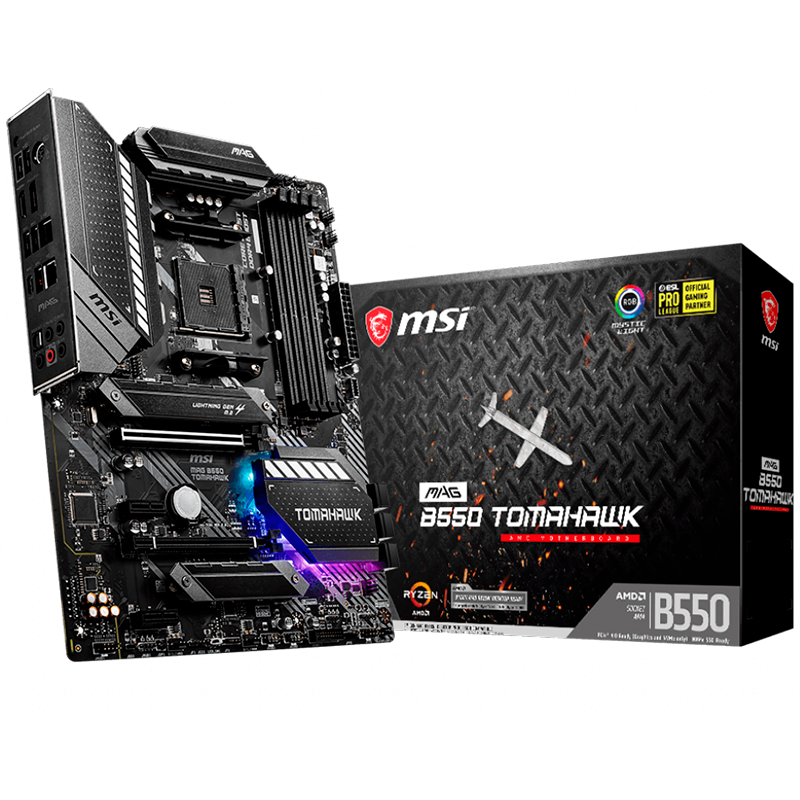

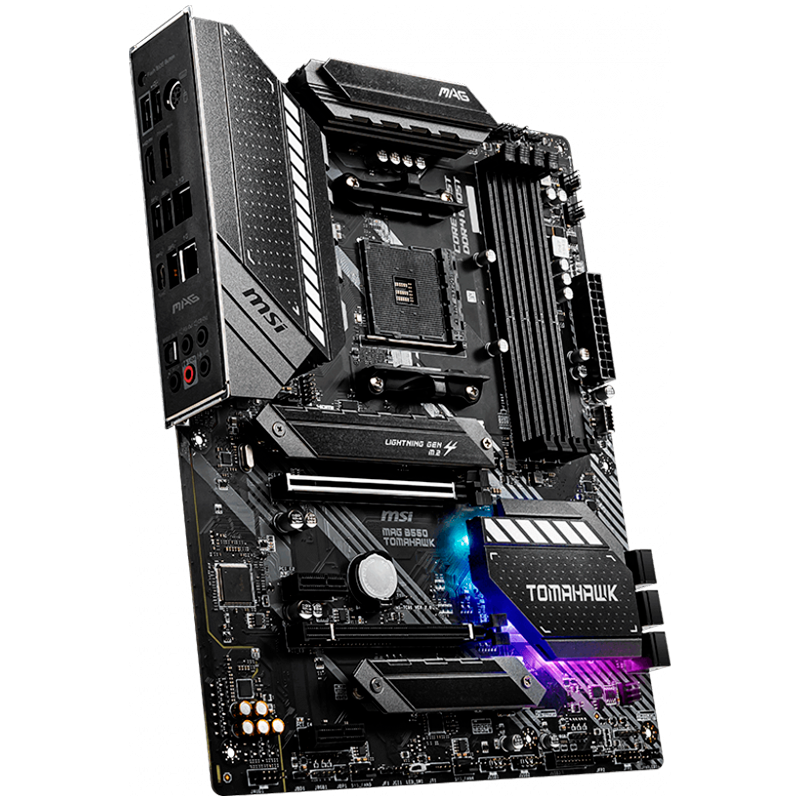

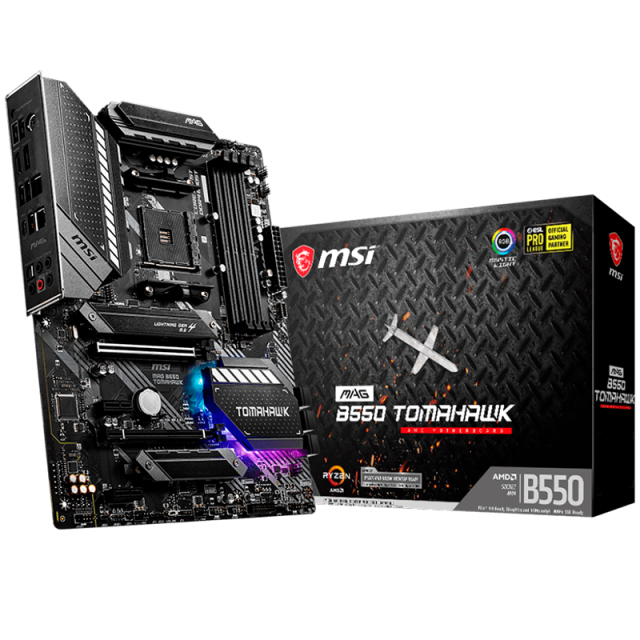

Дънна платка MSI MAG B550 TOMAHAWK, B550, AM4, 4xDDR4, PCI-E 4.0, DisplayPort/HDMI, (CF), 6 x SATA 6Gb/s, 2 x M.2, 1x USB 3.2 Gen 2 Type-C, ATX
изчерпан
Дънна платка MSI MAG B550 TOMAHAWK, B550, AM4, 4xDDR4, PCI-E 4.0, DisplayPort/HDMI, (CF), 6 x SATA 6Gb/s, 2 x M.2, 1x USB 3.2 Gen 2 Type-C, ATX
Дънна платка MSI MAG B550 TOMAHAWK, B550, AM4, 4xDDR4, PCI-E 4.0, DisplayPort/HDMI, (CF), 6 x SATA 6Gb/s, 2 x M.2, 1x USB 3.2 Gen 2 Type-C, ATX
Дънна платка MSI MAG B550 TOMAHAWK, B550, AM4, 4xDDR4, PCI-E 4.0, DisplayPort/HDMI, (CF), 6 x SATA 6Gb/s, 2 x M.2, 1x USB 3.2 Gen 2 Type-C, ATX
Дънна платка MSI MAG B550 TOMAHAWK, B550, AM4, 4xDDR4, PCI-E 4.0, DisplayPort/HDMI, (CF), 6 x SATA 6Gb/s, 2 x M.2, 1x USB 3.2 Gen 2 Type-C, ATX

Дънна платка MSI MAG B550 TOMAHAWK, B550, AM4, 4xDDR4, PCI-E 4.0, DisplayPort/HDMI, (CF), 6 x SATA 6Gb/s, 2 x M.2, 1x USB 3.2 Gen 2 Type-C, ATX

SKU: MAG_B550_TOMAHAWK
ID: #27726

Характеристики

Поддържани процесори: Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series
CPU Socket: AMD AM4
Чипсет: AMD B550
Максимален капацитет RAM памет: 128 GB
Поддръжка на Dualchannel: Да
Поддържана памет: DDR4
Честота памет: DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MOD
M.2 слот: 2 M.2
Поддръжка на RAID: SATA / NVMe RAID 0, 1
Graphics технология: CrossFireX
Мрежа: 2 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Не
HDMI: 1 (HDMI (Type A))
DisplayPort: 1
Форм фактор: ATX
Гаранция (месеца): 36

Направи запитване

Описание

MSI MAG B550 TOMAHAWK,ATX,Socket AM4,AMD B550 Chipset,4 DIMMs, Dual Channel DDR4 up to 5100+(OC)MHz,1x PCIe 4.0/ 3.0 x16 slot,2x M.2 slots,2xUSB 3.2 Gen 2 (1x Type-C),2xUSB 3.2 Gen 1,2xUSB 2.0,1x HDMI,1x DP,2.5G+1G LAN,7.1 Audio



Model Name MAG B550 TOMAHAWK


CPU Support 3rd Gen AMD Ryzen™ processors and future AMD Ryzen™
processors with BIOS update
CPU Socket AMD Socket AM4
Chipset AMD B550 Chipset
Graphics
Interface
1x PCI-E 4.0 x16 slot
1x PCI-E 3.0 x16 slot
Support 2-way AMD CrossFire™ Technology
Display Interface DisplayPort, HDMI™ – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-4866+(OC)Mhz
Expansion Slots 2x PCI-E 3.0 x1 slots
Storage 2x M.2 slots - Supports PCIe 4.0/ 3.0 x4 (The supported specification depends on installed processor),

6x SATA 6Gb/s
SATA RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage
devices

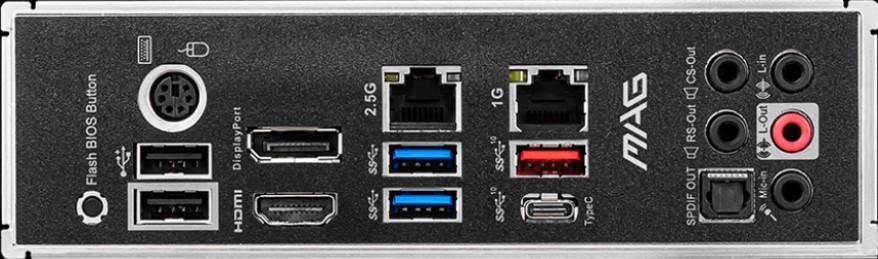

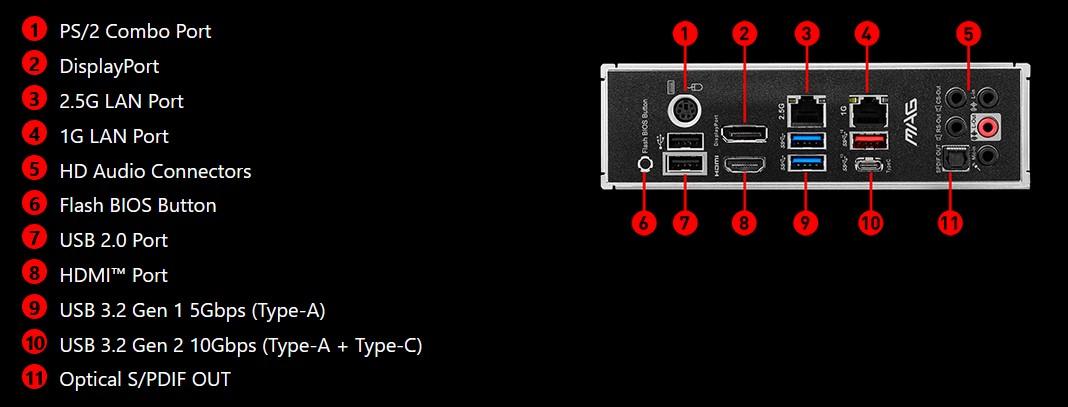

USB Ports 2x USB 3.2 Gen 2 10Gbps (1 Type-C + 1 Type-A)
5x USB 3.2 Gen 1 5Gbps (1 Type-C + 4 Type-A)
6x USB 2.0
LAN Realtek® RTL8125B 2.5G LAN
Realtek® RTL8111H Gigabit LAN
Audio 8-Channel(7.1) HD Audio with Audio Boost(ALC1200)
