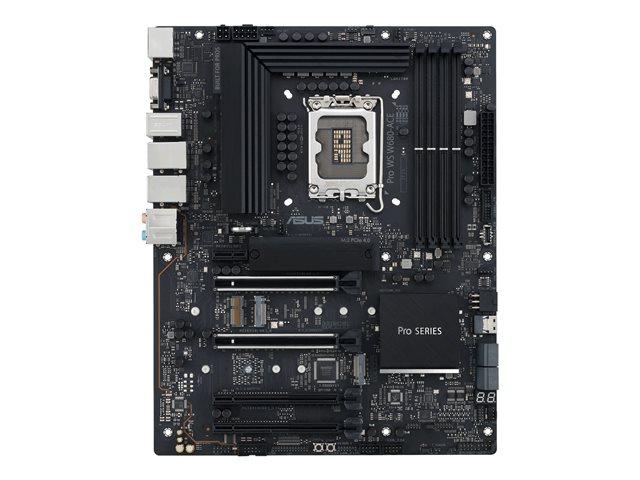

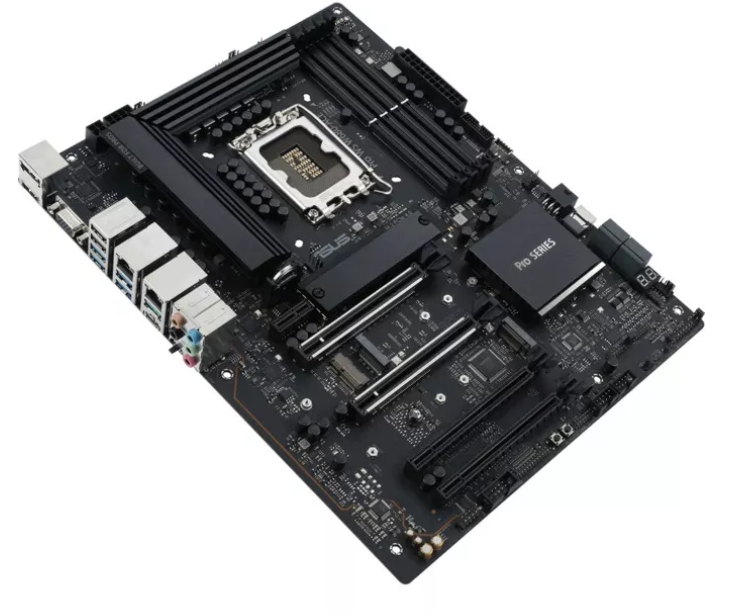

Дънна платка Asus Pro WS W680-ACE, W680, LGA1700, DDR5, PCIe 5.0, 3x M.2, 4x SATA 6Gb/s, 2.5GbE LAN, VGA, HDMI, DP, ATX

SKU: Pro WS W680-ACE / 90MB1DZ0-M0EAY0

ID: #34835

Цена: 913,00 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® Socket LGA 1700 for Intel® 13th and 12th Generation

CPU Socket: Intel LGA1700

Чипсет: Intel W680

Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB

Поддържана памет: DDR5

M.2 слот: 3x M.2

Graphics технология: Няма

Мрежа: 10/100/1000 Mbps

Wi-Fi Mодул: Не

HDMI: 1

DisplayPort: 1

VGA: 1

Форм фактор: ATX

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

ASUS PRO WS W680-ACE LGA1700 4xDDR5 WS ATX MB 8xSATA 3xM.2


Manufacturer	ASUS
Manufacturer Part No	90MB1DZ0-M0EAY0

Marketing Description
ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they're also an efficient and cost-effective option for IT administrators.
Product Features
Ultra powerful back IO The motherboard comes with four USB 3.2 Gen 1 type connector, one reversible USB Type-C connector and front-panel connector to support additional USB expansions. ECC memory support Designed for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W680-ACE motherboard is powered by the latest 13th and 12th Gen Intel processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability. Dual 2.5G Ethernet Boosted connectivity with dual onboard Ethernet ports. Intel 2.5G Ethernet upgrades your traditional LAN connection with an up to 2.5x bandwidth improvement. Using your existing Ethernet cable, you can experience faster file transfers and immediately stream high-resolution videos. Multi-GPU support Two PCIe 5.0 x16 slots provide flexible system configurability and expandability - including support for NVIDIA Quadro - for enhanced performance in modeling, simulation, and rendering applications. Triple M.2 slots Triple M.2 slots support PCIe 4.0, offering up to 64 Gbps data-transfer speeds and flexible M.2 interfaces. The RAID 0/1/5/10 configuration are available for the data protection and increases fault tolerance to the entire system, higher storage capacity and better SSD performance. VRM heatsink A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation. PCH heatsink An expanded surface area for the chipset cooler maximizes performance and heat dissipation. M.2 heatsink M.2 slot has a dedicated heatsink keep the M.2 SSD at optimum operating temperature to ensure consistent performance and reliability. Q-Latch The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws. SafeSlot and SafeDIMM PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted the SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence. 24/7 dependability Optimized for 24/7 operation, Pro WS W680-ACE motherboard is tested to work in temperatures of up to 45°C and 80% humidity, ensuring it can handle diverse operating environments. Solid compatibility validation ASUS Pro WS W680-ACE motherboard has been extensively tested for compatibility with over 1,000 components and devices. Each ASUS motherboard model undergoes a minimum of 8,000 hours of strict tests so that you can be 100% confident it is suitable for all environments and applications.
General
Product Type	Motherboard - ATX
Chipset Type	Intel W680
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th and 13th Generation Intel Core)
Supported RAM
Max Size	192 GB
Technology	DDR5
Supported RAM Integrity Check	Non-ECC, ECC, on-die ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type	HD Audio (8-channel)
Compliant Standards	High Definition Audio
LAN
Network Interfaces	2 x 2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots	1 x CPU 4 x DIMM 288-pin 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode) 2 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 1 x M.2 socket (Key E)
Storage Interfaces	SATA-600 / PCIe 4.0 -connectors: 1 x SlimSAS, 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features	Intel Rapid Storage Technology

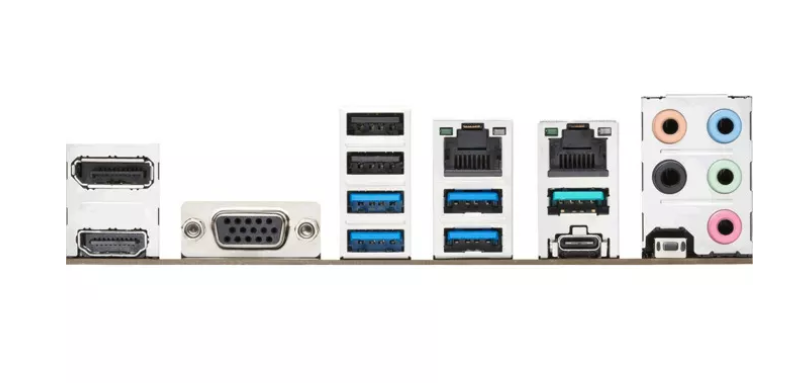

Interfaces	1 x DisplayPort 1 x HDMI 1 x VGA 1 x USB-C 3.2 Gen 2 1 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 2 x USB 2.0 2 x LAN (2.5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack
Internal Interfaces	1 x USB-C 3.2 Gen 2x2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x serial - header 1 x audio - header 1 x SPI - header 1 x Thunderbolt 4 - header 1 x parallel - header
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector, 6-pin PCI Express power connector
Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, Q-Code, Preboot eXecution Environment (PXE), LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot, Intel Optane Memory Ready, ASUS 5X Protection III, M.2 heatsink, Water Pump Header, ASUS OptiMem II, FlexKey button, M.2 Q-Latch, SafeDIMM, CPU Socket lever protector, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED
Miscellaneous
Included Accessories	IO shield, Q-Connector, 1 x M.2 rubber package, ACC Express Activation Key Card, 2 x M.2 SSD screw package, M.2 Key E screw package
Cables Included	2 x Serial ATA cable
Software Included	ASUS CPU-Z, WinRAR, ASUS Control Center Express, Armoury Crate, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial)
Width	30.5 cm
Depth	24.4 cm
