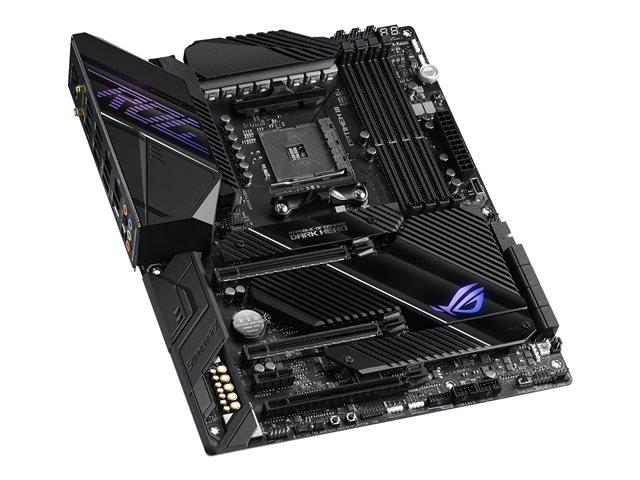

Дънна платка ASUS ROG CROSSHAIR VIII DARK HERO AMD X570 ATX gaming motherboard with PCIe 4.0 16 WiFi 6 802.11ax 2.5Gbps USB 3.2 SATA M.2 RGB 90MB1760-M0EAY0
изчерпан
Дънна платка ASUS ROG CROSSHAIR VIII DARK HERO AMD X570 ATX gaming motherboard with PCIe 4.0 16 WiFi 6 802.11ax 2.5Gbps USB 3.2 SATA M.2 RGB 90MB1760-M0EAY0

Дънна платка ASUS ROG CROSSHAIR VIII DARK HERO AMD X570 ATX gaming motherboard with PCIe 4.0 16 WiFi 6 802.11ax 2.5Gbps USB 3.2 SATA M.2 RGB 90MB1760-M0EAY0

SKU: 4058090
ID: #23409

Характеристики

Поддържани процесори: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
CPU Socket: AMD AM4
Чипсет: AMD X570
Максимален капацитет RAM памет: 128GB
Поддръжка на Dualchannel: Да
Памет, слотове: 4
Поддържана памет: DDR4
Честота памет: 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000
M.2 слот: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 10
Graphics технология: CrossFireX & SLI
Вграден Bluetooth: Bluetooth v5.1
Wi-Fi Mодул: Да
Безжична мрежа: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Форм фактор: ATX
Гаранция (месеца): 36

Направи запитване

Описание

ASUS ROG CROSSHAIR VIII DARK HERO AMD X570 ATX gaming motherboard with PCIe 4.0 16 WiFi 6 802.11ax 2.5Gbps USB 3.2 SATA M.2 RGB

Manufacturer ASUS
Manufacturer Part No 90MB1760-M0EAY0

Marketing Description
Upgraded power delivery, passive chipset cooling, and stealthy aesthetics allow the Crosshair VIII Dark Hero to strike from the shadows and form a menacing duo with AMD Zen 3.
Product Features
  • ASUS Optimem III
    Infused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, Optimem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack the Dark Hero with your favorite modules and maximize Zen 3 processors throughput for applications that demand massive bandwidth, or balance infinity fabric and memory performance for a diverse range of workloads.
  • Cooling
    Maintaining system stability is paramount under high load, so Crosshair VIII Dark Hero employs passive chipset cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass.
  • VRM heatsink
    The two VRM heatsinks are placed above the MOSFETs and chokes, and are connected by a heat pipe to further increase surface area for heat dissipation.
  • M.2 heatsink
    Two dedicated heatsinks keep the dual M.2 SSDs at the optimum operating temperature for consistent performance and reliability.
  • High-conductivity thermal pad
    A high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
  • Passive chipset heatsink
    A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
  • Optimization
    ROG Crosshair VIII Dark Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want.
  • Accurate voltage monitoring
    Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. ROG Crosshair VIII Dark Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
  • Personalize
    In addition to extraordinary performance, ROG Crosshair VIII Dark Hero provides extensive styling and customization options to let you build a system that truly stands apart.
General
Product Type Motherboard - ATX
Chipset Type AMD X570
Processor Socket Socket AM4
Max Processors Qty 1
Compatible Processors Ryzen (supports 2nd and 3rd Generation Ryzen / 1st, 2nd and 3rd Generation Ryzen with Radeon Graphics)
Supported RAM
Max Size 128 GB
Technology DDR4
Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz
Supported RAM Integrity Check ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture
Audio
Type HD Audio (8-channel)
Audio Codec SupremeFX
Compliant Standards High Definition Audio
LAN
Network Controller Intel I211-AT / Realtek RTL8125-CG / Intel AX200
Network Interfaces Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1
Expansion / Connectivity
Expansion Slots 1 x CPU
4 x DIMM 288-pin
2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 modes (with 3rd Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8, x8/x0 modes (with 2nd Generation Ryzen CPU and 3rd Generation Ryzen CPU with Radeon Graphics))
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1
Storage Interfaces SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -connectors: 2 x M.2
Interfaces 1 x LAN (Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x TOSLINK
4 x USB 3.2 Gen 1
7 x USB 3.2 Gen 2
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x LAN (2.5Gigabit Ethernet)
1 x USB-C Gen2
Internal Interfaces 4 x USB 2.0 - header
1 x USB 3.2 Gen 2 - header
2 x USB 3.2 Gen 1 - header
1 x audio - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type AMI
BIOS Features WfM 2.0 support, USB BIOS Flashback, UEFI BIOS, SMBIOS 3.2 support, ACPI 6.2 support
Sleep / Wake Up Wake on LAN (WOL)
Hardware Features Jack retasking, ASUS Q-Design, Q-DIMM, Q-LED, Q-Slot, ASUS Q-Connector, audio jack detect technology, NVIDIA 3-way SLI Technology Support, Q-Code, SupremeFX Shielding technology, AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, Preboot eXecution Environment (PXE), anti-pop function, LANGuard, ESS ES9023P
Miscellaneous
Included Accessories External antenna, 1 x M.2 screw, ROG coasters, RGB (RGBW) LED strip extension cable, ROG big sticker, ROG thank you card, RGB Addressable LED extension cable, Q-Connector
Cables Included 4 x Serial ATA cable
Software Included Drivers & Utilities
Width 30.5 cm
Depth 24.4 cm
Technical data provided by third party. We assume no liability for errors within these data.
