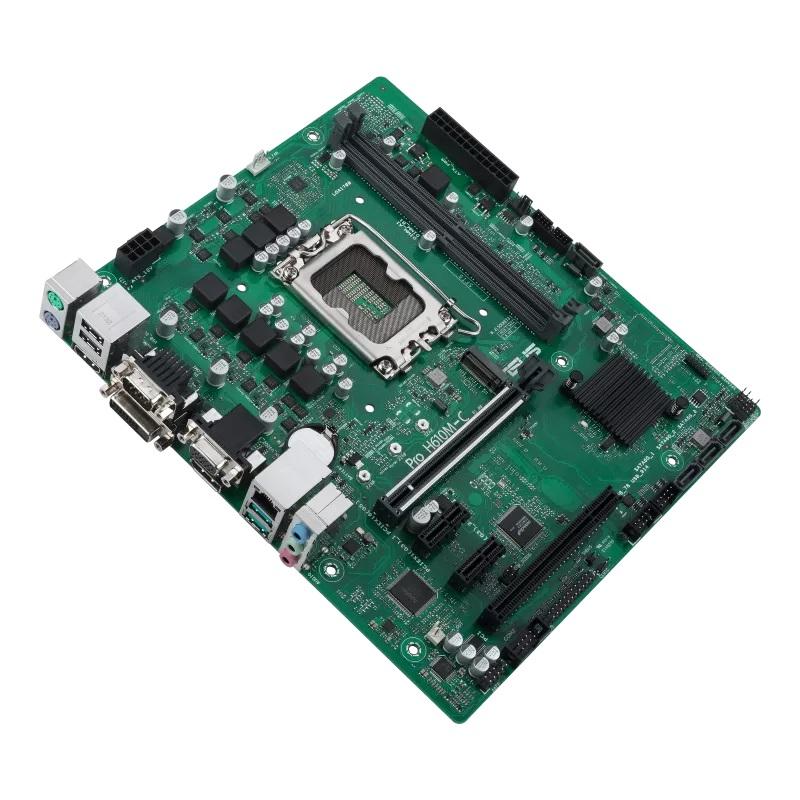

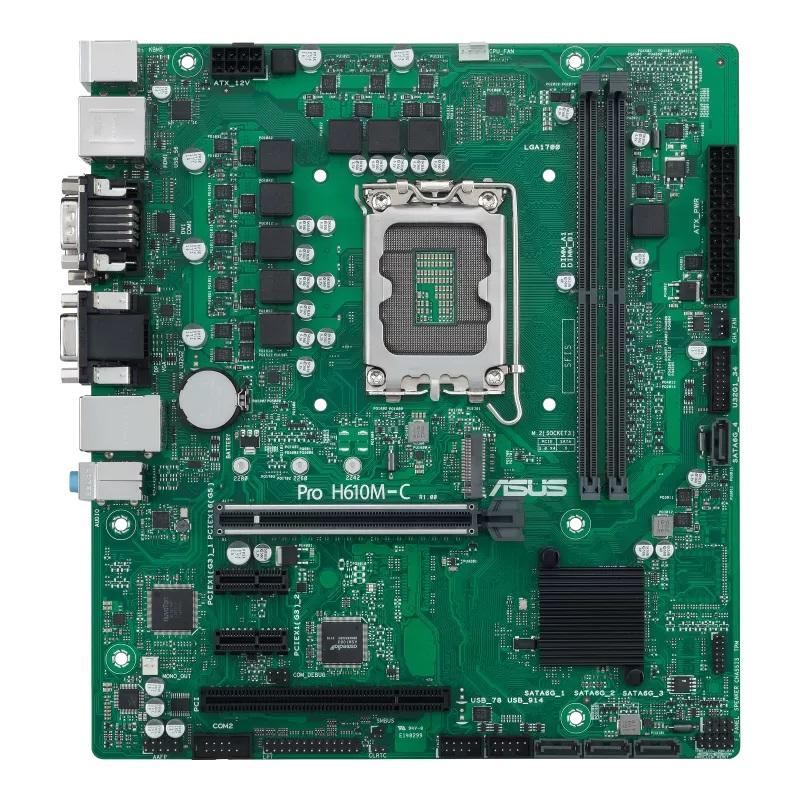

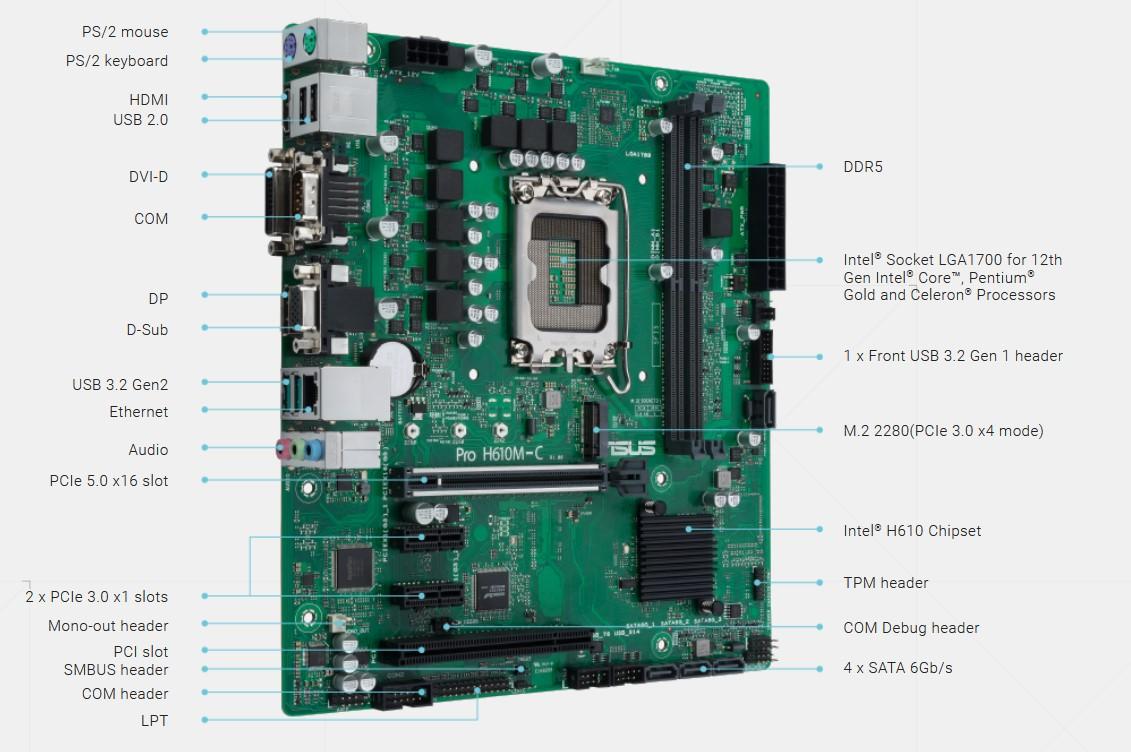

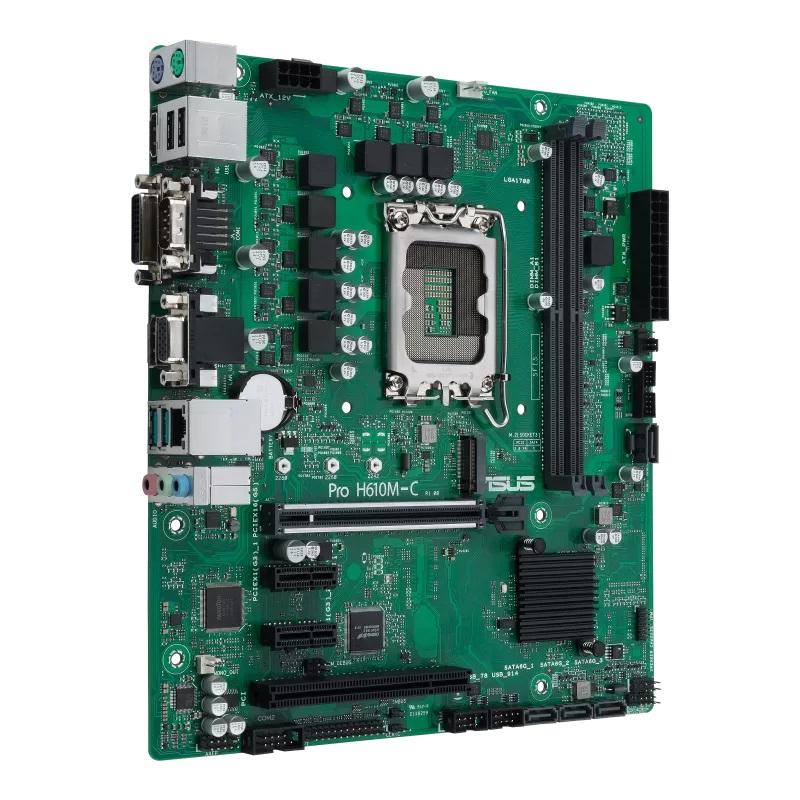

Дънна платка ASUS PRO H610M-C-CSM, LGA1700, 2x DDR5, 1 x M.2, 4 x SATA 6Gb/s, DP, HDMI, DVI, VGA, mATX

Intel^® Socket LGA1700 for 13th Gen Intel^® Core™ Processors & 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors*

Supports Intel^® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

2 x DIMM, Max. 64GB, DDR5 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

*Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

1 x DisplayPort**

1 x D-Sub port

1 x HDMI® port***

1 x DVI-D port

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

**** Supports up to 3 displays simultaneously.

Intel^® 13^th & 12^th Gen Processors

1 x PCIe 5.0 x16 slot

Intel^® H610 Chipset

2 x PCIe 3.0 x1 slots

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel^® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

1 x Intel^® 1Gb Ethernet

Rear USB (Total 4 ports)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Front Panel Jack-retasking

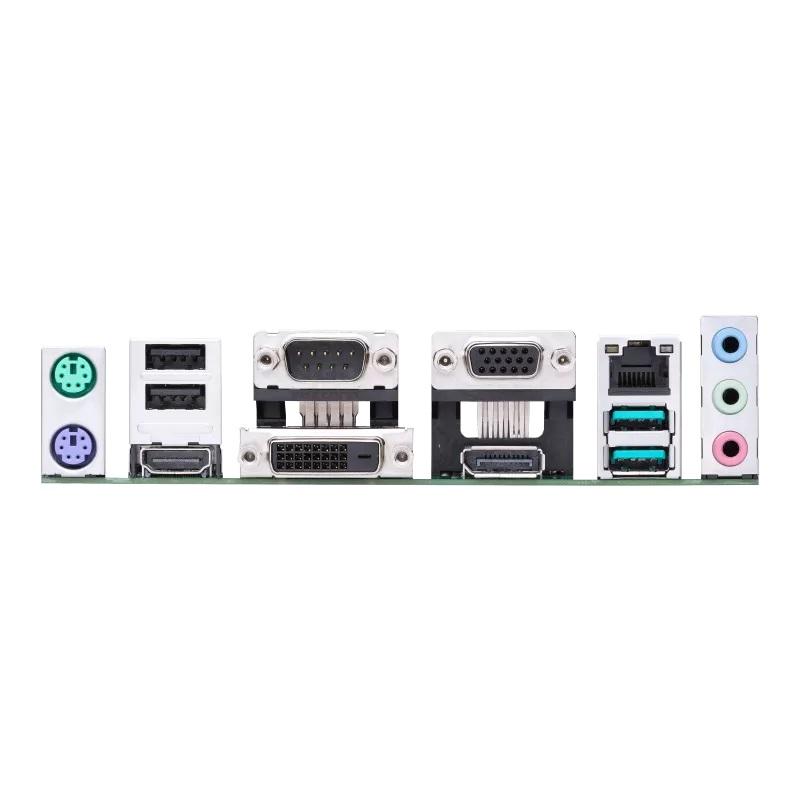

Back Panel I/O Ports

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x D-Sub port

1 x DVI-D port

1 x Intel® 1Gb Ethernet

3 x Audio jacks

1 x PS/2 keyboard (purple) port

1 x PS/2 mouse (green) port

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrude header

1 x COM Port headers

1 x Front Panel Audio header (AAFP)

1 x COM debug header

1 x LPT header

1 x Mono-out header(with Amp IC)

1 x SMBUS header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

ASUS EZ DIY

- Box Headers

Bespoke Motherboard Design & Business Focused Features

- Q-LED Core

- ASUS Self Recovering BIOS

- ASUS Event Log

- ASUS Commercial BIOS kit

- Anti-Moisture

- 24/7 Reliability

ASUS Exclusive Software

IT Management software supported

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 SSD screw package

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

mATX Form Factor
