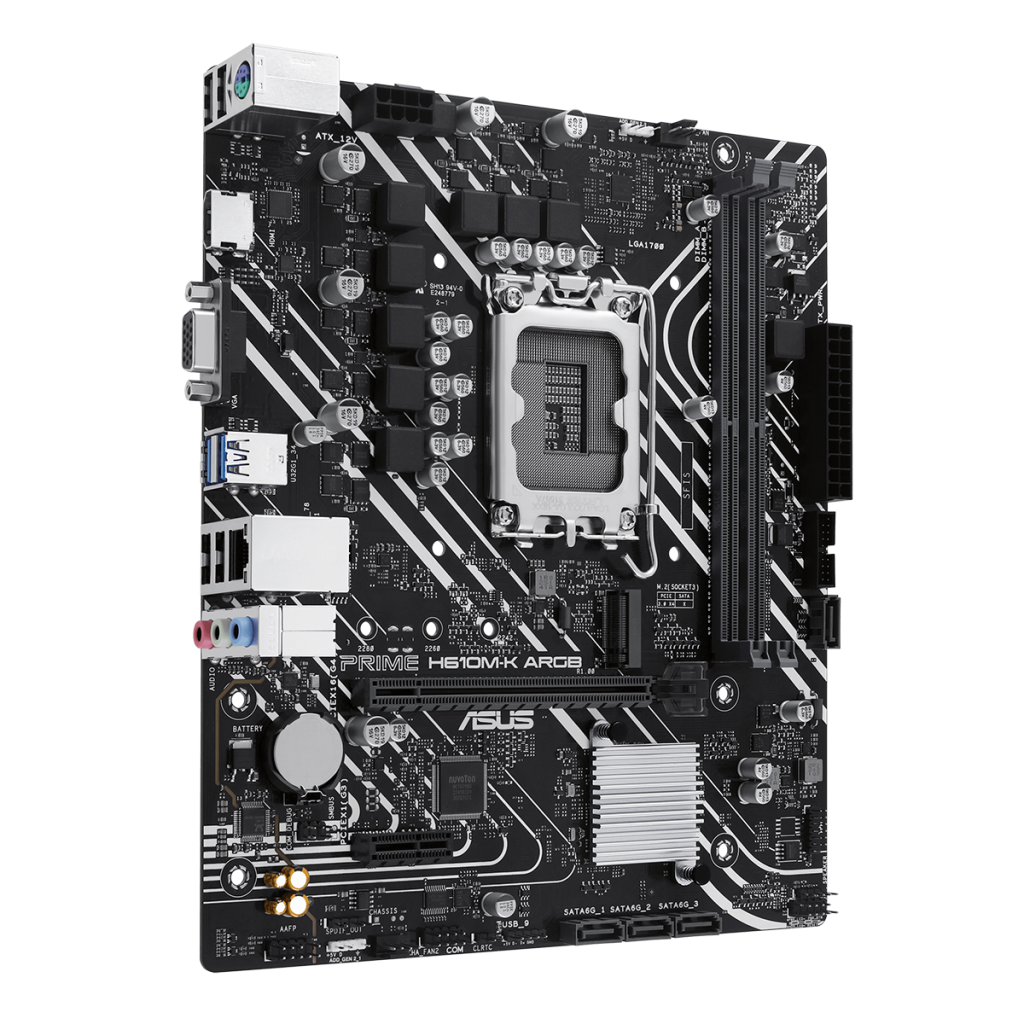

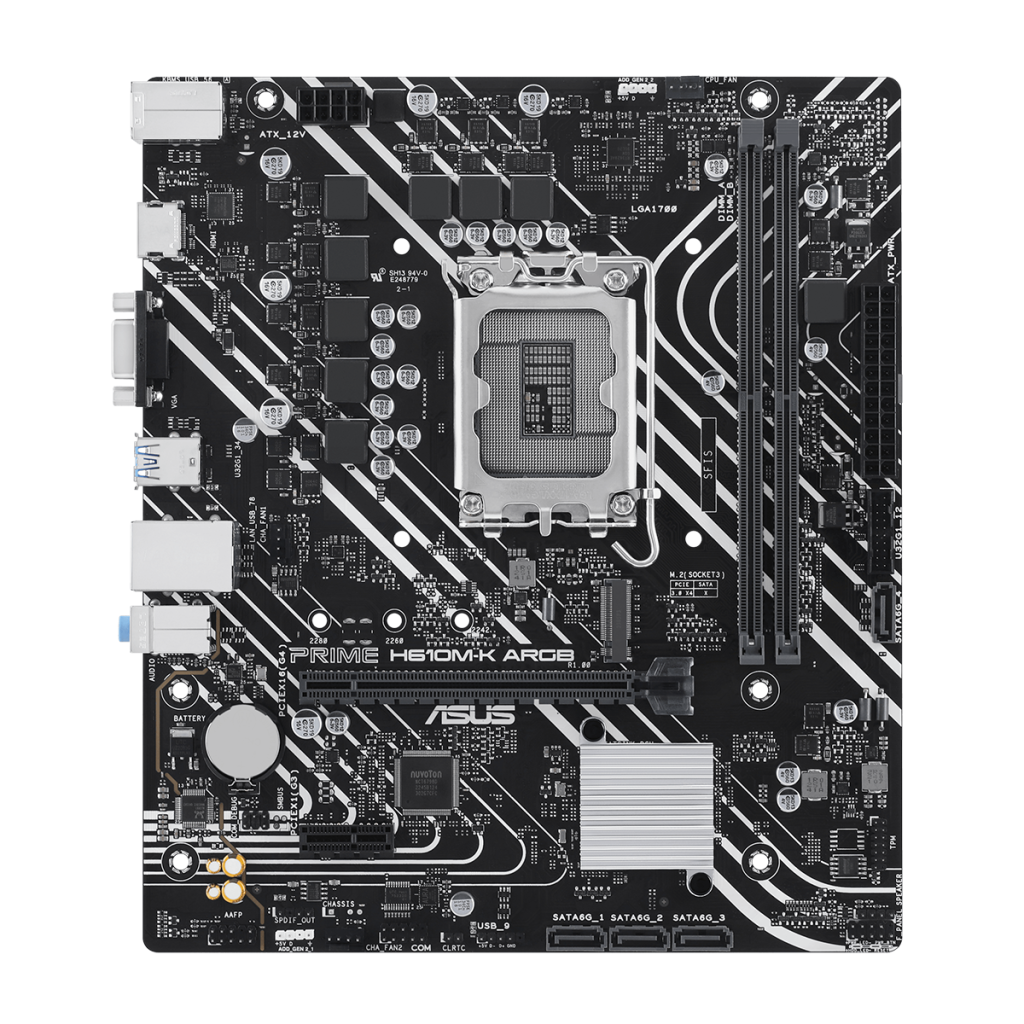

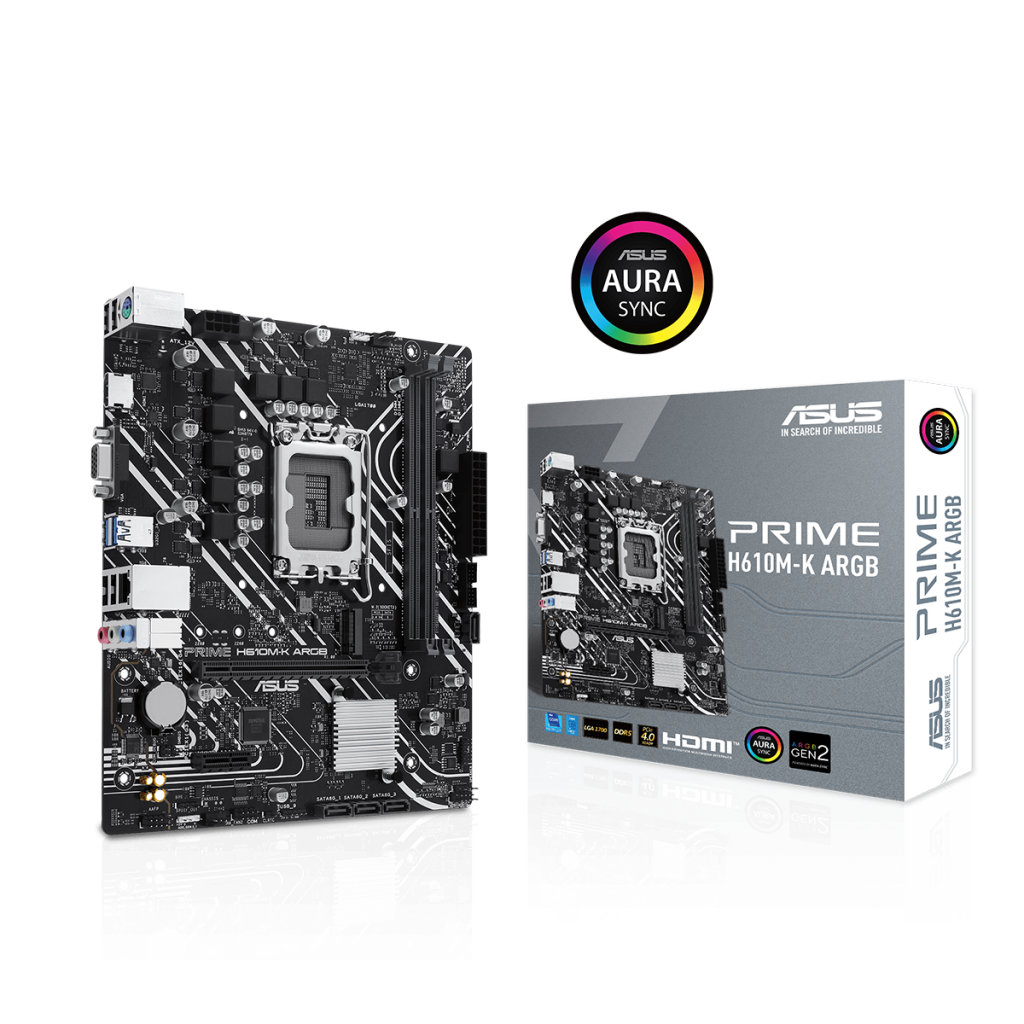

Дънна платка ASUS PRIME H610M-K ARGB D5, LGA 1700 mATX, 2x DDR5, 1x M.2 slot, 4 x SATA 6Gb/s, VGA, HDMI, mATX
изчерпан
Дънна платка ASUS PRIME H610M-K ARGB D5, LGA 1700 mATX, 2x DDR5, 1x M.2 slot, 4 x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка ASUS PRIME H610M-K ARGB D5, LGA 1700 mATX, 2x DDR5, 1x M.2 slot, 4 x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка ASUS PRIME H610M-K ARGB D5, LGA 1700 mATX, 2x DDR5, 1x M.2 slot, 4 x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка ASUS PRIME H610M-K ARGB D5, LGA 1700 mATX, 2x DDR5, 1x M.2 slot, 4 x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка ASUS PRIME H610M-K ARGB D5, LGA 1700 mATX, 2x DDR5, 1x M.2 slot, 4 x SATA 6Gb/s, VGA, HDMI, mATX

Дънна платка ASUS PRIME H610M-K ARGB D5, LGA 1700 mATX, 2x DDR5, 1x M.2 slot, 4 x SATA 6Gb/s, VGA, HDMI, mATX

SKU: ASUS-MB-PRIME-H610M-K-D5
ID: #33566

Характеристики

Поддържани процесори: Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost
CPU Socket: Intel LGA1700
Чипсет: Intel H610
Максимален капацитет RAM памет: 96 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 2
Поддържана памет: DDR5
Graphics технология: Няма
HDMI: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Направи запитване

Описание

Model
PRIME H610M-K ARGB
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H610 Chipset
Memory
2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x VGA port
1 x HDMI™ port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 3 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

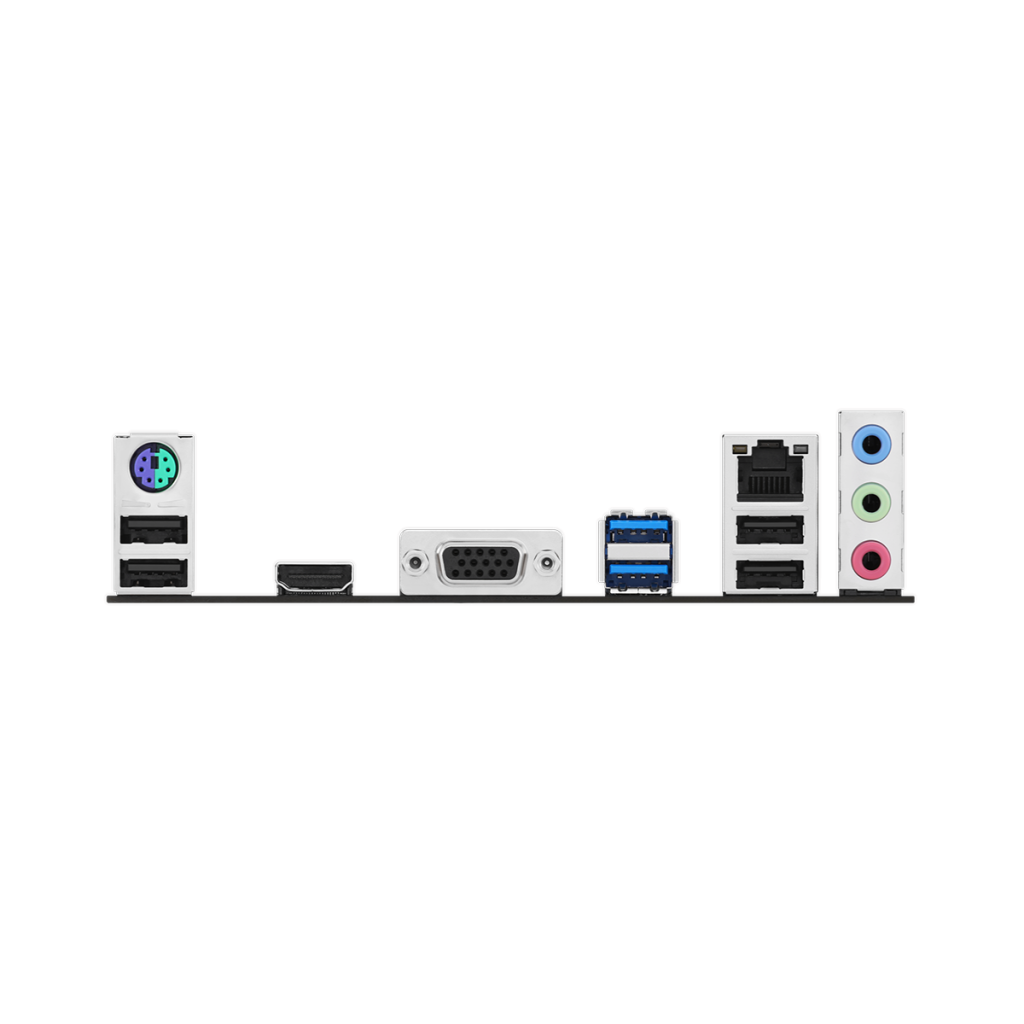

Back Panel I/O Ports
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous
2 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Aura Sync
- Addressable Gen 2 RGB headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancellation
AI Suite 3
- EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

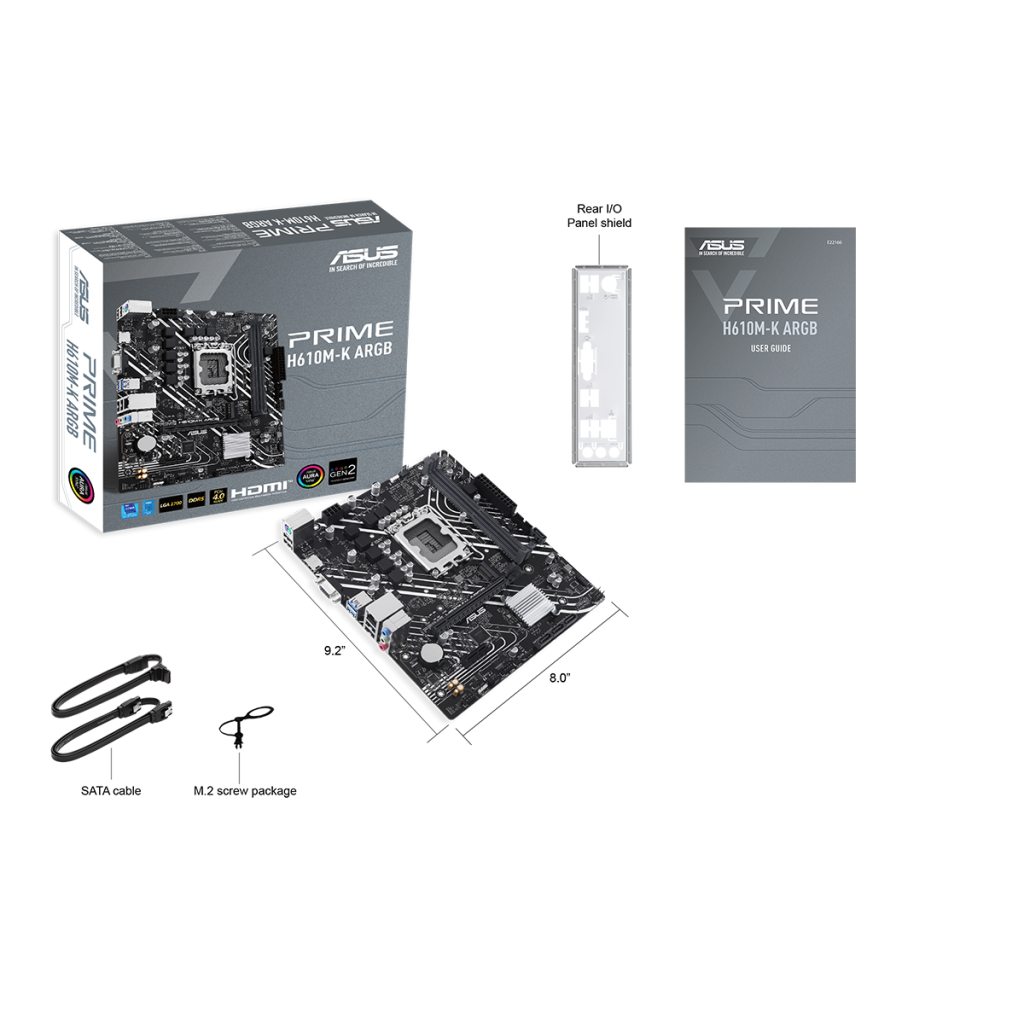

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Anchor
Documentation
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
micro-ATX Form Factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
