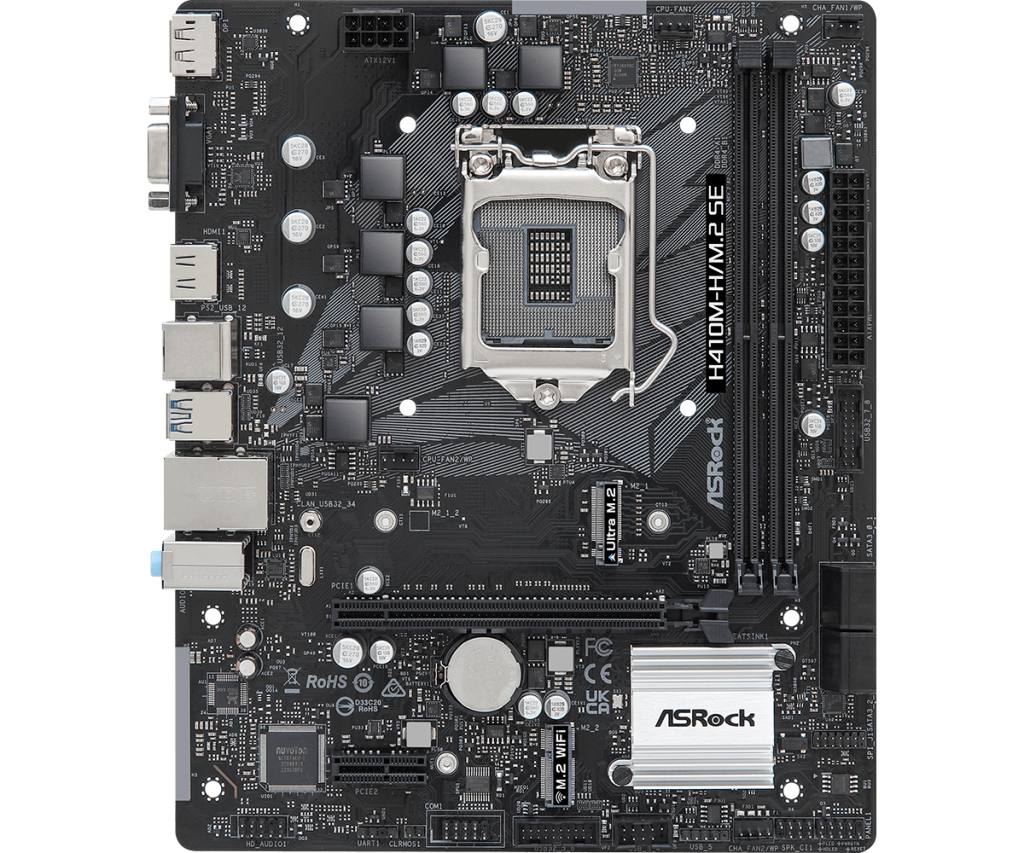

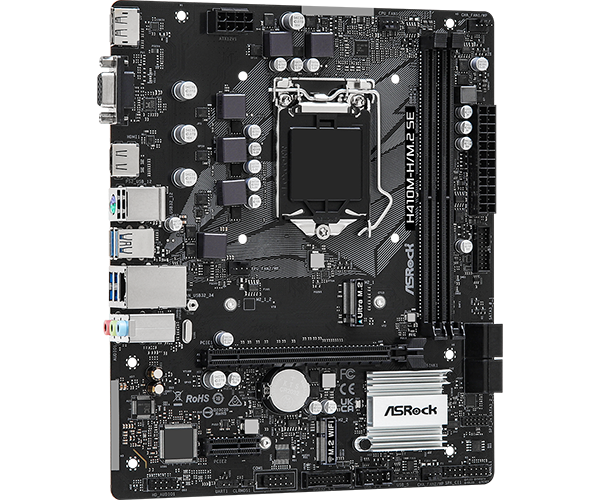

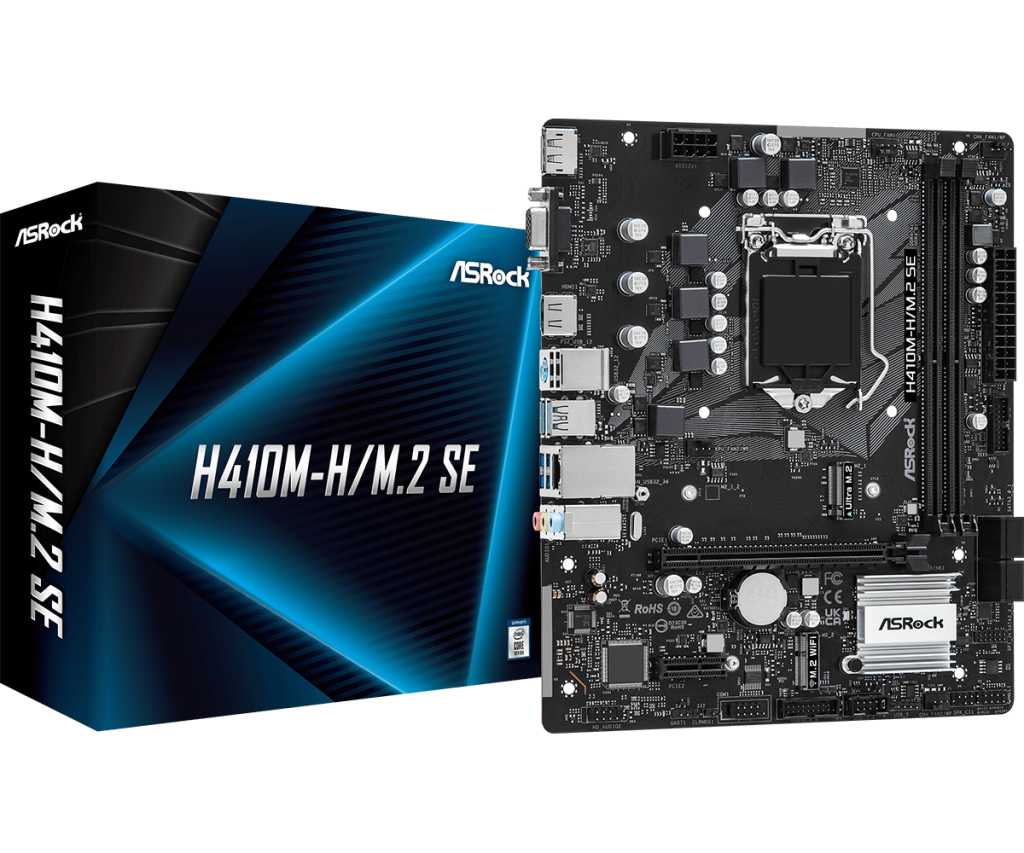

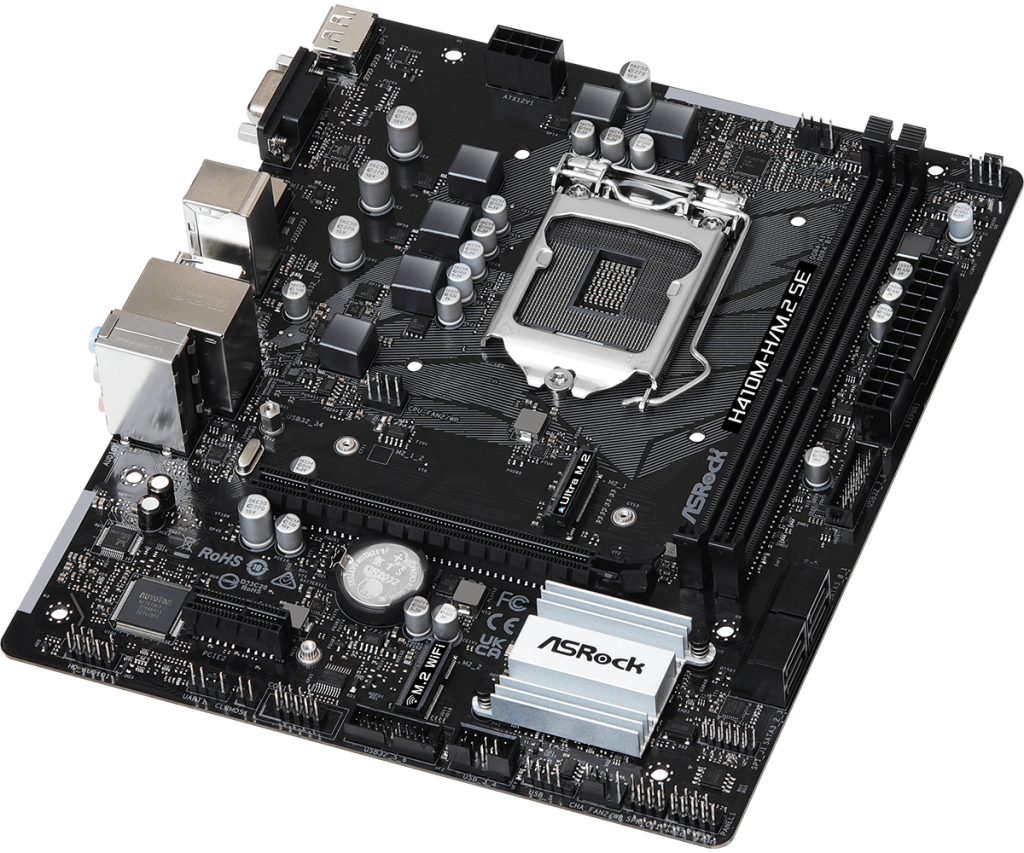

Дънна платка ASROCK H410M-H/M.2 SE, LGA1200, 2x DDR4, 1x M.2, 4x SATA3, VGA, HDMI, DP, mATX
изчерпан
Дънна платка ASROCK H410M-H/M.2 SE, LGA1200, 2x DDR4, 1x M.2, 4x SATA3, VGA, HDMI, DP, mATX
Дънна платка ASROCK H410M-H/M.2 SE, LGA1200, 2x DDR4, 1x M.2, 4x SATA3, VGA, HDMI, DP, mATX
Дънна платка ASROCK H410M-H/M.2 SE, LGA1200, 2x DDR4, 1x M.2, 4x SATA3, VGA, HDMI, DP, mATX
Дънна платка ASROCK H410M-H/M.2 SE, LGA1200, 2x DDR4, 1x M.2, 4x SATA3, VGA, HDMI, DP, mATX
Дънна платка ASROCK H410M-H/M.2 SE, LGA1200, 2x DDR4, 1x M.2, 4x SATA3, VGA, HDMI, DP, mATX

Дънна платка ASROCK H410M-H/M.2 SE, LGA1200, 2x DDR4, 1x M.2, 4x SATA3, VGA, HDMI, DP, mATX

SKU: H410M-H/M.2 SE / H410M-H/M.2 SE
ID: #36447

Характеристики

Поддържани процесори: Supports 10th Gen Intel® Core™ Processors (Socket 1200)
CPU Socket: Intel LGA1200
Чипсет: Intel H370
Максимален капацитет RAM памет: 64 GB
Поддържана памет: DDR4
M.2 слот: 1 M.2 SSD slot (NVMe PCIe Gen3)
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Не
HDMI: 1
DisplayPort: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Направи запитване

Описание

  • CPU
    - Supports 10th Gen Intel® Core™ Processors (Socket 1200)
    - 5 Power Phase design
    - Supports Intel® Turbo Boost Max 3.0 Technology
  • Chipset
    - Intel® H370
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 2 x DDR4 DIMM Slots
    - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 64GB
    - Supports Intel® Extreme Memory Profile (XMP) 2.0

    *Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment
  • Graphics
    - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
    - DirectX 12
    - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
    - Three graphics output options: D-Sub, DisplayPort 1.2 and HDMI
    - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Supports Surge Protection
  • LAN
    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - 1 x Realtek RTL8111H
    - Supports Wake-On-LAN
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Slots
    - 1 x PCI Express 3.0 x16 Slot*
    - 1 x PCI Express 3.0 x1 Slot
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    *Supports NVMe SSD as boot disks
  • Storage
    - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug
    - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    - SPI TPM 2.0 IC
    - 1 x COM Port Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin)*
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    **The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

    ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.

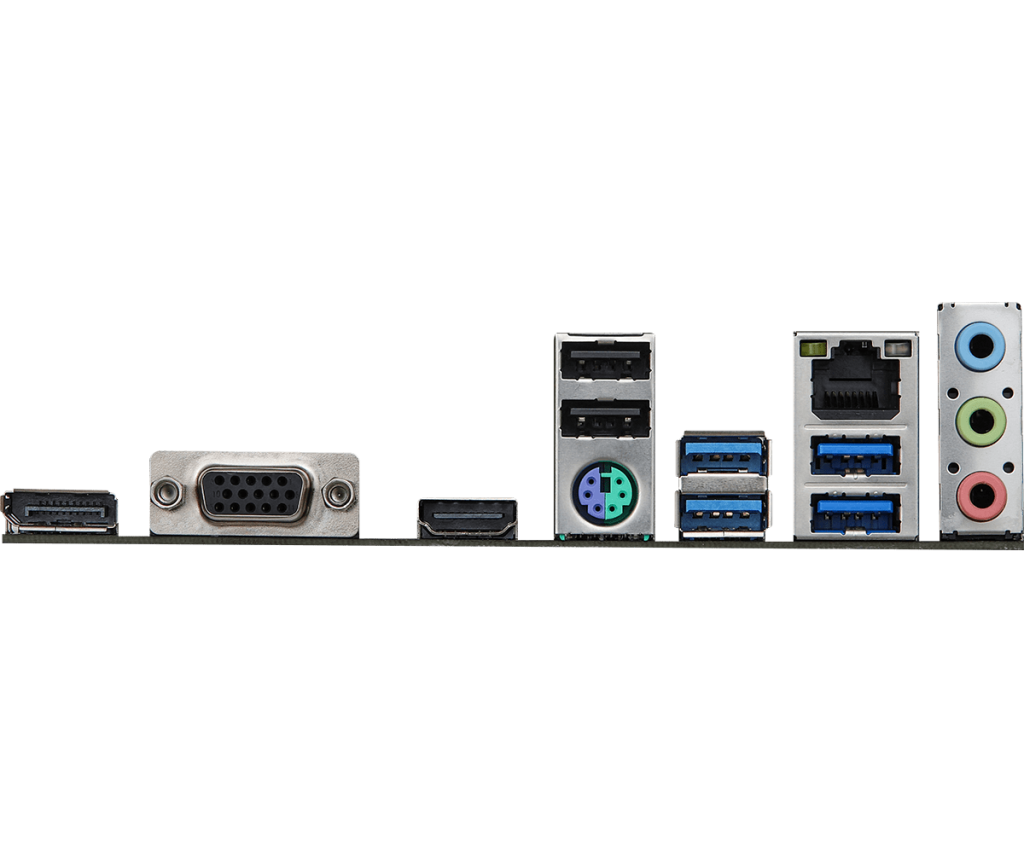

  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x DisplayPort 1.2
    - 1 x HDMI Port
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - User Manual, I/O Shield
    - 2 x SATA Data Cables
    - 2 x Screws for M.2 Sockets
  • Form Factor
    - Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
