| Manufacturer | CISCO | |
| Manufacturer Part No | C9200L-48P-4X-E | |
| Marketing Description | |

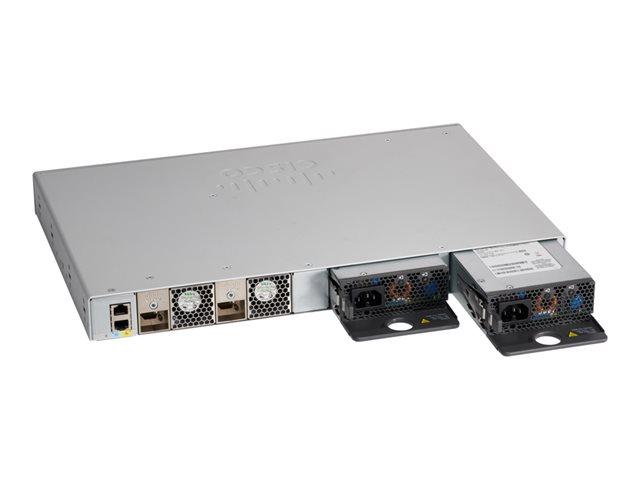

| The Cisco Catalyst 9200 Series switch can help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise. This switch provides security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. The C9200L-48P-4X-E model has 48 ports 1G PoE+ with 4x 10G SFP+ fixed uplinks. Licensing is required. | |
| General | |
| Device Type | Switch - 48 ports - L3 - Managed |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Stacking bandwidth: 80 Gbps Switching capacity: 176 Gbps Forwarding rate: 261.9 Mpps |
| Capacity | Virtual networks: 1 MAC addresses: 16000 IPv4 routes: 11000 IPv4 routing table entries: 3000 IPv6 routing table entries: 1500 Multicast scale: 1000 ACL scale entries: 1500 FNF entries: 16000 Switched virtual interfaces (SVIs): 512 Queues per port (egress): 8 |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP, VRRP, policy-based routing (PBR), MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF |
| Features | EIGRP Stub Routing, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Remote Switch Port Analyzer (RSPAN), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Source-Specific Multicast (SSM), Blue Beacon LED, Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Superior QoS, Committed Information Rate (CIR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
| RAM | 2 GB |
| Flash Memory | 4 GB |
| Built-in Devices | RFID tag |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ 4 x 10GBase-X SFP+ |
| Power | |
| Power Device | Internal power supply (not installed) |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V |
| Miscellaneous | |
| MTBF | 346,270 hours |
| Compliant Standards | Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AES-128, RoHS, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317 |
| Dimensions & Weight | |
| Width | 44.5 cm |
| Depth | 4.4 cm |
| Height | 28.8 cm |
| Weight | 5.5 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
