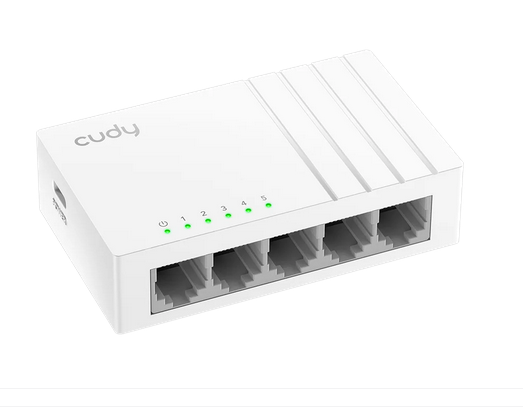

Суич Cudy GS105U, 5x 10/100/1000, Auto-MDI/MDIX, USB-C

Суич Cudy GS105U, 5x 10/100/1000, Auto-MDI/MDIX, USB-C

SKU: GS105U
ID: #41615
Цена: 27,00 лв.
Цената е с вкл. ДДС

Характеристики

Общ брой портове: 5
Основни портове, тип: 5 x 10/100/1000 Mbps
Стандарти: IEEE802.3 10Base-T,IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T,IEEE802.3az
Захранване: DC 5V, 0.5A
Портове USB: 1 x USB Type-C
Размери: 88×52.5×24 mm
Гаранция (месеца): 24

Бърза Поръчка

Описание

Model Version

GS105U

Interfaces Gigabit RJ45 Ports 5
  LED
  • Power
  • Speed/Link/ACT of Each Ethernet Port
  Power Input USB-C Port
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 140 meters at Gigabit
  MAC Address Table 2048
  Max Switching Capacity 10 Gbps
  Max Forwarding Rate 7.44 Mpps
  Jumbo Frame 15 KB
  Packet Buffer 3 Mbit
Power Basic Power Saving True
  Power Methods DC via USB-C Jack
  DC 5V 0.55A
  Power Adapter Input: 100V - 240V, 50Hz
Output: 5V, 0.55A
  Max Power Consumption 2W
  Idle Power Consumption 1.4W
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
Reliability EMS IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: 2kV
  Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical Dimension 88×52.5×24 mm
3.46×2.07×0.94 inches
  Product Weight 53 g (1.87 oz.)
  Casing Material Plastic
  Installation
  • Desktop
  • Wall-mount
Package Content
  • GS105U
  • Installation Guide
  • USB-A to USB-C Power Cable
Ordering Information Retail Package Dimension 92×89×48 mm
3.62×3.5×1.89 inches
  Retail Package Weight EU: 124 g (4.37 oz.)
  Units per Carton 100
  Carton Net Weight EU: 12.4 kg (27.34 lbs)
  Carton Gross Weight EU: 13.2 kg (29.1 lbs)
  Carton Dimension 48.3×26.7×38 cm
19.02×10.51×14.96 inches

https://www.cudy.com/products/gs105u-1-0?_pos=1&_sid=e27403f4b&_ss=r#specs
